header-product IP security camera Hikvision DS-2CD3546G2-IS(2.8mm)(H)(eF) 2688x1520 Indoor & outdoor

IP security camera Hikvision DS-2CD3546G2-IS(2.8mm)(H)(eF) 2688x1520 Indoor & outdoor

IP security camera Hikvision DS-2CD3546G2-IS(2.8mm)(H)(eF) Photo 1

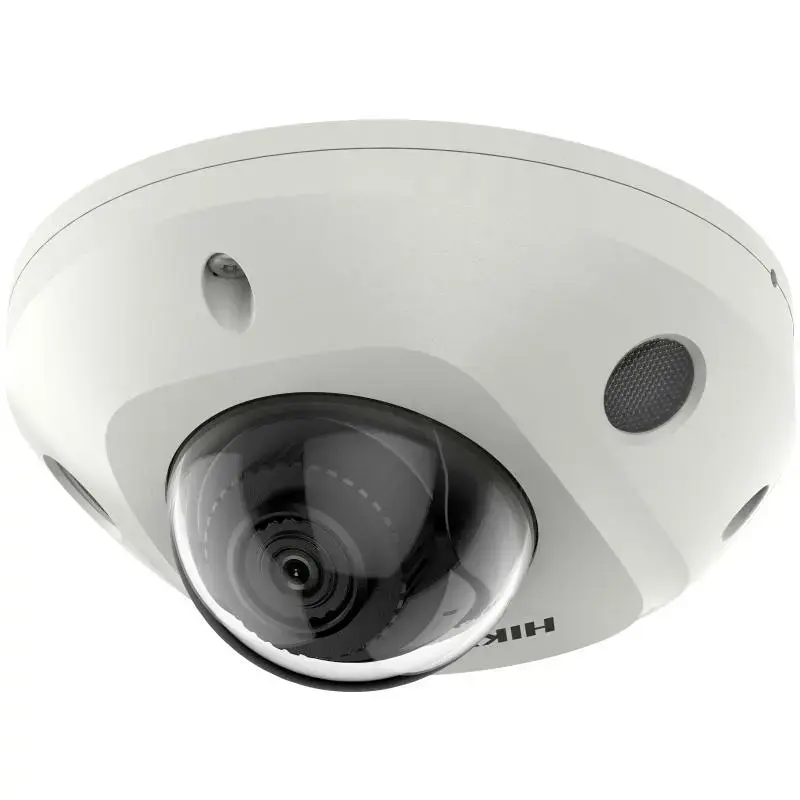

IP security camera Hikvision DS-2CD3546G2-IS(2.8mm)(H)(eF) Photo 2

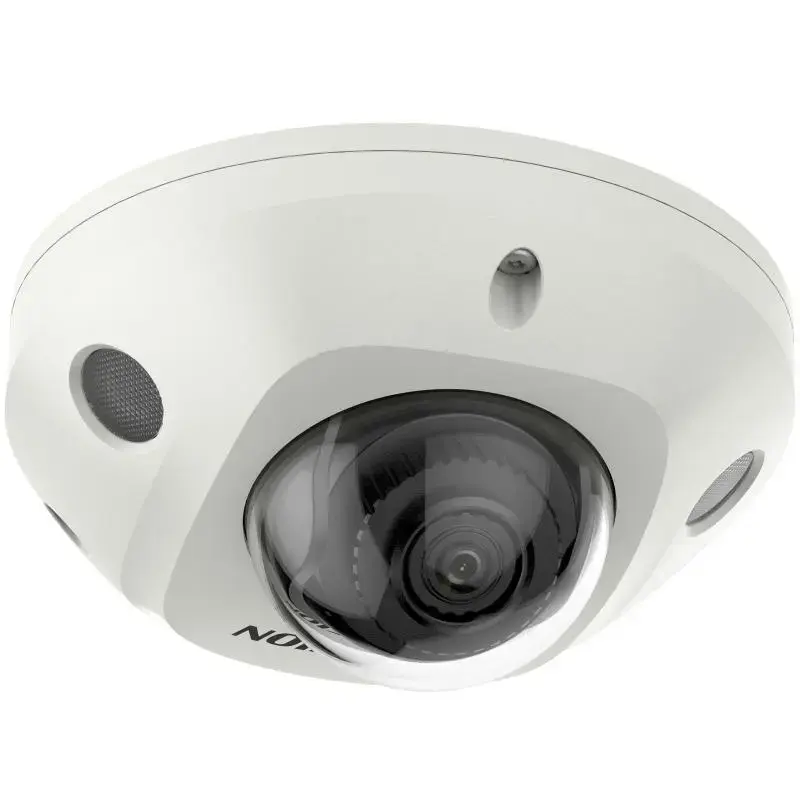

IP security camera Hikvision DS-2CD3546G2-IS(2.8mm)(H)(eF) Photo 3
IP security camera Hikvision DS-2CD3546G2-IS(2.8mm)(H)(eF) Photo 1
IP security camera Hikvision DS-2CD3546G2-IS(2.8mm)(H)(eF) Photo 2
IP security camera Hikvision DS-2CD3546G2-IS(2.8mm)(H)(eF) Photo 3
Out of stock.
View similar!

Short description

The Hikvision DS-2CD3546G2-IS(2.8mm)(H)(eF) is a dome IP security camera designed for both indoor and outdoor use. It features a 2688 x 1520 pixel resolution, 360° rotation, and a wide viewing angle of 101° horizontally and 54° vertically. With a CMOS sensor and a detection distance of 63 m, it provides reliable surveillance capabilities.
Warranty: 2 Years
SKU: 11412609
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Hikvision DS-2CD3546G2-IS(2.8mm)(H)(eF) is a dome IP security camera for indoor and outdoor use. It delivers 2688 × 1520 resolution from a CMOS sensor, offers 360° rotation and a wide field of view (101° horizontal, 54° vertical), and supports detection distances up to 63 m. Built on Hikvision’s Ultra-Series platform with durable hardware, advanced software features and the Hikvision Embedded Open Platform (HEOP), this camera is intended for reliable, scalable surveillance installations.

Advantages

The camera combines high-resolution imaging with a broad viewing angle and full rotation capability, enabling flexible coverage of large areas. Its robust hardware and HEOP support third-party applications and system integration. The design suits both interior and exterior deployment, providing dependable performance and long-range detection for varied surveillance scenarios.

Suitable for

  • Retail stores and shopping centres
  • Office buildings and reception areas
  • Parking lots and outdoor entrances
  • Warehouses and logistics facilities

Key specifications

  • Model: DS-2CD3546G2-IS(2.8mm)(H)(eF)
  • Resolution: 2688 × 1520 pixels
  • Lens focal length: 2.8 mm
  • Rotation: 360°
  • Field of view: 101° horizontal, 54° vertical
  • Image sensor: CMOS
  • Detection distance: up to 63 m
  • Use: indoor & outdoor
  • Platform: Hikvision Ultra-Series with HEOP support
  • EAN: 6942160410913

How to use

Mount the dome camera following manufacturer guidelines for indoor or outdoor placement, ensuring a stable bracket and appropriate height for the monitored area. Connect the camera to your IP network and configure it via the Hikvision management software or compatible third-party applications using HEOP. Adjust the camera orientation and field of view, set detection parameters and recording schedules, and verify image quality and network settings before placing into continuous operation.

Usage recommendations

For best results, position the camera to maximise coverage of critical areas while minimising direct exposure to intense light sources. Regularly update firmware and review configuration settings through the HEOP-compatible management system to maintain security and compatibility with other network devices.

All features
Type:
IP security camera
Weight:
0.385 kg
Flash memory:
60 MB
Supported network protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Operating relative humidity (H-H):
0 - 95
Compatible memory cards:
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Storage temperature (T-T):
-30 - 60
Package weight:
620 g
Form factor:
Dome
Built-in microphone:
Yes
Operating temperature (T-T):
-30 - 60
Camera shutter speed:
1/100000 - 1/3
Ethernet LAN:
Yes
Storage relative humidity (H-H):
0 - 95
Height:
57.4 mm
Signal-to-Noise Ratio (SNR):
52 dB
Sensor type:
CMOS
Minimum illumination:
0 lx
Optical sensor size:
25.4 / 3
Connectivity technology:
Wired
Maximum resolution:
2688 x 1520
Product colour:
White
Number of users:
32 user(s)
Networking standards:
IEEE 802.3af
LED type:
IR
Tilt angle range:
0 - 75
Bluetooth:
No
Audio formats supported:
AAC-LC, G.711, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, MP3, PCM
Video compression formats:
H.264, H.264+, H.265, H.265+
Bit rate:
32 Kbps - 8 Mbps
Ethernet LAN (RJ-45) ports:
1
Angle of rotation:
360 °
Noise reduction:
Yes
Pan range:
-30 - 30
Diameter:
110 mm
Dynamic range:
120 dB
Languages support:
Multi
Progressive scan:
Yes
Wi-Fi:
No
Card reader integrated:
Yes
Placement supported:
Indoor & outdoor
Frame rate:
30 fps
Mirror:
Yes
Reset button:
Yes
Package depth:
134 mm
Package height:
108 mm
Package width:
134 mm
Manual:
Yes
Supported graphics resolutions:
640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Supported video modes:
360p, 480p, 720p, 1080p, 1520p
Housing material:
Aluminium, Plastic
Maximum aperture number:
1.4
Night vision:
Yes
Live view:
Yes
Audit log:
Yes
Fixed focal length:
2.8 mm
Mounting type:
Ceiling
Video motion detection:
Yes
IP address filtering:
Yes
Video formats supported:
H.264, H.264+, H.265, H.265+
DC output voltage:
12
DC output current:
0.62 A
Maximum memory card size:
512 GB
Number of languages:
33
Ethernet interface type:
Fast Ethernet
RAM capacity:
400 MB
Supported programming languages:
C, C++
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP67
Power source type:
DC, PoE
Total megapixels:
4 MP
Image quality adjustment:
Brightness, Contrast, Saturation, Sharpness
Back Light Compensation (BLC):
Yes
Built-in HDD:
No
Night vision distance:
30
Video recording:
Yes
Auto-tracking:
Yes
HTTPS encryption:
Yes
Wide Dynamic Range (WDR):
Yes
Infra-red wavelength:
850 nm
Day/night mode:
Yes
Alarm input/output:
Yes
Number of cameras:
1
Power consumption (max):
7.5 W
Fog proof:
Yes
IK code:
IK08
Video streaming:
Yes
Sample rates:
8 - 48
Password protection:
Yes
Alarm input channels:
1
Alarm output channels:
1
Number of lenses:
1
Privacy masking:
Yes
Power consumption (Power over Ethernet (PoE)):
8.5 W
Infrared (IR) cut-off filter:
Yes
Digital watermark:
Yes
Number of sensors:
1
eMMC capacity:
2 GB
Intelligent Video Surveillance (IVS) system features:
Face detection, Intrusion, People counting, Region entrance detection, Region exiting detection
Highlight Compensation (HLC):
Yes
Bit rate control:
Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Region of Interest (ROI) encoding:
Yes
Smart IR:
Yes
Observe distance:
25 m
Detect distance:
63 m
Recognize distance:
12 m
Identify distance:
6 m
Noise reduction technology:
3D noise reduction
Heartbeat:
Yes
Camera pan control:
Yes
Camera tilt control:
Yes
Sustainability compliance:
Yes
Bit rate range:
16 - 320
Number of simultaneous live view channels:
6 channels
User access level:
Administrator, Operator, User
Password reset via email:
Yes
Flash log:
Yes
Digest authentication:
Yes
Lens viewing angle, horizontal:
101
Lens viewing angle, vertical:
54
Lens viewing angle, diagonal:
122
Number of Privacy masking areas:
4
Network access storage (NAS):
Yes
Open platform version:
HEOP 2.0
AI software framework:
Caffe, ONNX, PaddlePaddle, TensorFlow
Compliance certificates:
BIS, UL, WEEE, CB, CE, REACH, RoHS
