Hikvision DS-D2046LU-Y video wall display LCD Indoor
Product specification Hikvision DS-D2046LU-Y video wall display LCD Indoor
Description
Hikvision DS-D2046LU-Y. Display diagonal: 116.8 cm (46"), Display resolution: 1920 x 1080 pixels, Display technology: LCD, Display brightness: 500 cd/m², HD type: Full HD. Product colour: Black
Specifications
Display
- Display diagonal: iagonal of the visible part of the screen expressed in centimeters and inches.
- 46 "
- Display technology:
- LCD
- HD type:
- Full HD
- Display resolution:
- 1920 x 1080
- Pixel pitch:
- 0.53 x 0.53
- Contrast ratio (typical):
- 1200:1
- Display brightness:
- 500 cd/m²
- Viewing angle, vertical:
- 178 °
- Viewing angle, horizontal:
- 178 °
- Display number of colours:
- 16.78 million colours
- Active display area (W x H):
- 1018.1 x 572.7
- LED backlighting type:
- Direct-lit LED
Design
- Product colour:
- Black
- Placement supported:
- Indoor
- Panel mounting interface:
- 600 x 400
- Bezel width (top):
- 2.3 mm
- Bezel width (bottom):
- 1.2 mm
- Orientation:
- Landscape
Ports & interfaces
- DVI port:
- Yes
- HDMI ports quantity:
- 2
- DisplayPorts quantity:
- 2
- VGA (D-Sub) input ports:
- 1
- USB ports quantity:
- 1
- USB port:
- Yes
- DisplayPorts in:
- 1
- DisplayPorts out:
- 1
- HDMI input ports quantity:
- 1
- HDMI output ports quantity:
- 1
Ergonomics
- VESA mounting:
- Yes
Performance
- Purpose:
- Universal
Network
- Ethernet LAN:
- Yes
Power
- Energy efficiency class (SDR): Energy efficiency class is a standard classification that is used all over Europe and which is understandable at first sight. Products can be efficiently compared according to classes, starting from A (the most energy efficient class), and ending with G (the most energy-intensive class). The classification of energy efficiency is based on annual energy consumption which is being calculated on the basis of several different parameters.
- F
- Energy consumption (SDR) per 1000 hours: Power consumption in switched-on state expressed in W.
- 58 kWh
- Power consumption (typical): Power consumption in switched-on state expressed in W.
- 111 W
- Power consumption (standby):
- 0.5 W
- AC input frequency:
- 50 - 60
- AC input voltage:
- 100 - 240
Weight & dimensions
- Weight:
- 19.8 kg
- Height:
- 576.57 mm
- Width:
- 1021.98 mm
- Depth:
- 72.25 mm
Operational conditions
- Operating relative humidity (H-H):
- 10 - 80
- Storage temperature (T-T):
- -20 - 60
- Operating temperature (T-T):
- 0 - 40
- Storage relative humidity (H-H):
- 10 - 80
Packaging content
- Remote control included:
- Yes
- Cables included:
- LAN (RJ-45), HDMI, AC
- Mounting kit:
- Yes
Packaging data
- Package weight:
- 24420 g
- Package depth:
- 414 mm
- Package height:
- 783 mm
- Package width:
- 1214 mm
Reasons to buy
0.88 mm Ultra narrow bezel-to-bezel width
The LCD screen produces a near-seamless picture across multiple screens without interruption.
Additionally, the LCD screen helps to eliminate any potential image distortion and provides a more immersive viewing experience.
Additionally, the LCD screen helps to eliminate any potential image distortion and provides a more immersive viewing experience.

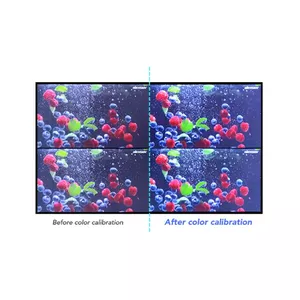

Precise color calibration
Hikvision uses pixel-level intelligent algorithms to perform point-by-point color calibration on each pixel of the LCD

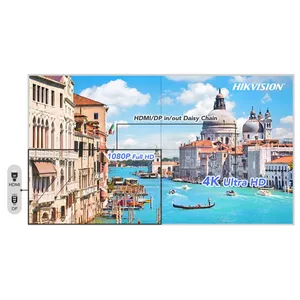

Advanced UHD splicing
With daisy chain design utilizing HDMI or DP ports, LCD screens can project UHD content by multiple screens splicing up to 5×6 without requiring an external controller devices
Multi scenes display mode
Provide different display modes to meet different scene requirements
