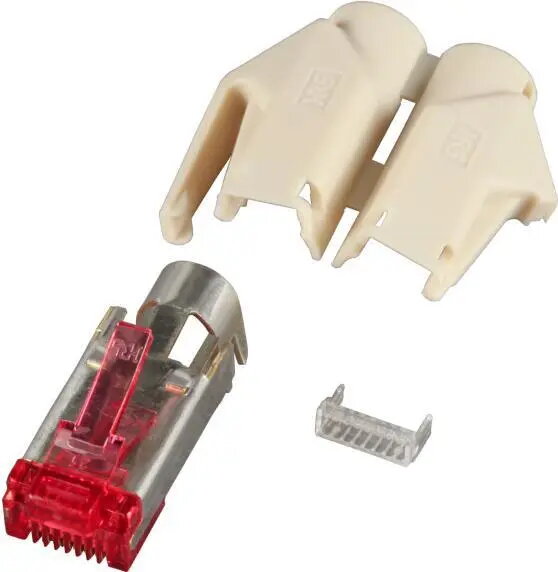

Modular RJ-45 Insert Hirose H7641.1-100 Cat6 beige/red 27/7, pack of 100

Hirose H7641.1-100 modular RJ-45 inserts are Cat6-rated termination modules supplied in a pack of 100 with beige and red housings and 27/7 conductor wiring. Designed for use in structured cabling and patch panel assemblies, these compact inserts allow installers to achieve consistent Cat6 performance in horizontal and backbone LAN segments. The color differentiation supports quick identification and logical zoning in network installations while the 27/7 conductor construction offers reliable contact and flexibility during termination.

Advantages

These Cat6 RJ-45 inserts deliver predictable electrical performance suitable for gigabit Ethernet and other high-speed network applications. The modular format enables fast assembly and straightforward replacement within patch panels or keystone-style frames. Dual-color housings simplify cable management and labeling across racks and closets, and the stranded 27/7 conductors ease termination and reduce the risk of broken wires during installation.

Suitable for

• Structured cabling in offices and commercial buildings
• Patch panel population and maintenance
• Data centre horizontal and vertical cabling
• IT room upgrades and port colour-coding
• Temporary or permanent network reconfiguration

Key specifications

• Cable category: Cat6 performance suitable for gigabit and multi-gigabit networks
• Conductor construction: 27 strands per conductor (27/7) for flexibility
• Housing colours: beige and red for visual identification
• Form factor: modular RJ-45 insert for keystone/patch panel use
• Quantity: pack of 100 inserts

How to use

Prepare the structured cable according to standard termination practices, strip the outer jacket, and arrange individual conductors following the chosen wiring scheme. Insert the conductors into the modular RJ-45 insert ensuring correct pair alignment and fully seat each conductor into the contacts. Use an appropriate punch-down or insertion tool if required to secure connections, then snap the insert into the compatible keystone or patch panel aperture. Test each terminated port with a network tester to verify continuity and performance.

Usage recommendations

For consistent Cat6 performance, adhere to recommended cable bend radius and separation from electromagnetic interference sources. Use color-coding to match site documentation and perform link certification after installation. Replace any insert that shows physical damage or degraded contact resistance.
