header-product Splicing connector HiSmart EL240470 for 5 conductors 0.5–6.0 mm², 40 A, 450 V
12.99 €

Splicing connector HiSmart EL240470 for 5 conductors 0.5–6.0 mm², 40 A, 450 V

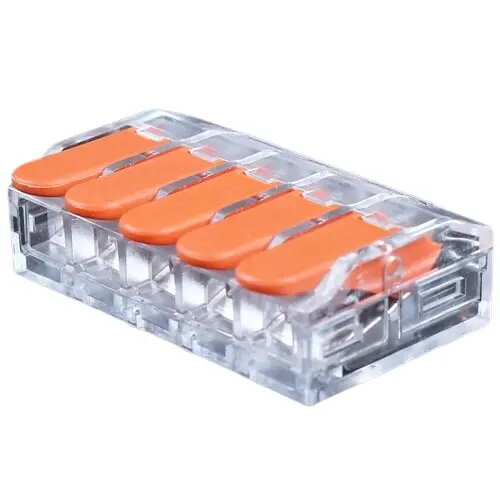

Splicing connector HiSmart EL240470 5x 0.5–6.0 mm² Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Splicing connector HiSmart EL240470 for 5 conductors 0.5–6.0 mm², 40 A, 450 V

{{email}}
You keep track of price changes

Splicing connector HiSmart EL240470 for 5 conductors 0.5–6.0 mm², 40 A, 450 V

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

HiSmart EL240470 is a 5-conductor splicing connector designed for conductors from 0.5 to 6.0 mm², rated for 40 A and 450 V. It enables safe, compact electrical connections of multiple wires without soldering, suitable for panel work, junctions, appliance repair and installation tasks. The connector provides reliable contact, simple insertion and secure clamping for durable electrical joints.
Available for order: 5 pcs.
Warranty: 2 Years
SKU: 11515703
Manufacturer: HiSmart
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
07.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
10.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 €
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
10.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

HiSmart EL240470 is a compact 5-conductor splicing connector for conductors from 0.5 to 6.0 mm², rated for 40 A and 450 V. It enables fast, secure electrical connections of solid, fine-stranded or multi‑strand conductors without soldering. The transparent polycarbonate housing provides visual inspection of contacts while the lever mechanism ensures reliable clamping and saves space in junction boxes. The set includes 20 connectors.

Advantages

The connector supports a wide conductor range (0.5–6.0 mm²) and is rated for up to 40 A and 450 V. Its transparent housing allows quick visual verification of proper insertion and contact. The lever-operated clamping simplifies installation and provides secure, vibration-resistant connections. The compact dimensions make it suitable for tight enclosures and panel work.

Suitable for

  • Splicing and branching of household and industrial wiring
  • Installation and maintenance of electrical panels and junction boxes
  • Appliance repair and connection of multiple conductors
  • Prototyping and temporary wiring where quick connections are needed

Key specifications

  • Number of connection points: 5
  • Conductor cross-sectional area: 0.5–6.0 mm²
  • Rated current: 40 A
  • Rated voltage: 450 V
  • Rated surge voltage (II/2): 4 kV
  • Insulating material: Polycarbonate (PC)
  • Operating temperature: -25 to +85 °C
  • Dimensions: 38 × 23 × 11.5 mm
  • Color: transparent / orange
  • Set quantity: 20 pcs

How to use

Open the lever, insert stripped conductor ends fully into the corresponding ports and close the lever until it locks. Ensure each conductor is inserted to the depth where the transparent housing shows correct contact. Use one connector per splicing group and verify the connection by a gentle pull test. For multiple conductors in one port follow the conductor range limits and avoid overfilling the cavity.

Usage recommendations

Check conductor insulation type and cross-section before use, respect the rated current and voltage limits, and perform a continuity or insulation test after installation. Do not exceed the specified conductor range or the connector’s rated electrical values.

Description
