Barcode Scanner HiSmart Industrial 1D/2D HS084820 — Industrial 1D/2D Imager

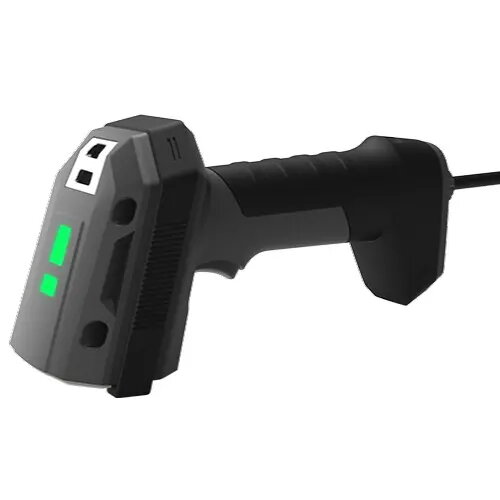

Industrial 1D/2D barcode scanner IH50 is a wired desktop scanner with a 3 m cable, designed for continuous use in demanding industrial and retail environments. It reads both 1D and 2D barcodes at long range and handles blurred, wrinkled, low-contrast, and high-density codes. The device is compatible with Linux, Windows, and macOS and includes a 3200 mAh battery for extended operation. A CMOS image sensor combined with laser aiming enables accurate decoding in low-light conditions, and an IP65-rated rugged housing provides dust protection, splash resistance and drop tolerance.

Advantages

The scanner delivers fast decoding performance and supports a wide range of barcode symbologies (1D and 2D). Long scan distance and precise aiming improve throughput in high-volume tasks. Cross-platform compatibility (Linux, Windows, macOS) and multiple interface options make integration straightforward. Rugged construction, IP65 protection and drop resistance up to 2 m increase reliability in warehouses and industrial settings. The included 3 m cable and on-device indicators simplify setup and operation.

Suitable for

• Warehouse inventory and logistics
• Retail checkout and stock management
• Supermarkets and point-of-sale systems
• Healthcare asset tracking and patient management
• Industrial production line scanning

Key specifications

• Image sensor: CMOS, image resolution 1280 × 800 pixels
• Light source: white LED illumination, laser aiming
• Scan speed: 60 fps
• Decoding depth: 40–470 mm (example: 13 mil EAN-13, PCS=90%)
• Minimum resolution: 3 mil; print contrast: ≥ 15%
• Ambient light tolerance: 0–5,000 lux (fluorescent), 0–100,000 lux (daylight)
• Interfaces: USB HID, USB-VCOM, RS-232
• Current consumption: < 280 mA (operating), < 42 mA (standby)
• Operating temperature: -20°C to +50°C; storage: -20°C to +60°C
• Operating humidity: 5%–95% RH (non-condensing)
• Protection rating: IP65
• Material: flame-retardant ABS and PC
• Dimensions: 98 × 76 × 204 mm; weight: 270 g (scanner only), 485 g (with cable)
• Cable length: 3 m

How to use

Connect the IH50 scanner to a compatible host using the USB or RS-232 interface and install any required drivers or set the device to the appropriate interface mode. Aim the scanner at the barcode using the laser guide and present the code within the decoding window; the CMOS sensor captures the image and decodes it automatically. Use the LED and buzzer indicators to confirm successful reads. For continuous operation, ensure the internal battery is charged; the built-in power management reduces current draw in standby.

Usage recommendations

The scanner is intended for indoor industrial and commercial use. To maintain decoding accuracy, keep the scanning window clean and avoid exposing the device to direct strong sunlight for extended periods. For best results with small or high-density codes, position the barcode within the specified decoding depth (40–470 mm) and ensure sufficient contrast between code and background.
