HDD Western Digital 8 TB Ultrastar DC HC320

Name: HDD Western Digital 8 TB 0B36400
Brand: HITACHI
SKU: 720786
Price: 563.49 EUR
Availability: OutOfStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

HDD Western Digital 8 TB 3.5" SAS Ultrastar DC HC320

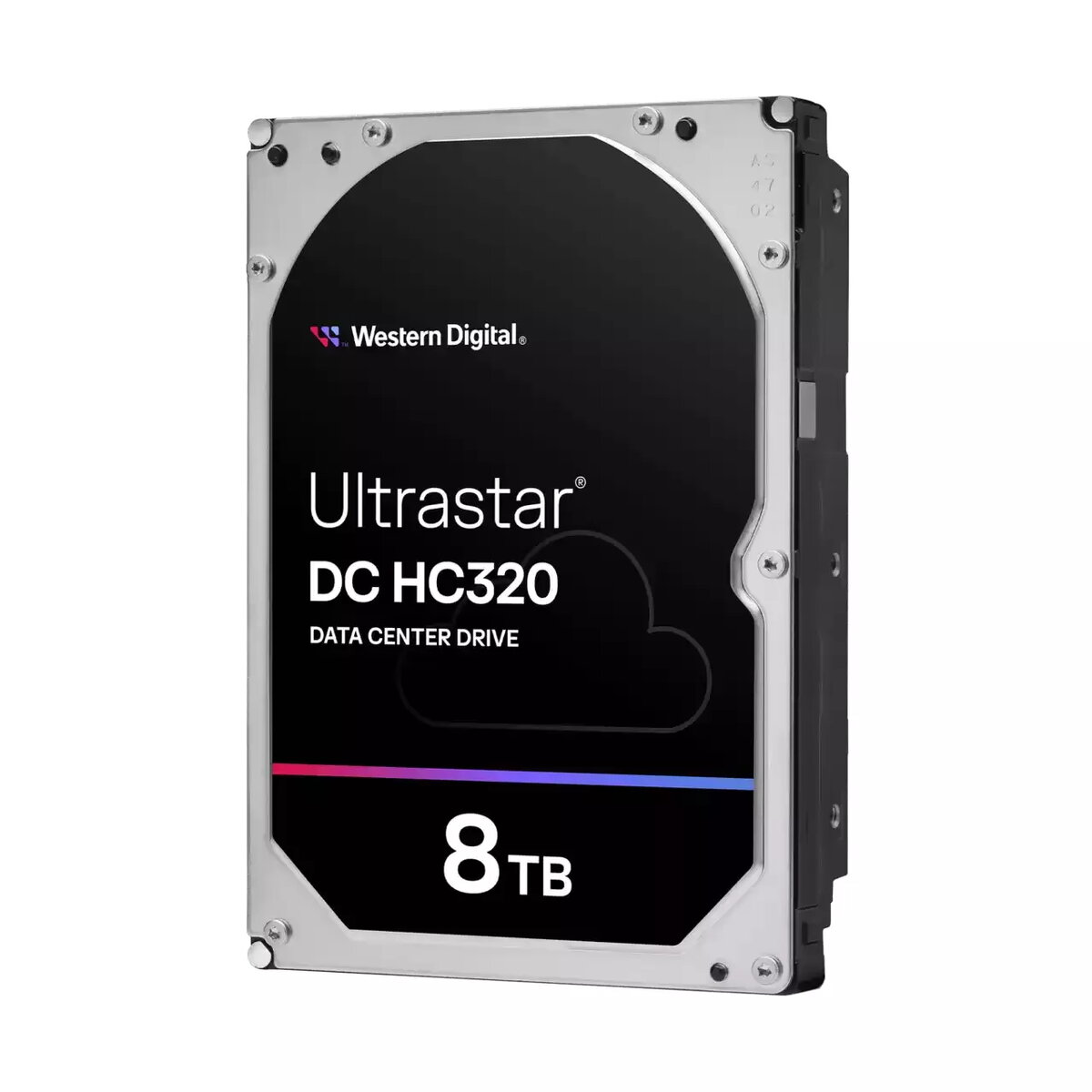

HDD Western Digital 8 TB Ultrastar DC HC320 Photo 1

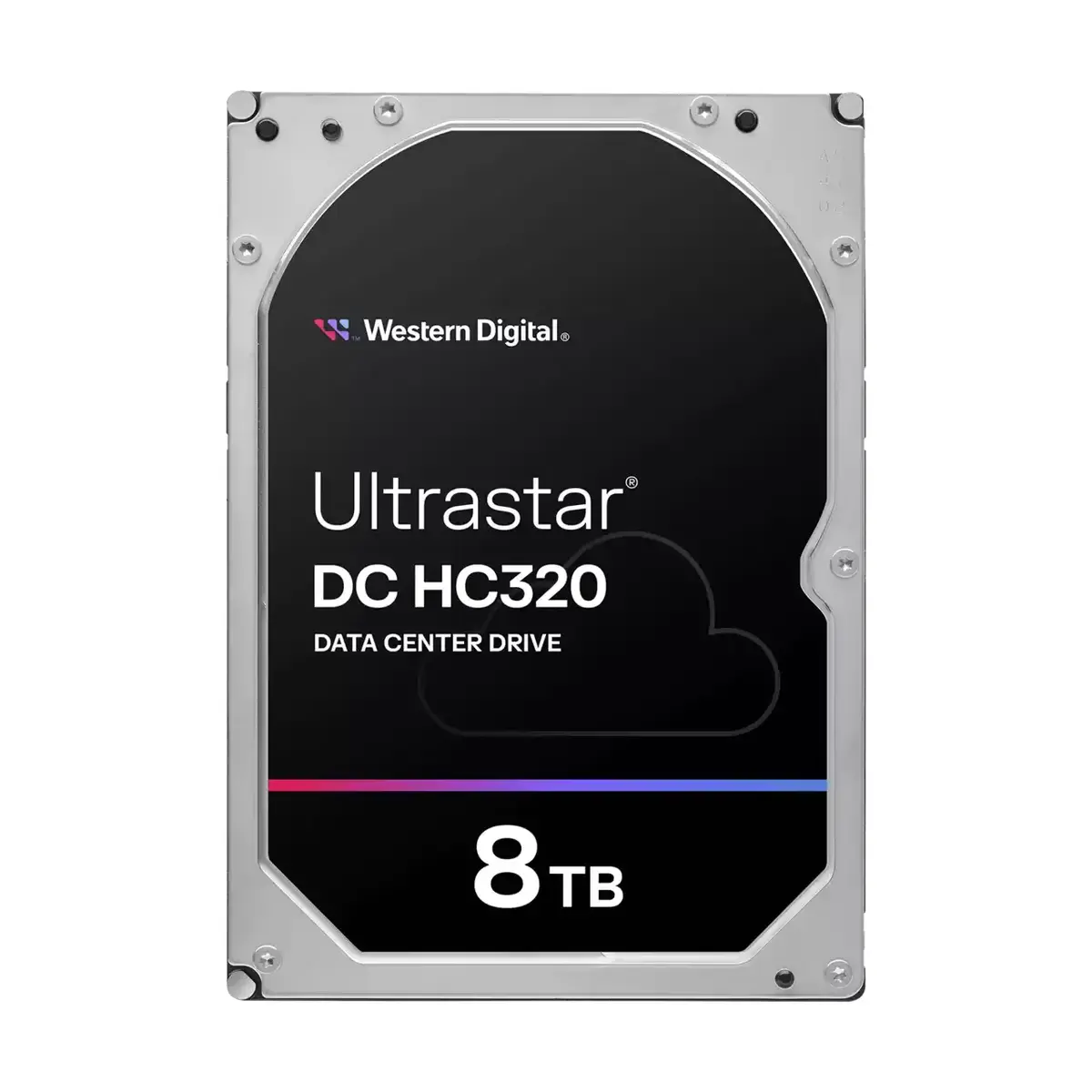

HDD Western Digital 8 TB Ultrastar DC HC320 Photo 2

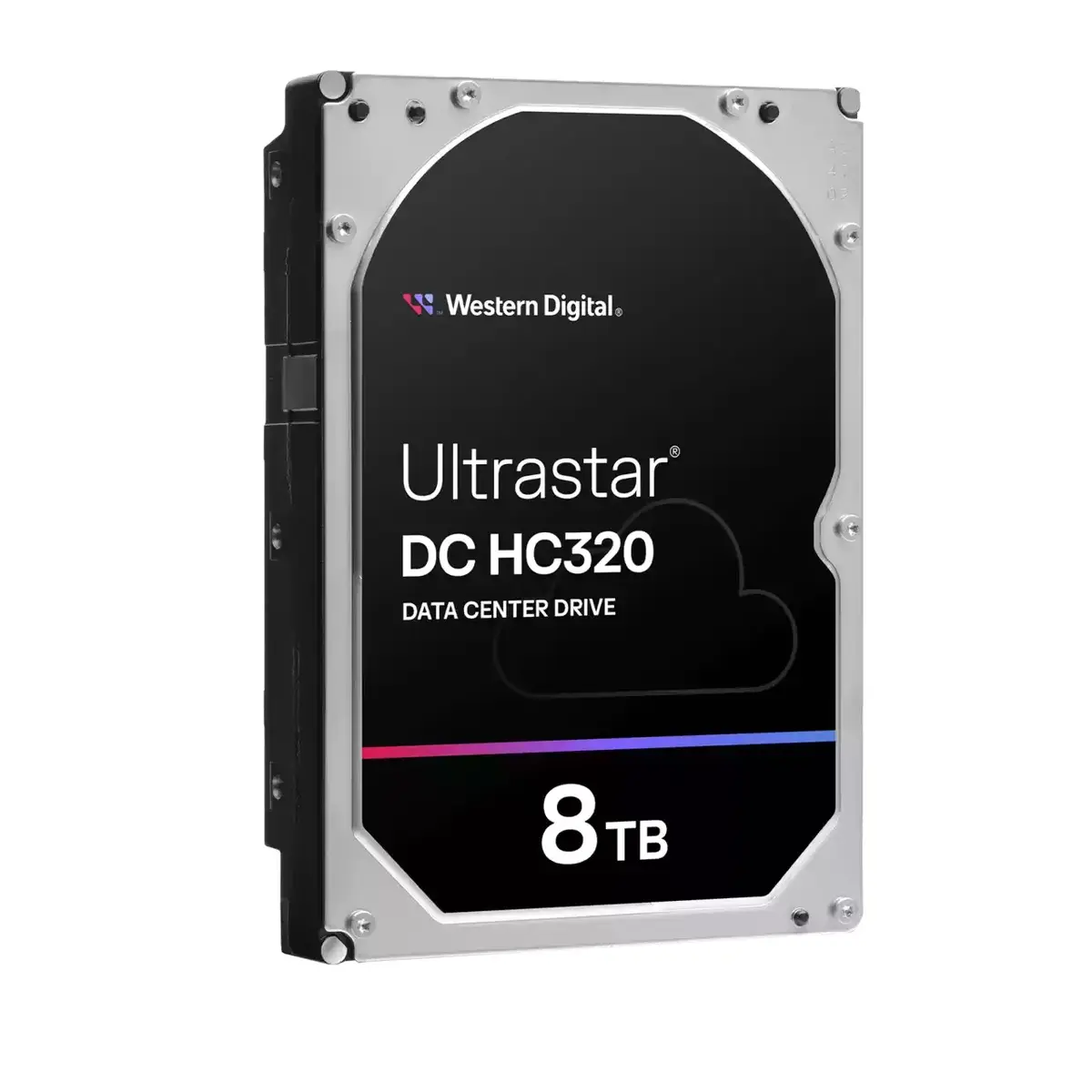

HDD Western Digital 8 TB Ultrastar DC HC320 Photo 3

Short description

The Western Digital Ultrastar DC HC320 is an internal hard drive with a capacity of 8 TB and a speed of 7200 RPM. It features a 256 MB buffer and a 3.5" form factor, utilizing a SAS interface for reliable performance. Ideal for data centers and enterprise applications, it offers high storage density and efficiency, ensuring quick access to large volumes of data.

Warranty: 2 Years

SKU: 720786

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Western Digital Ultrastar DC HC320 is an internal 3.5" SAS hard disk drive with 8 TB capacity, 7200 RPM rotational speed and a 256 MB cache. Engineered for traditional data center and enterprise server environments, this drive is designed to deliver high storage density and consistent performance for mixed workload applications. With a rated workload capability up to 550 TB per year and a mean time between failures (MTBF) of 2,000,000 hours, the Ultrastar DC HC320 targets installations where reliable, cost-effective bulk storage and predictable access are required.

Advantages

The Ultrastar DC HC320 combines a high-capacity 8 TB design with 7200 RPM performance to provide faster access times than lower-speed archive drives while keeping acquisition cost lower than higher-capacity models. A 256 MB buffer helps smooth sustained transfers and random access patterns common in file and block storage. The drive’s SAS interface supports enterprise connectivity and integration into server and storage arrays used in data centers. The specified workload rate and MTBF offer a clear indicator of suitability for continuous operation in enterprise environments.

Suitable for

Enterprise file servers and block storage arrays
Data center bulk storage and archival systems with active access
Distributed and scale-out computing nodes requiring high-density HDDs
Virtual machine storage where balanced capacity and performance are needed

When it may not be suitable

This drive is not optimized for workloads that demand the highest IOPS or the lowest latency possible, such as latency-sensitive high-frequency trading systems or extremely random, write-heavy databases that benefit more from NVMe SSDs. It may also be less appropriate where very low power consumption or the smallest physical footprint is the primary concern.

Key specifications

Capacity: 8,000 GB
Form factor: 3.5"
Interface: SAS (Serial Attached SCSI)
Rotational speed: 7200 RPM
Cache: 256 MB
Rated workload: up to 550 TB per year
Mean time between failures (MTBF): 2,000,000 hours
Weight: 0.715 kg

How to use

Install the Ultrastar DC HC320 into a compatible 3.5" drive bay that supports SAS connectivity. Ensure the server or storage enclosure firmware and HBA/RAID controller support the drive’s capacity and SAS link rate. Configure the drive within your storage array or host operating system according to your storage architecture—single-disk, RAID group, or software-defined storage cluster—observing manufacturer guidance for RAID rebuilds and drive rebalancing. Regularly monitor drive health and SMART attributes through your storage management tools to detect early signs of degradation.

What to consider before purchase

Confirm chassis and controller compatibility with 3.5" SAS HDDs and 8 TB drive support.
Evaluate whether a 7200 RPM enterprise HDD matches your IOPS and latency requirements versus SSD alternatives.
Plan RAID level and redundancy to match the rated workload and expected uptime.
Consider cooling, power budget, and physical drive density in your rack or enclosure.

Usage recommendations

Use this drive in scenarios where balanced capacity, enterprise-class reliability, and cost-effective performance are required—examples include primary bulk storage for active archives, virtual machine repositories, and scale-out file or block storage systems. Maintain appropriate redundancy and monitoring to maximize operational availability.

Specifications

Storage drive buffer size:: 256 MB
Component for: What this product is used as a part of (component for).: Server/workstation
Type: Characteristics of the device.: HDD
Interface: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.: SAS
HDD size: The amount of data that the hard drive can store.: 3.5
HDD speed: The rotational speed of a hard disk expressed in rotations per minute. The faster the better.: 7200
HDD capacity: The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB.: 8000 GB

All features

Logistics data

Harmonized System (HS) code:: 84717050

Packaging data

Quantity per pack:: 1 pc(s)

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.715 kg
Height: The measurement of the product from head to foot or from base to top.: 26.1 mm
Depth: The distance from the front to the back of something.: 147 mm
Width: The measurement or extent of something from side to side.: 101.6 mm

Packaging content

Storage drive adapter included: An adapter is included for usage with additional storage drived included in the packaging.: No

Operational conditions

Non-operating shock: Environmental requirements for optimal protection from impact in non-operating mode: 300 G
Operating shock: Environmental requirements for optimal protection from impact in operating mode: 70 G
Non-operating vibration: Environmental requirements for vibration in non-operating mode: 1.04 G
Operating vibration: Environmental requirements for vibration in operating mode: 0.67 G
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -40 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 5 - 60

Power

Operating voltage: Defines the range of operating voltages available: 5 V
Power consumption (idle):: 12.8 W
Power consumption (read):: 12.8 W
Power consumption (write):: 12.8 W

Features

Mean time between failures (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.: 2000000 h
Start/stop cycles:: 600000
Average latency: The average duration before a device can start with a job (for example reading a file from a hard disk).: 4.16 ms
Read seek time:: 8 ms
Write seek time:: 8.6 ms
HDD sustained transfer rate:: 243 MiB/s
HDD interface transfer rate:: 12 Gbit/s
Storage drive buffer size:: 256 MB
Component for: What this product is used as a part of (component for).: Server/workstation
Type: Characteristics of the device.: HDD
Interface: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.: SAS
HDD size: The amount of data that the hard drive can store.: 3.5
HDD speed: The rotational speed of a hard disk expressed in rotations per minute. The faster the better.: 7200
HDD capacity: The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB.: 8000 GB
