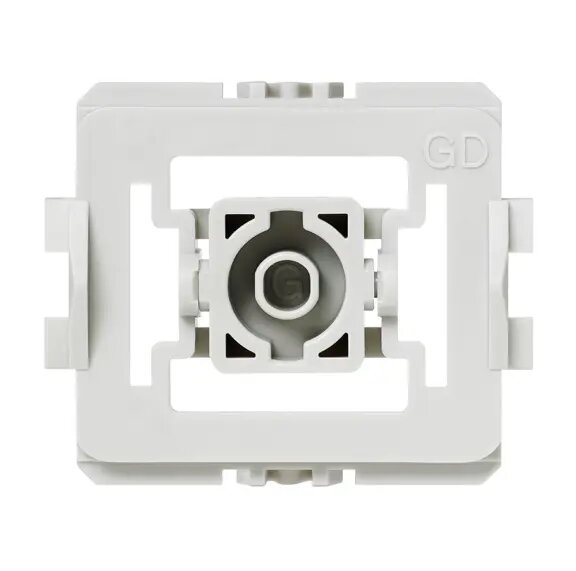

eQ-3 AG EQ3-ADA-GS Mountable White

The Homematic IP mountable white housing is a compact enclosure designed for installation of Homematic IP components. With a mountable case design and neutral white finish, this housing provides a discreet and practical solution for mounting control modules or sensors in domestic or light-commercial environments. Its compact dimensions allow for installation in tight spaces while maintaining accessibility for wiring and maintenance.

Advantages

The mountable design enables secure attachment to walls or panels and simplifies routing of cables. The white colour offers a neutral appearance that integrates with most interiors. Its compact footprint balances space-saving installation with sufficient internal volume for small controllers or interface modules. The robust shape and standardized form factor support consistent mounting and easy replacement when needed.

Suitable for

• Housing small control modules and gateway interfaces
• Mounting sensors or relay modules in utility rooms
• Installation in electrical cabinets, on walls or panels where a compact enclosure is required
• Retrofitting smart-home components in existing installations

Key specifications

• Case design: mountable enclosure suitable for wall or panel mounting
• Colour: white for neutral visual integration
• Dimensions: width 55 mm, depth 18 mm, height 47 mm (compact form factor)
• Lightweight and low-profile shape for space-constrained installations

How to use

Position the housing at the intended mounting location and secure it using appropriate screws or mounting hardware for the surface material. Route device cabling through the provided entry points or drill suitable openings as required, ensuring strain relief for connected wires. Place the electronic module inside the enclosure, fix it according to the module manufacturer's instructions, and close the housing. Verify connections and perform a functional test of the installed component after mounting.

Usage recommendations

Use the enclosure in dry indoor environments and avoid exposure to direct moisture or excessive dust. Select mounting hardware compatible with the wall or panel material and ensure adequate ventilation if installed near heat-generating components. For safe operation, follow the installation and electrical guidelines provided with the electronic module to be housed.
