Roller shutter automation set HOMEPILOT M20 20 Nm 16 rpm

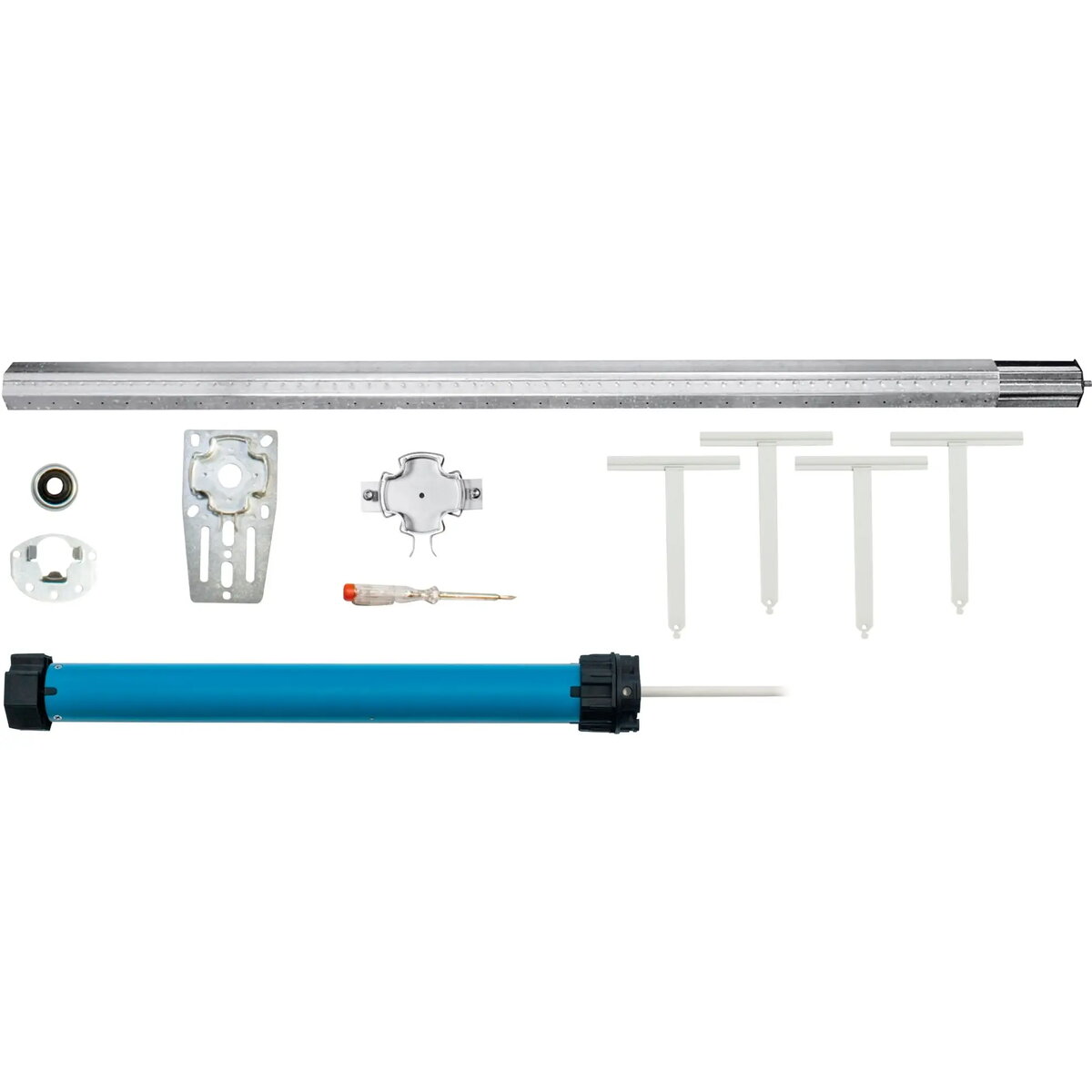

The HOMEPILOT M20 roller shutter automation set delivers a compact motor solution with 20 Nm torque and a fixed speed of 16 rpm for controlled opening and closing of roller shutters. Designed for residential and light commercial installations, the set is suitable for retrofitting existing shutters as well as integrating into new builds where consistent torque and defined rotational speed are required. The package contains the motor and associated mechanical and electrical components needed for typical shutter automation tasks.

Advantages

This automation set provides a stable torque output of 20 Nm and a steady rotational speed of 16 rpm, ensuring predictable shutter movement and reduced mechanical stress. Its compact design allows installation in constrained housings and simplifies retrofits without major structural changes. The unit is engineered for reliable repetitive operation and offers straightforward electrical integration in standard shutter control circuits.

Suitable for

• Automating residential roller shutters and blinds
• Light commercial window shading and security shutters
• Retrofit projects to upgrade manual shutters to motorized operation
• New installations where a compact motor with defined torque is required

Key specifications

• Rated torque: 20 Nm
• Rotational speed: 16 rpm
• Application: roller shutters and similar tubular-shaft window coverings
• Design: compact tubular motor form factor for in-shaft installation
• Operation: designed for repetitive opening/closing cycles in residential and light commercial settings

How to use

Install the HOMEPILOT M20 motor into the shutter tube or compatible housing following the shutter manufacturer’s mechanical mounting procedures. Connect electrical wiring to the building control circuit or a dedicated switch/remote control interface compatible with the motor’s control inputs. Set mechanical end stops and test operation through several open/close cycles to verify smooth movement and proper limit positioning. Ensure all electrical connections are secure and comply with local electrical regulations.

Usage recommendations

Use the set for shutters within the motor’s torque and speed ratings; avoid exceeding rated load or continuous heavy-duty cycles. Periodically inspect mounting brackets, tube fit, and electrical connections, and verify end-stop adjustments to maintain consistent performance and prolong service life.
