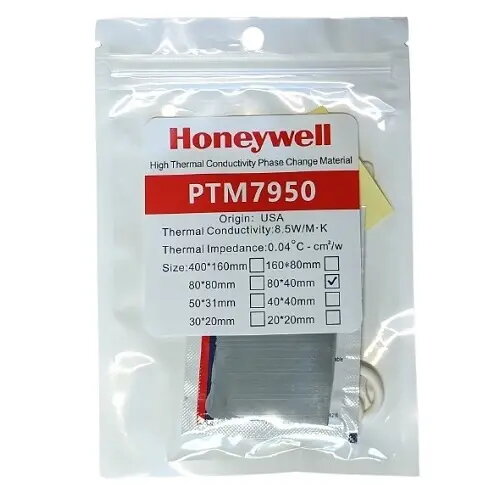

Honeywell PTM7950 Phase Change Thermal Pad

The Honeywell PTM7950 Phase Change Thermal Pad is a high-performance thermal interface material engineered to provide superior heat dissipation for demanding electronic components. Utilizing advanced phase-change technology, this material transitions from a solid state at room temperature to a liquid state once it reaches approximately 45°C. This transition allows the material to effectively fill microscopic surface imperfections between the heat source and the heatsink, creating a thin, uniform, and highly conductive interface that minimizes thermal resistance.

Advantages

This thermal pad offers significant benefits over traditional thermal pastes, primarily due to its phase-change properties that ensure consistent performance over time. Its solid form at room temperature makes it exceptionally easy to handle, cut to size, and position without the mess associated with liquid compounds. Once installed, the material is highly resistant to pump-out effects, which are common in high-performance hardware subjected to frequent thermal cycling. By maintaining a stable interface layer, it ensures reliable cooling and prevents the degradation of thermal conductivity, making it an ideal choice for long-term hardware maintenance.

Suitable for

• High-performance gaming laptops and mobile workstations
• Desktop CPU and GPU cooling applications
• High-power chipsets and gaming consoles
• Electronic devices requiring precise and long-lasting heat transfer

This product may not be suitable for applications requiring extremely thick thermal gap fillers, as it is designed as a thin interface layer. It is also not intended for use in environments where the operating temperature never reaches the phase-change threshold of 45°C, as the material will not fully soften to conform to surface irregularities.

Key specifications

• Thermal conductivity: 8.5 W/m·K
• Thermal resistance: 0.04°C·cm2/W
• Operating temperature range: 0-125°C
• Dimensions: 40 x 80 mm
• Thickness: 0.2 mm

How to use

To install the Honeywell PTM7950, first ensure that the surfaces of the processor and the heatsink are thoroughly cleaned and free of old thermal paste or debris. Measure the required area and cut the thermal pad to the appropriate size. Peel off the protective backing and place the pad onto the center of the component. Once the heatsink is mounted and the system begins operation, the material will naturally soften as it reaches the phase-change temperature. Maximum thermal efficiency is achieved after the system has undergone several heating and cooling cycles, which allows the material to fully settle and conform to the contact surfaces.

What to consider before purchase

• Verify the dimensions of your processor or GPU to ensure the 40x80mm sheet is sufficient for your needs.
• Ensure your cooling system provides adequate mounting pressure to facilitate the phase-change process.
• Check that your application environment will reach the 45°C threshold required for the material to transition.

Usage recommendations

For optimal results, allow the system to run through several complete thermal cycles after initial installation. This process is essential for the phase-change material to fully adapt to the microscopic contours of the heat spreader and heatsink, ensuring the lowest possible thermal resistance.
