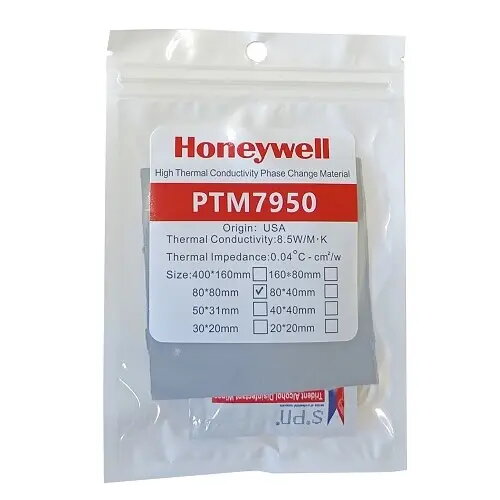

Honeywell PTM7950 Phase Change Thermal Pad 80x80x0.2mm

The Honeywell PTM7950 Phase Change Thermal Pad is a high-performance thermal interface material engineered for superior heat dissipation in demanding electronic environments. Measuring 80x80x0.2mm, this advanced phase change material (PCM) is specifically formulated to bridge the gap between high-power components like CPUs or GPUs and their respective heatsinks, ensuring efficient thermal management for sustained hardware stability.

Advantages

This thermal pad utilizes a unique polymer matrix filled with thermally conductive particles that transition from a solid state to a softened state at approximately 45°C. This phase change allows the material to flow into microscopic surface imperfections, creating a uniform and ultra-thin interface that minimizes thermal resistance. Unlike traditional thermal pastes, the PTM7950 is highly resistant to pump-out effects caused by frequent thermal cycling, ensuring long-term reliability without the need for frequent reapplication. Its solid sheet format allows for clean, precise installation without the mess or uneven coverage often associated with liquid thermal compounds.

Suitable for

• High-performance gaming laptops and ultrabooks
• Desktop CPU and GPU cooling solutions
• Gaming consoles and high-power industrial electronics
• Devices requiring long-term thermal stability under heavy loads

This product may not be suitable for applications requiring a very thick thermal interface, as it is designed to be a thin, high-pressure interface material. It is also not intended for use in environments where operating temperatures never reach the 45°C phase change threshold, as the material will not fully conform to the surfaces.

Key specifications

• Thermal conductivity: 8.5 W/m·K
• Thermal resistance: 0.04°C·cm2/W
• Operating temperature range: 0-125°C
• Dimensions: 80 x 80 mm
• Thickness: 0.2 mm

How to use

Begin by thoroughly cleaning the surfaces of the processor and the heatsink to remove any old thermal compound or debris. Measure the area of your component and cut the Honeywell PTM7950 pad to the required size using scissors or a craft knife. Peel off the protective backing and place the pad onto the center of the component. Once positioned, install the heatsink and secure it firmly to ensure even pressure. The material will reach its optimal performance state after several heating and cooling cycles as it fully conforms to the contact surfaces.

What to consider before purchase

• Verify the dimensions of your component to ensure the 80x80mm sheet is sufficient for your needs.
• Ensure that your cooling system provides adequate mounting pressure to facilitate the phase change process.
• Note that maximum thermal efficiency is achieved after the material has undergone multiple temperature cycles.

Usage recommendations

For the best results, ensure the contact surfaces are perfectly clean and free of oils. Avoid touching the surface of the thermal pad with your fingers to maintain its integrity. Allow the system to run through several normal usage cycles to achieve the full thermal performance potential of the phase change material.
