Type:
-

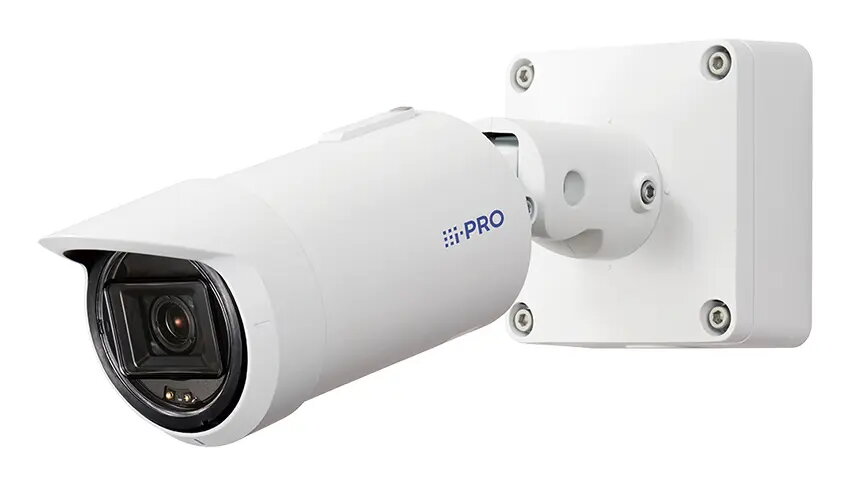

IP security camera
-
Optical zoom:
-
9.3 x
-
Weight:
-
2.4 kg
-
Certification:
-
UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
-
Power consumption (typical):
Power consumption in switched-on state expressed in W.
-
12 W
-
Zoom capability:
-
Yes
-
Supported network protocols:
-
IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, SFTP, MQTT, LLDP
-
White balance:
-
ATW, AWC
-
Operating relative humidity (H-H):
-
10 - 100
-
Compatible memory cards:
-
MicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Focus:
-
Motorized
-
Form factor:
-
Bullet
-
Operating temperature (T-T):
-
-40 - 60
-
Camera shutter speed:
-
1/30 - 1/10000
-
Ethernet LAN:
-
Yes
-
Height:
-
133 mm
-
Focal length range:
-
2.9 - 9
-
Analog signal format system:
-
NTSC, PAL
-
Sensor type:
-
CMOS
-
Minimum illumination:
-
0.04 lx
-
Auto focus:
-
Yes
-
Optical sensor size:
-
25.4 / 2.8
-
Width:
-
133 mm
-
Depth:
-
383 mm
-
Connectivity technology:
-
Wired
-
Maximum resolution:
-
3072 x 1728
-
Product colour:
-
Black, White
-
Number of users:
-
14 user(s)
-
Networking standards:
-
IEEE 802.3af
-
LED type:
-
IR
-
Tilt angle range:
-
-100 - 100
-
Audio formats supported:
-
AAC-LC, G.711, G.726
-
Ethernet LAN (RJ-45) ports:
-
1
-
Microphone in:
-
Yes
-
Angle of rotation:
-
360 °
-
Noise reduction:
-
Yes
-
Closest focusing distance:
-
0.3 m
-
Dynamic range:
-
132 dB
-
Languages support:
-
ENG, ESP, ITA, JPN, POR, FRE, RUS, DEU
-
Card reader integrated:
-
Yes
-
Placement supported:
-
Indoor & outdoor
-
Frame rate:
-
30 fps
-
Supported graphics resolutions:
-
1280 x 720 (HD 720), 1280 x 960, 320 x 240, 320 x 180, 800 x 600 (SVGA), 2560 x 1440, 400 x 300, 2560 x 1920, 1920 x 1080 (HD 1080), 640 x 360
-
Housing material:
-
Aluminium, Resin, Polycarbonate (PC)
-
Minimum aperture number:
-
1.3
-
Maximum aperture number:
-
2.5
-
Night vision:
-
Yes
-
Mounting type:
-
Ceiling/Wall
-
Video motion detection:
-
Yes
-
Audio detection:
-
Yes
-
Video formats supported:
-
H.264, H.265
-
Maximum memory card size:
-
512 GB
-
Number of languages:
-
9
-
Ethernet interface type:
-
Fast Ethernet
-
International Protection (IP) code:
Device protection rating against dust and water according to the international IP standard.
-
IP66
-
Power source type:
-
DC, PoE
-
Total megapixels:
-
5 MP
-
Back Light Compensation (BLC):
-
Yes
-
Protection features:
-
Vandal proof
-
Night vision distance:
-
55
-
AC input voltage:
-
12-48
-
Alarm input/output:
-
Yes
-
Number of cameras:
-
1
-
Fog proof:
-
Yes
-
IK code:
-
IK10
-
Number of lenses:
-
1
-
Text caption overlay:
-
Yes
-
Power consumption (Power over Ethernet (PoE)):
-
11.5 W
-
Alert notification type:
-
E-mail
-
Privacy protection:
-
Yes
-
Number of sensors:
-
1
-
Web browser:
-
Yes
-
Detect distance (wide):
-
46.3 m
-
Detect distance (tele):
-
201 m
-
Observe distance (wide):
-
18.5 m
-
Observe distance (tele):
-
80.4 m
-
Recognize distance (wide):
-
9.3 m
-
Recognize distance (tele):
-
40.2 m
-
Identify distance (wide):
-
4.6 m
-
Identify distance (tele):
-
20.1 m
-
Intelligent Video Surveillance (IVS) system features:
-
Vehicle detection, Face detection, Scene change
-
Highlight Compensation (HLC):
-
Yes
-
Bit rate control:
-
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
-
Video intelligence analytic:
-
Yes
-
Bit rate range:
-
16 - 128
-
Lens viewing angle, horizontal:
-
34 - 106
-
Lens viewing angle, vertical:
-
19 - 77
-
Number of Privacy masking areas:
-
8
