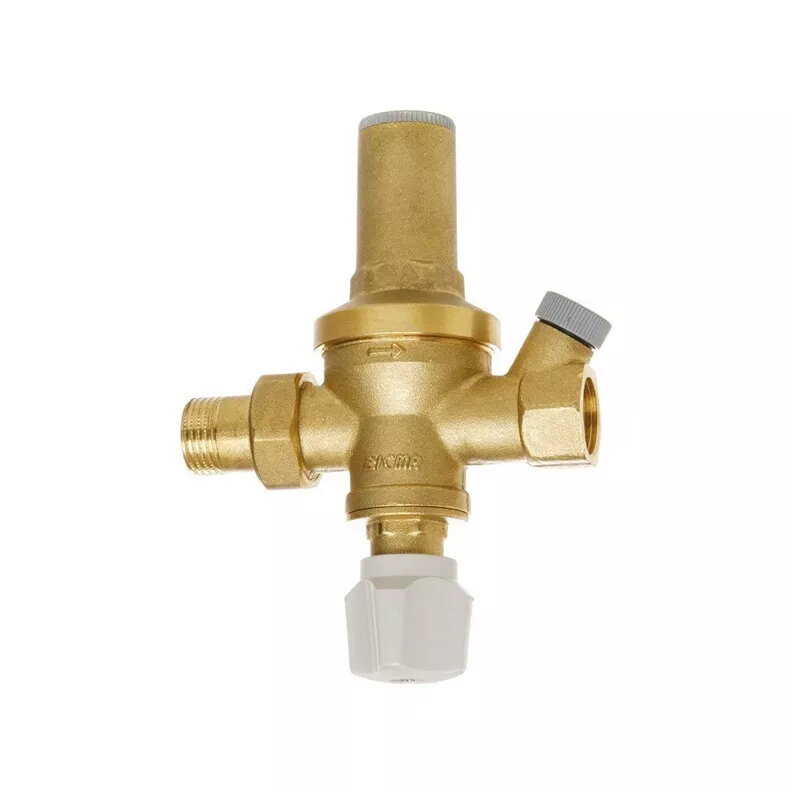

ICMA Filling Unit PN20 Series 1/2 inch

The ICMA Filling Unit PN20 Series 1/2 inch is a precision-engineered component designed for the automatic filling and pressure maintenance of closed-loop heating and cooling systems. This unit serves as a critical control element, ensuring that the system remains at the required operating pressure by automatically replenishing fluid when the pressure drops below the set threshold. Its robust construction and reliable internal mechanism make it a standard choice for maintaining system stability and preventing air accumulation in HVAC circuits.

Advantages

This filling unit offers consistent performance by automating the pressure regulation process, which eliminates the need for manual intervention during routine system maintenance. The high-quality materials used in its construction ensure long-term durability and resistance to the stresses of thermal expansion and contraction within heating systems. By maintaining a constant pressure, the unit helps to optimize heat transfer efficiency and protects system components from the risks associated with low-pressure operation, such as cavitation or air ingress.

Suitable for

• Closed-loop residential and commercial heating systems
• Chilled water cooling circuits
• HVAC installations requiring automatic pressure regulation
• Systems where consistent fluid levels are critical for boiler safety

When it may not be suitable

This unit is not designed for use in open-vented systems or potable water supply lines where backflow prevention standards for drinking water are required. It is also not suitable for high-pressure industrial applications that exceed the PN20 pressure rating.

Key specifications

• Connection size: 1/2 inch
• Pressure rating: PN20
• Function: Automatic filling and pressure maintenance
• Application: Closed-loop HVAC systems

How to use

The unit should be installed on the cold water supply line feeding the heating or cooling circuit. Ensure that the flow direction indicated on the valve body matches the direction of the water supply. Once installed, the pressure setting should be adjusted according to the specific requirements of the heating system. The unit will then automatically monitor the system pressure and open to allow water flow whenever the internal pressure falls below the pre-set value, closing automatically once the target pressure is restored.

What to consider before purchase

• Verify that the 1/2 inch connection size is compatible with your existing piping infrastructure.
• Ensure the system pressure requirements align with the PN20 rating of the unit.
• Check local regulations regarding the installation of filling valves in heating circuits.

Usage recommendations

Regularly inspect the unit for any signs of leakage or debris accumulation that might affect the internal valve seat. It is recommended to have the system pressure checked by a qualified technician during annual maintenance to ensure the filling unit remains calibrated to the manufacturer's specifications.
