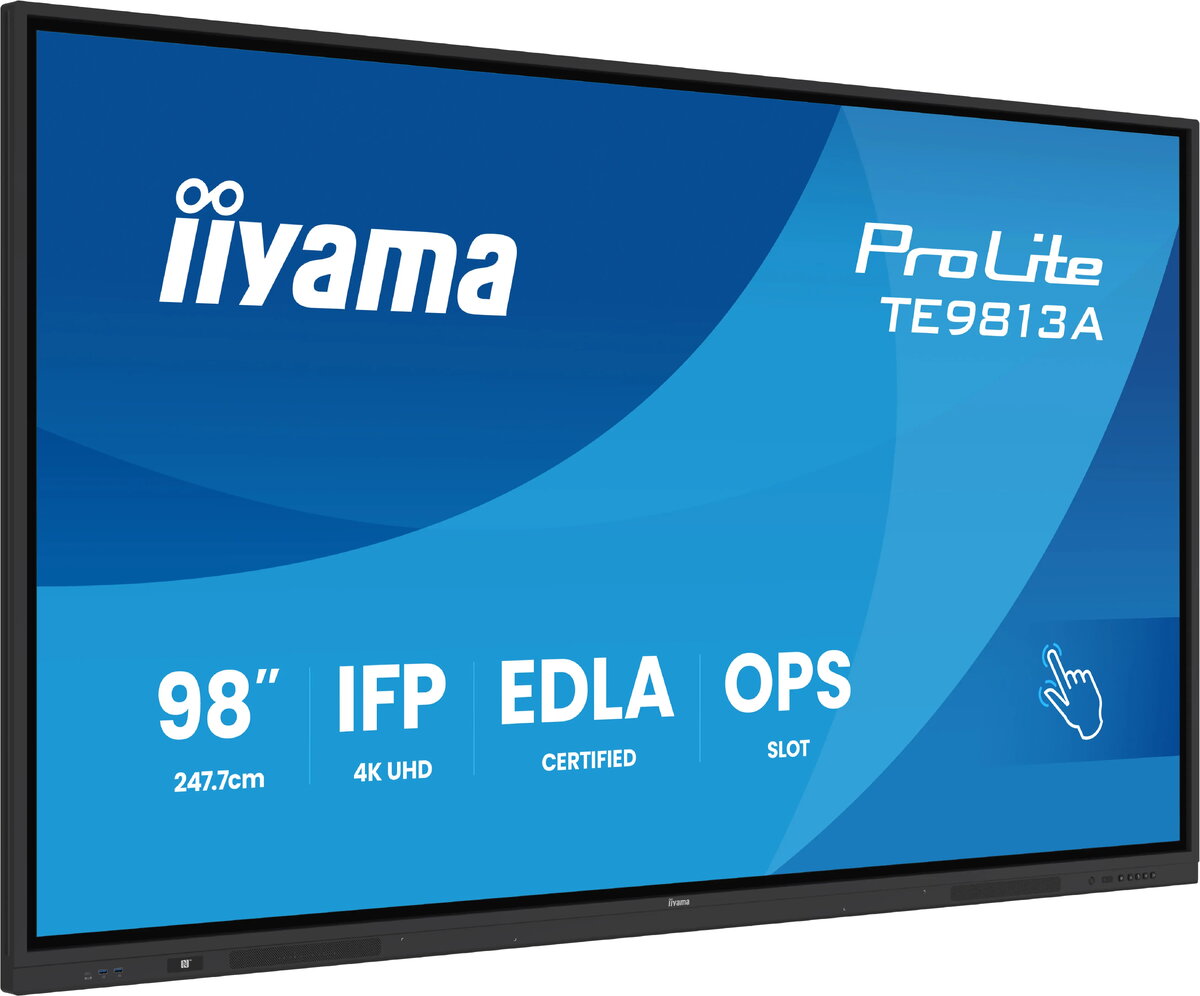

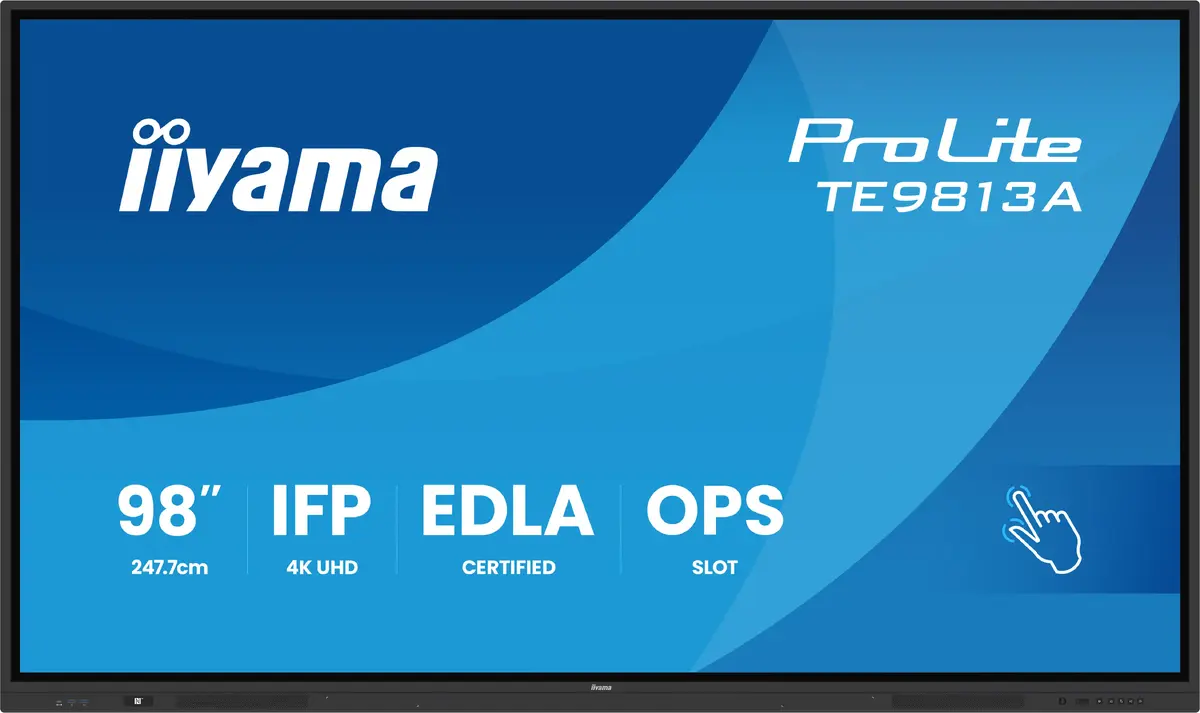

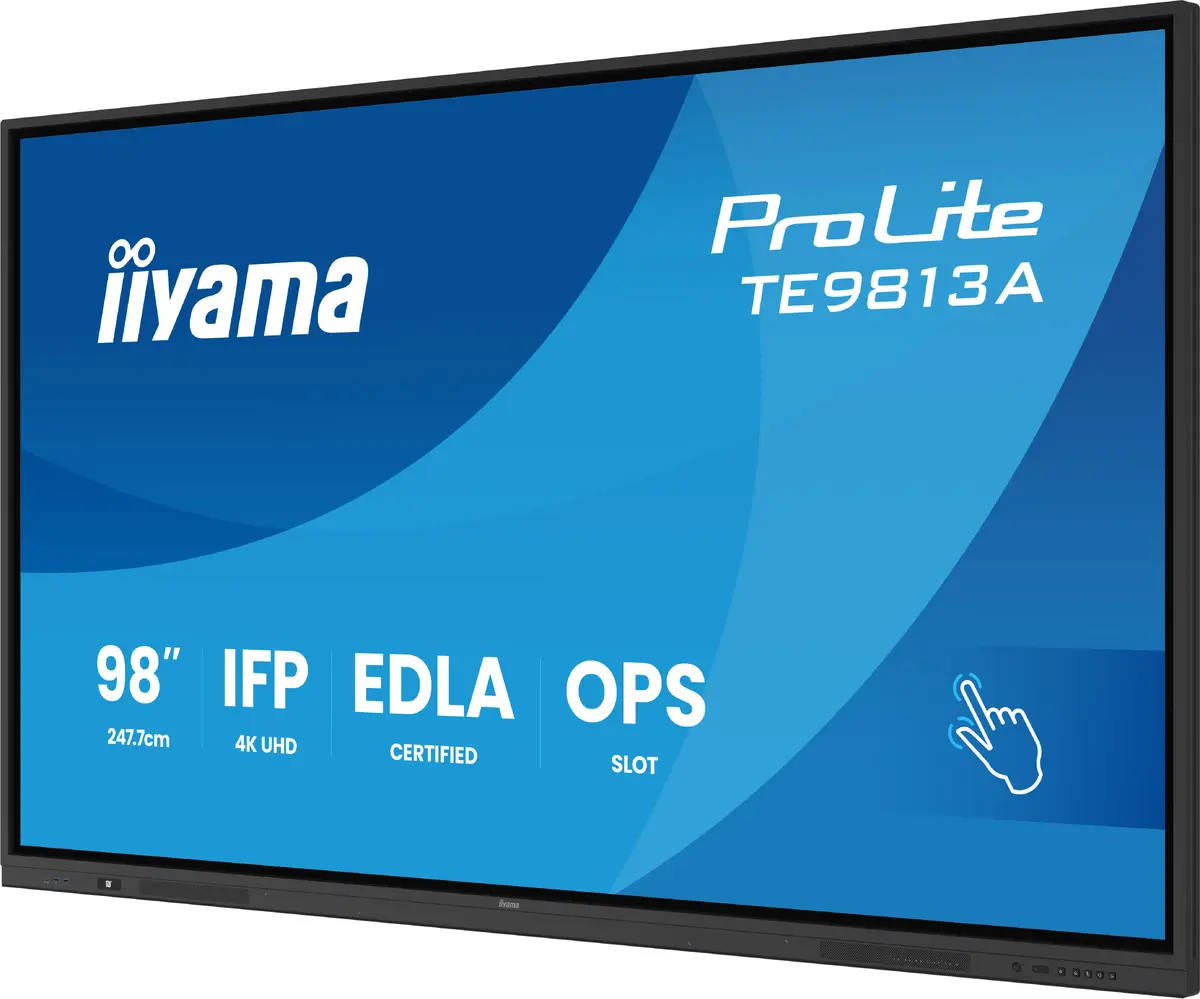

Interactive flat panel IIYAMA TE9813A-B2AG 97.5" (2.48 m) 4K Ultra HD 500 cd/m² Wi‑Fi Android 24/7 Black

USB 2.0 Type-B ports quantity:

1

Display

Display diagonal: iagonal of the visible part of the screen expressed in centimeters and inches.

97.5 "

HD type:

4K Ultra HD

Panel type:

IPS

Display resolution:

3840 x 2160

Pixel pitch:

0.562 x 0.562

Response time:

8 ms

Contrast ratio (typical):

1200:1

Display brightness:

500 cd/m²

Viewing angle, vertical:

178 °

Viewing angle, horizontal:

178 °

Horizontal scan range:

30 - 135

Display diagonal (metric):

247.7 cm

Native aspect ratio:

16:9

Display number of colours:

1.07 billion colours

Touchscreen:

Yes

Anti-glare screen:

Yes

Active display area (W x H):

2159 x 1214

Surface hardness:

7H

Number of simultaneous touchpoints:

40

Glass thickness:

4 mm

Design

Product colour:

Black

Placement supported:

Indoor

Panel mounting interface:

800 x 600

Product design:

Interactive flat panel

Bezel width (side):

16.5 mm

Bezel width (top):

16.5 mm

Bezel width (bottom):

41 mm

Orientation:

Horizontal

Positioning accuracy:

1 mm

Bezel colour:

Black

Ports & interfaces

HDMI ports quantity:

3

DisplayPorts quantity:

1

Ethernet LAN (RJ-45) ports:

2

USB version:

2.0/3.2 Gen 1 (3.1 Gen 1)

HDMI version:

2.0

USB ports quantity:

5

USB port:

Yes

RS-232C:

Yes

Compatible memory cards:

MicroSD (TransFlash)

Card reader integrated:

Yes

HDCP version:

2.2

DisplayPort version:

1.2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

1

USB Type-C DisplayPort Alternate Mode:

Yes

USB Power Delivery (USB PD):

Yes

OPS module slot:

Yes

HDMI input ports quantity:

2

HDMI output ports quantity:

1

USB Power Delivery up to:

100 W

Ergonomics

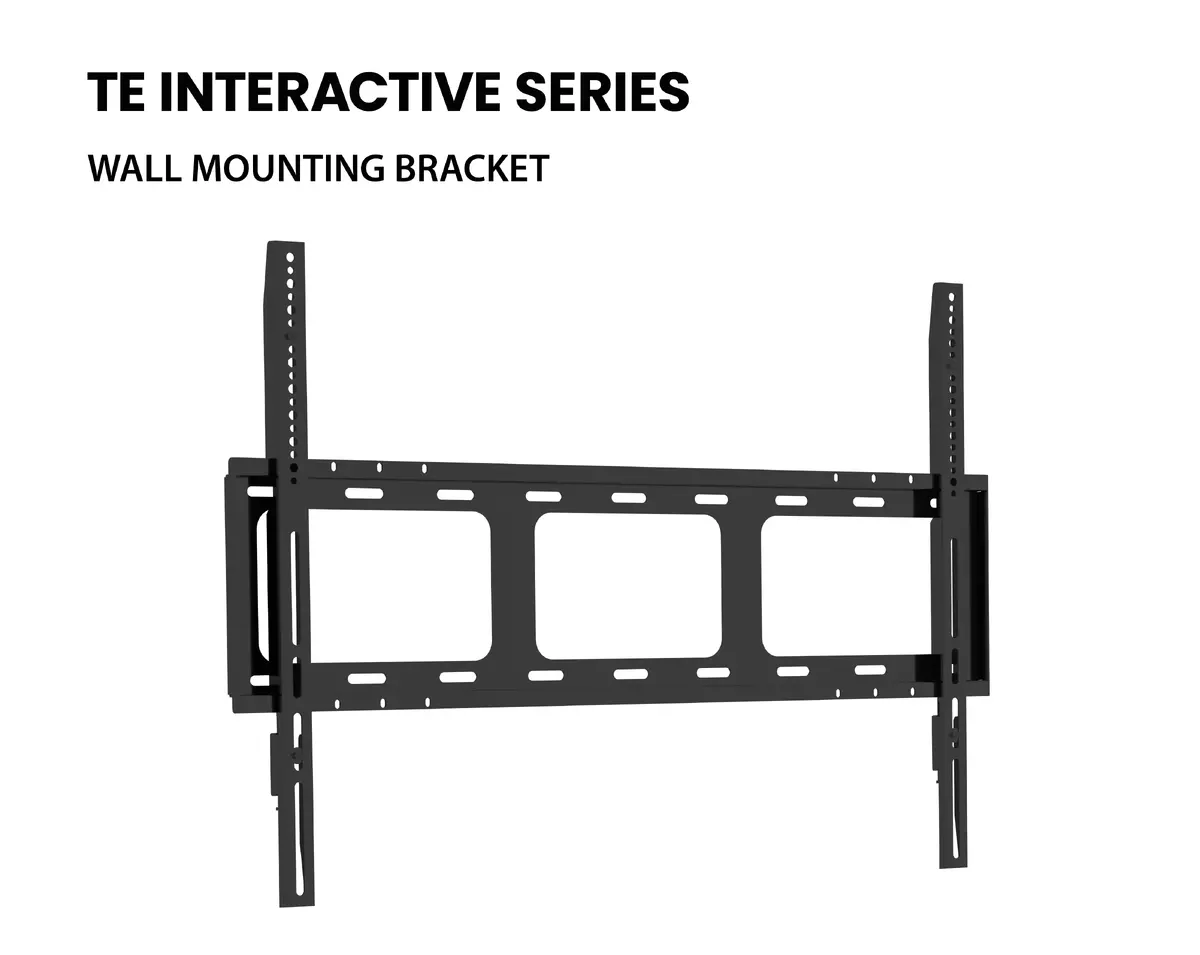

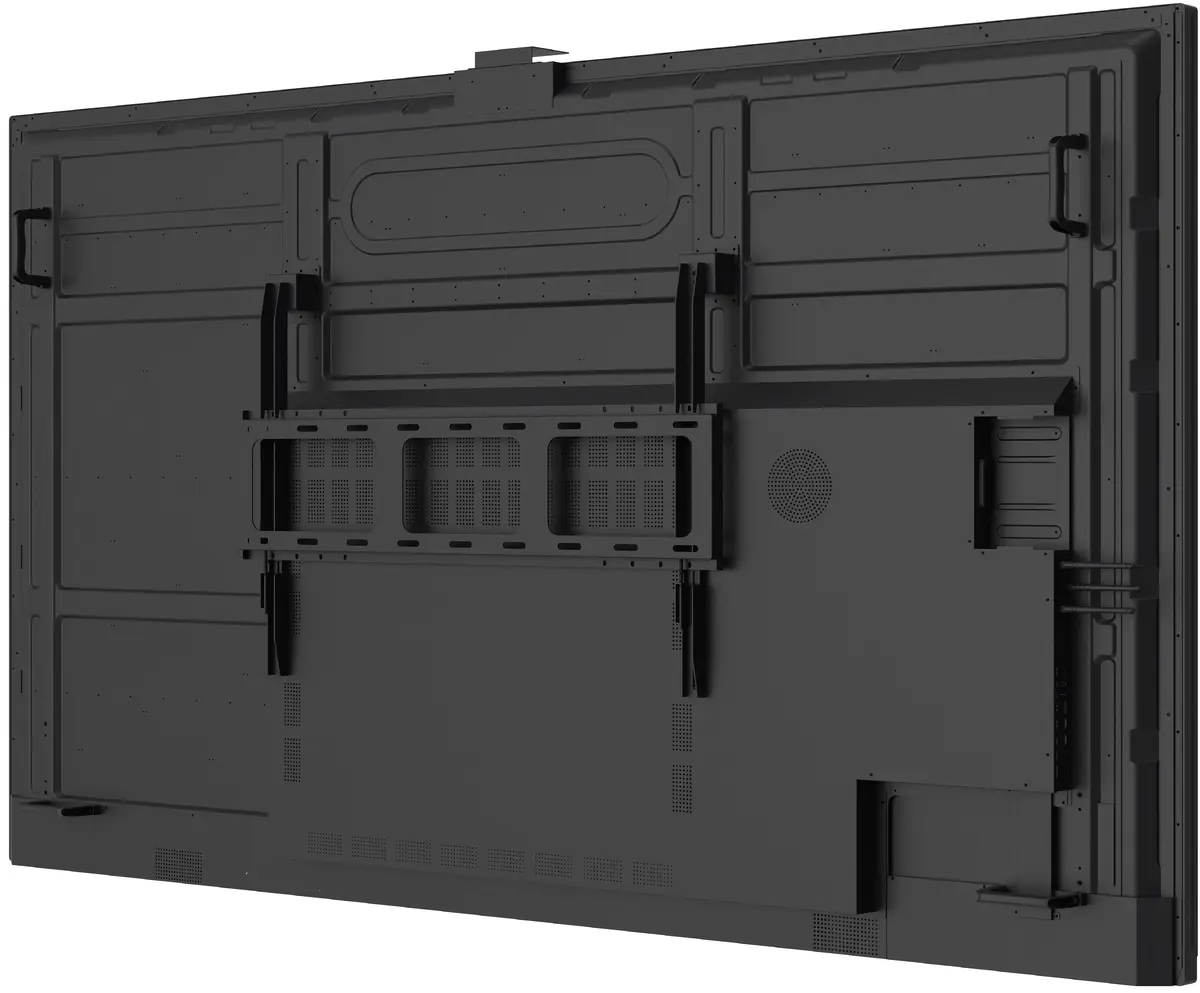

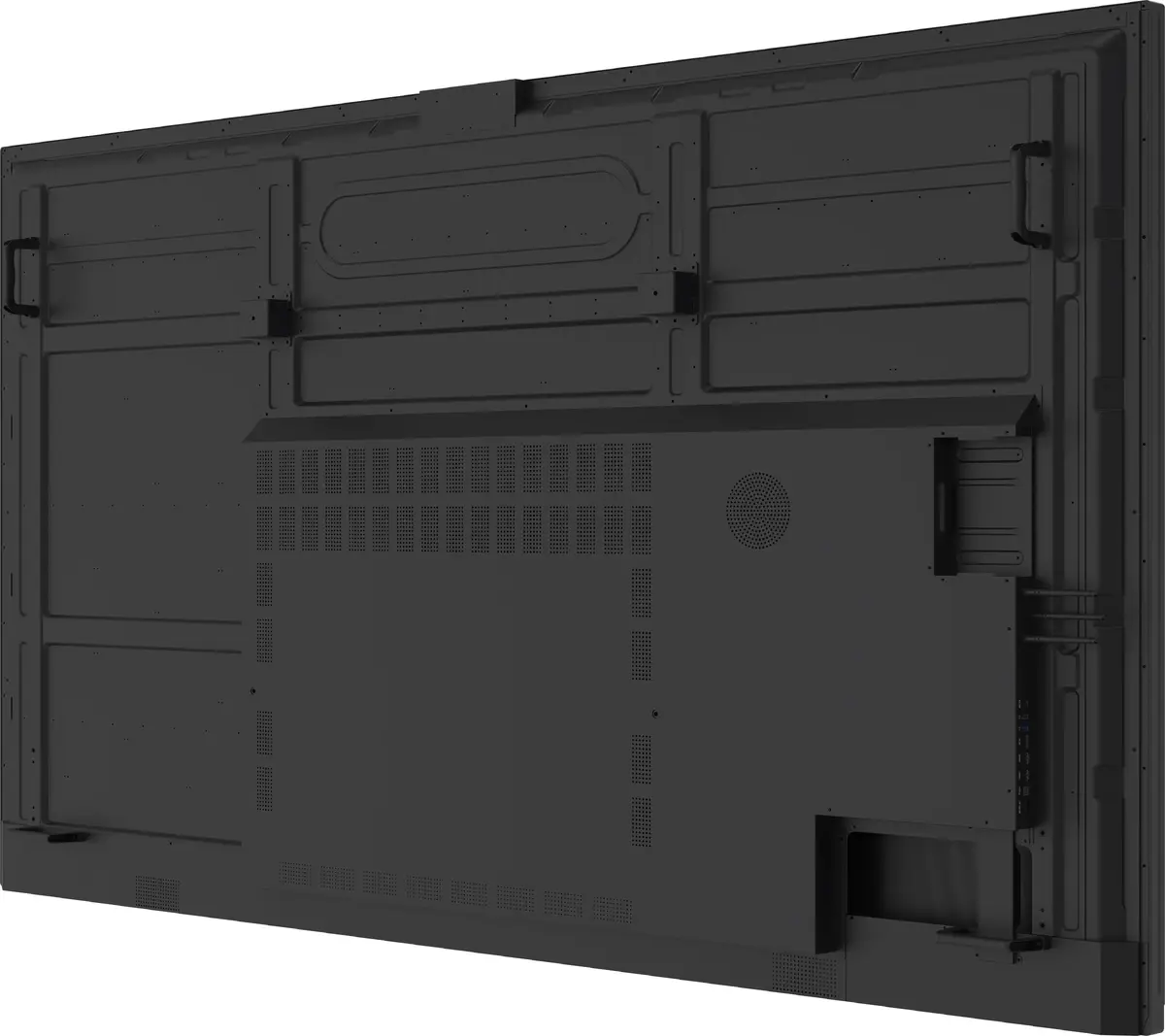

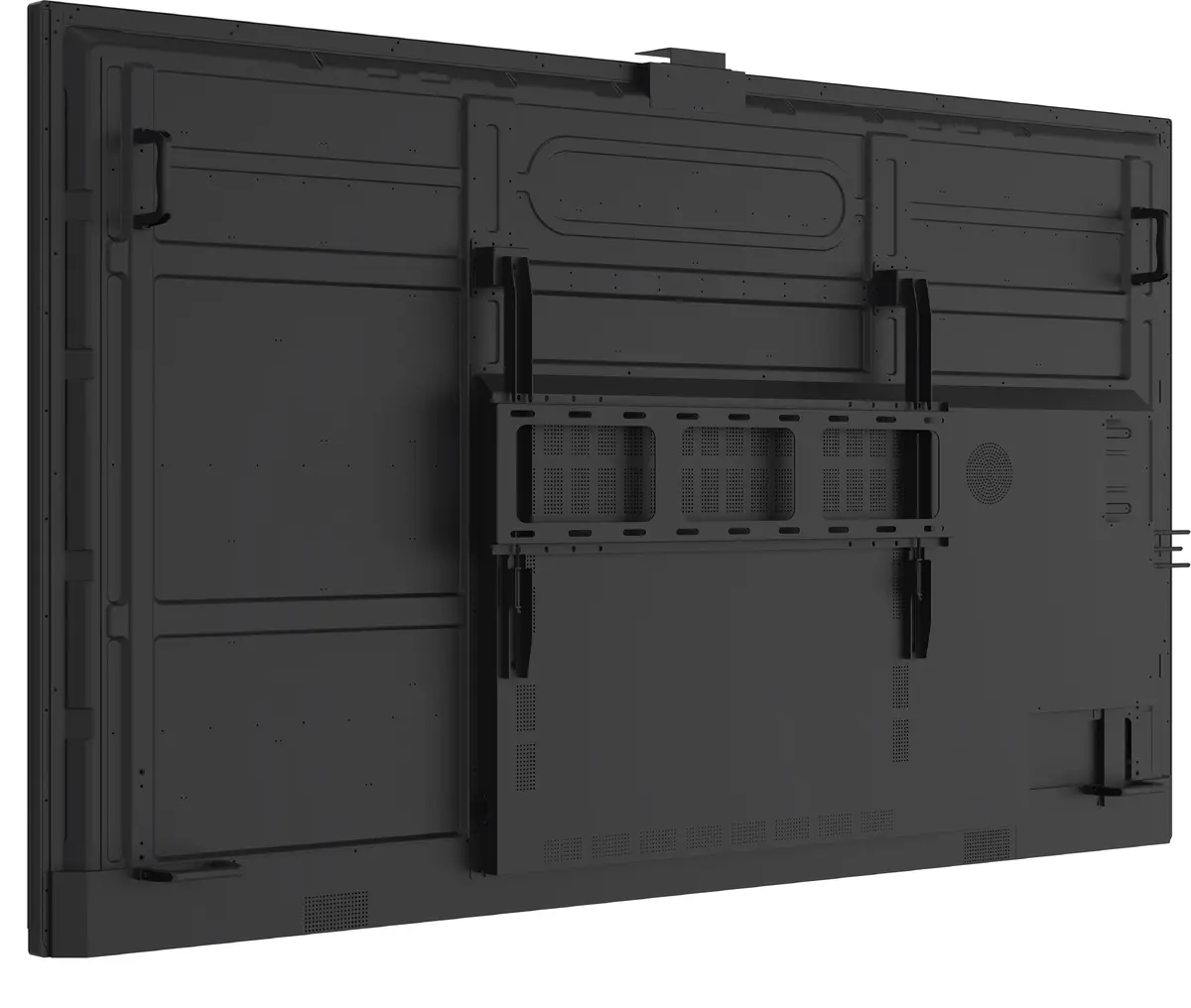

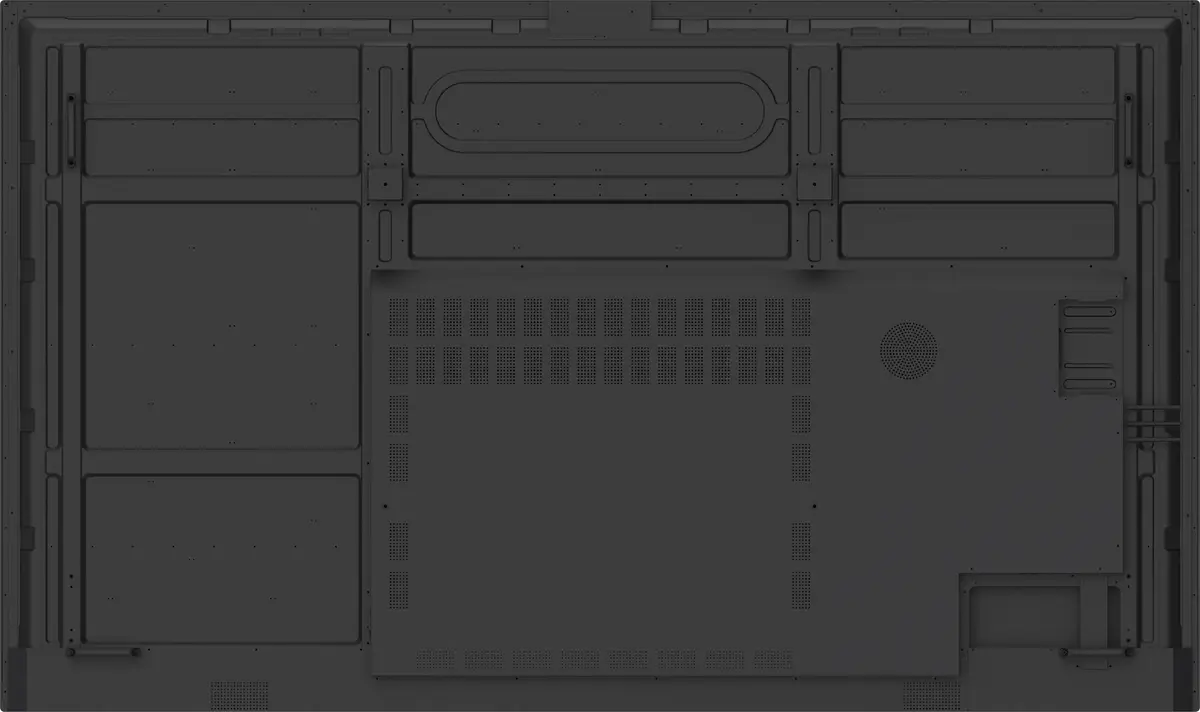

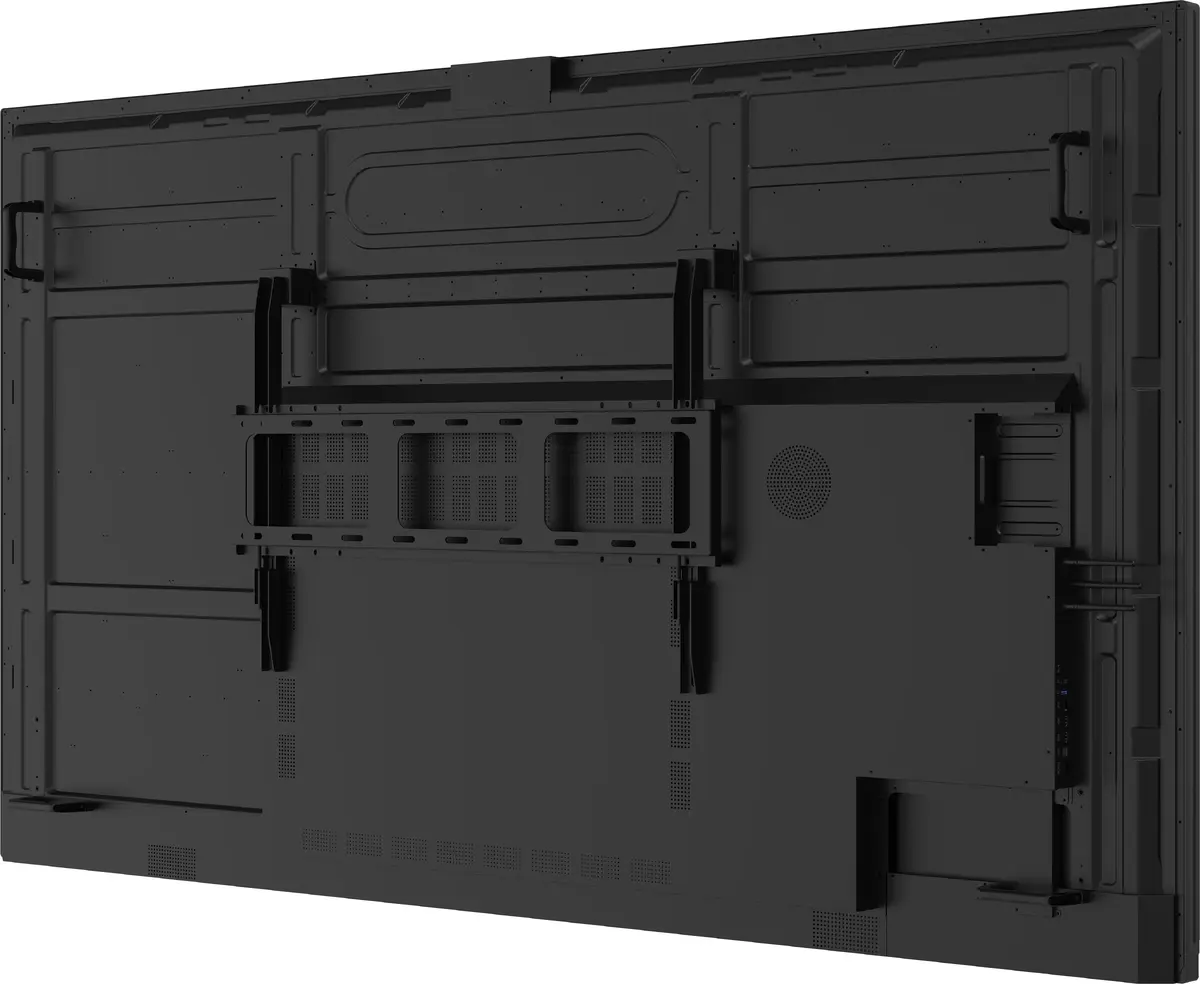

VESA mounting:

Yes

Audio

Number of built-in speakers:

2

Built-in speaker(s):

Yes

Performance

HDCP:

Yes

Mean time between failures (MTBF):

50000 h

Purpose:

Education

On Screen Display (OSD):

Yes

Operating system installed:

Android

On Screen Display (OSD) languages:

CZE, DAN, DEU, ENG, ESP, EST, FIN, FRE, HUN, ITA, LIT, LAT, NOR, DUT, POL, RUS, SWE, UKR, CAT

Number of OSD languages:

13

Operating hours (hours/days):

24/7

Network

Ethernet LAN:

Yes

Wi-Fi:

Yes

Ethernet LAN data rates:

1000

Wi-Fi standards:

Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), 802.11b, 802.11a

Multimedia

RMS rated power:

60 W

Audio Return Channel (ARC):

Yes

Technical details

Playback media:

Yes

Audio in (mini jack):

Yes

OPS slot:

1

Sustainability certificates:

ErP

Compliance certificates:

CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE

Thin Client

Built-in processor:

Yes

Processor cores:

8

Computer system

Operating system version:

14

Internal storage capacity:

128 GB

On-board graphics card model:

Arm Mali-G52

Processor architecture:

ARM Cortex-A53+Cortex-A72

Internal memory:

8 GB

Computer system:

Yes

Other features

Brightness:

500 cd/m²

Compatible operating systems:

All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

Power supply type:

Internal

User controls:

general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system)

USB connector type:

USB Type-A, USB Type-B, USB Type-C

Quick start guide:

Yes

Warranty period:

5 year(s)

Power

Energy efficiency class (SDR): Energy efficiency class is a standard classification that is used all over Europe and which is understandable at first sight. Products can be efficiently compared according to classes, starting from A (the most energy efficient class), and ending with G (the most energy-intensive class). The classification of energy efficiency is based on annual energy consumption which is being calculated on the basis of several different parameters.

G

Energy consumption (SDR) per 1000 hours: Power consumption in switched-on state expressed in W.

266 kWh

Power consumption (typical): Power consumption in switched-on state expressed in W.

303 W

Power consumption (off):

0.3 W

Power consumption (standby):

0.5 W

AC input frequency:

50/60

AC input voltage:

100 - 240

Energy efficiency scale: Range of energy efficiency levels classifying devices from most to least energy-efficient.

A to G

Weight & dimensions

Weight:

109.6 kg

Height:

1326 mm

Width:

2235.4 mm

Depth:

103 mm

Display depth:

103 mm

Display height:

1326 mm

Display weight:

109600 g

Display width:

2235.4 mm

Operational conditions

Storage temperature (T-T):

-20 - 60

Operating temperature (T-T):

0 - 40

Packaging content

Remote control included:

Yes

Cables included:

AC, USB, HDMI

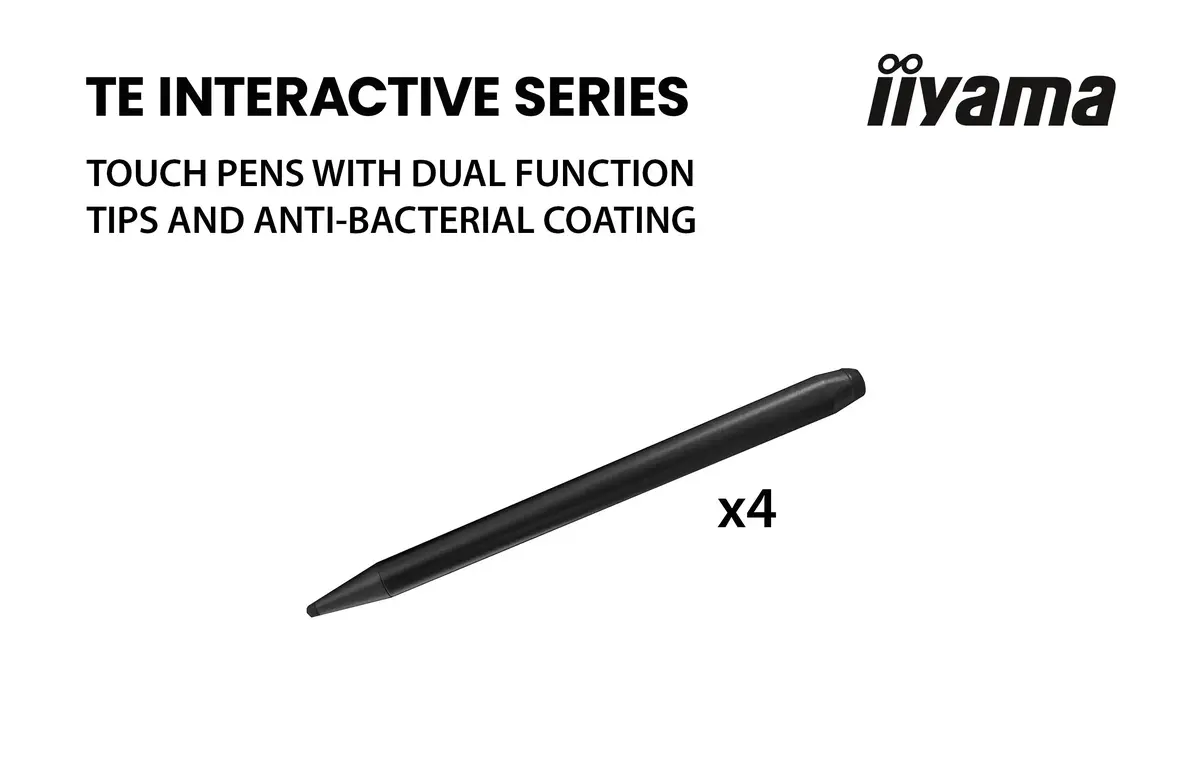

Stylus pen:

Yes

Number of stylus pens:

4

Packaging data

Package weight:

132200 g

Package depth:

280 mm

Package height:

1445 mm

Package width:

2360 mm

Logistics data

Products per pallet:

4 pc(s)
