header-product Barcode module scanner iMatrix FM8080-20 — 1D/2D CMOS wired reader, RS-232 & USB, IP52, 5V
262.99 €

Barcode module scanner iMatrix FM8080-20 — 1D/2D CMOS wired reader, RS-232 & USB, IP52, 5V

iMatrix FM8080-20 1D/2D CMOS barcode module Photo 1
iMatrix FM8080-20 1D/2D CMOS barcode module Photo 2

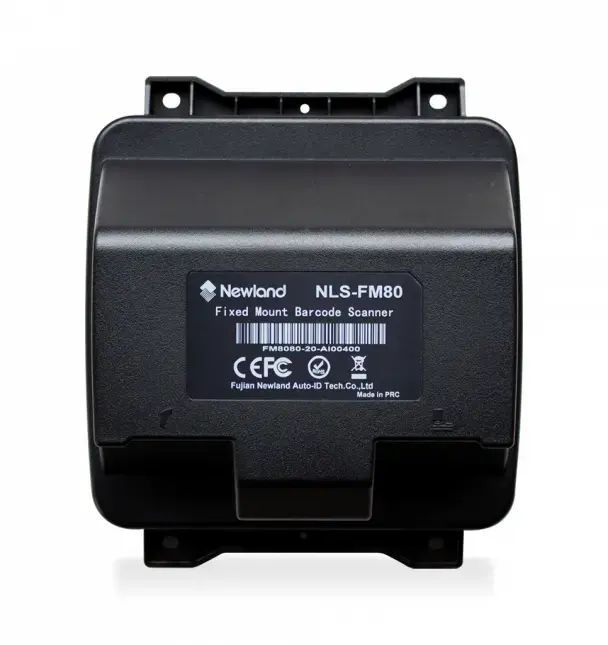

iMatrix FM8080-20 1D/2D CMOS barcode module Photo 3

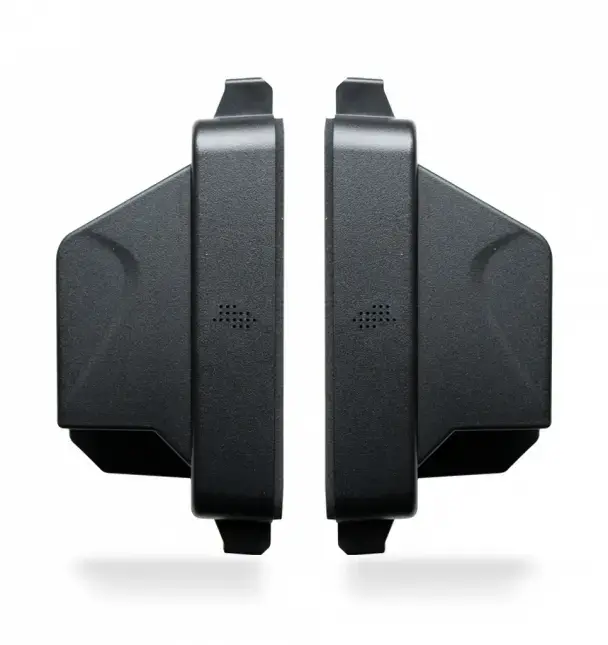

iMatrix FM8080-20 1D/2D CMOS barcode module Photo 4

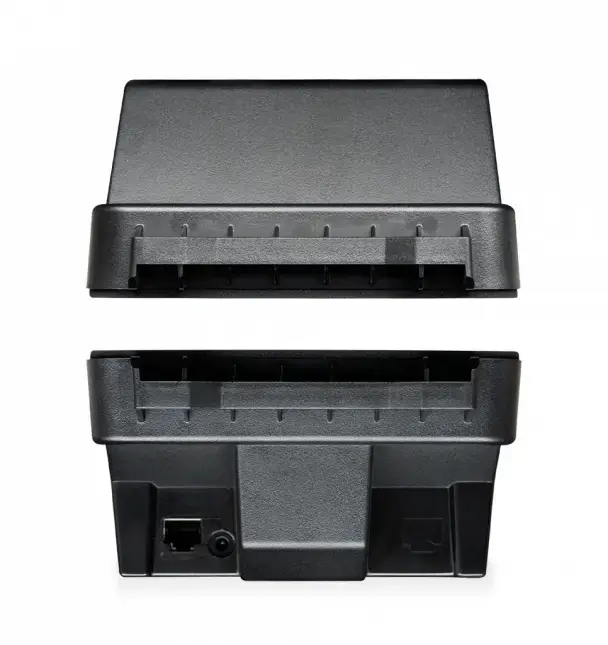

iMatrix FM8080-20 1D/2D CMOS barcode module Photo 5
iMatrix FM8080-20 1D/2D CMOS barcode module Photo 1
iMatrix FM8080-20 1D/2D CMOS barcode module Photo 2
iMatrix FM8080-20 1D/2D CMOS barcode module Photo 3
iMatrix FM8080-20 1D/2D CMOS barcode module Photo 4
iMatrix FM8080-20 1D/2D CMOS barcode module Photo 5
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Barcode module scanner iMatrix FM8080-20 — 1D/2D CMOS wired reader, RS-232 & USB, IP52, 5V

{{email}}
You keep track of price changes

Barcode module scanner iMatrix FM8080-20 — 1D/2D CMOS wired reader, RS-232 & USB, IP52, 5V

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

iMatrix FM8080-20 is a barcode module scanner with a 1D/2D CMOS imager designed for wired integration. It supports RS-232 and USB interfaces, operates at 5 V with 500 mA power draw, and has IP52 dust/protection rating. Compact and weighing 448.3 g (149 × 78.5 mm), it suits retail, warehousing, POS systems and embedded scanning applications.
Available for order: 49 pcs.
Warranty: 2 Years
SKU: 11856715
Manufacturer: iMatrix
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
18.08.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
21.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.45 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
21.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 87.66 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 7.31 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The iMatrix FM8080-20 is a wired barcode module scanner with a 1D/2D CMOS imager designed for embedded integration in retail, POS and warehousing systems. Compact and robust, the unit supports RS-232 and USB connections and operates from a 5 V supply with a 500 mA draw. With an IP52 dust/protection rating, a large scan window and high motion tolerance, the FM8080-20 is intended for fixed-mount installations where reliable reading of printed and on-screen barcodes is required.

Advantages

The FM8080-20 combines megapixel-level imaging with a broad decoding capability, enabling consistent reads of standard 1D and 2D symbologies including QR, Data Matrix and PDF417. Its large scan window and short depth of field reduce the need for precise alignment, while motion tolerance allows accurate capture of moving items at typical checkout speeds. The module’s compact footprint and multiple front mounting points make it suitable for flush installation in kiosks and counters. Designed for customer-facing environments, its illumination and anti-glare features improve comfort when scanning from phone screens or reflective packaging.

Suitable for

  • Retail point-of-sale (fixed POS and checkout counters)
  • Self-service kiosks and unattended terminals
  • Inventory and warehousing stations requiring embedded scanning
  • Integrated OEM devices and service counters

Key specifications

  • Imager type: CMOS 1D/2D
  • Interfaces: RS-232 and USB (wired)
  • Power: 5 V supply, approx. 500 mA power consumption
  • Ingress protection: IP52
  • Dimensions: 149 × 78.5 mm
  • Weight: 448.3 g
  • Large scan window with short depth-of-field for easier alignment
  • High motion tolerance for accurate decoding of moving codes
  • Illumination with anti-glare design for customer-facing use and phone-screen scanning
  • Supported symbologies: common 1D and 2D codes (e.g., EAN, UPC, Code 128, Code 39, QR Code, Data Matrix, PDF417, Aztec, Micro QR)

How to use

Mount the FM8080-20 in the required enclosure using the front anchor points and align the scan window flush with the counter or bezel as needed. Connect the module to the host system using the RS-232 or USB interface and supply a regulated 5 V source capable of delivering at least 500 mA. Configure the host application or terminal to receive decoded barcode data through the chosen interface. Present barcodes to the scan window at typical checkout distances; the large window and motion tolerance enable reads of moving items and codes shown on mobile displays.

Usage recommendations

For installations exposed to dust or splashing, provide additional sealing or an enclosure consistent with the IP52 rating. Position the module so the large scan window is unobstructed and avoid direct, strong external light sources that may cause reflections. When integrating into a retail counter or kiosk, use the provided anchor points for secure mounting and ensure the host’s serial or USB settings match the module’s communication parameters for reliable data transfer.

Specifications

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.4483 kg
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
CMOS
Scanner type: Indicates the type of scanner this product is.
1D/2D
Type: Characteristics of the device.
Barcode module bar barcode readers
Product colour: The colour e.g. red, blue, green, black, white.
Black
Standard interfaces: Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
USB, RS-232
2D (matrix & stacked) barcodes supported: The product can read matrix (2D) barcordes.
MicroPDF417, QR Code, PDF417, Micro QR Code, MaxiCode, Data Matrix, Aztec Code
Linear (1D) barcodes supported: The product can read linear (1D) barcordes.
UPC-E, MSI, EAN-8, EAN-13, Code 93, Code 39, Code 25 (IR 2 of 5), Code 128, Code 11, Codabar
All features

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-20 - 60

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.4483 kg
Height: The measurement of the product from head to foot or from base to top.
166.5 mm
Depth: The distance from the front to the back of something.
78.5 mm
Width: The measurement or extent of something from side to side.
149 mm

Power

Power consumption:
500 mA
Input voltage: The voltage (V) which is required to power the product.
5

Performance

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP52
Product colour: The colour e.g. red, blue, green, black, white.
Black

Ports & interfaces

Standard interfaces: Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
USB, RS-232
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wired

Scanning

Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
CMOS
Linear (1D) barcodes supported: The product can read linear (1D) barcordes.
UPC-E, MSI, EAN-8, EAN-13, Code 93, Code 39, Code 25 (IR 2 of 5), Code 128, Code 11, Codabar
2D (matrix & stacked) barcodes supported: The product can read matrix (2D) barcordes.
MicroPDF417, QR Code, PDF417, Micro QR Code, MaxiCode, Data Matrix, Aztec Code
Scanner type: Indicates the type of scanner this product is.
1D/2D
Type: Characteristics of the device.
Barcode module bar barcode readers
