Wall Bracket InLine 23103A

Name: Wall Bracket InLine 23103A for 23103A
Brand: InLine
SKU: 1559546
Price: 40.99 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

Wall Bracket InLine 23103A for TFT LED Plasma 23-42 inch

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The InLine Wall Bracket 23103A is designed for TFT, LED, and Plasma screens ranging from 23 to 42 inches with a maximum weight capacity of 30 kg. It supports VESA mounts from 100x100 mm to 200x200 mm. The bracket allows for a tilt angle of -20 to 20 degrees and a swivel angle of -90 to 90 degrees, providing flexibility in viewing angles. The distance from the wall can be adjusted between 10 cm and 39 cm, and its sleek black design fits well in any environment.

Available for order: 201 pcs.

Warranty: 2 Years

SKU: 1559546

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

03.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 3.30 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

03.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

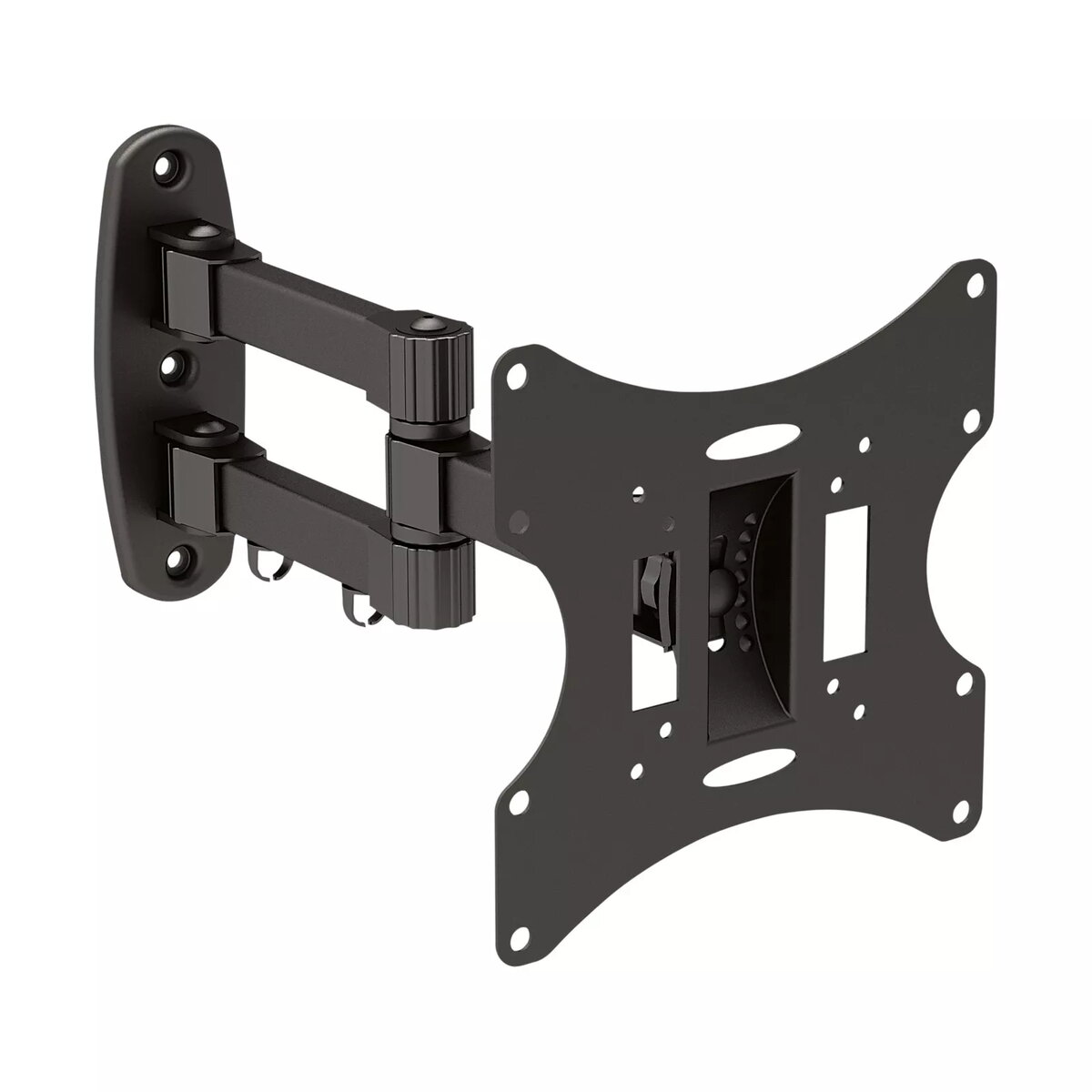

The InLine Wall Bracket 23103A is a versatile mounting solution for TFT, LED and Plasma displays with screen sizes from 23 to 42 inches and a maximum load of 30 kg. Designed to support common VESA patterns from 100x100 mm up to 200x200 mm, this black wall bracket offers adjustable tilt and swivel, and a variable extension from the wall to suit different room layouts and viewing preferences.

Advantages

The wall bracket combines a compact design with robust load capacity, enabling secure installation of medium-size screens. Adjustable tilt range of -20 to 20 degrees and swivel of -90 to 90 degrees provide flexible viewing angle adjustments. The extension range from 10 cm to 39 cm allows closer or more extended positioning relative to the wall, while the black finish integrates unobtrusively into home, office or commercial environments.

Suitable for

Mounting TFT, LED or Plasma displays in living rooms and conference rooms
Retail and public spaces where adjustable viewing angles are required
Home entertainment setups where screen positioning needs to be flexible
Small offices or meeting rooms with medium-size screens

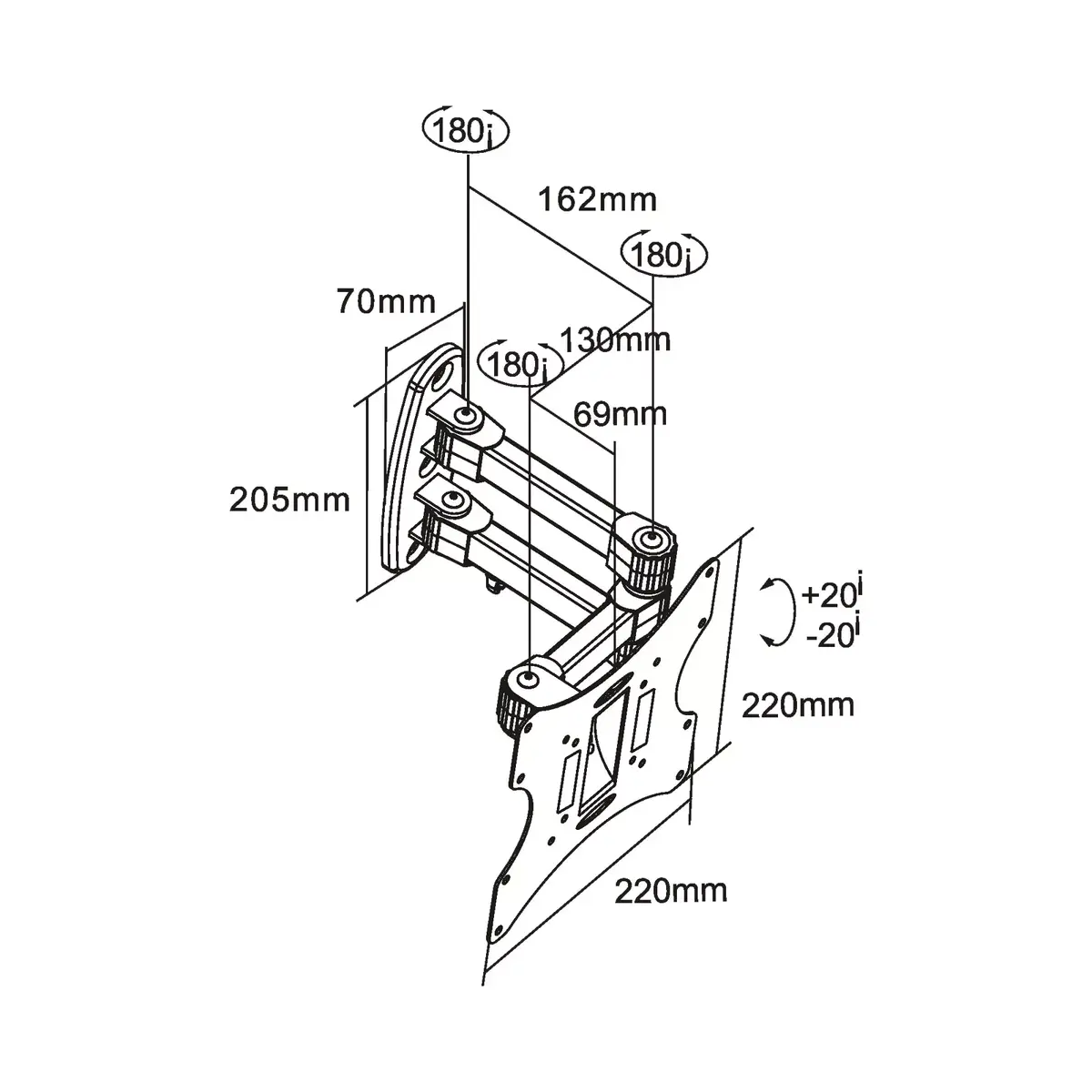

Key specifications

Supported screen size: 23–42 inches
Maximum load capacity: 30 kg
VESA compatibility: 100x100 mm to 200x200 mm
Tilt range: -20° to 20°
Swivel range: -90° to 90°
Distance from wall (adjustable): 10 cm to 39 cm
Color: black

How to use

Select a suitable wall location that can support the combined weight of the bracket and screen. Use a spirit level and measure VESA mounting points on the display to mark drill positions on the wall plate. Secure the wall plate to a solid surface or studs using appropriate anchors and screws. Attach the display to the bracket using the correct VESA screw pattern and fastenings, then adjust tilt and swivel to the desired viewing angle and set the extension within the 10–39 cm range. Re-check all fastenings after adjustment to ensure stable installation.

Usage recommendations

For safety and optimal performance, verify wall material and use proper anchors for the mounting surface; do not exceed the 30 kg load limit and periodically inspect all fittings for tightness.

Specifications

Maximum VESA mount:: 200 x 200
Maximum weight capacity:: 30 kg
Maximum screen size:: 23 "
Product colour:: Black

All features

Other features

Certification:: No
Screen size compatibility:: 431.8 - 939.8

Ergonomics

Swivel angle range:: -90 - 90
Cable management:: Yes
Distance to the wall (max):: 390 mm
Distance to the wall (min):: 100 mm
Tilt adjustment:: Yes

Features

Product colour:: Black
Tilt angle range:: -20 - 20

Mounting

Maximum weight capacity:: 30 kg
Panel mounting interface:: 200 x 100, 200 x 200, 100 x 100
Mounting type:: Wall
Minimum screen size:: 23 "
Maximum screen size:: 23 "
Minimum VESA mount:: 100 x 100
Maximum VESA mount:: 200 x 200

Hide Show all
