TV mount/stand InLine 23103B – universal mounting solution for flat TVs

InLine 23103B is a full-motion TV mount/stand designed as a universal solution for flat-panel televisions from 23 to 43 inches. The mount supports common VESA patterns and a maximum load of 35 kg, combining a durable powder-coated steel structure with integrated cable management and a removable panel plate for streamlined installation. Its adjustable wall distance and broad swivel and tilt ranges allow flexible positioning to suit different room layouts and viewing conditions.

Advantages

The InLine 23103B provides full freedom of movement with ±90° swivel and +5° to −10° tilt for precise screen alignment. An extendable wall distance from 48 mm to 418 mm enables both space-saving flat mounting and extended positioning. Built from powder-coated steel with plastic components, the mount offers a high load capacity of up to 35 kg and a discreet matt-black finish. A removable panel plate and included mounting hardware simplify installation on solid or stud walls, while integrated cable management keeps cables tidy and out of sight.

Suitable for

• Wall mounting flat-panel TVs in living rooms and home theaters
• Mounting screens in offices, meeting rooms and reception areas
• Space-saving installations where the TV must be folded flat or extended
• Situations requiring frequent angle adjustments for different seating or lighting

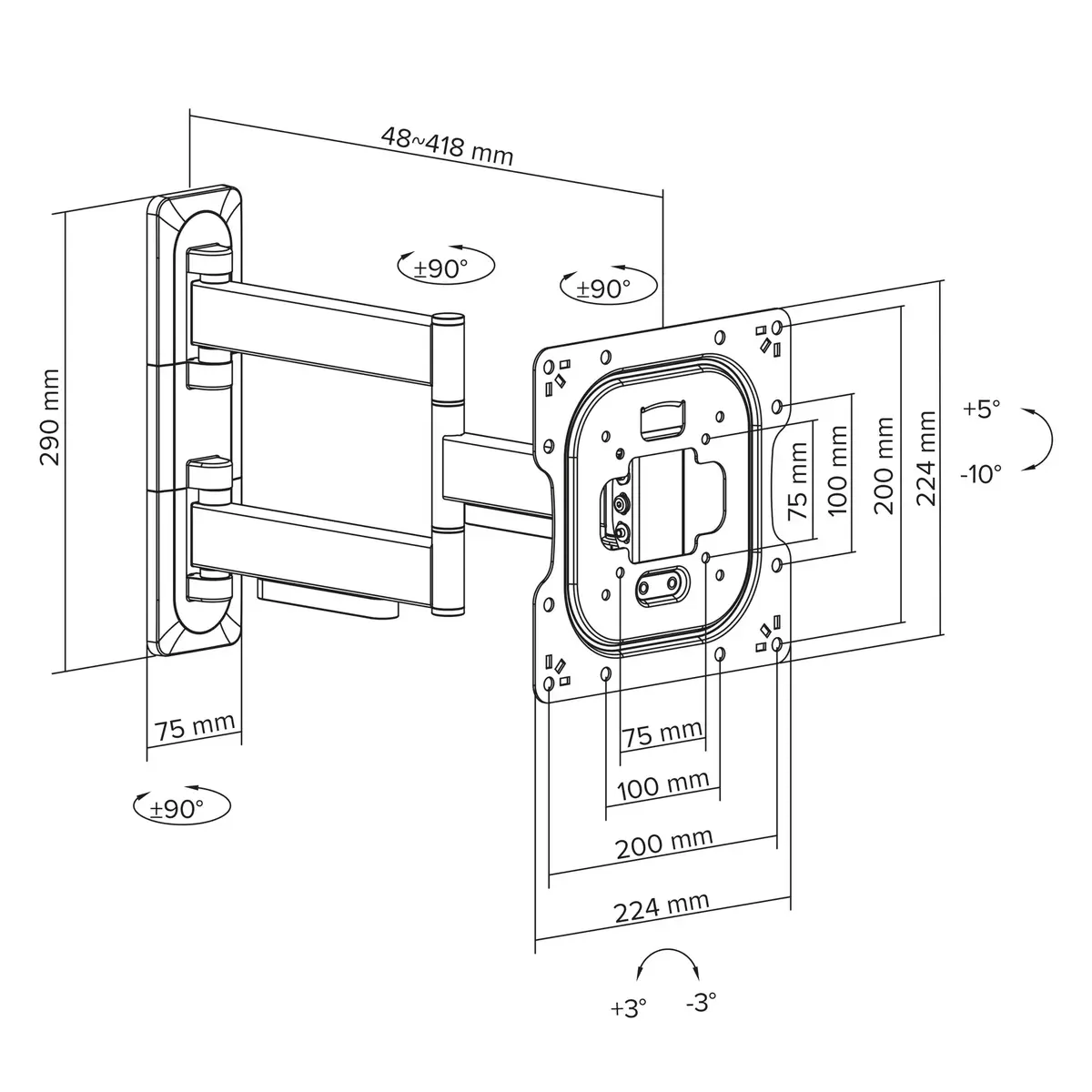

Key specifications

• Screen size compatibility: 23–43 inches
• Maximum load capacity: up to 35 kg
• VESA compatibility: 75×75, 100×100, 200×100, 200×200 mm
• Swivel range: ±90°
• Tilt range: +5° to −10°
• Wall distance (adjustable): 48–418 mm
• Material and finish: powder-coated steel, matt black
• Installation features: removable panel plate, included mounting hardware
• Additional features: integrated cable management

How to use

Select a structurally sound mounting location on a solid wall or stud wall and verify that the chosen position supports the weight of the TV and mount. Attach the removable panel plate to the TV using the appropriate VESA holes and hardware, then fix the mount to the wall using the supplied screws and dowels following the installation instructions. Hang the TV onto the mounted arm assembly, secure the locking mechanism if present, and adjust swivel and tilt to the desired viewing angle. Route cables through the integrated cable management system for a neat finish.

Usage recommendations

For safe and stable installation, confirm wall material and choose fixings suitable for concrete, brick or stud walls. Do not exceed the specified load capacity of 35 kg. When adjusting swivel and tilt, support the TV to avoid sudden movement. Periodically check mounting hardware for tightness and inspect the mount for signs of wear. Use the extendable wall distance to optimize viewing angle and room clearance as required.
