InLine MCIO x8 Breakout Cable to 8x SATA 7-pin Connector 0.5 m SFF-TA-1016

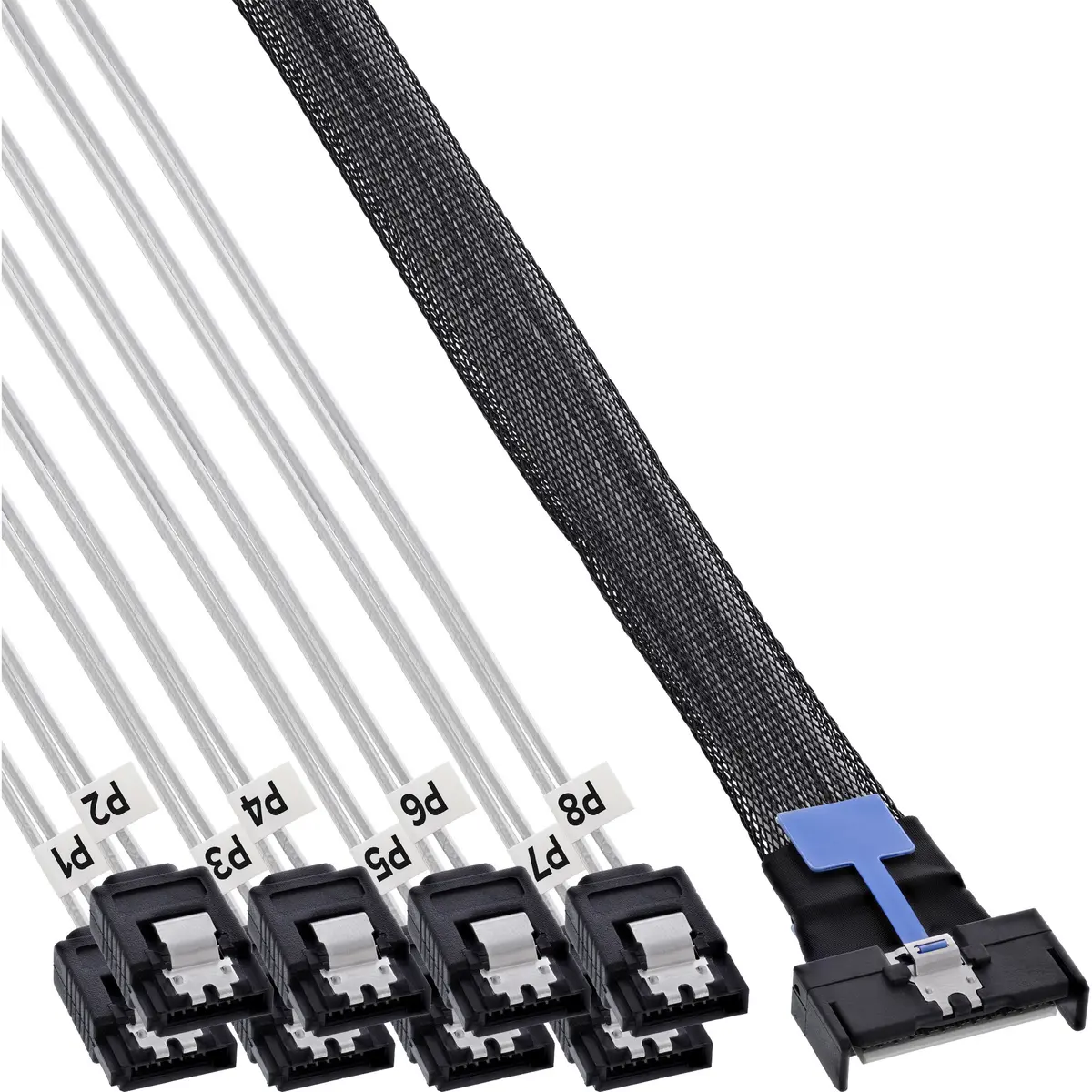

The InLine MCIO x8 Breakout Cable to 8x SATA 7-pin Connector 0.5 m SFF-TA-1016 is a specialized high-performance cable designed for efficient data connection and storage expansion in modern server environments and high-performance computer systems. Featuring an MCIO x8 SFF-TA-1016 74-pin connector on one end and eight individual SATA 7-pin connectors on the other, this breakout cable allows you to connect up to eight SATA HDDs or SATA SSDs to a single host interface. With a practical length of 0.5 meters, it helps streamline internal chassis cabling, reduces clutter, and ensures a clean, organized layout within professional workstations and rackmount servers.

Advantages

This breakout cable offers a space-saving storage connection by consolidating multiple drive lines into a single, structured interface, making it significantly easier to manage high-density setups. Its robust and high-quality construction guarantees reliable signal transmission, minimizing the risk of data loss or communication errors in demanding operational environments. Designed to integrate smoothly with advanced hardware, it supports standard SATA data connections while maintaining strict quality and regulatory standards including CE compliance. By converting one high-capacity MCIO x8 port into eight distinct SATA connections, it maximizes hardware utility without requiring complex adapter cards.

Suitable for

• Connecting up to eight SATA HDDs or SATA SSDs to an MCIO x8 host port
• Server environments and high-performance computing workstations
• RAID controllers and tri-mode HBAs featuring an MCIO interface
• Efficient storage expansion and tidy internal system cabling

When it may not be suitable

This cable is not designed for connecting non-SATA storage drives, such as U.2 or U.3 NVMe SSDs, which require different interface types. Additionally, the 0.5-meter length may be too short for large tower chassis or complex routing paths where components are spaced far apart.

Key specifications

• Cable length: 0.5 m
• Connector 1: MCIO x8 (SFF-TA-1016) 74-pin male
• Connector 2: 8x SATA 7-pin male
• Supported connections: SATA data transmission
• Compliance: CE

How to use

To use the cable, first ensure that your system is powered down and disconnected from the electrical outlet. Plug the MCIO x8 74-pin connector securely into the corresponding host port on your server motherboard, RAID controller, or HBA. Next, connect each of the eight SATA 7-pin ends to the respective SATA hard disk drives or solid-state drives within your enclosure. Route the cable carefully to avoid sharp bends or interference with cooling fans. Once all connections are securely seated, power on the system and verify in your storage management software that all connected drives are properly recognized.

What to consider before purchase

• Verify that your host device features an MCIO x8 (SFF-TA-1016) interface port
• Check the physical distance between your host controller and drives to ensure the 0.5 m length is sufficient
• Confirm that your storage devices utilize standard SATA 7-pin connections rather than SAS or NVMe

Usage recommendations: Handle the cable with care during installation to protect the precision pins inside the connectors. Avoid placing heavy objects on the cable or bending it tightly around sharp metal edges to maintain optimal signal integrity and longevity.
