InLine MCIO x8 to 8x SATA Breakout Cable, 1 m, SFF-TA-1016 74-pin to 8x SATA 7-pin

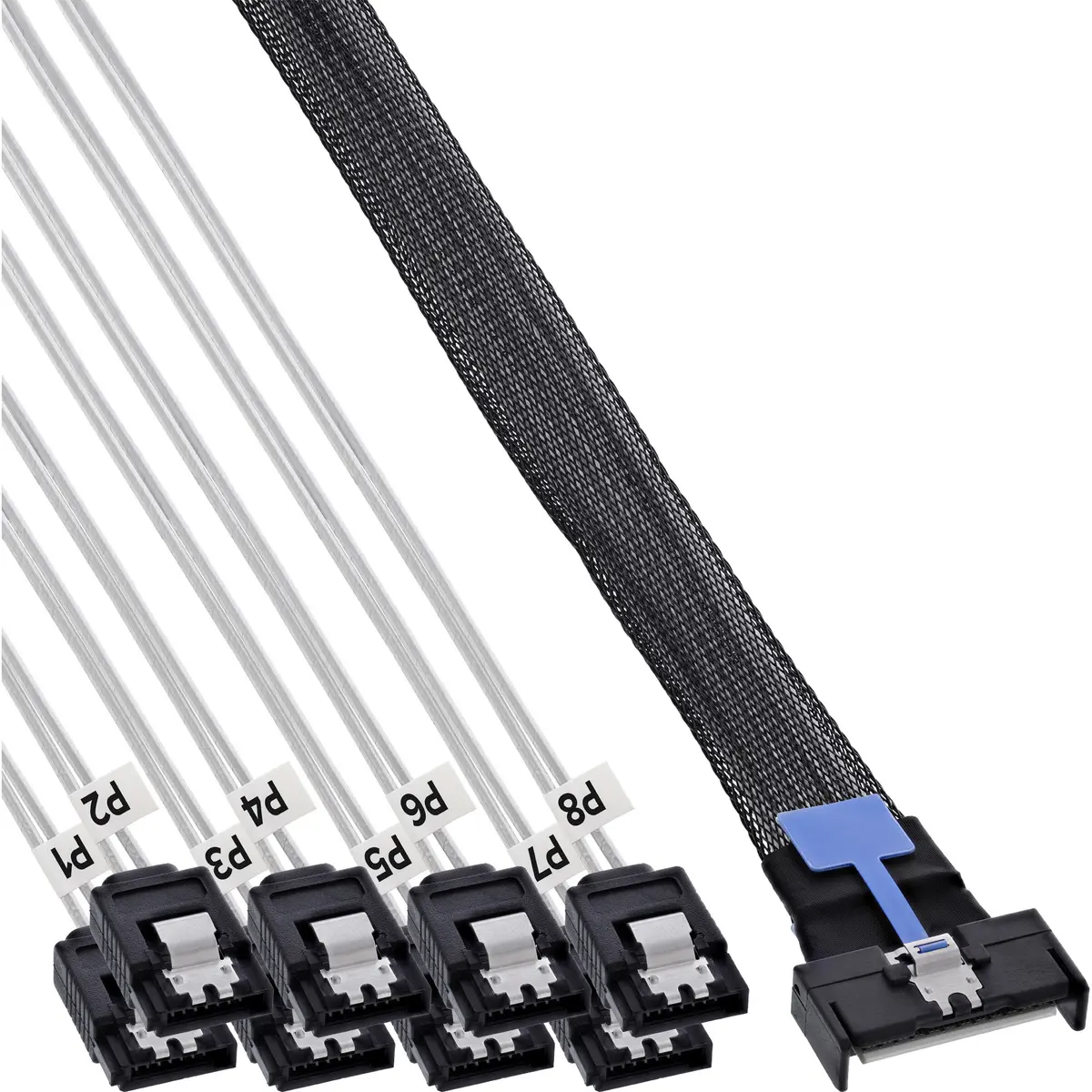

The InLine MCIO x8 to 8x SATA Breakout Cable, 1 m, SFF-TA-1016 74-pin to 8x SATA 7-pin is a specialized computer component accessory designed to establish reliable data connections between modern host controllers and multiple storage drives. Featuring an MCIO x8 SFF-TA-1016 74-pin connector on one end and eight individual SATA 7-pin connectors on the other, this breakout assembly simplifies complex system integration. It enables the connection of up to eight SATA drives through a single port, reducing physical cable clutter and facilitating structured airflow inside professional server chassis and high-performance workstations. Built to meet regulatory standards with CE compliance, this 1-meter cable provides the reach needed for flexible component placement in standard enclosures.

Advantages

The primary benefit of this InLine breakout cable lies in its space-saving storage connection architecture, which consolidates multi-drive setups into a single streamlined interface. By splitting one high-density host port into eight discrete SATA lines, it eliminates the need for numerous individual cables and adapters. The high-quality construction ensures stable, low-loss signal transmission across all connected devices, maintaining data integrity in demanding enterprise environments. Furthermore, its broad compatibility with professional RAID controllers, server motherboards, and tri-mode HBAs makes it a versatile solution for scaling storage capacity without sacrificing reliability.

Suitable for

• Connecting multiple SATA HDDs or SATA SSDs to a single host interface
• Server and enterprise storage environment deployments
• Workstation builds utilizing modern RAID controllers
• Tri-mode HBA installations requiring high-density breakout connections

This cable is not designed for connecting SAS drives, as the split end terminates exclusively in eight SATA 7-pin connectors. It is also unsuitable for consumer motherboards lacking a dedicated MCIO x8 SFF-TA-1016 interface.

Key specifications

• Cable length: 1 m
• Connector 1: MCIO x8 SFF-TA-1016 74-pin straight, male
• Connector 2: 8x SATA 7-pin straight, male
• Supported connections: SATA data transmission
• Operating temperature range: -20 °C to +80 °C
• Operating humidity range: 0 to 90 percent, non-condensing
• Compliance: CE

To install the cable, first ensure that the host system is powered down and disconnected from the electrical supply. Align the MCIO x8 74-pin connector carefully with the corresponding host port on the motherboard, RAID controller, or HBA, and press it firmly until it seats securely. Route the cable through the chassis using designated cable management channels to avoid sharp bends or pinching. Next, connect each of the eight SATA 7-pin ends to the corresponding data ports on your SATA hard disk drives or solid-state drives. Double-check all connections to ensure proper seating before powering the system back on.

What to consider before purchase

• Verify that your motherboard, RAID controller, or HBA features an available MCIO x8 SFF-TA-1016 port
• Confirm that your storage drives utilize standard SATA interfaces rather than SAS
• Measure the distance between your host controller and drive bays to ensure the 1-meter length is sufficient
• Check internal chassis dimensions and routing space to maintain proper airflow

For optimal performance and longevity, avoid tightly coiling or sharply bending the cable during installation. Ensure that the operating environment remains within the specified temperature range of -20 °C to +80 °C and humidity levels do not exceed 90 percent non-condensing.
