header-product InLine USB 3.0 Internal Adapter USB Type-A Male to Female UP Angled
14.99 €

InLine USB 3.0 Internal Adapter USB Type-A Male to Female UP Angled

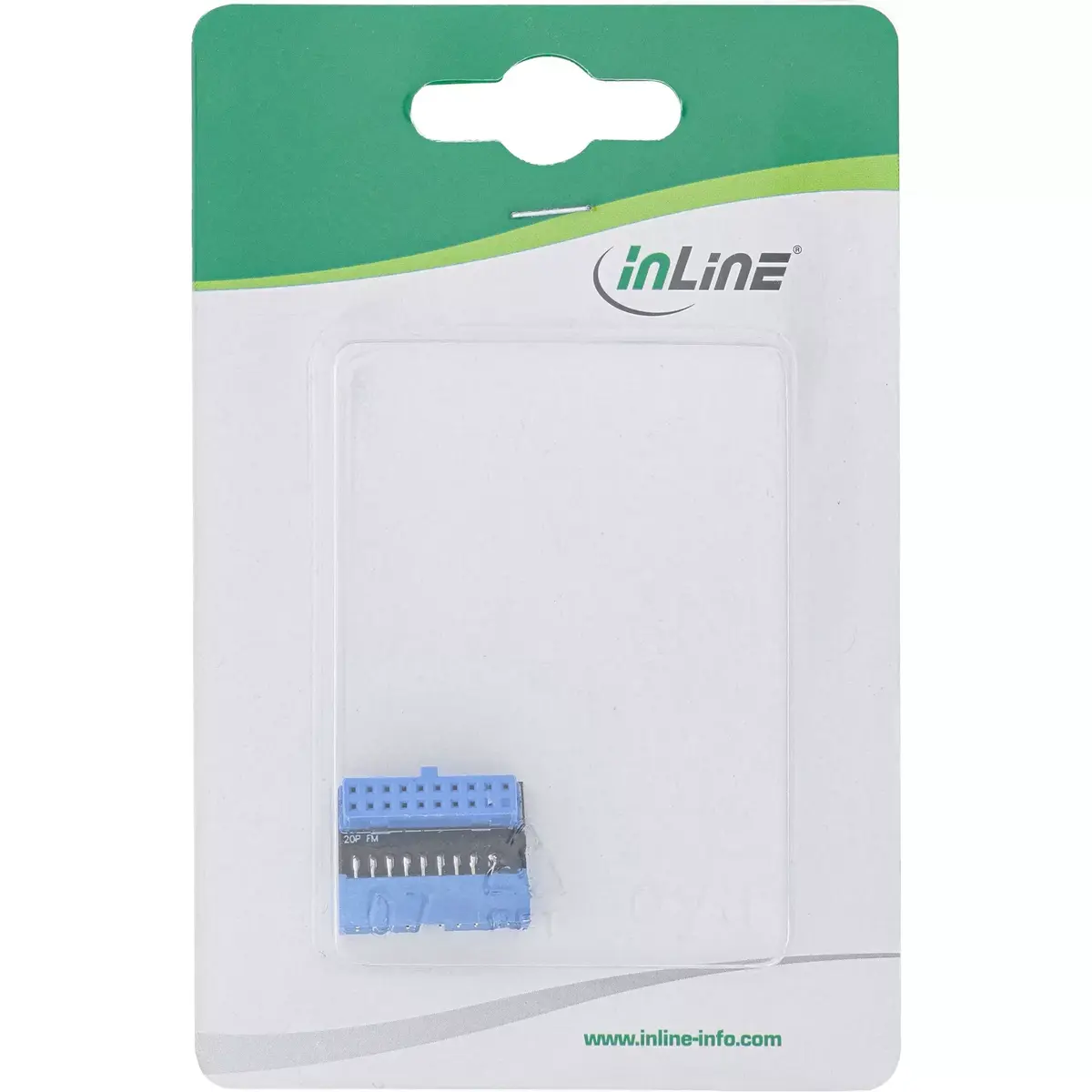

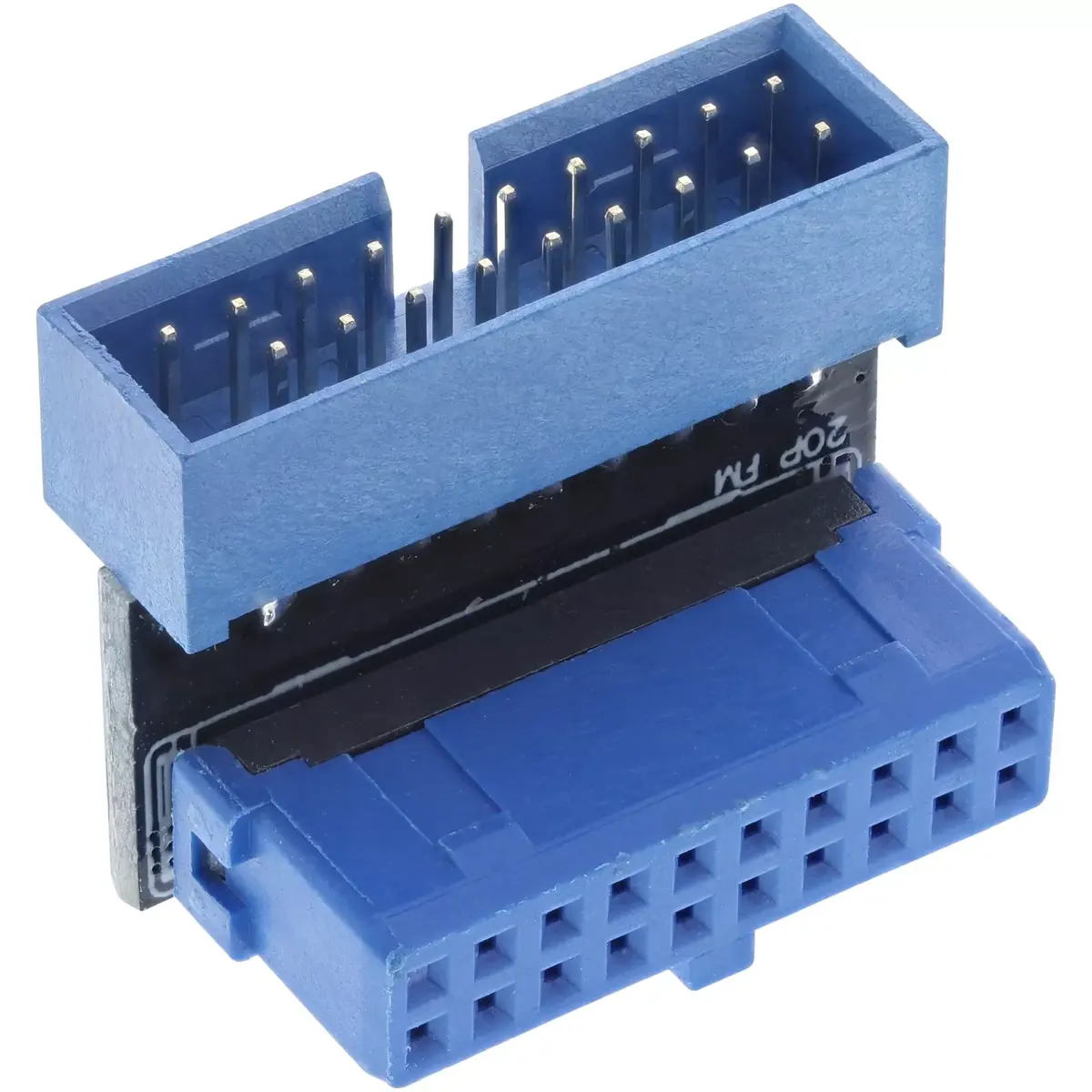

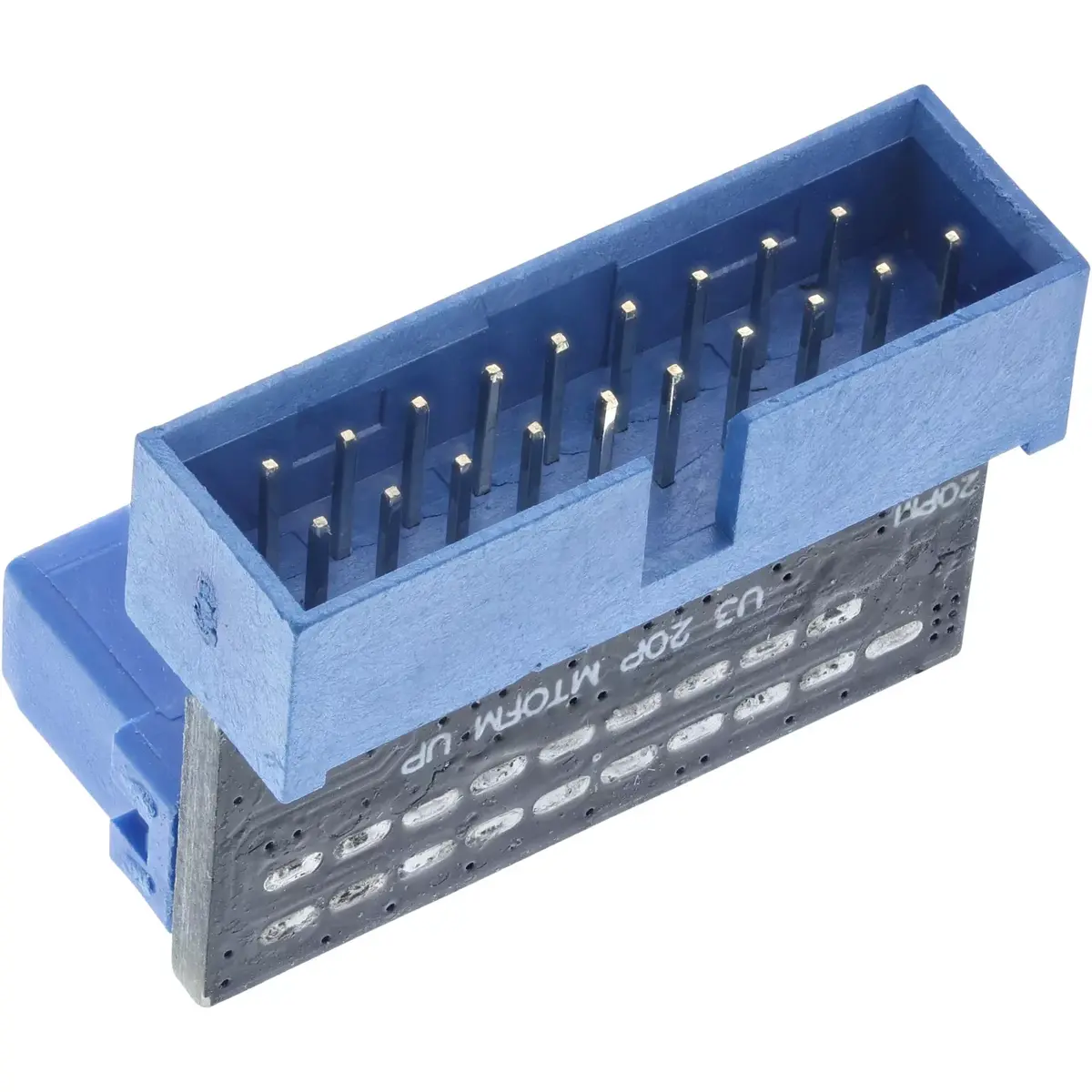

InLine USB 3.0 Internal Adapter UP Angled 33448O Photo 1
InLine USB 3.0 Internal Adapter UP Angled 33448O Photo 2
InLine USB 3.0 Internal Adapter UP Angled 33448O Photo 3
InLine USB 3.0 Internal Adapter UP Angled 33448O Photo 1
InLine USB 3.0 Internal Adapter UP Angled 33448O Photo 2
InLine USB 3.0 Internal Adapter UP Angled 33448O Photo 3
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

InLine USB 3.0 Internal Adapter USB Type-A Male to Female UP Angled

{{email}}
You keep track of price changes

InLine USB 3.0 Internal Adapter USB Type-A Male to Female UP Angled

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

InLine internal USB 3.0 adapter featuring a male USB Type-A to female connection with an UP angled design. Designed for motherboard internal connections, it helps manage tight spaces and cable routing inside PC cases. Supports high-speed USB 3.2 Gen 1 data transfer rates for efficient peripheral connectivity.
Available at price 14.99 €: 229 pcs.
Total available for order: 458 pcs.
Warranty: 2 Years
SKU: 4288454
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
19.10.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
22.10.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.01 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
22.10.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The InLine USB 3.0 Internal Adapter USB Type-A Male to Female UP Angled is a specialized internal component designed to optimize cable management and connection routing within desktop computer chassis. Featuring a male USB Type-A to female connection with an upward-angled design, this adapter is engineered for motherboard internal connections, helping to navigate tight spaces and manage complex cable routing inside PC cases. It supports high-speed USB 3.2 Gen 1 data transfer rates to ensure efficient peripheral connectivity without sacrificing performance or speed.

Advantages

The upward-angled design of the adapter creates essential clearance at the internal header, making it an ideal solution when components or chassis walls block the straight exit of standard cables. By improving vertical orientation, it facilitates a clean and direct path to front panel or expansion ports. The plug-in connection allows for quick installation without requiring any permanent changes to the existing system. It helps maintain a clutter-free interior, which can positively impact overall airflow within the PC case.

Suitable for

  • Connecting internal motherboard USB 3.2 Gen 1 headers in tight PC chassis
  • Routing cables around obstructing components or graphics cards
  • Improving cable management for front panel USB ports
  • System building and custom PC modifications in limited spaces

This adapter may not be suitable for connecting standard external USB peripherals, as it is strictly designed for internal motherboard header connections. It is also not compatible with older USB 2.0 internal headers due to differing physical pin configurations and standards.

Key specifications

  • Host interface: USB Type-A
  • Connector type: 19-pin USB header plug to 19-pin USB header socket
  • Data transfer standard: USB 3.2 Gen 1
  • Design orientation: Internal, upward-angled

To use the adapter, first power down your computer system and disconnect the power supply from the electrical outlet for safety. Open the PC chassis and locate the internal 19-pin USB 3.0 header on the motherboard. Carefully plug the male end of the InLine adapter directly into the motherboard header, ensuring proper pin alignment. Next, connect the existing front panel or expansion module USB cable into the female socket of the adapter. Secure any loose cables using zip ties if necessary before closing the PC case.

What to consider before purchase

  • Verify that your motherboard features an internal 19-pin USB 3.0 header
  • Check the available clearance above the motherboard header to ensure the upward angle provides sufficient space
  • Confirm that your connected cables or devices utilize the USB 3.2 Gen 1 standard
Usage recommendations: Handle the adapter with care during installation to avoid bending the internal pins. Ensure the system is completely powered off and unplugged before performing any hardware modifications inside the PC case.

Specifications

Host interface: Interface that enables a host controller to communicate with a driver.
USB Type-A
All features

Weight & dimensions

Package weight: Weight of the packaged product.
13 g
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.003 kg
Height: The measurement of the product from head to foot or from base to top.
15 mm
Depth: The distance from the front to the back of something.
18 mm
Width: The measurement or extent of something from side to side.
24 mm

Other features

Package volume:
400 cm³
Dimensions (WxDxH): Dimensions of the product (Width x Depth x Height).
24 x 18 x 15

Packaging data

Package type: The type of product package e.g. box.
Blister
Package height: The distance from the top to the bottom of the packaging.
20 mm
Package depth: The distance from the front to the back of the packaging.
130 mm
Package width: The distance from one side of the packaging to the other.
87 mm

Power

USB powered: The device can be powered via a USB connection.
Yes

Features

Connector 2 form factor:
Straight
Connector 1 form factor:
Top
Connector 2 gender: The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
Male
Connector 1 gender: The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
Female

Design

Product colour: The colour e.g. red, blue, green, black, white.
Multicolour

Ports & interfaces

Host interface: Interface that enables a host controller to communicate with a driver.
USB Type-A
