HDMI Matrix Switch InLine 4x4 Multi-View 57830I

Name: HDMI Matrix Switch InLine 4x4 57830I
Brand: InLine
SKU: 431196
Price: 925.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

HDMI Matrix Switch InLine 4x4 Multi-View 57830I Photo 3

HDMI Matrix Switch InLine 4x4 Multi-View 57830I Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The InLine 4x4 Multi-View HDMI Matrix Switch allows you to connect up to 4 HDMI sources to 4 displays, supporting Full HD resolution of 1920 x 1080 pixels. With dimensions of 437 x 205 x 43 mm, this compact switch is perfect for video wall setups. It features a sleek black design and is ideal for presentations, events, or home theater systems.

Available at price 925.49 €: 10 pcs.

Total available for order: 20 pcs.

Warranty: 2 Years

SKU: 431196

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

14.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

14.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

17.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 2.85 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

17.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Leasing for legal entities

Find out more Hide details

Leasing for legal entities: from 32.21 euros per month

Available for private customers at price 925.99 €: 10 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The InLine 4x4 Multi-View HDMI Matrix Switch 57830I connects up to four HDMI sources to four HDMI displays and supports multiple viewing modes including Matrix, PIP (Picture in Picture), PAP, Quad View, Windows mode and a 2x2 video wall. It handles Full HD input and can display a single source across a 2x2 video wall. Control options include front-panel buttons, IR remote, USB (mouse/keyboard) and RS-232. The unit is rack-mountable (19") and comes in a compact black enclosure suitable for presentation, event or home-theater installations.

Advantages

The switch provides flexible routing of four HDMI inputs to four outputs with independent mapping and six selectable display modes for diverse setups. It supports picture-in-picture and multi-window arrangements, a true video-wall mode for 2x2 configurations, and multiple control interfaces (front panel, IR remote, USB and RS-232). Up to eight custom presets can be stored and recalled for fast configuration changes, and an on-screen display (OSD) assists with source selection and programming. Its 19" form factor allows easy mounting in server or AV racks.

Suitable for

Conference rooms and meeting spaces
Event and exhibition installations
Retail digital signage and control rooms
Home theater systems requiring multiple sources and displays
Small video-wall setups (2x2)

Key specifications

Model: InLine 4x4 Multi-View HDMI Matrix Switch 57830I

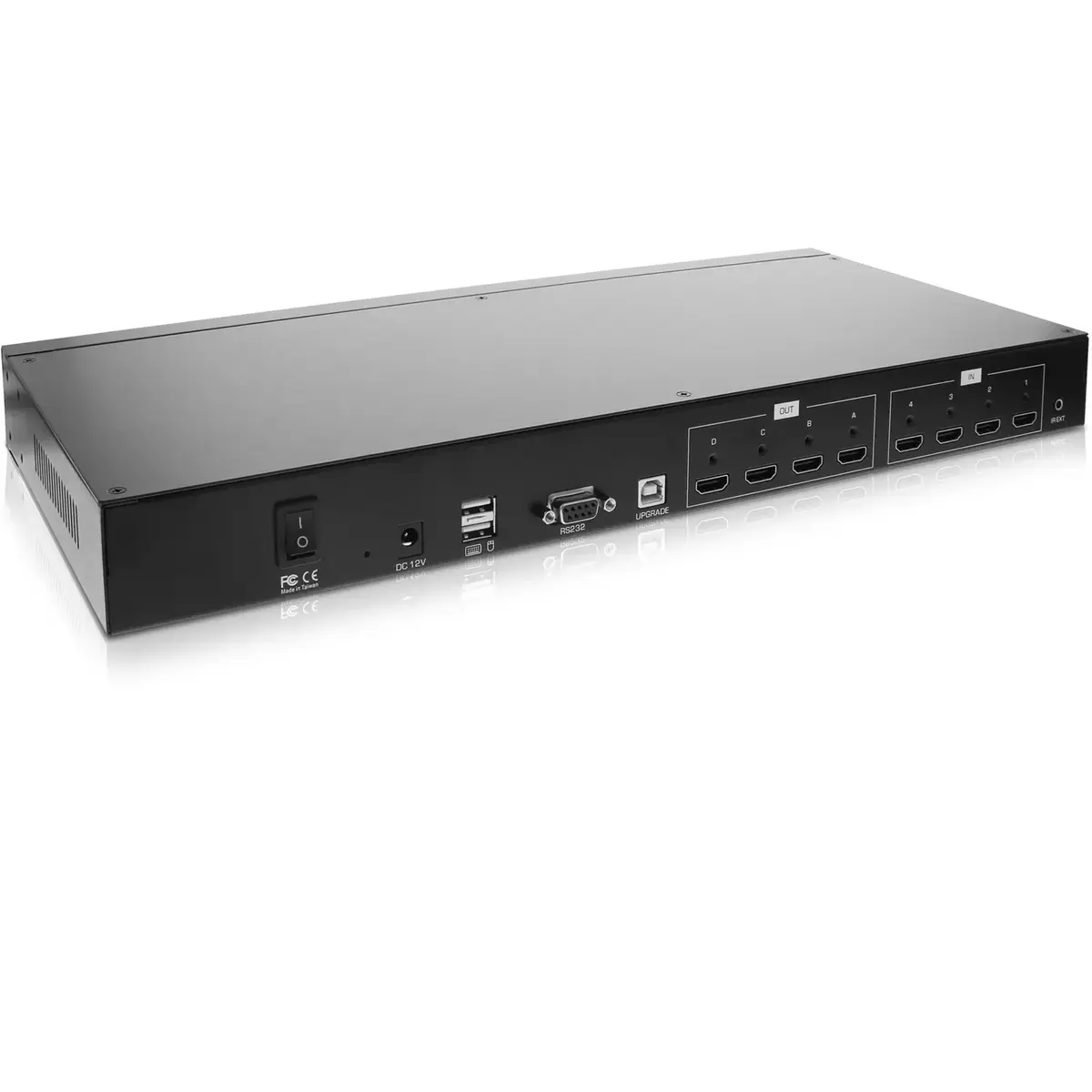

Inputs / Outputs: 4 HDMI inputs, 4 HDMI outputs
Supported display modes: Matrix, PIP, PAP, Quad View, Windows mode, Video Wall (2x2)
Maximum single-display resolution supported: Full HD (1920 x 1080); video wall mode supports combining into 3840 x 2160 (2x2)

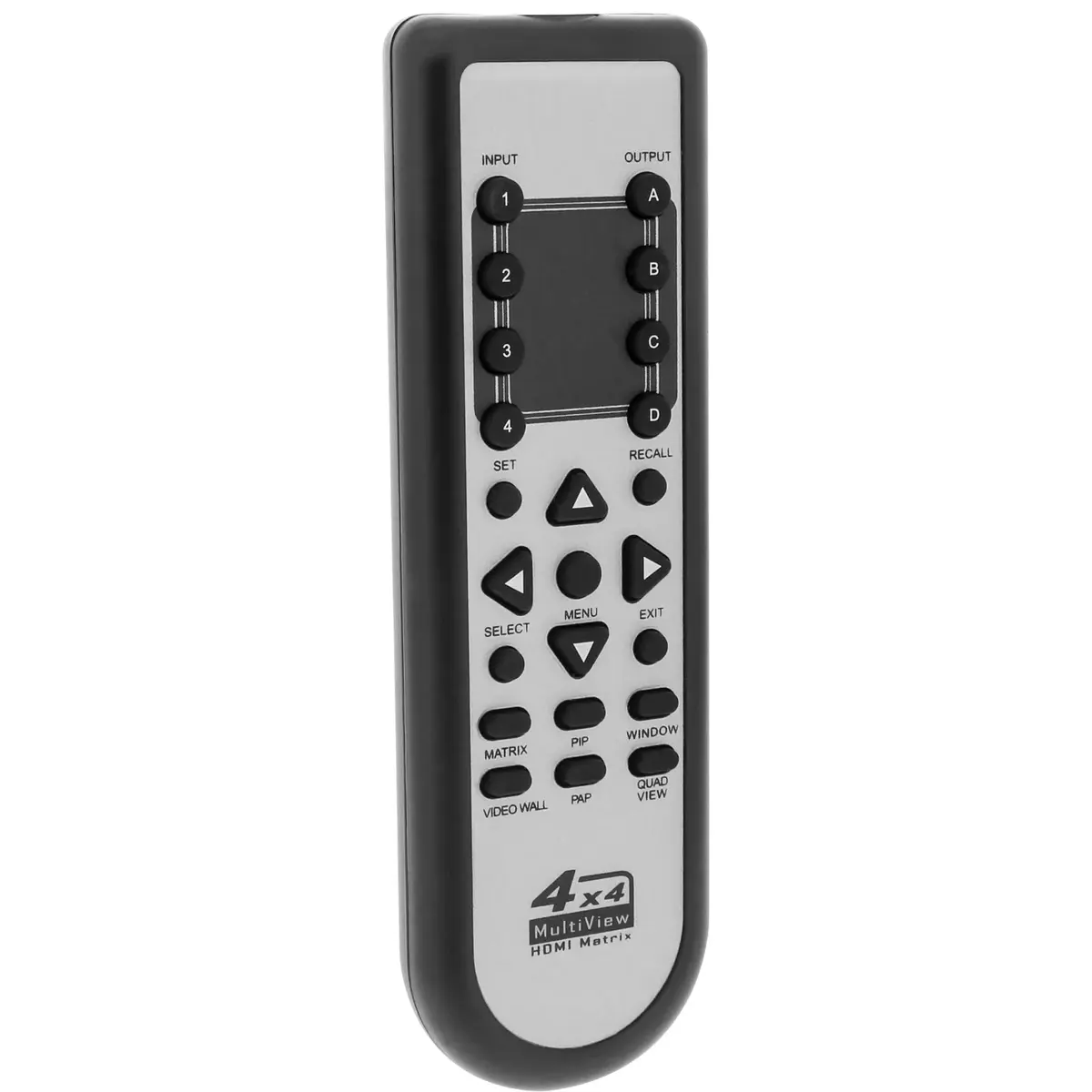

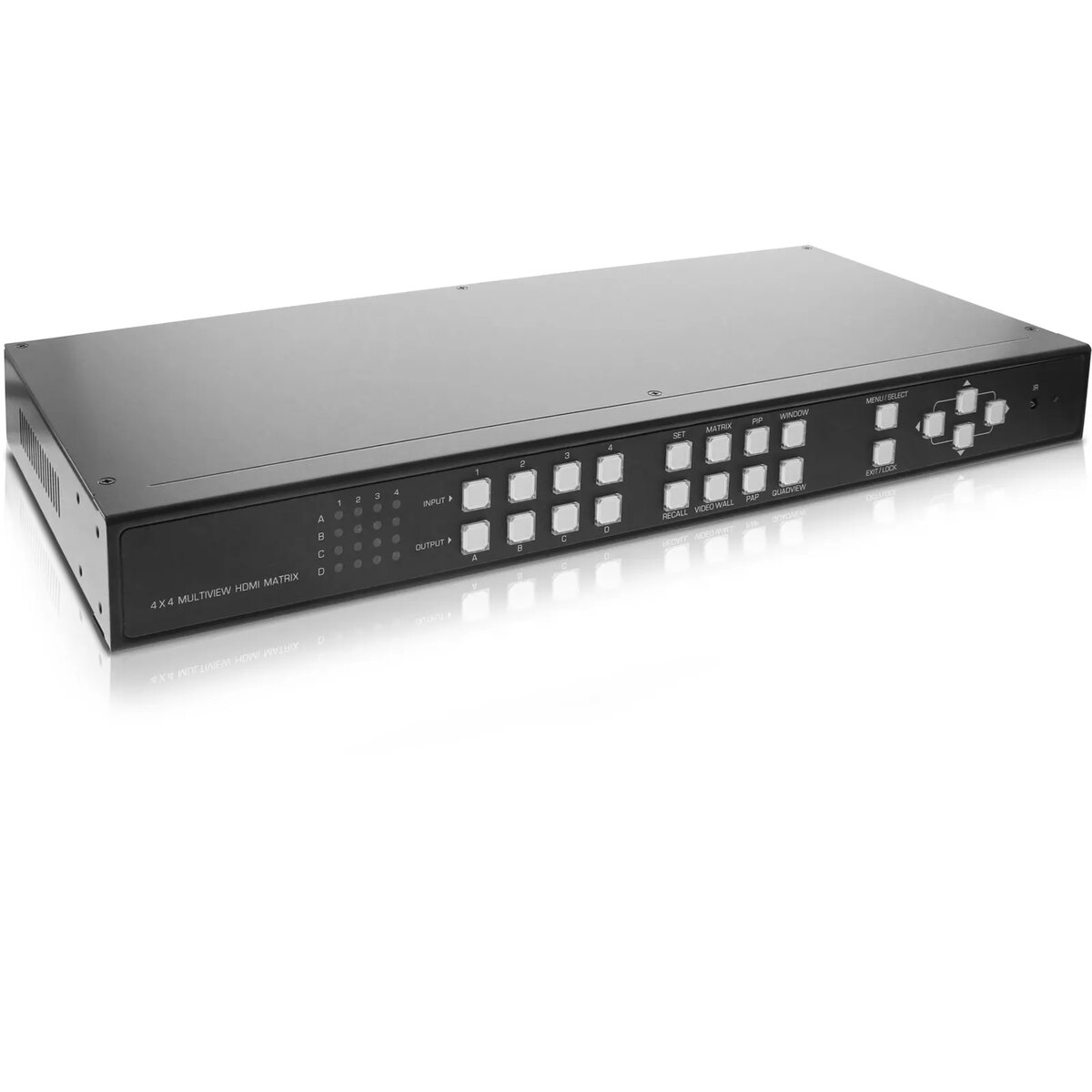

Control interfaces: Front panel buttons, IR remote, USB (mouse/keyboard), RS-232
Rack size: 19"
Colour: Black

How to use

Install the unit into a 19" rack or place it on a stable surface, connect up to four HDMI sources to the input ports and connect up to four displays to the output ports. Use the front-panel buttons, the supplied IR remote, a USB mouse/keyboard or an RS-232 connection to navigate the OSD and select the desired display mode and routing. Configure PIP, PAP, Quad View, Windows or video-wall modes as needed, and save frequently used layouts to one of the eight programmable presets for quick recall.

Usage recommendations

For optimal results use HDMI cables of appropriate length and quality, ensure source resolutions and display capabilities are compatible with Full HD or combined video-wall resolutions, and verify EDID/handshake behavior when connecting mixed equipment. Save commonly used layouts to presets to streamline switching during presentations or events.

Specifications

Video port type:: HDMI
Product colour:: Black

All features

Ports & interfaces

Video port type:: HDMI
HDMI in:: 4
Number of HDMI outputs:: 4
RS-232 ports:: 1
HDMI ports quantity:: 8

Operational conditions

Operating relative humidity (H-H):: 0 - 90
Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: 0 - 40

Features

Maximum resolution:: 1920 x 1080
Product colour:: Black
Full HD:: Yes

Other features

Dimensions (WxDxH):: 437 x 205 x 43

Hide Show all

Instructions

mmo_26865613_1575540287_5079_19464.pdf

mmo_26865613_1575540287_5079_19464(1).pdf

Description

Instructions

mmo_26865613_1575540287_5079_19464.pdf

mmo_26865613_1575540287_5079_19464(1).pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Warehouse	Stock	Delivery to the store	Store Price
WH357	10	06.07.2026 Best delivery	925.99 €

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
WH109	10	14.07.2026	925.49 € Best price

925.99 €

Stock: 10

Delivery Date: 06.07.2026 Best delivery

Warehouse: WH357

Available only for legal entities

925.49 €

Stock: 10

Delivery Date: 14.07.2026

Warehouse: WH109

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the HDMI Matrix Switch InLine 4x4 Multi-View 57830I cost, and is it available for purchase?

The price is 925.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 20 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 14.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Leasing for legal entities. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All InLine products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized InLine service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: video port type, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for HDMI Matrix Switch InLine 4x4 Multi-View 57830I?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
