InLine 57887C AV extender

InLine 57887C

Stable 4K 60 Hz signal transmission:The active HDMI repeater according to HDMI 2.0b specifically processes the signal using TMDS signal equalisation and clock and data recovery, enabling reliable transmission up to 3840 x 2160 @ 60 Hz with up to 18 Gb/s.
Optimised for long cable runs:Reduces signal loss in extended HDMI connections and supports distances of up to 8 metres at 4K @ 50/60 Hz 4:4:4, up to 15 metres at 4K @ 60 Hz 4:2:0 and up to 20 metres at 1080p @ 60 Hz.
Full HDR and HDCP 2.2 support:Compatible with HLG, HDR10, HDR10+ and Dolby Vision, as well as HDCP 2.2 and 1.x for protected high-resolution content.
No external power supply required:Power is supplied directly via the HDMI source device. No external power supply is required.
Ready to use without configuration:Plug-and-play operation without configuration, drivers or software installation. Easy integration as an active intermediate component in existing HDMI signal chains.

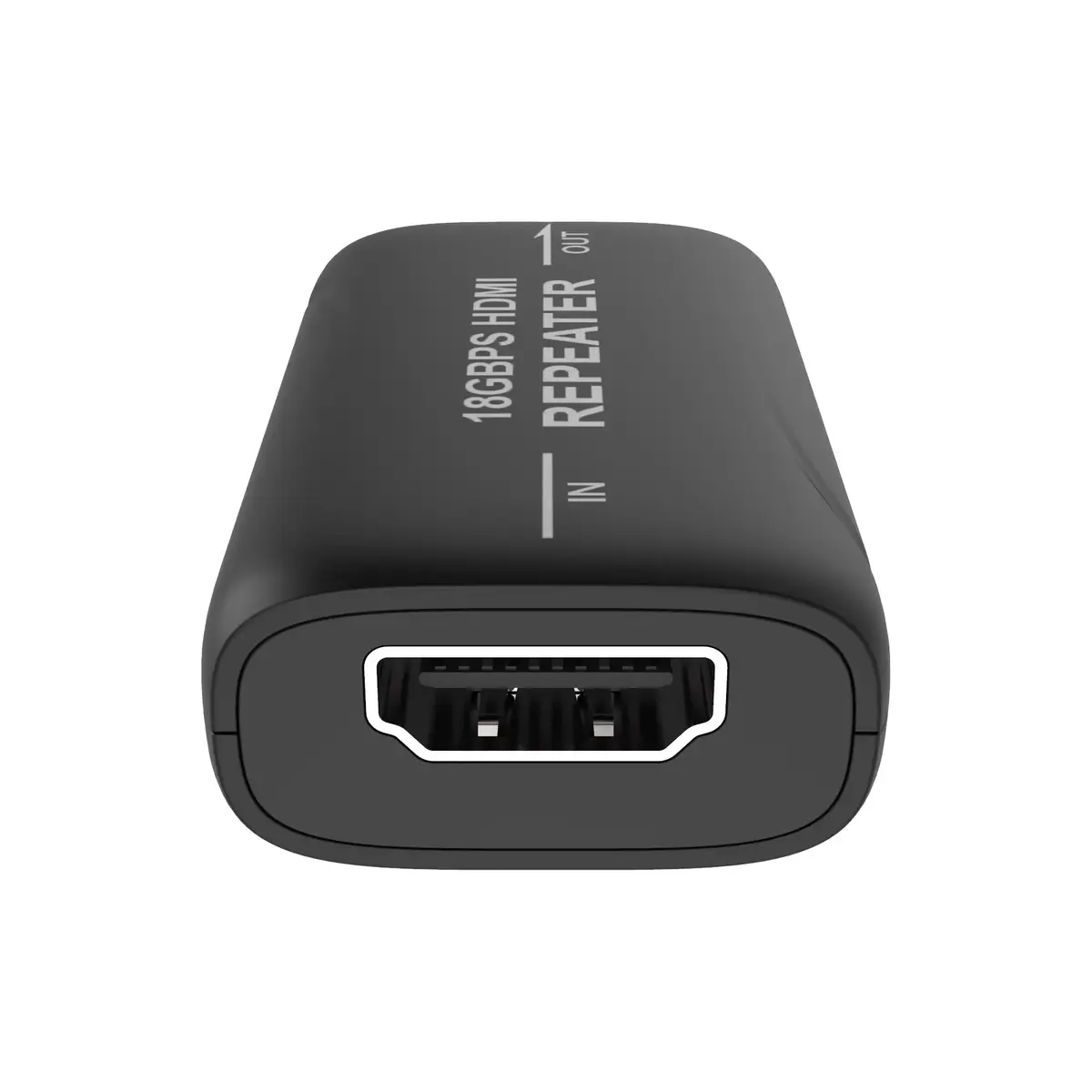

The InLine® HDMI Repeater is used for active stabilisation and extension of HDMI signal connections. It is used as an intermediate component between a signal source and a display device and specifically processes the signal to reduce transmission losses over longer cable lengths.
Thanks to integrated TMDS signal equalisation and clock and data recovery, the HDMI signal is regenerated and stabilised. This allows high-resolution content up to 4K at 60 Hz to be reliably transmitted at a maximum data rate of 18 Gb/s.
The repeater supports HDMI 2.0b, HDCP 2.2 and 1.x, as well as numerous HDR formats such as HLG, HDR10, HDR10+ and Dolby Vision. High-quality audio formats such as PCM 2.0, 5.1 and 7.1, Dolby Digital, Dolby TrueHD, DTS and DTS-HD Master Audio are also processed.
Depending on the resolution and colour sampling, the device allows for different transmission distances. Up to 8 m is possible with 4K @ 50/60 Hz 4:4:4. With 4K @ 60 Hz 4:2:0, up to 15 m is supported. Distances of up to 20 m are possible at 1080p @ 60 Hz.
Power is supplied directly via the source's HDMI signal. An external power supply is not required. The device works without configuration and is ready for immediate use.
Technical specifications
Video

HDMI standard: HDMI 2.0b
DVI standard: DVI 1.0 (single link)
HDCP standard: HDCP 2.2 / 1.x
Maximum data rate: 18 Gb/s
Maximum resolution: 3840 x 2160 @ 60 Hz

Colour sampling and colour depth

At 4K @ 50/60 Hz:
- RGB / YCbCr 4:4:4: up to 8 bits
- YCbCr 4:2:2 / 4:2:0: 8 / 10 / 12 bits
At 1080p @ 60 Hz:
- RGB / YCbCr 4:4:4 / 4:2:2 / 4:2:0: 8 / 10 / 12 bits
- HDR formats: HLG, HDR10, HDR10+, Dolby Vision

Audio
Supported audio formats:

PCM 2.0 / 5.1 / 7.1
Dolby Digital
Dolby TrueHD
DTS
DTS-HD Master Audio

Mechanical and environmental data

Housing material: Plastic
Colour: Black
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–90 %, non-condensing

Scope of delivery

1 x HDMI repeater
1 x operating instructions (German/English)
