InLine 57887D. Video port type: HDMI, Video out: 4x HDMI. Maximum resolution: 7680 x 4320 pixels, Product colour: Black, Housing material: Metal. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Output voltage: 12 V. Width: 120 mm, Depth: 220 mm, Height: 26 mm. Quantity per pack: 1 pc(s), Package width: 180 mm, Package depth: 280 mm
Key Features
- Video port type: HDMI Video ports quantity: 2 Black
- DC-in jack
- 7680 x 4320 pixels
- Maximum refresh rate: 120 Hz
- High Dynamic Range (HDR) supported
- 12 W
- 1 pc(s)
Maximum HDMI 2.1 performance:Supports 48 Gb/s bandwidth and resolutions up to 8K @ 60 Hz and 4K @ 120 Hz for demanding AV signals.
Flexible signal distribution:Distributes a selected HDMI signal simultaneously and identically to up to four displays, with switching between two sources.
Individual downscaling per output:Enables parallel use of different display resolutions through separate adjustment for each HDMI output.
Professional audio management:Audio de-embedding with digital S/PDIF and analogue L/R output independent of the HDMI video signal.
Extensive control and installation functions:EDID management, HDR to SDR conversion, RS-232 control, IR remote control and integrated test pattern generator.

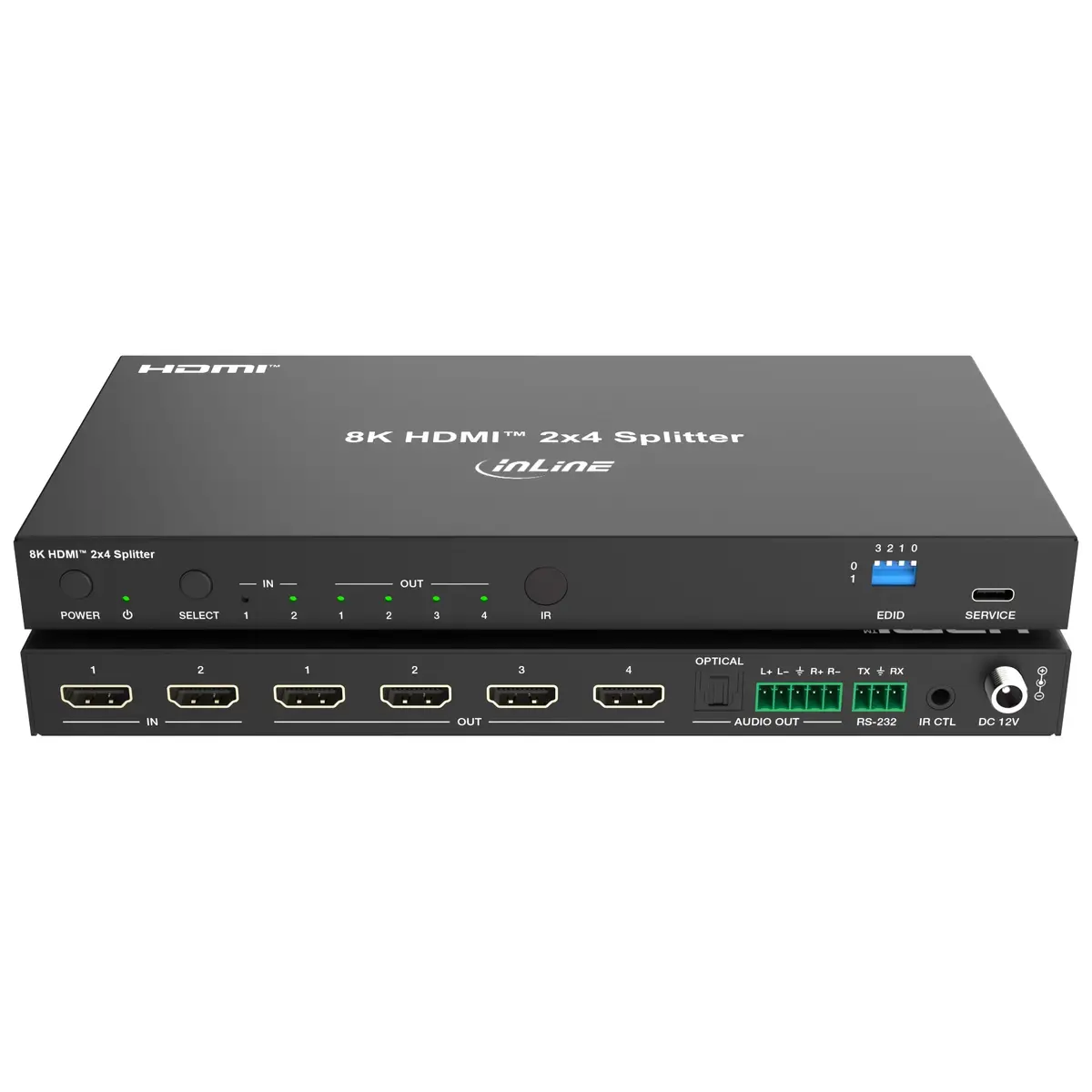

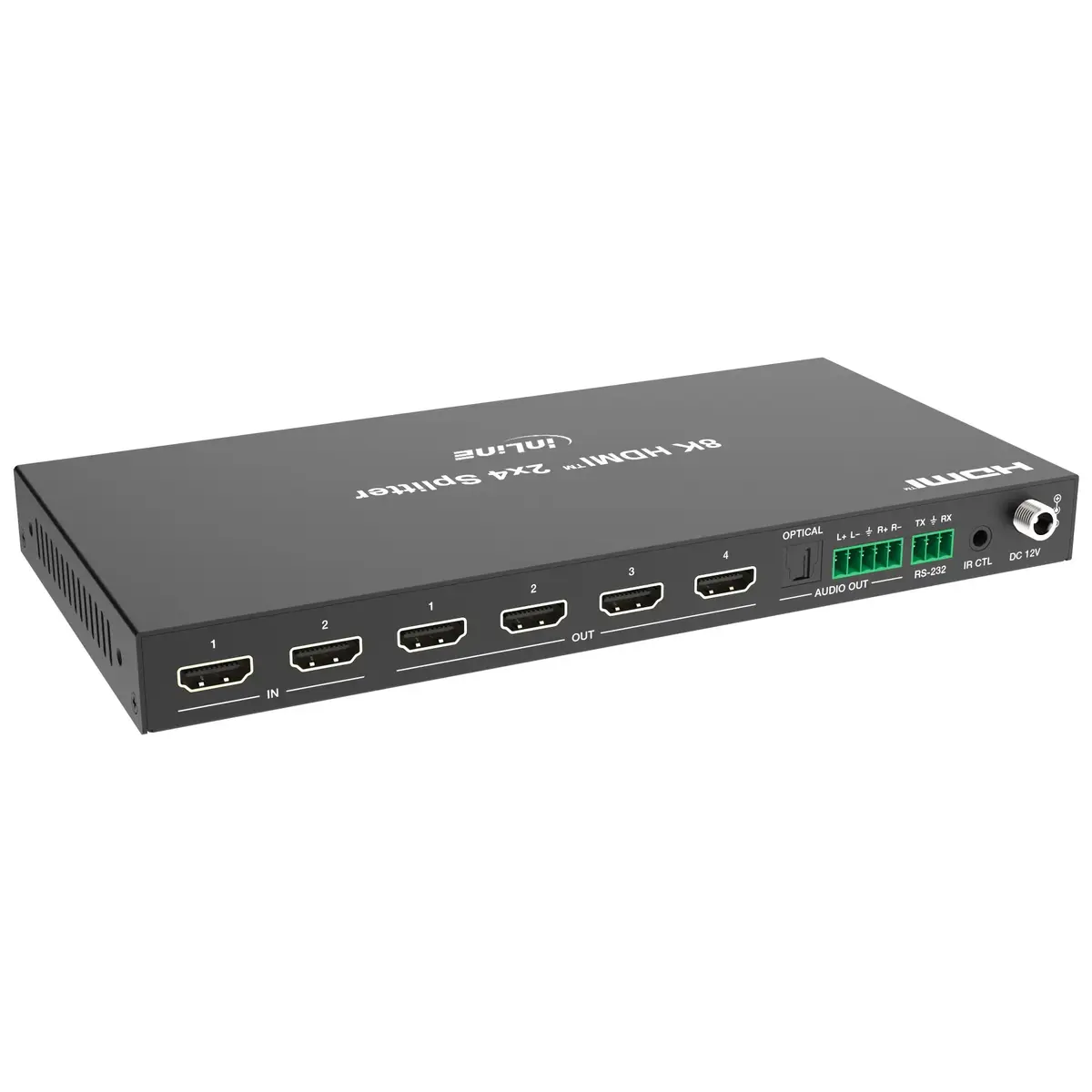

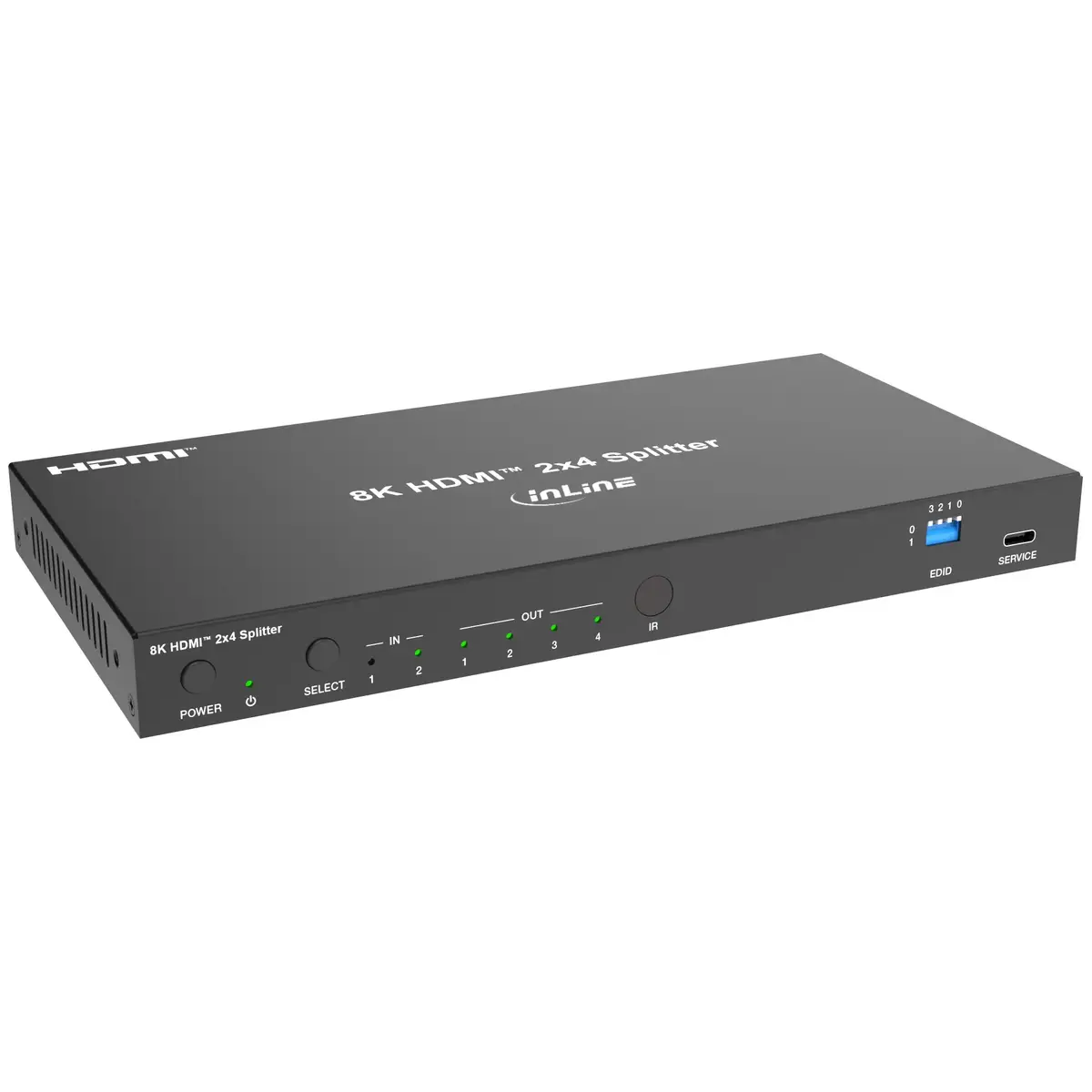

The InLine® 2x4 HDMI Splitter is a powerful solution for switching and distributing modern HDMI 2.1 signals. It allows you to select between two HDMI sources and simultaneously distributes the selected signal to up to four display devices. All connected displays output the same image and sound signal.
With a maximum data rate of 48 Gb/s, the device supports resolutions up to 8K at 60 Hz and 4K at 120 Hz. This makes the splitter suitable for high-resolution video applications with high refresh rates. Current HDR formats such as HDR10, HDR10+, Dolby Vision and HLG are supported, as well as modern features such as VRR and ALLM.
Integrated EDID management allows the output signal to be specifically adapted to the characteristics of the connected displays. Downscaling can be configured separately for each HDMI output. This allows displays with different technical specifications to be operated in parallel.
The integrated audio de-embedding function allows the audio signal to be output separately via an optical S/PDIF output or an analogue L/R output. Equaliser and re-timing functions are also available to optimise signal quality.
The robust metal housing, external power supply and control options via IR or RS-232 make the splitter a reliable solution for structured AV installations.
Technical featuresVideoHDMI standard: HDMI 2.1
HDCP standard: HDCP 2.3
Maximum data rate: 48 Gb/s
Supported resolutions:
- 7680 x 4320 @ 60 Hz (4:2:0, 12 bits)
- 7680 x 4320 @ 30 Hz (4:4:4, 12 bits)
- 3840 x 2160 @ 120 Hz (4:4:4, 12 bits)
Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Colour depth: 8 / 10 / 12 bits
HDR formats: HDR, HDR10, HDR10+, Dolby Vision, HLG
Additional functions: ALLM, VRR pass-through
AudioSupported audio formats via HDMI: LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master Audio, DSD
Digital audio output: S/PDIF (optical), up to 5.1 channels
Analogue audio output: L/R, 2 channels
Mechanical and environmental dataHousing material: Metal
Colour: Black
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity (operation): 20–80%, non-condensing
Permissible humidity (storage): 10–90%, non-condensing
Power supply (external)Input: AC 100–240 V / 50–60 Hz
Output: DC 12.0 V / 1.0 A
Output power: max. 12.0 W
Average efficiency during operation (230 V / 50 Hz): 83.13%
Power consumption at zero load (230 V / 50 Hz): 0.06 W
Efficiency at low load (10%) (230 V / 50 Hz): 76.80%
Scope of delivery1 x 2x4 HDMI splitter
1 x power supply (DC 12 V / 1 A, lockable)
1 x IR remote control
1 x IR receiver cable (approx. 1.5 m)
1 x 3-pin screw terminal connector (RS-232)
1 x 5-pin screw terminal connector (audio L/R)
2 x mounting brackets
4 x machine screws (M3 x 6)
1 x operating instructions (German/English)
Charging device included
