header-product InLine PCI Multi I/O Controller Card with 4 DB9 Serial Ports, MCS9865 Chipset, Wired Connectivity, 115.2 Mbit/s Data Transfer Rate
30.99 €

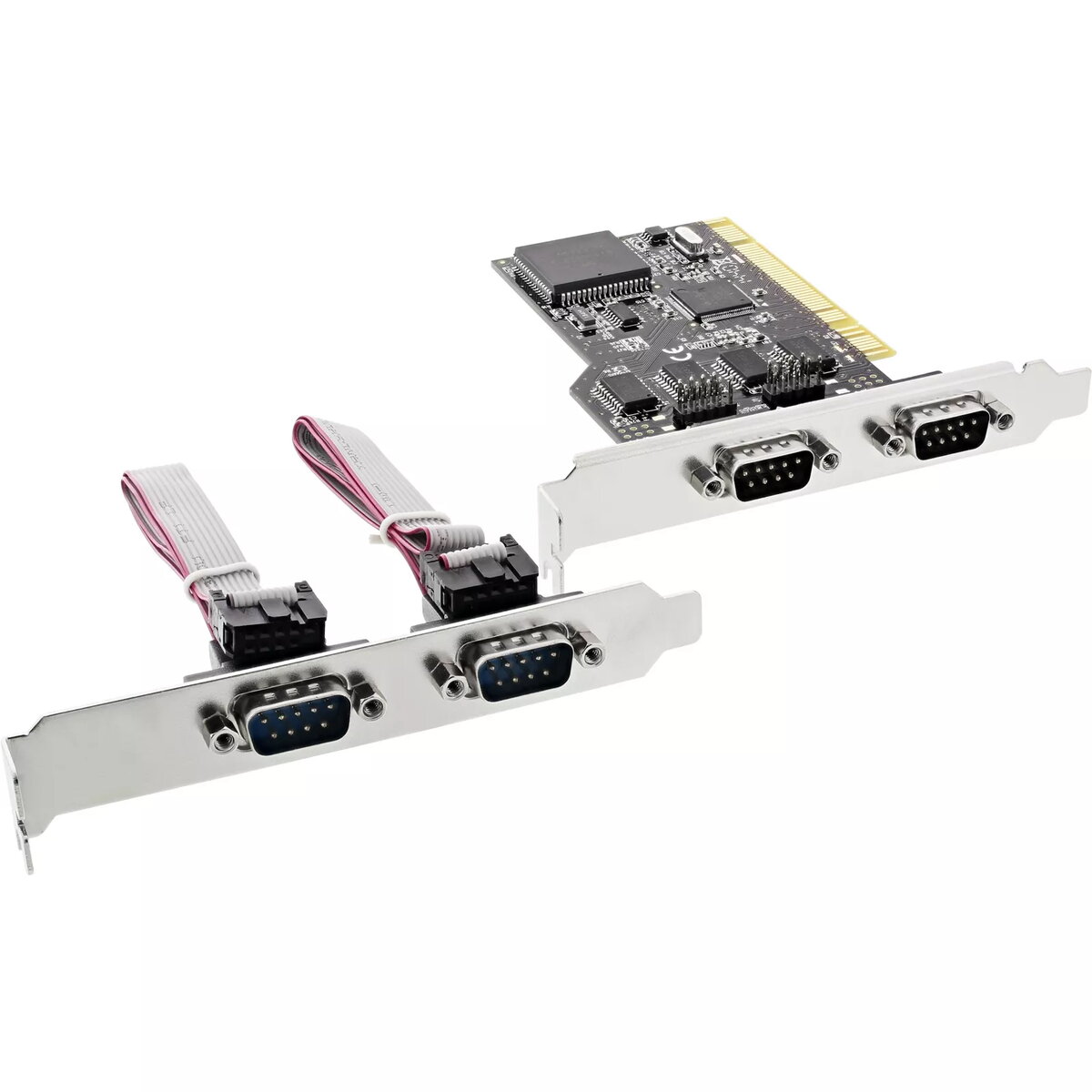

InLine PCI Multi I/O Controller Card with 4 DB9 Serial Ports, MCS9865 Chipset, Wired Connectivity, 115.2 Mbit/s Data Transfer Rate

InLine PCI Multi I/O Controller Card with 4 DB9 Ports Photo 1
InLine PCI Multi I/O Controller Card with 4 DB9 Ports Photo 2
InLine PCI Multi I/O Controller Card with 4 DB9 Ports Photo 1
InLine PCI Multi I/O Controller Card with 4 DB9 Ports Photo 2
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

InLine PCI Multi I/O Controller Card with 4 DB9 Serial Ports, MCS9865 Chipset, Wired Connectivity, 115.2 Mbit/s Data Transfer Rate

{{email}}
You keep track of price changes

InLine PCI Multi I/O Controller Card with 4 DB9 Serial Ports, MCS9865 Chipset, Wired Connectivity, 115.2 Mbit/s Data Transfer Rate

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

InLine PCI Multi I/O Controller Card featuring 4 DB9 serial ports and the reliable MCS9865 chipset. Designed for wired host interface connection via PCI, offering a data transfer rate up to 115.2 Mbit/s. Compatible with various operating systems including DOS 6.22, Windows 2000, XP, Vista, and Server editions. Ideal for expanding legacy serial connectivity on desktop computers and industrial systems.
Available at price 30.99 €: 16 pcs.
Total available for order: 32 pcs.
Warranty: 2 Years
SKU: 434322
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
23.10.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
28.10.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.12 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
28.10.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The InLine PCI Multi I/O Controller Card with 4 DB9 Serial Ports and MCS9865 Chipset is a reliable wired connectivity solution designed to expand desktop computers and industrial systems with essential legacy ports. Utilizing a standard PCI host interface, this controller card enables seamless integration of multiple serial devices into existing computer hardware. Built with industry-standard components, it ensures stable and efficient data communication for various professional and personal computing setups.

Advantages

This controller card simplifies hardware expansion by automatically selecting IRQ and I/O addresses during installation. It supports PCI IRQ sharing, which helps conserve valuable system resources for additional add-on cards. The inclusion of 16C550-compatible UARTs with a 256-byte FIFO buffer on both transmit and receive paths ensures reliable data handling and reduces processor load during continuous operations. Furthermore, the robust driver and operating system compatibility allow for flexible deployment across older and specialized computing environments.

Suitable for

  • Connecting legacy serial devices such as external modems and industrial controllers
  • Integrating 9-pin serial peripherals into desktop computers
  • Upgrading industrial automation and measurement systems
  • Maintaining compatibility with older software environments requiring direct serial port access

When it may not be suitable

This product is not suitable for modern desktop computers that lack traditional PCI expansion slots, as it requires a physical 32-bit PCI bus. It is also not designed for high-speed modern data transfer requirements that exceed standard serial port limitations.

Key specifications

  • Host interface: PCI
  • Chipset: MCS9865
  • Ports: 4 x DB9 serial (RS232)
  • Data transfer rate: Up to 115.2 kbit/s
  • UART: 16C550 compatible
  • FIFO buffer: 256-byte depth
  • Connectivity technology: Wired
  • Compatible operating systems: DOS 6.22, Windows 2000, XP, Vista, Server editions, and Linux kernel 2.6.14 or above

How to use

To install the InLine PCI Multi I/O Controller Card, power off your desktop computer, unplug it from the mains, and open the system case. Insert the card firmly into an available 32-bit PCI slot and secure the bracket to the computer chassis. Close the case, reconnect the power, and turn on the system. Install the appropriate drivers for your operating system to enable the four DB9 serial ports, then connect your desired serial peripherals using standard cables.

What to consider before purchase

  • Verify that your computer motherboard features an available 32-bit PCI slot
  • Check that your operating system is supported by the available drivers
  • Confirm that your peripherals use standard DB9 RS232 serial connections

Ensure the computer is fully powered off and disconnected from the electrical outlet before installing or removing the PCI controller card. Always download drivers from trusted sources to guarantee system stability and compatibility.

Specifications

Host interface: Interface that enables a host controller to communicate with a driver.
PCI
All features

Weight & dimensions

Package weight: Weight of the packaged product.
117 g
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.117 kg
Depth: The distance from the front to the back of something.
1.85 mm

System requirements

Compatible operating systems: List of desktop operating systems tested as compatible with this product.
DOS 6.22 Windows 2000, XP 32/64-bit, Server 2003 32/64-bit, Vista 32/64-bit, Server 2008 32/64-bit Linux kernel 2.6.14+

Other features

Package volume:
1100 cm³
Mac compatibility: Product can be used with Apple Mac software and/or hardware.
No
Ports quantity: The number of ports or external interfaces to which other equipment can be connected.
4
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Data transfer rate: Rate at which data can be transferred, usually measured in units per second. May vary with network configurations.
115.2 Mbit/s

Packaging data

Package height: The distance from the top to the bottom of the packaging.
42 mm
Package depth: The distance from the front to the back of the packaging.
176 mm
Package width: The distance from one side of the packaging to the other.
143 mm

Features

Data transfer rate (max):
0.1152 Gbit/s

Ports & interfaces

Serial ports quantity: The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces.
4
Host interface: Interface that enables a host controller to communicate with a driver.
PCI

Performance

Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
MCS9865
