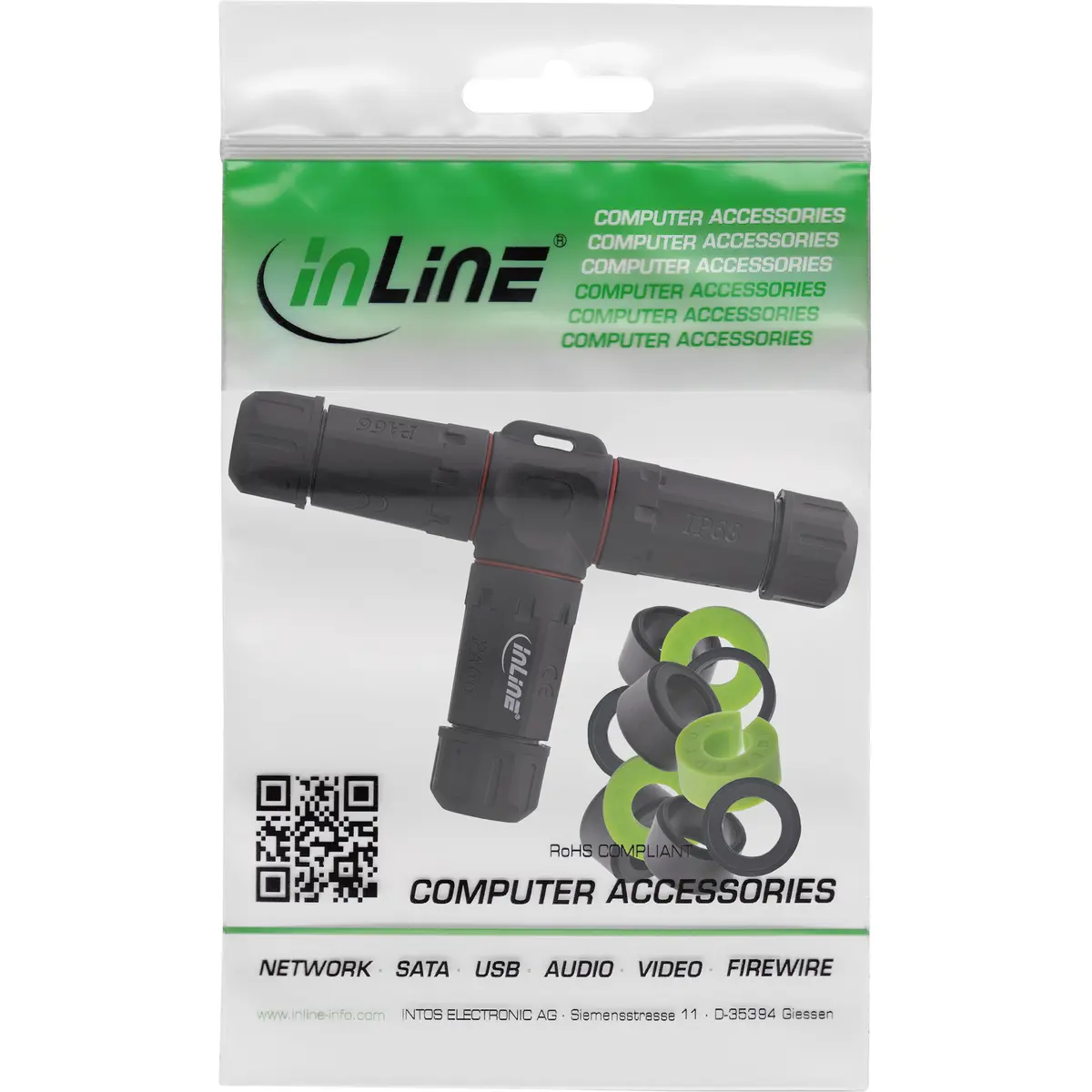

InLine 69927U Cable Coupler IP68 3-Pin 3-Way M20 Black Polyamide Silicone TÜV RoHS

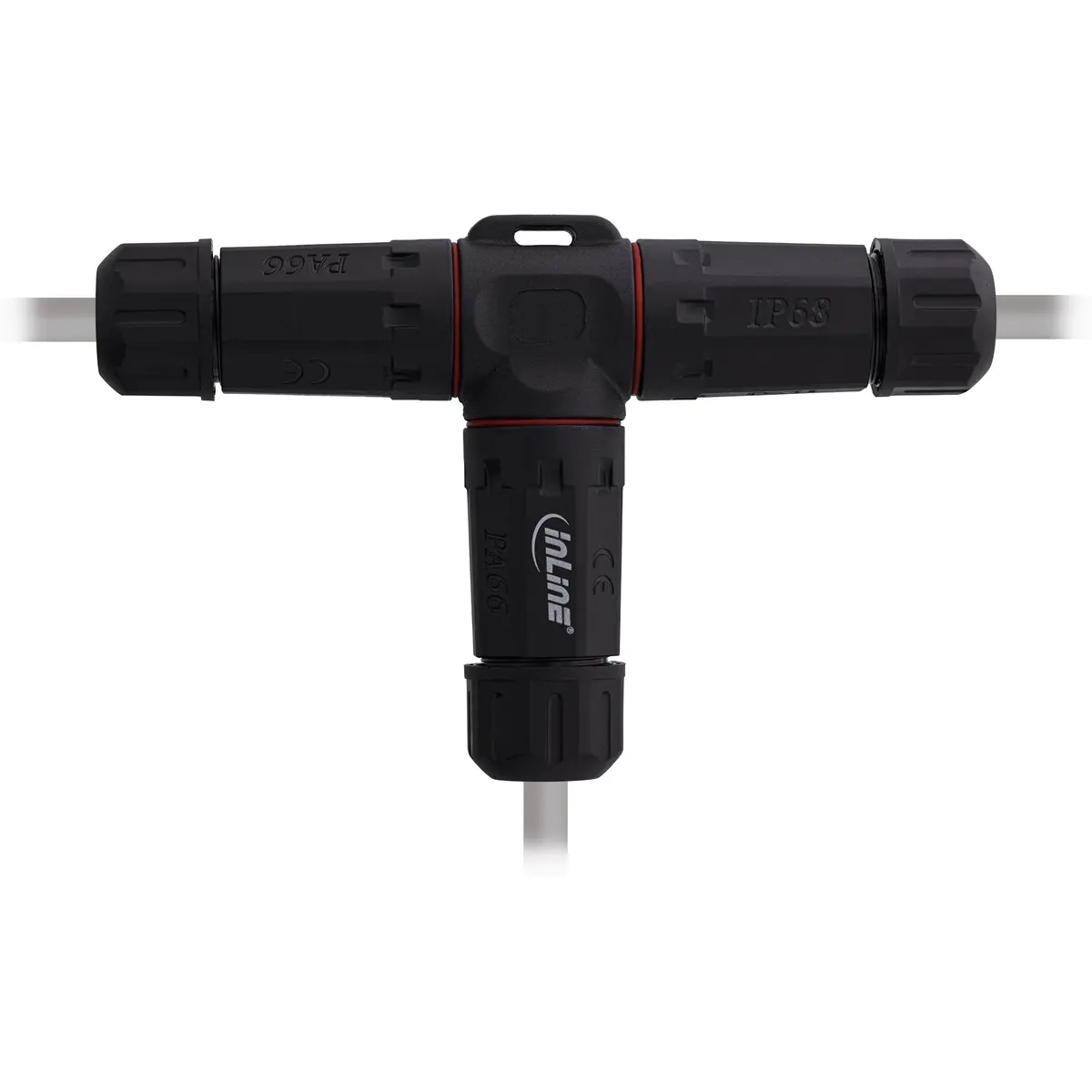

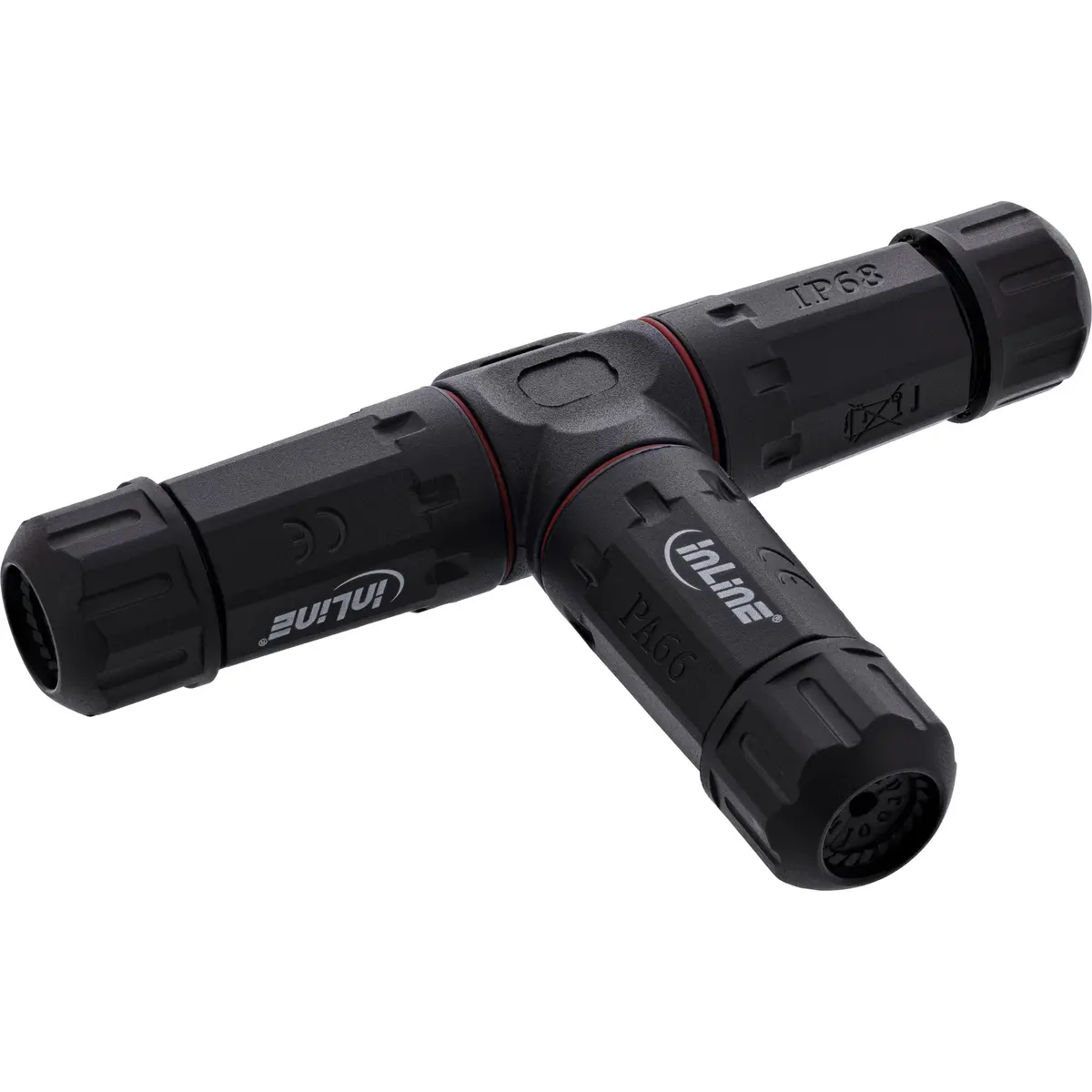

The InLine 69927U cable coupler is a robust T-shaped power connection accessory designed to facilitate secure and durable electrical cable distributions. Manufactured from durable black polyamide and silicone, this 3-pin and 3-way M20 component ensures reliable protection against demanding environmental conditions. Featuring an IP68 waterproof rating, it is engineered for professional outdoor and industrial installations, providing dependable protection against moisture and dust.

Advantages

This cable coupler offers a triple connection option for 3-core cables, making it exceptionally useful for power distribution in damp rooms and outdoor areas. Its impact-resistant nylon housing and silicone seal deliver reliable defense against water, dust, and mechanical influences. The unit supports cable diameters ranging from 4 to 14 mm and wire cross-sections from 0.5 to 6 mm², operating effectively up to 500 V and 24 A. Furthermore, the simple screw system enables tool-free installation, saving time while ensuring a permanent and secure connection.

Suitable for

• Outdoor garden lighting installations
• Pond pumps and water feature power cabling
• Workshop electrical cabling
• Power distribution in temporary event sectors
• Construction site power connections

When it may not be suitable

This cable coupler may not be suitable for applications requiring more than 3 poles or connections involving high-voltage industrial machinery exceeding the specified rating limits. It is also not designed for permanent underwater installations at significant depths beyond standard IP68 submersion guidelines.

Key specifications

• Material: Polyamide and nylon (PA66)
• Product colour: Black
• Thread size: M20
• IP protection rating: IP68
• Design: 3-way, 3-pole
• Rated voltage: 500 V
• Rated current: 24 A
• Cable diameter: 4 to 14 mm
• Conductor cross-section: 0.5 to 6 mm²
• Temperature range: -40 °C to +105 °C
• Contact material: Copper
• Seal material: Silicone
• Dimensions: 85 mm width, 135 mm depth, 25 mm height

How to use

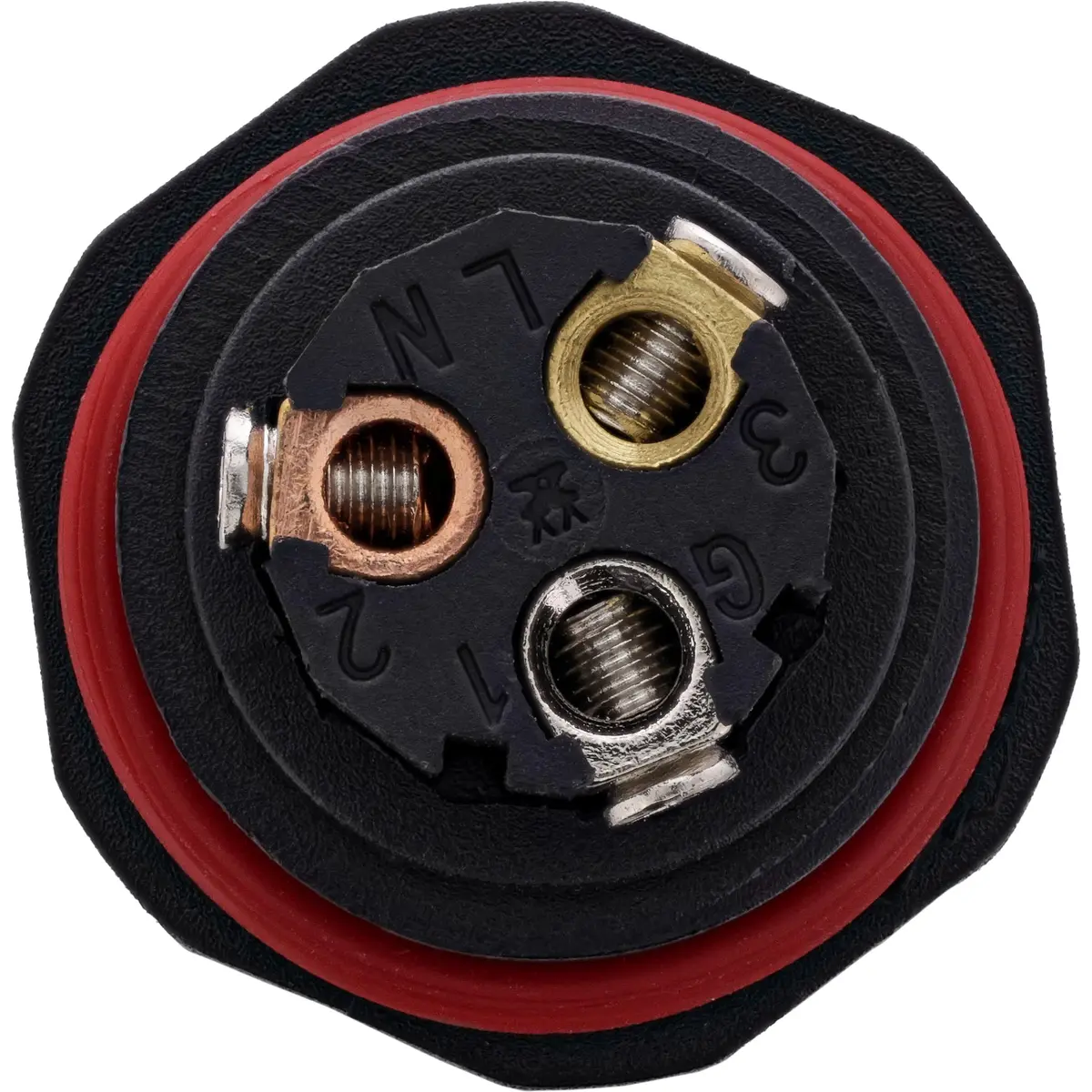

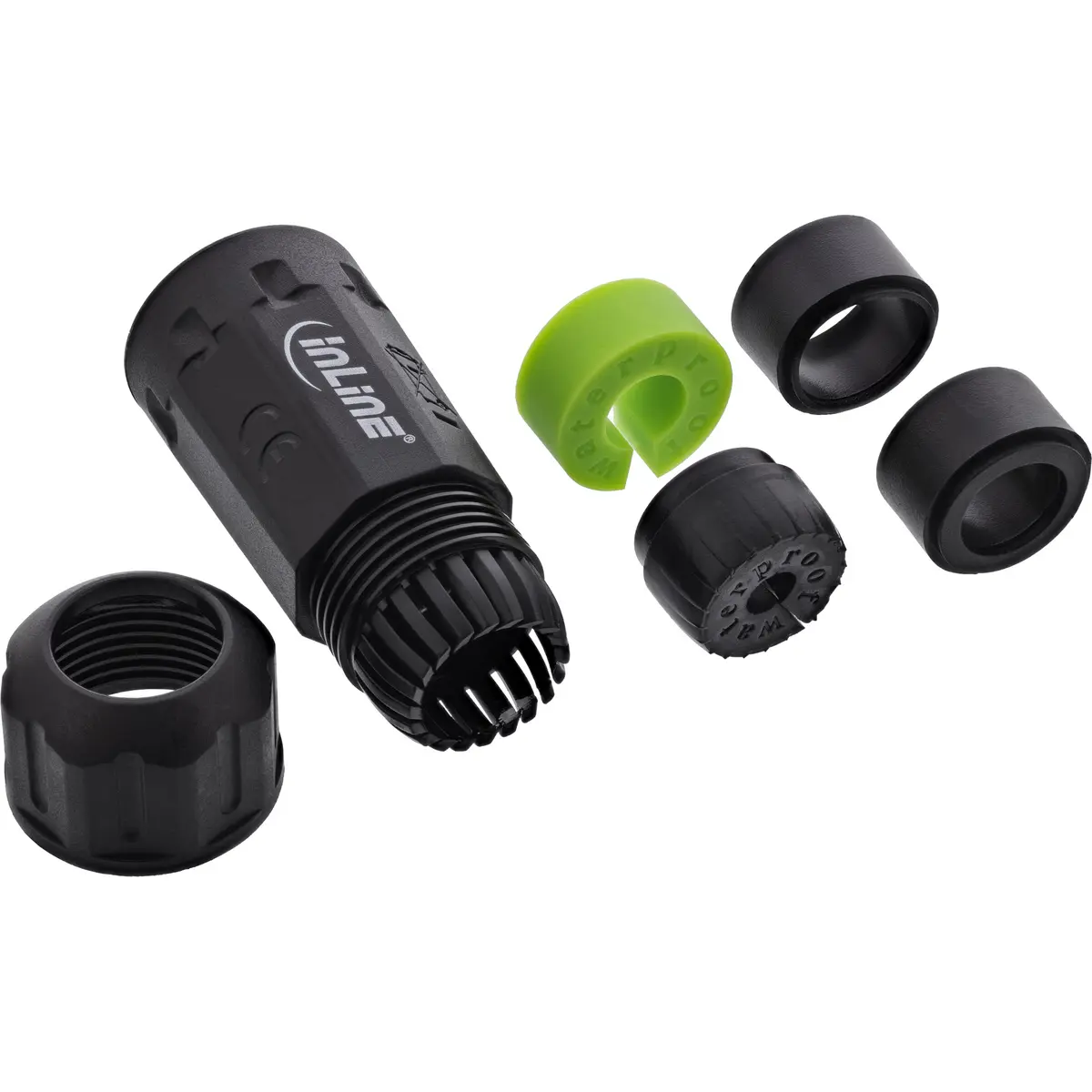

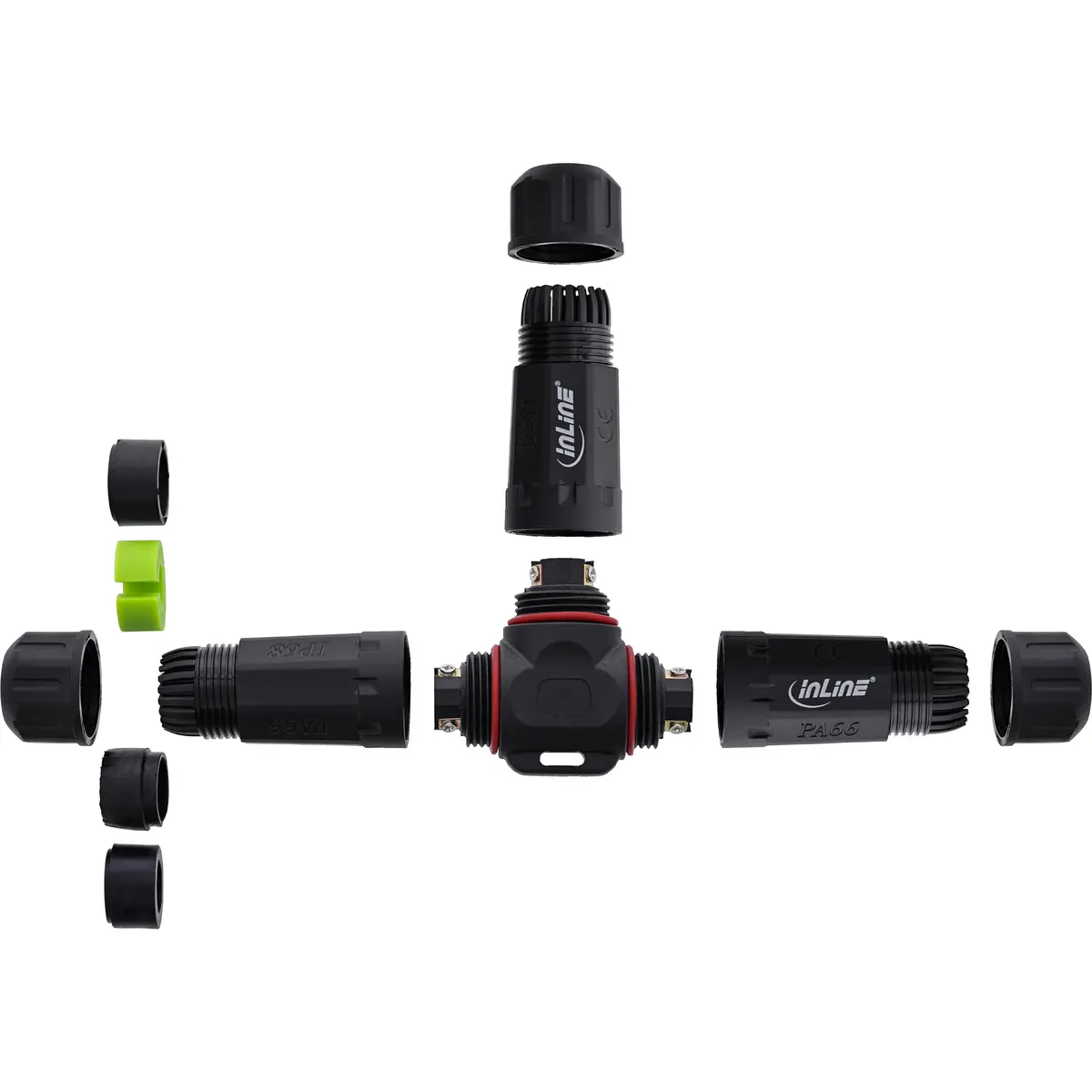

To use the InLine cable coupler, prepare your 3-core power cables by stripping them to the appropriate length. Insert the cables into the M20 threaded openings, matching the conductors to the internal copper contacts. Ensure the cable diameters fall within the 4 to 14 mm range and the cross-sections are between 0.5 and 6 mm². Secure the connection by tightening the end caps firmly by hand, allowing the integrated silicone seals to compress and provide a complete waterproof and dustproof seal.

What to consider before purchase

• Verify that your cable diameter is between 4 and 14 mm to ensure a proper fit with the M20 thread seals.
• Check that your conductor cross-section falls within the 0.5 to 6 mm² specification.
• Confirm that your electrical setup does not exceed 500 V and 24 A.
• Ensure the 3-pin, 3-way T-distributor configuration matches your specific power branching requirements.

Usage recommendations

Always ensure the power is completely switched off before installing or maintaining any electrical connections. Verify that the end caps are tightened completely to maintain the IP68 waterproof rating during outdoor or damp room usage. Do not exceed the specified operating temperature range of -40 °C to +105 °C.
