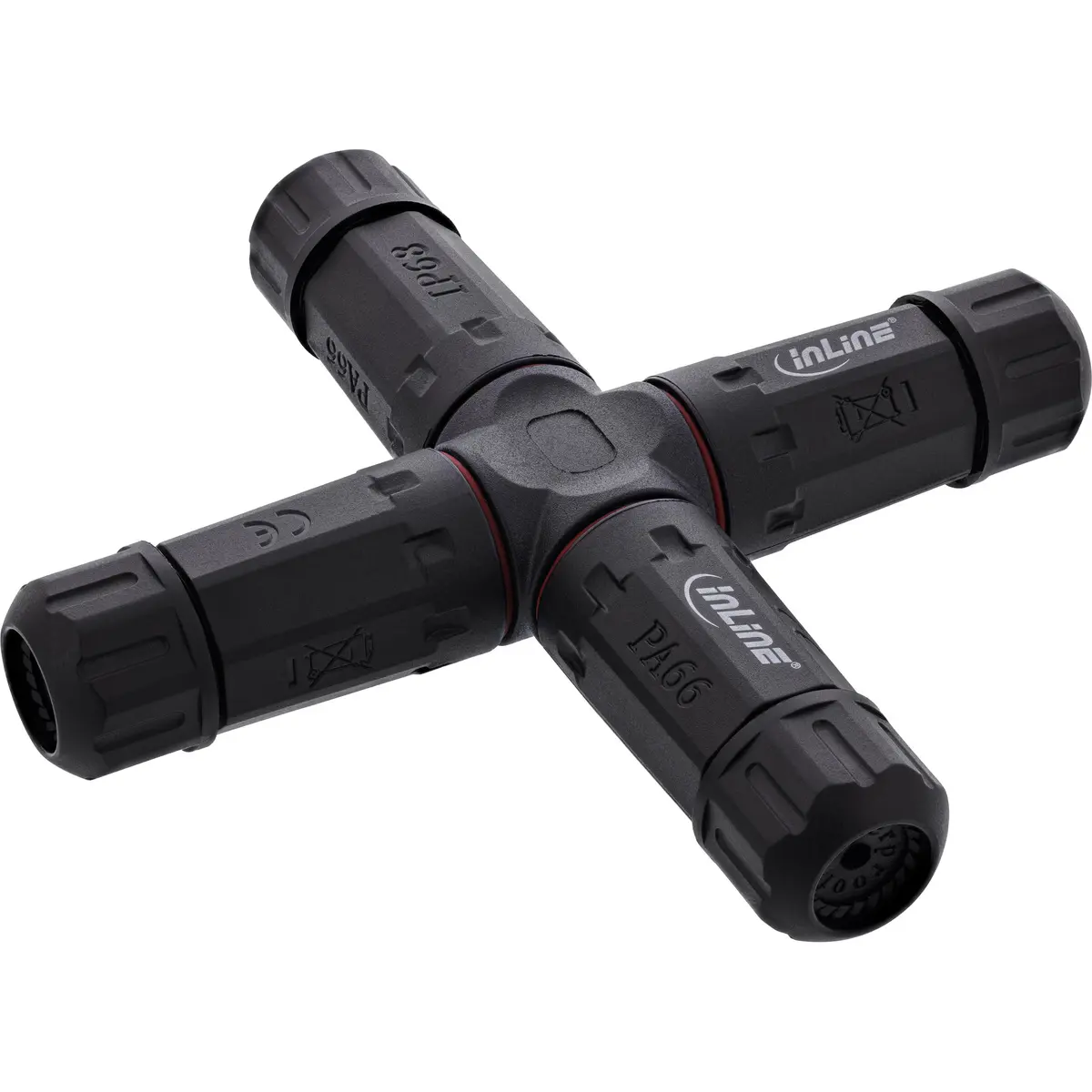

InLine 69927V Cable coupler IP68 3-pin 4-way M20 black Polyamide Silicone TÜV RoHS

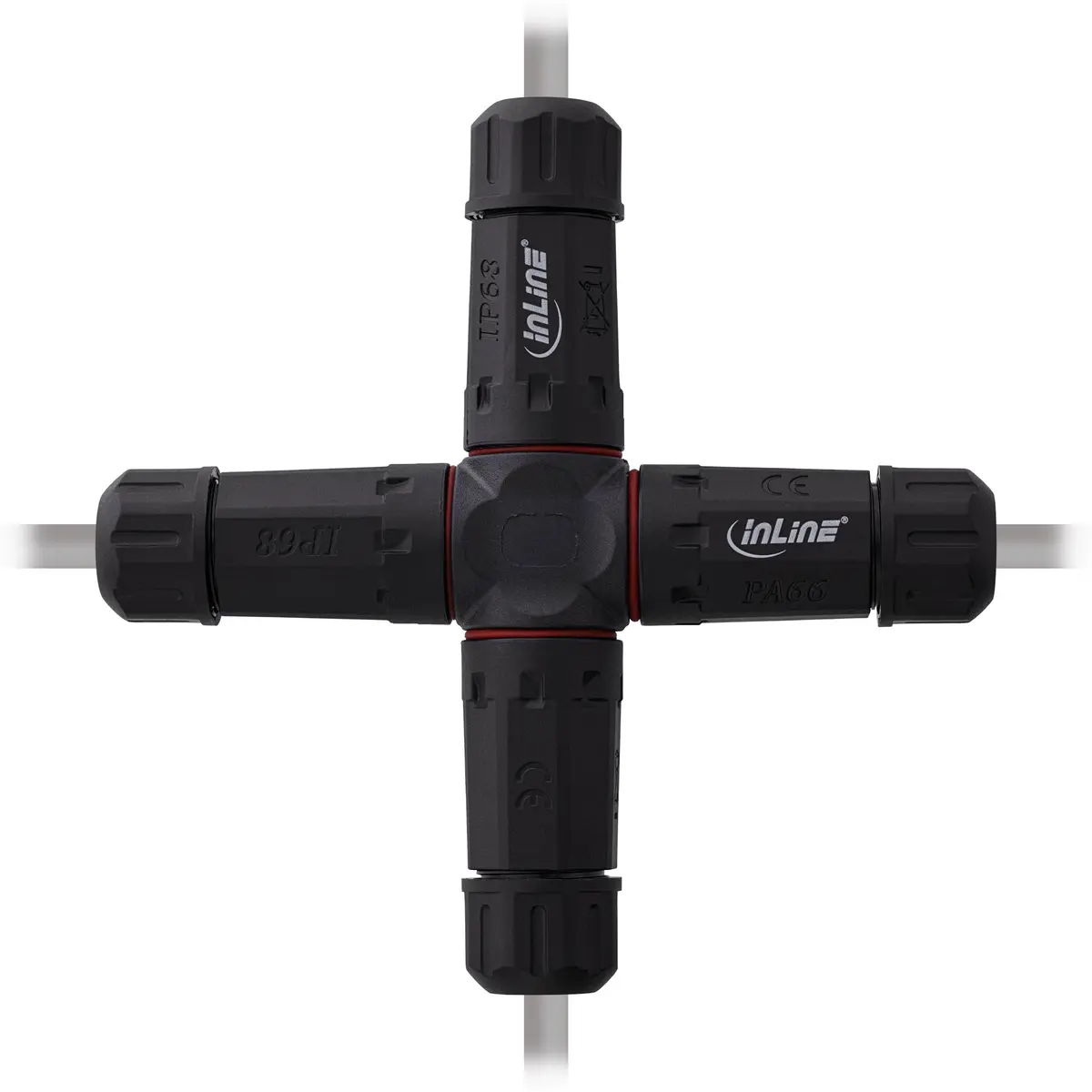

The InLine cable coupler is a durable black connector designed for secure and reliable electrical installations, featuring a 3-pin, 4-way M20 configuration. Manufactured from robust polyamide and silicone, this cable coupler provides exceptional resistance to moisture and dust, making it ideal for challenging environments. It serves as a cross distributor for power connections, enabling structured power distribution outdoors or in damp rooms with certified safety and compliance.

Advantages

This cable coupler features a permanently waterproof design with an IP68 protection rating, utilizing a sturdy nylon housing and high-quality silicone seal to protect against water, dust, and mechanical stress. It offers flexible application supporting multiple cable diameters and cross-sections while handling up to 500 V and 24 A. The quick screw system allows for tool-free installation, ensuring a tight and mechanically stable connection without the need for specialized tools.

Suitable for

• Outdoor garden lighting and landscape setups
• Pond pumps and water feature installations
• Power distribution in workshops and machine parks
• Complex electrical branching for LED systems

When it may not be suitable

This cable coupler is not designed for direct burial without additional protective enclosures, nor is it suitable for high-voltage industrial power transmission exceeding 500 V or 24 A.

Key specifications

• Material: Nylon PA66 and silicone
• IP protection rating: IP68
• Thread size: M20
• Design: 4-way cross distribution
• Number of poles: 3-pin
• Rated voltage: 500 V
• Rated current: 24 A
• Cable diameter: 4 to 14 mm
• Conductor cross-section: 0.5 to 6 mm²
• Temperature range: -40 degrees Celsius to +105 degrees Celsius

How to use

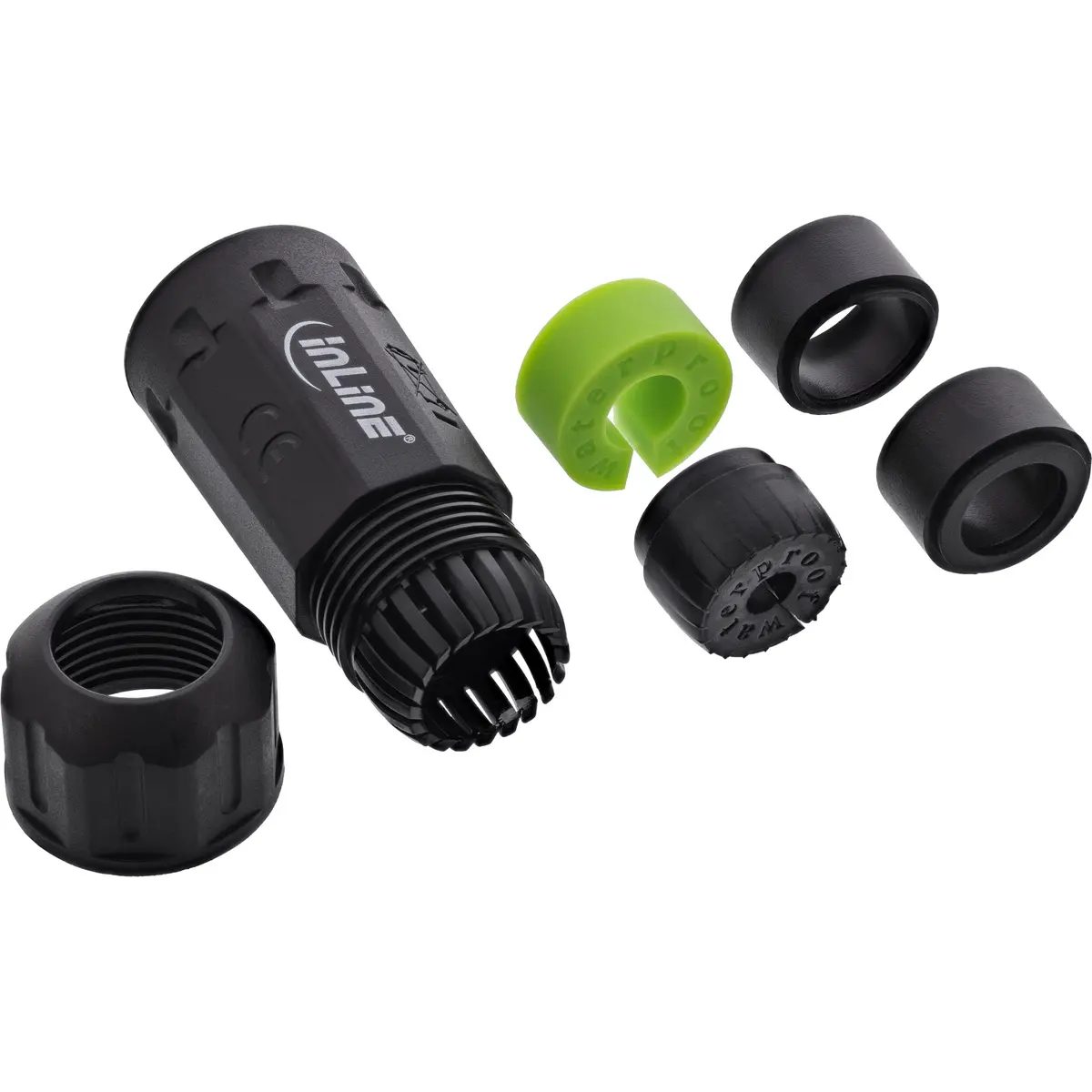

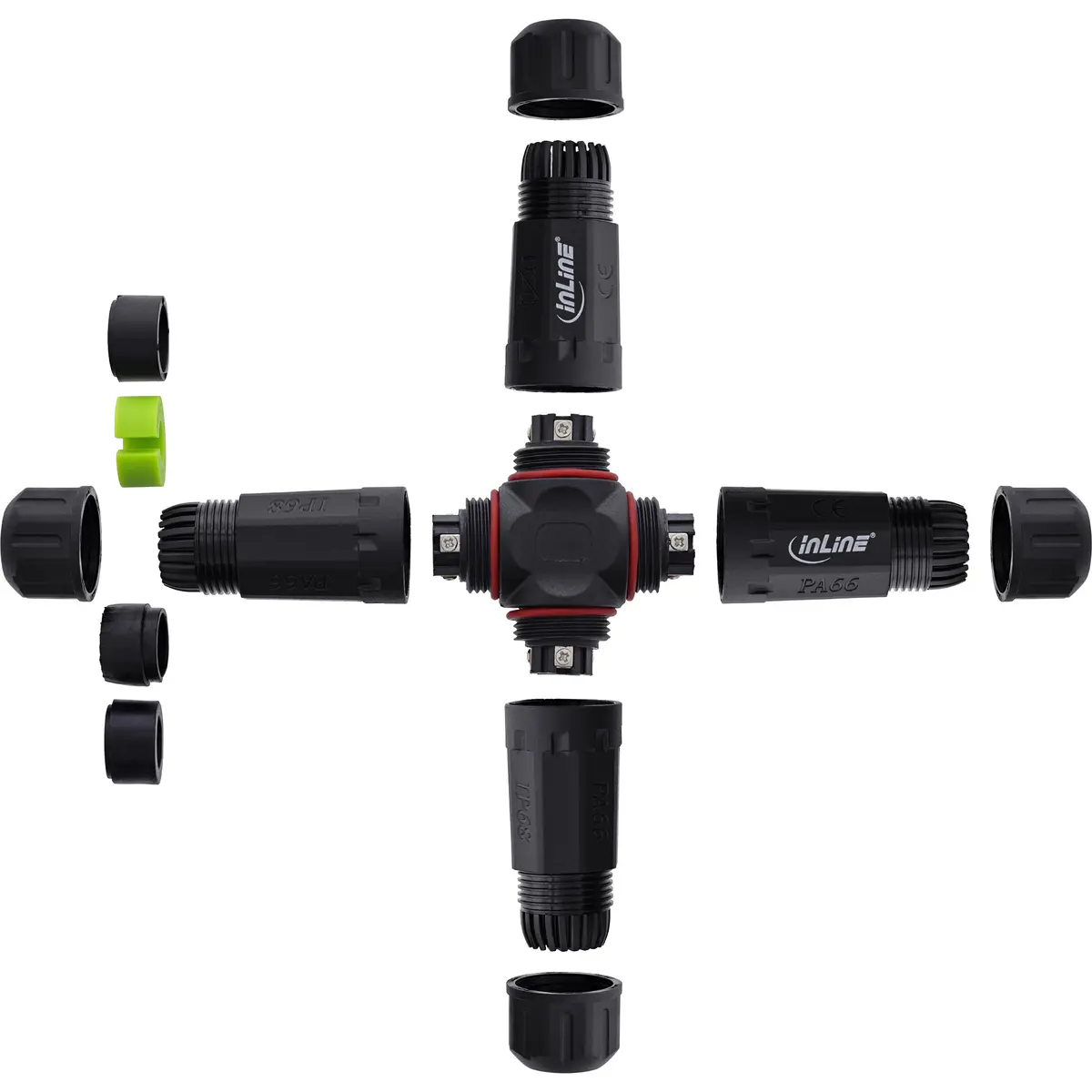

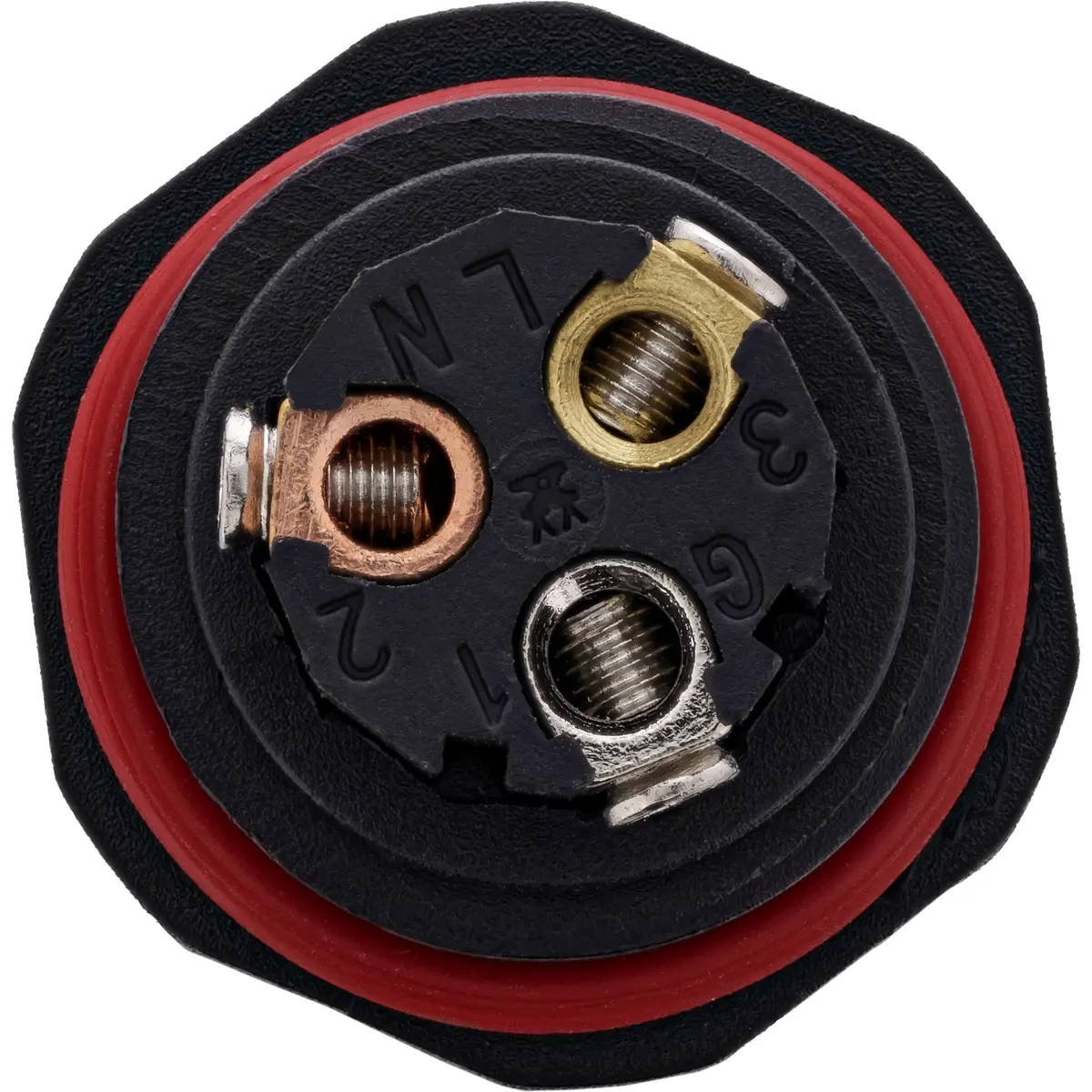

To use the cable coupler, prepare your cables by stripping the ends to match the internal terminals. Insert the cables through the screw caps and seals into the housing units. Connect the conductors securely to the 3-pole copper terminals. Position the silicone seal correctly and tighten the screw caps firmly by hand to achieve a watertight and mechanically secure lock.

What to consider before purchase

• Verify that your cable diameter falls between 4 and 14 mm
• Ensure the electrical load does not exceed 500 V and 24 A
• Check if a 4-way cross distribution layout meets your wiring requirements

Usage recommendations: Regularly inspect the external housing for any signs of physical wear or environmental degradation, especially in permanently outdoor installations, to maintain long-term waterproof integrity.
