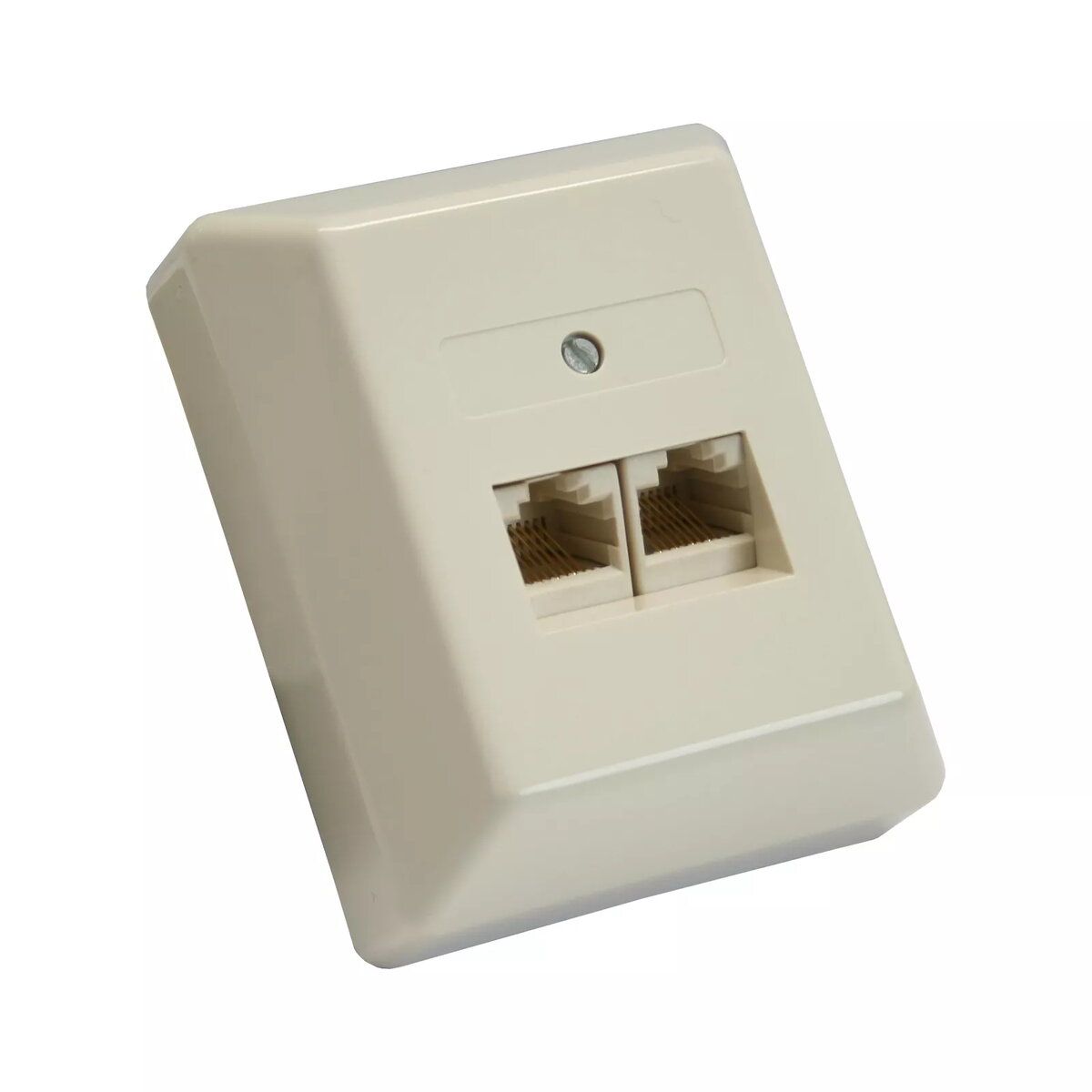

InLine ISDN Wall Plate with 2x RJ45 female ports and 2x 8-port configuration for network cabling installations

The InLine ISDN Wall Plate with 2x RJ45 female ports and 2x 8-port configuration is designed for structured network cabling and telecommunication setups in office or home environments. This surface-mounted wall plate provides reliable connections for ISDN and data lines, ensuring secure and stable signal transmission without requiring complex in-wall installation work.

Advantages

This wall plate enables quick surface mounting directly on walls, saving time and avoiding messy masonry work during network retrofits. Solid hardwiring is achieved via a built-in screw terminal strip, which securely holds cables in place for stable contacts and dependable data transmission. The separate 2x 8-pin assignment facilitates clear and traceable connections, while the absence of a built-in terminating resistor allows flexible integration into existing topologies where external termination is already provided.

Suitable for

• Setting up ISDN and data lines in home offices and professional workspaces
• Retrofitting telecommunication connections without in-wall cable routing
• Expanding existing network infrastructures in commercial and public buildings

This product may not be suitable for network setups that require integrated terminating resistors directly at the connection point, or for environments requiring shielded high-speed Ethernet cabling standards beyond standard ISDN and telecommunication applications.

Key specifications

• Two RJ45 female ports
• Screw terminal strip for cable connection
• Surface mounting design
• 2x 8-pin separate assignment
• Without terminating resistor
• Depth: 5.7 mm
• Weight: 37 g
• Color: White (RAL9010)

To install the wall plate, mount the surface housing directly onto the target wall surface. Strip the incoming cables and securely fasten the individual wires into the screw terminal strip according to the 8-pin assignment. Ensure that the connections are firm and properly aligned before securing the housing cover.

What to consider before purchase

• Verify whether your network topology requires a terminating resistor at this connection point
• Confirm that surface mounting is acceptable for your interior layout
• Check compatibility with your existing ISDN or telecommunication hardware

Always ensure power is disconnected from lines before working on cabling installations, and follow local wiring regulations for safe and reliable operation.
