InLine 76202F RJ45 Keystone Jack Snap-In Module Cat.6a with Female RJ-45 Connector

The InLine 76202F RJ45 Keystone Jack Snap-In Module Cat.6a with Female RJ-45 Connector is an essential component designed for high-speed network cabling installations. This module ensures reliable data transmission in structured cabling systems, patch panels, and wall outlets, providing a secure connection for professional networking environments to support efficient and stable local area network setups.

Advantages

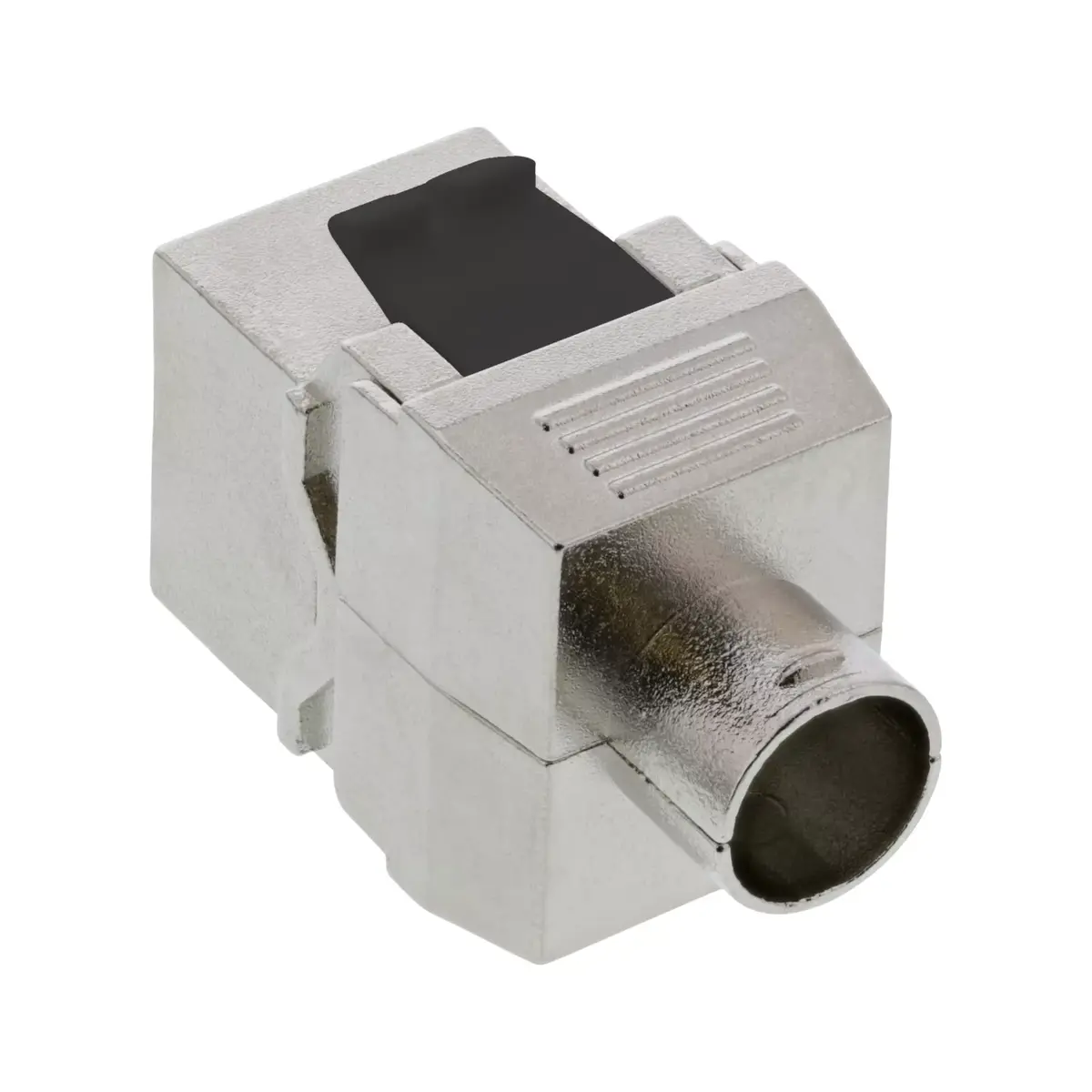

This module features a robust diecast housing that offers fully shielded performance, protecting data signals from external interference. Its snap-in design allows for quick and secure installation in standard patch panels and mounting frames. Supporting speeds up to 10Gbps and Power over Ethernet applications, it meets the demands of modern high-performance networks while maintaining compatibility with various switch ranges from well-known manufacturers.

Suitable for

• Building high-speed local area networks supporting up to 10Gbps

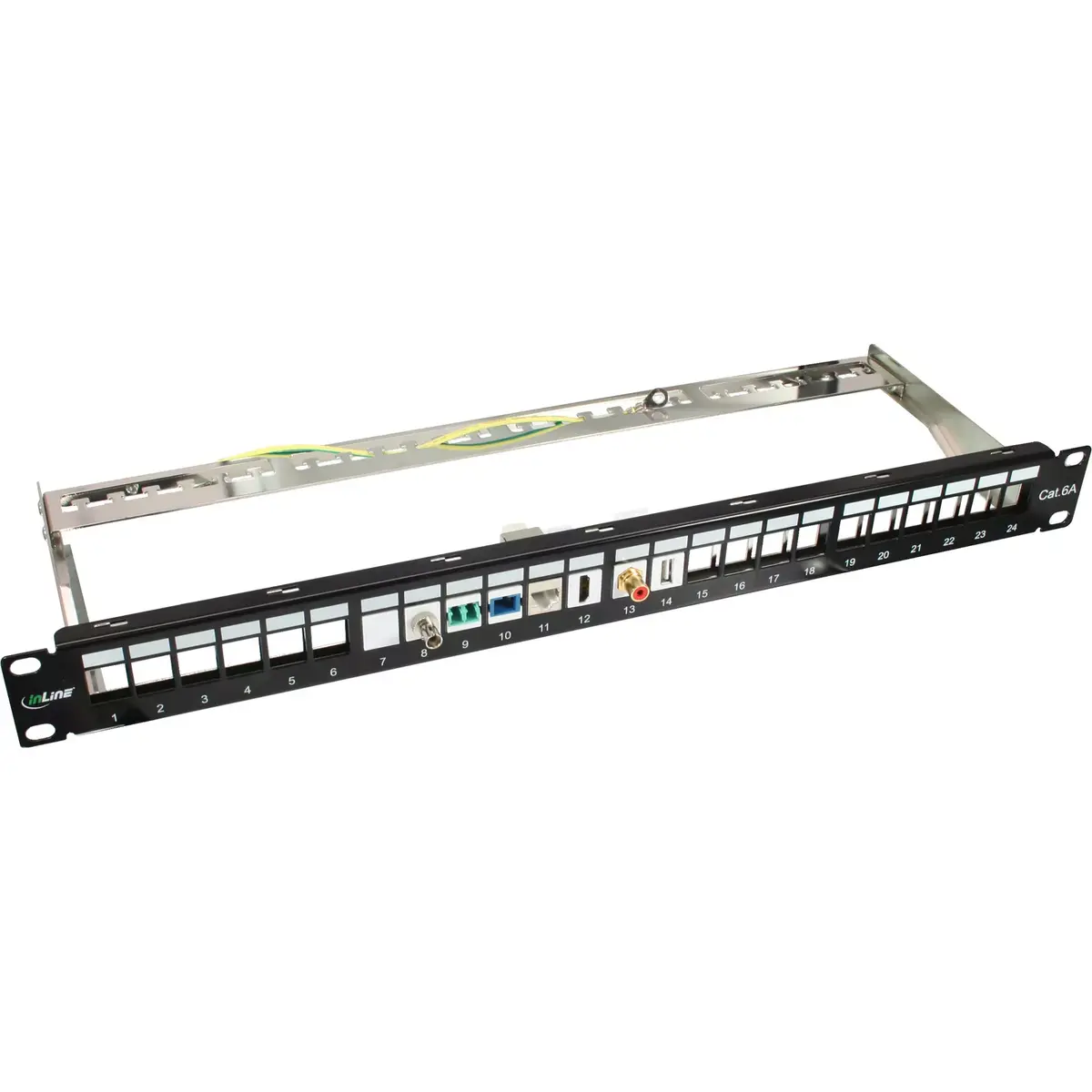

• Installing network connections in 19-inch Keystone patch panels
• Terminating network cables using an LSA bar in wall outlets
• Integrating into support frames from popular switch manufacturers such as Gira, Merten, and PEHA
• Power over Ethernet network environments

When it may not be suitable

This product may not be suitable if your cabling infrastructure relies on unshielded systems or non-Keystone standard mounting solutions. It is also not intended for environments requiring non-standard connector types other than RJ-45.

Key specifications

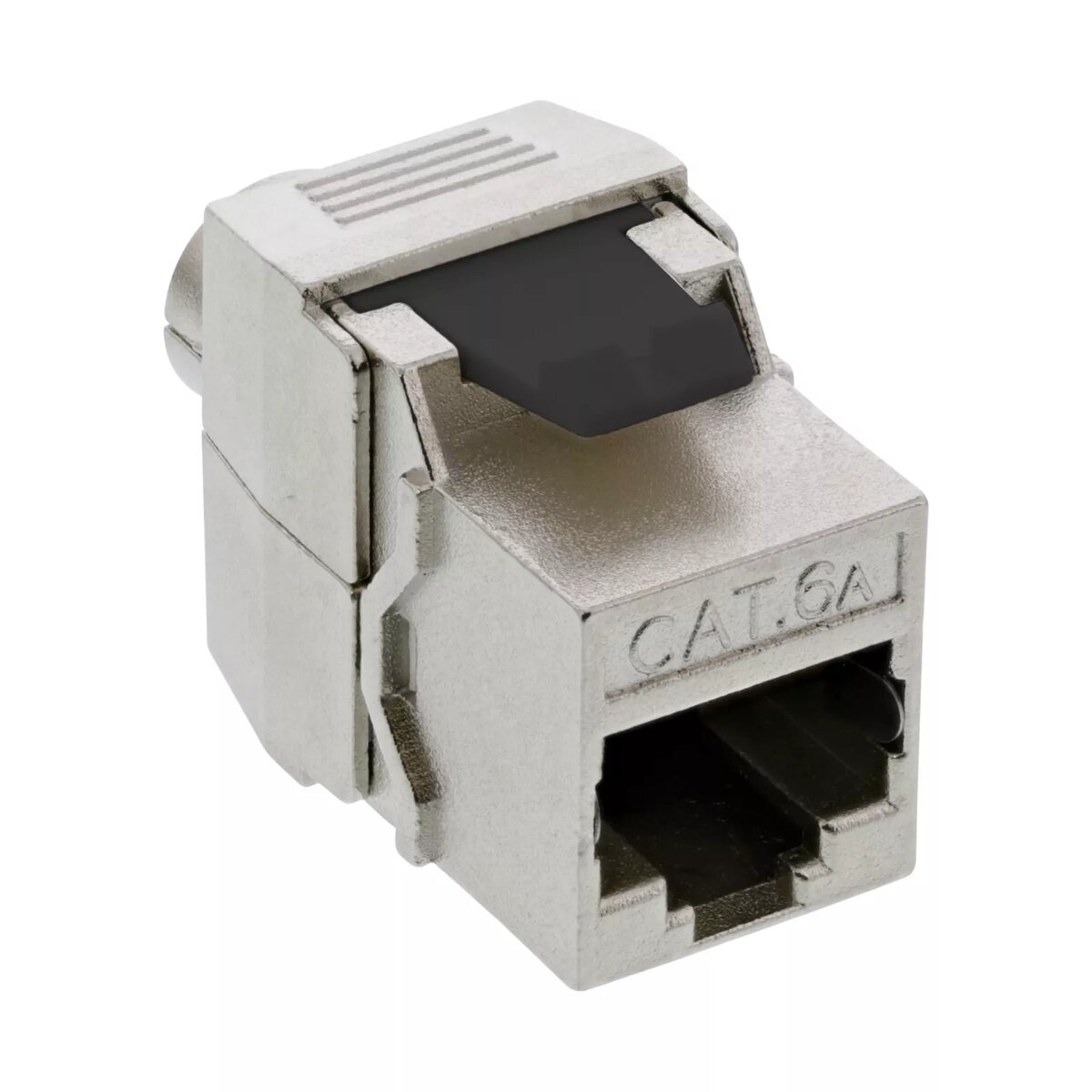

• RJ-45 female connector
• Cat.6a performance supporting up to 10Gbps
• Equipped with an LSA bar

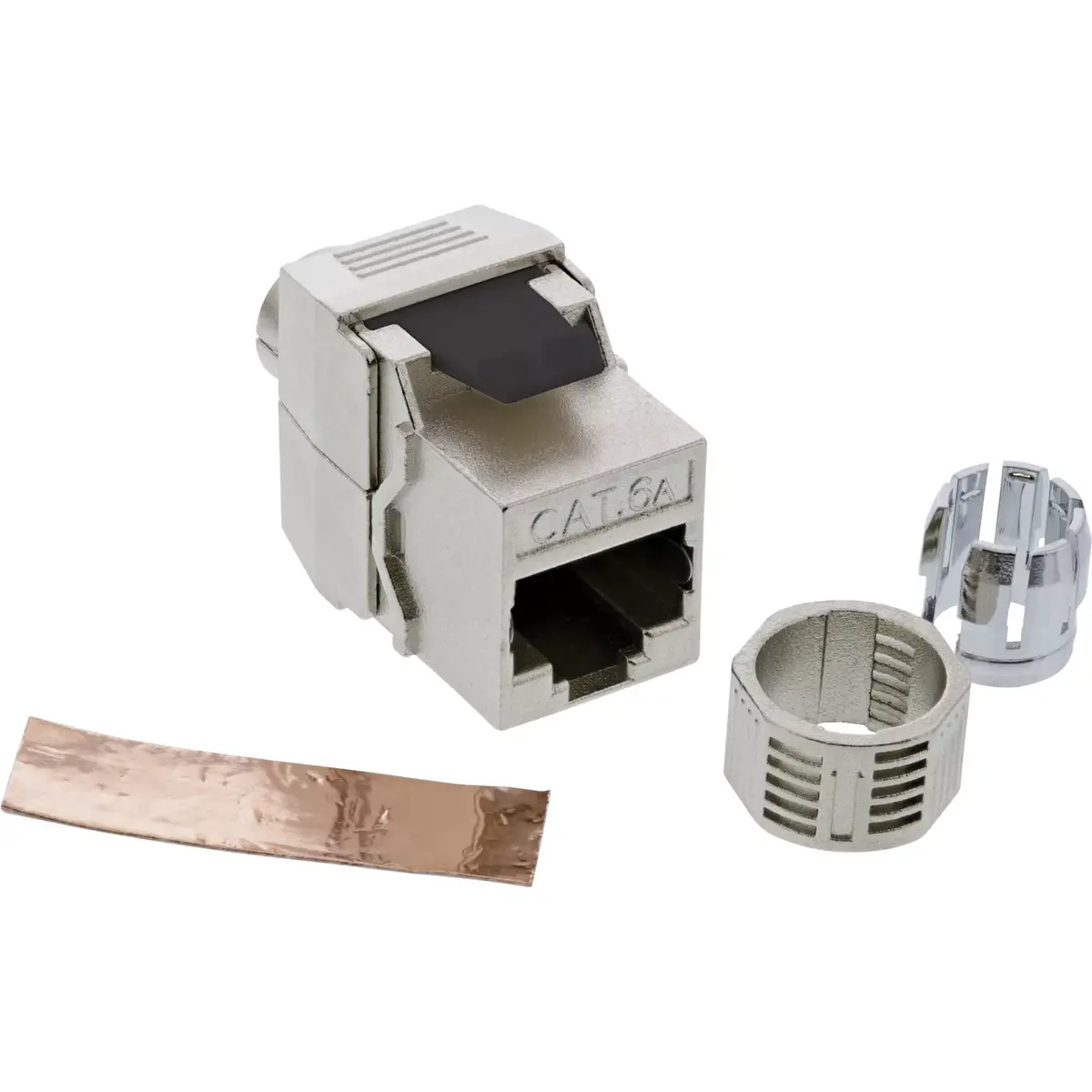

• Fully shielded diecast housing
• Keystone snap-in mounting standard
• Supports Power over Ethernet (PoE)
• Physical dimensions approximately 17.2 mm width, 40.4 mm length, and 27.5 mm height

How to use

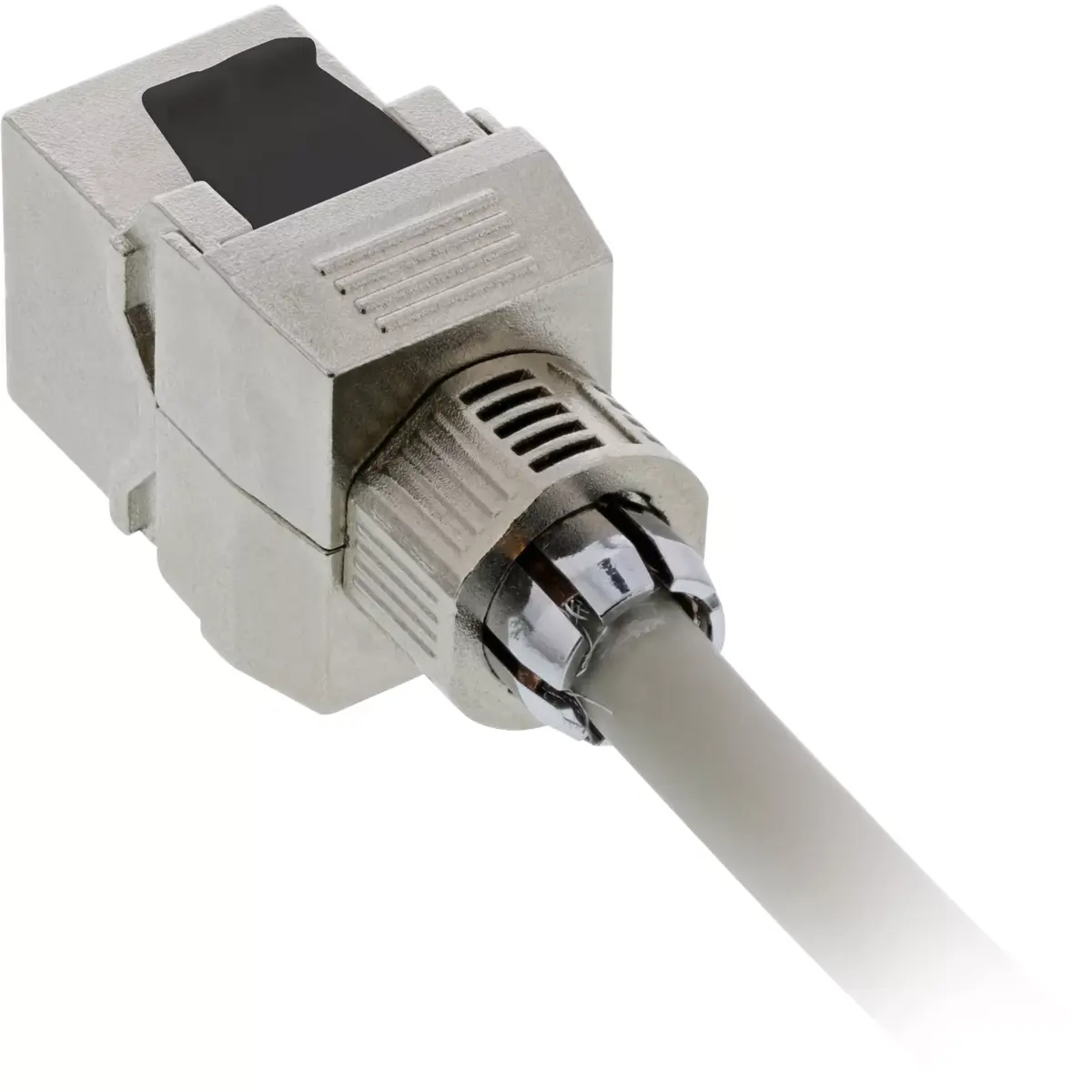

To use the module, prepare the network cable by stripping the outer jacket and sorting the individual wires according to the required color scheme. Punch down the wires securely into the integrated LSA terminal bar using a proper termination tool. Once the wiring is complete and verified, snap the fully assembled module directly into a compatible 19-inch Keystone patch panel, wall outlet, or support frame until it clicks firmly into place.

What to consider before purchase

• Verify that your patch panels or wall outlets are compatible with the Keystone snap-in standard
• Check that your network cables match Cat.6a specifications to fully utilize the performance capabilities
• Ensure you have an LSA punch-down tool available for proper wire termination
• Confirm whether shielding is required for your specific network environment

For optimal network performance, ensure proper cable management and avoid exceeding the maximum bending radius of the Cat.6a cables during installation. Always test the terminated connection with a network cable tester before putting the link into active service.
