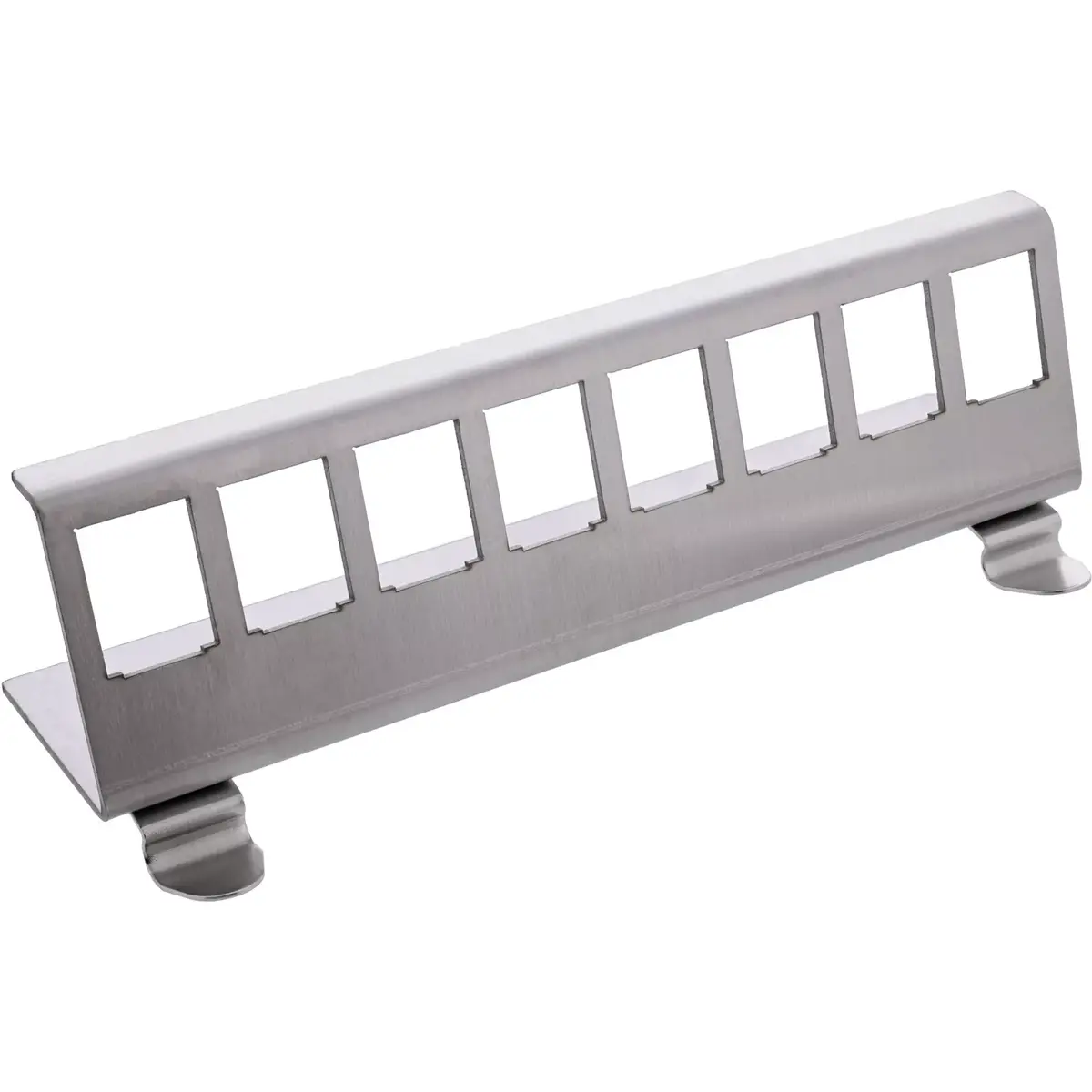

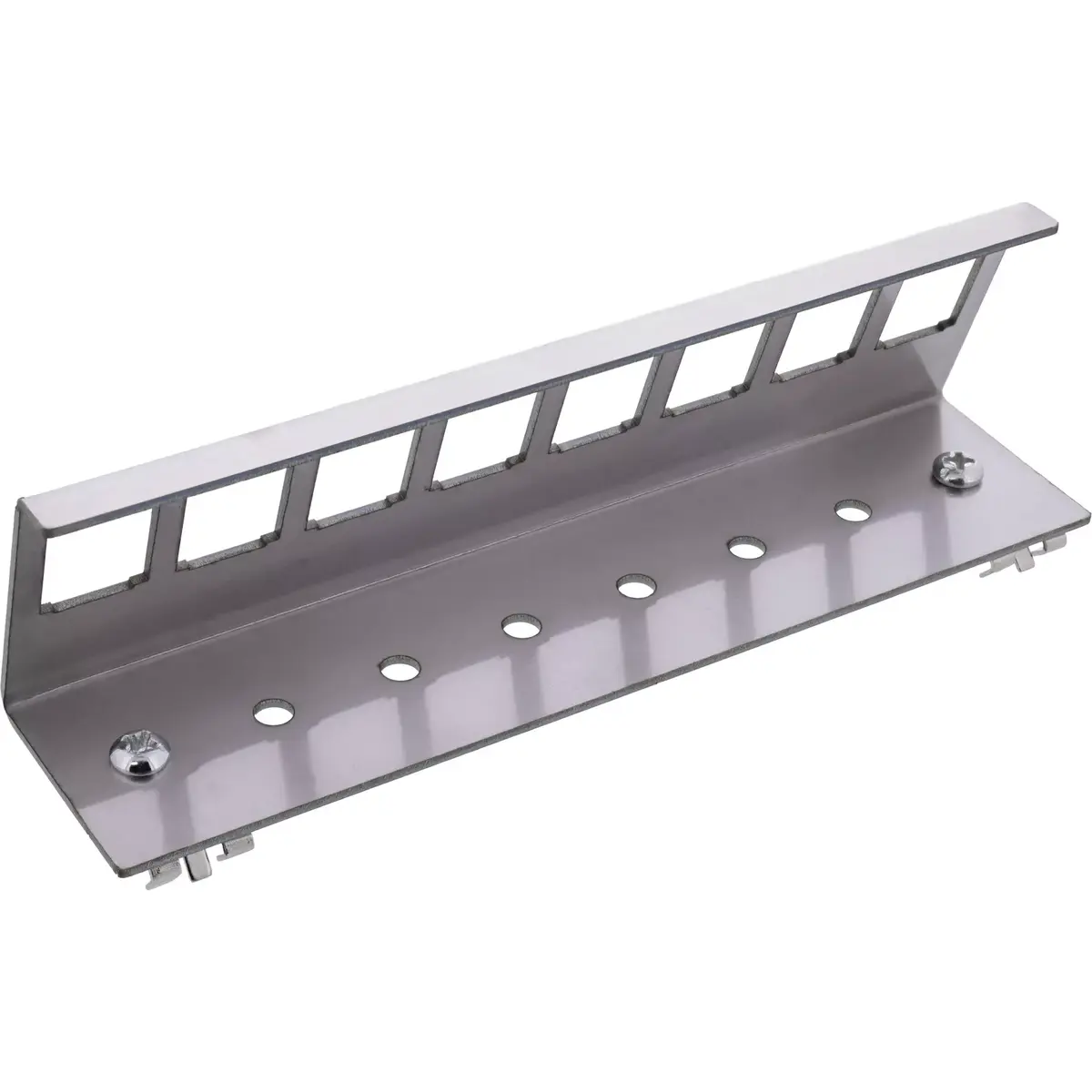

InLine 76203H Keystone Module Holder for DIN Rail Stainless Steel 8-Way

The InLine 76203H Keystone Module Holder for DIN Rail Stainless Steel 8-Way is a professional-grade mounting solution designed for network and patch panel installations. Crafted from durable stainless steel, this 8-way metal housing provides a reliable and secure environment for Keystone jacks in industrial settings, control cabinets, and server racks. It accommodates up to eight Keystone ports and is engineered for straightforward snap-in mounting on standard 35 mm top-hat rails, ensuring a clean and organized cable management setup.

Advantages

This Keystone module holder offers exceptional durability and stability thanks to its robust stainless steel metal construction. The design facilitates quick and secure snap-in installation of standard Keystone modules, significantly reducing setup time during network deployments. Its compact form factor is specifically tailored for DIN rail mounting, making it an efficient space-saving choice for crowded electrical enclosures and industrial automation panels.

Suitable for

• Professional network and patch panel installations
• Industrial automation and control cabinet wiring
• Server rack and enclosure cable management
• DIN rail mounting applications requiring up to eight Keystone jacks

When it may not be suitable

This module holder may not be suitable for residential environments where DIN rails or professional patch panels are not used. It is also not designed for standalone desktop placement without a compatible 35 mm top-hat rail mounting structure.

Key specifications

• Stainless steel metal housing
• Capacity for eight Keystone ports
• Designed for 35 mm top-hat rails
• Compatible with standard Keystone modules featuring 19 x 14.8 mm openings
• Dimensions approximately 50 mm depth, 51.4 mm height, and 156 mm width

How to use

To install the module holder, securely clip it onto a standard 35 mm DIN rail inside your enclosure or control cabinet. Insert your compatible Keystone modules into the designated ports by pushing them firmly until the snap-in mechanism locks securely into place. Ensure all cables connected to the modules are properly managed and strain-relieved to maintain a stable network connection.

What to consider before purchase

• Verify that your installation environment utilizes a standard 35 mm DIN rail
• Check that your Keystone modules match the required dimensions for proper snap-in compatibility
• Ensure sufficient physical space within your enclosure for the 156 mm width and accompanying cabling

Usage recommendations: Always ensure power is disconnected from surrounding electrical equipment before installing or servicing network components on DIN rails. Route network cables carefully to avoid sharp bends and maintain optimal signal integrity.
