InLine 76207B Keystone RJ45 Jack Shielded Cat.6A Flat Blue 8-Pack

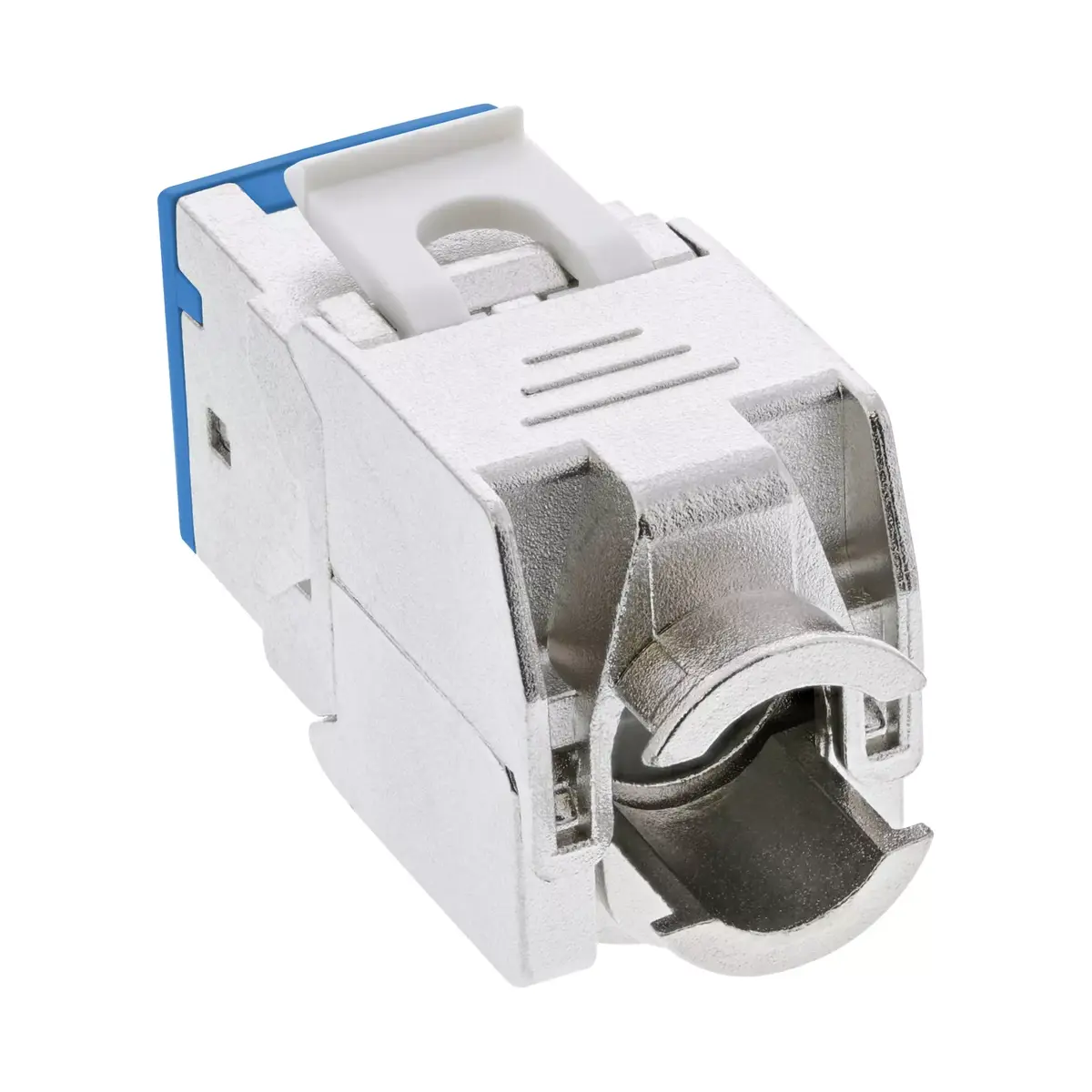

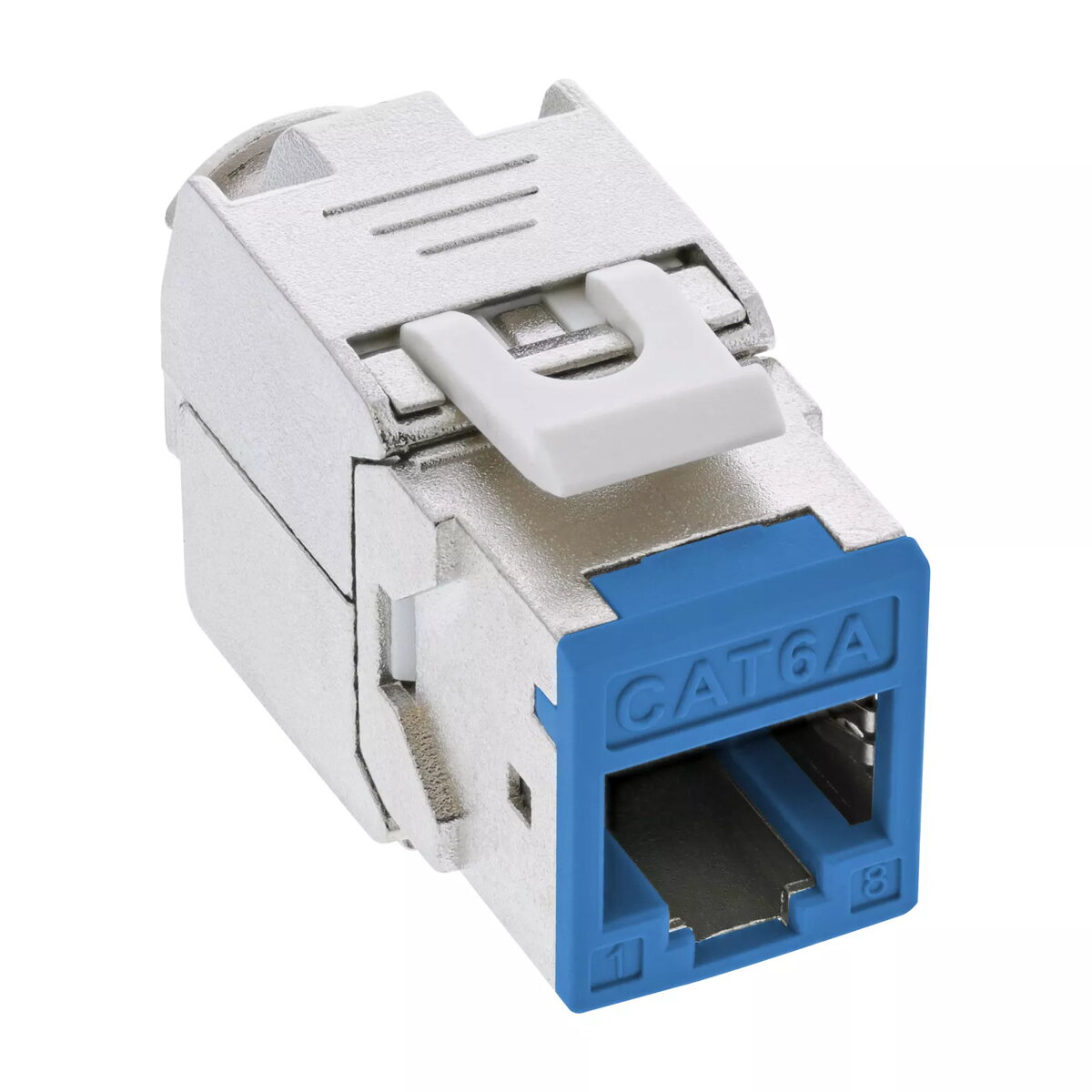

The InLine 76207B Keystone RJ45 Jack Shielded Cat.6A Flat Blue 8-Pack provides a reliable and efficient networking solution for structured cabling systems. Designed with a flat construction type and a distinct blue colour, these shielded Cat.6A modules are ideal for organised installations in patch panels and wall outlets. Each connector features a robust zinc-plated die-cast housing and supports high-speed data transmission up to 10GBit/s at 500 MHz, ensuring stable network performance.

Advantages

These Keystone modules offer full shielding to protect data signals from electromagnetic interference, maintaining high signal integrity in demanding environments. The integrated LSA strip with colour coding following TIA/EIA-568A and 568B standards simplifies wire routing and installation. Support for Power over Ethernet (PoE and PoE+) makes these jacks versatile for powering network devices directly through the cabling. With a durability rating of up to 750 mating cycles, the connectors ensure long-term reliability.

Suitable for

• Structured cabling in residential and commercial networks
• Installation in 19-inch empty patch panels and junction boxes
• Connecting network cables with AWG 22 to AWG 24 specifications
• Powering PoE and PoE+ enabled network hardware

When it may not be suitable

This product may not be suitable for cables with an outer diameter exceeding 9.5 mm or wire gauges outside the supported AWG 22 to AWG 24 range. It is also not designed for unshielded cabling environments where shielding is unnecessary or unsupported by the wider network infrastructure.

Key specifications

• Cat.6A shielded RJ45 jack with Keystone SNAP-In design
• Supports data transfer speeds up to 10GBit/s and 500 MHz bandwidth
• Equipped with LSA strip for tool-assisted cable termination
• Zinc-plated die-cast metal housing with blue plastic components
• Compatible with cable conductor sizes AWG 22 to AWG 24
• Supports Power over Ethernet (PoE, PoE+)
• Designed for a minimum of 750 mating cycles
• Dimensions: width 16.5 mm, length 39.5 mm, height 21.6 mm
• Snap-in cut-out requirements: height 16.7 mm, width 14.5 mm
• Pack size contains 8 pieces

How to use

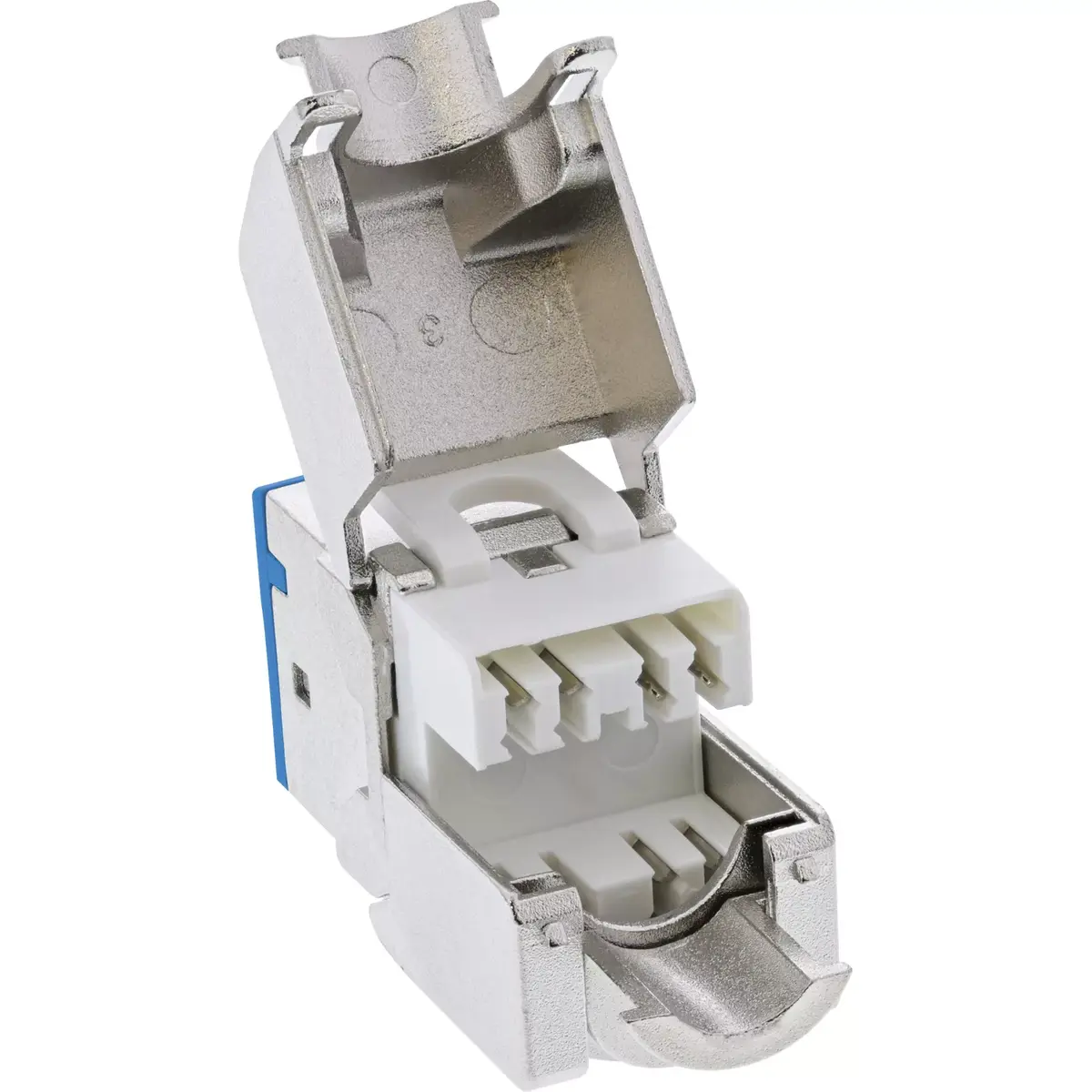

To install the Keystone jack, prepare the network cable by stripping the outer jacket to expose the individual conductors. Sort the wires according to the colour-coding scheme corresponding to TIA/EIA-568A or TIA/EIA-568B printed on the module. Press each wire into the LSA terminal strip using a compatible LSA punch-down tool and trim any excess wire length. Close the shielding housing securely and snap the finished Keystone module into a compatible 19-inch patch panel or wall outlet cut-out.

What to consider before purchase

• Verify that your existing patch panel or wall outlet supports standard Keystone snap-in dimensions.
• Check that your network cables fall within the supported AWG 22 to AWG 24 gauge range and do not exceed the maximum outer diameter of 9.5 mm.
• Confirm whether your network requirements call for shielded Cat.6A performance and PoE support.

Usage recommendations

For optimal network performance and signal stability, ensure that the cable shield is properly connected to the die-cast housing during termination and avoid exceeding the maximum bending radii of the network cables.
