InLine Desktop Consolidation Point Box for 8x Keystone RJ45 metal light grey RAL7035 DIN-rail

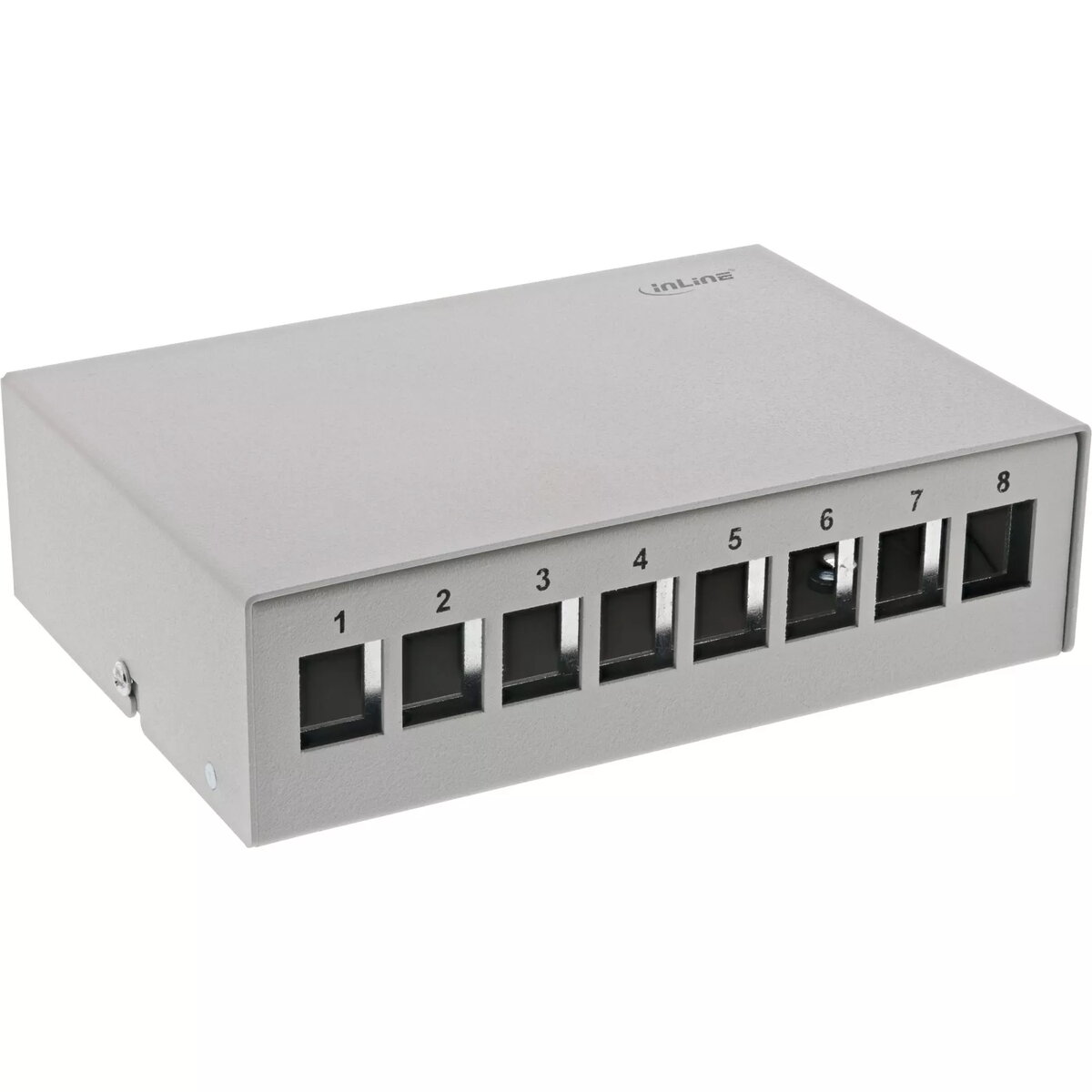

The InLine Desktop Consolidation Point Box is designed to house up to 8 Keystone RJ45 metal light grey RAL7035 modules with DIN-rail mounting support. This robust metal housing helps organize and extend structured cabling networks in professional IT environments, ensuring reliable connections and clean cable management.

Advantages

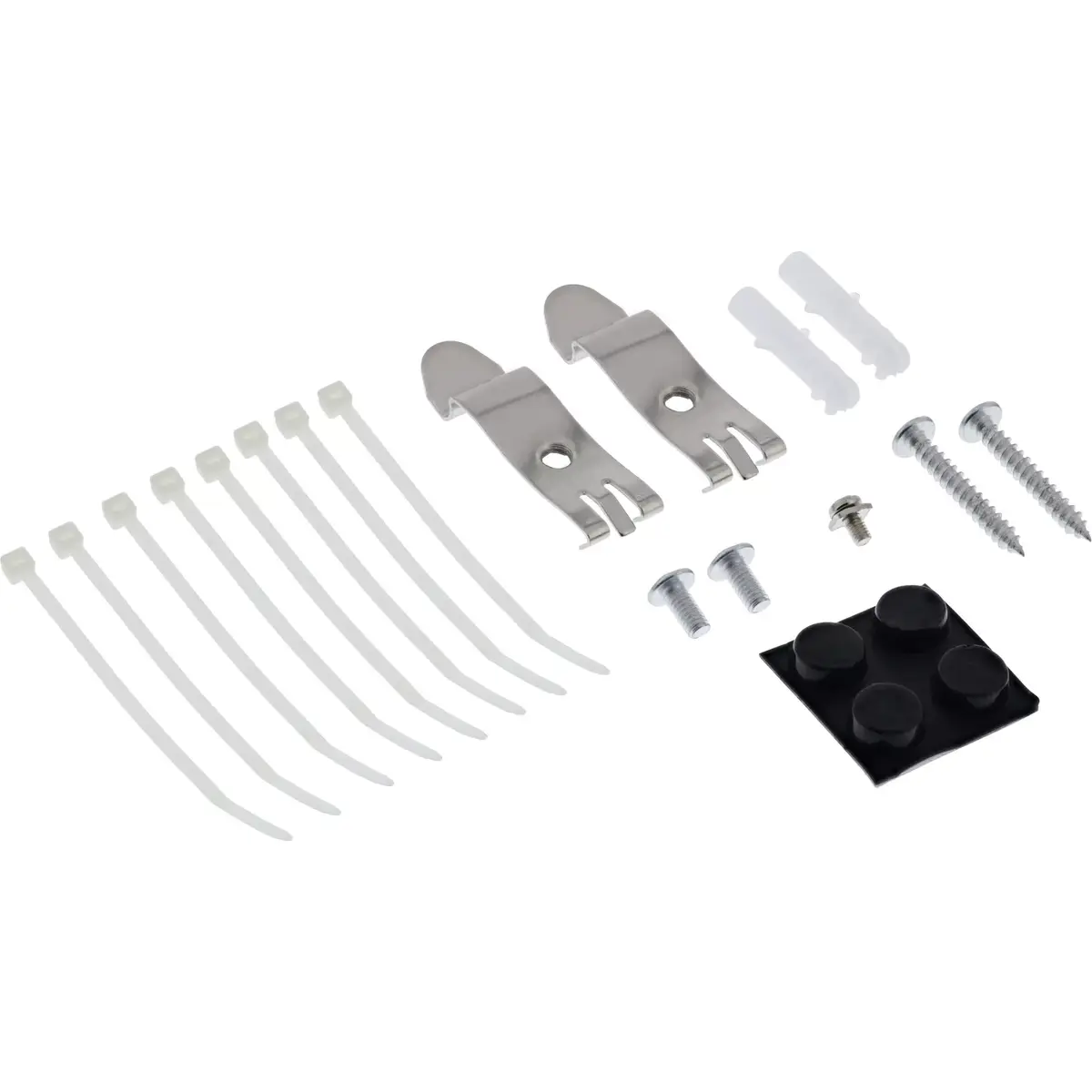

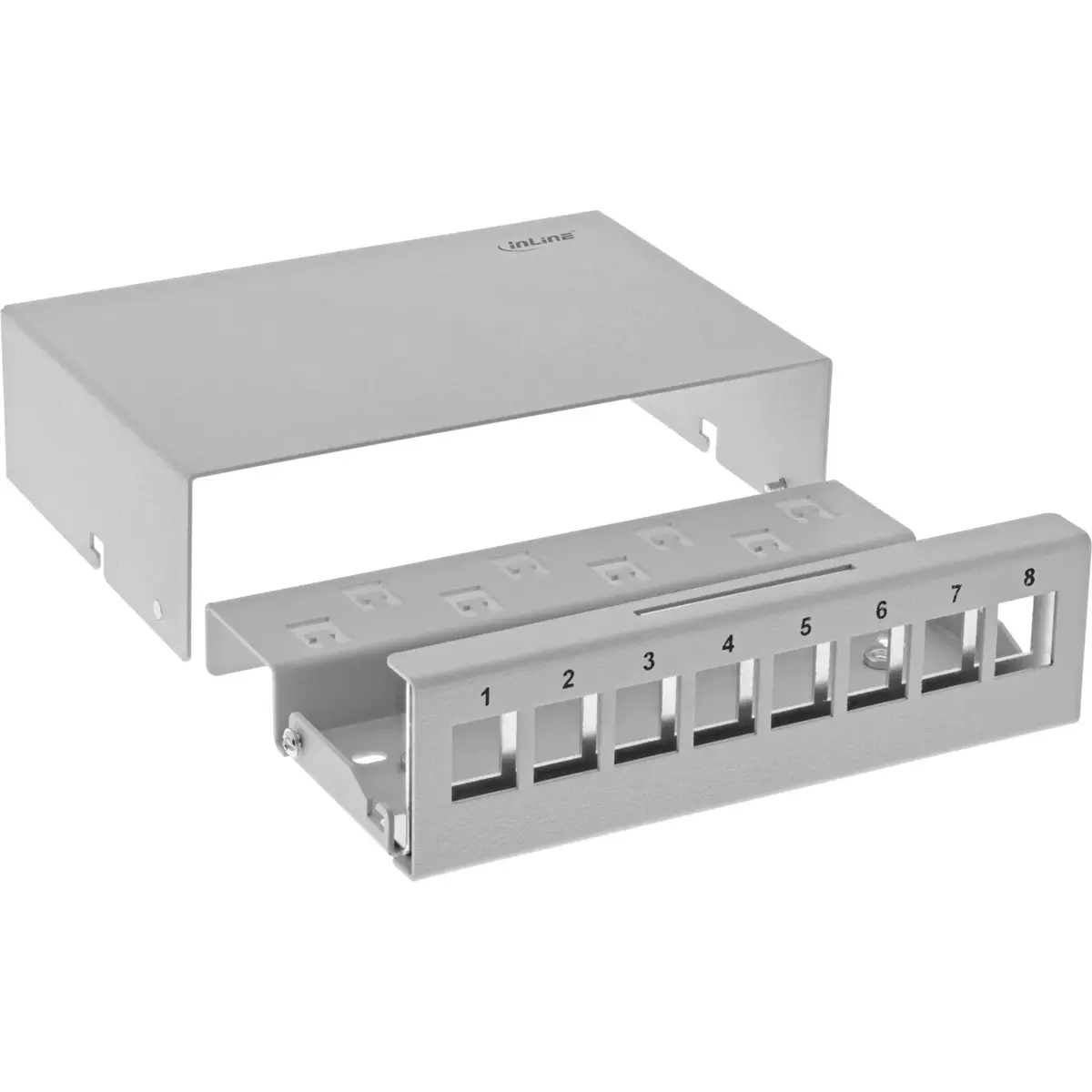

The unit features a durable construction made from SPCC steel with a protective plastic powder coating, offering reliable performance in fixed installations. Its two-stage design positions inserted modules flush with the front panel for a clean appearance. Integrated rear cable clamps and cable tie fastening options facilitate secure and orderly cable routing. Additionally, the inclusion of a reserved ground wire connection screw enhances safety and compliance within standard electrical setups.

Suitable for

• Organizing structured cabling networks in offices and IT environments
• Consolidating multiple network connections at a central point
• Integration into electrical distribution systems using DIN rails
• Flexible deployment with customizable Keystone RJ45 modules

When it may not be suitable

This product may not be suitable for environments requiring high water or dust resistance, as it features an IP20 connection class. It is also not ideal for users seeking a pre-configured solution, as Keystone RJ45 modules are not included and must be purchased separately.

Key specifications

• Housing material: SPCC steel
• Surface treatment: Plastic powder cladding
• Mounting type: DIN-rail or desktop
• Color: Light grey RAL7035
• Dimensions: 113 x 160 x 45 mm
• Module capacity: Up to 8 Keystone RJ45 slots
• Protection rating: IP20
• Operating and storage temperature: -40 to +70 °C
• Operating and storage humidity: 10% to 85%

How to use

Mount the housing securely onto a flat surface or attach it to a standard DIN rail using the provided mounting support without needing to disassemble the box. Insert your chosen Keystone RJ45 modules into the front panel cut-outs until they sit flush. Route the incoming and outgoing cables through the rear of the enclosure, securing them properly using the integrated cable clamps and cable ties to prevent strain. Connect the ground wire to the designated grounding screw to ensure proper electrical grounding before initiating network operations.

What to consider before purchase

• Verify that your required Keystone RJ45 modules are compatible and available separately.
• Check the physical dimensions of the installation space to ensure proper fit.
• Confirm whether DIN-rail mounting or desktop placement best suits your environment.
• Ensure the operating temperature and IP20 rating match your environmental requirements.

Usage recommendations: Install the consolidation point box in a clean, dry indoor environment within the specified temperature range of -40 to +70 °C. Always use appropriate cable ties and grounding procedures to maintain network stability and hardware safety.
