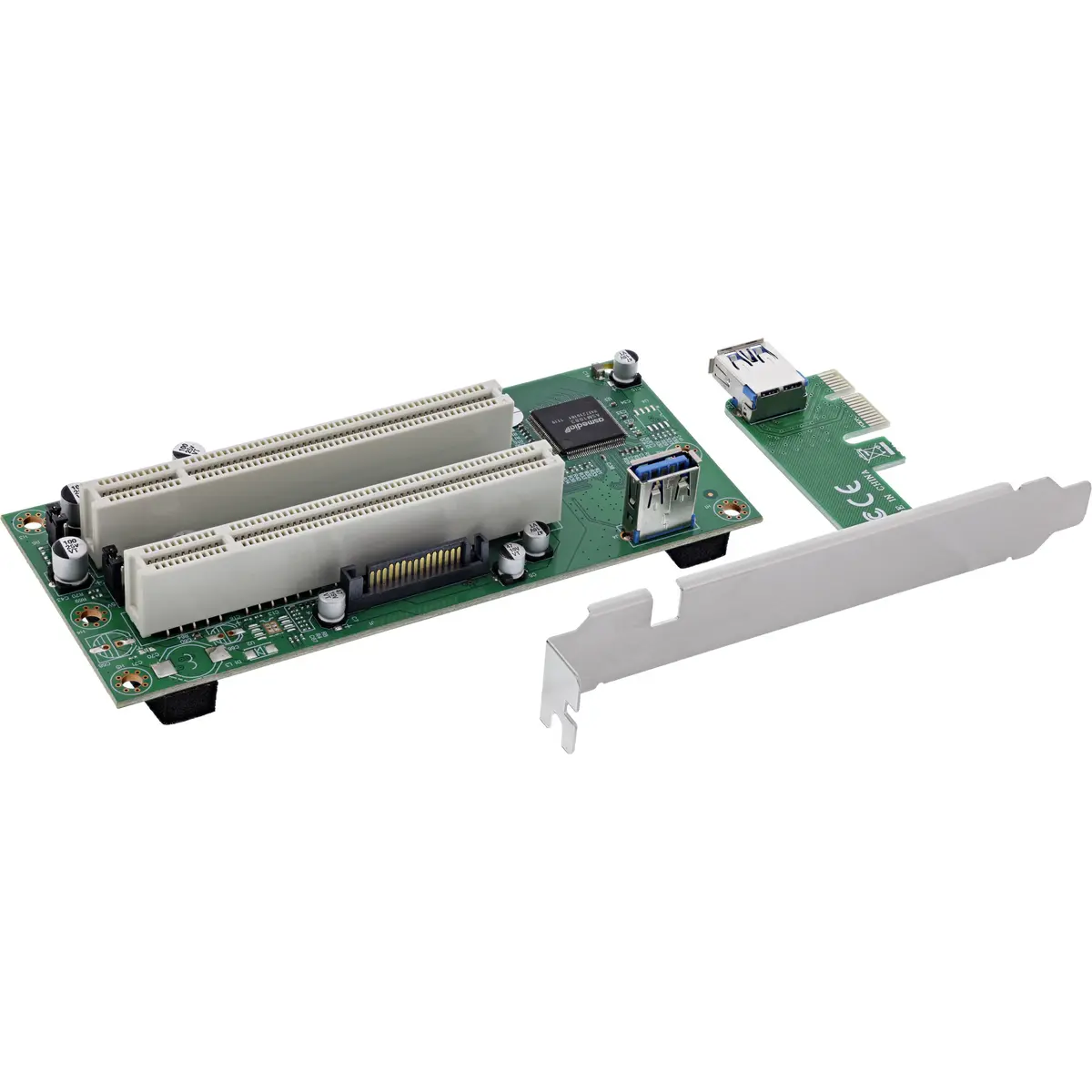

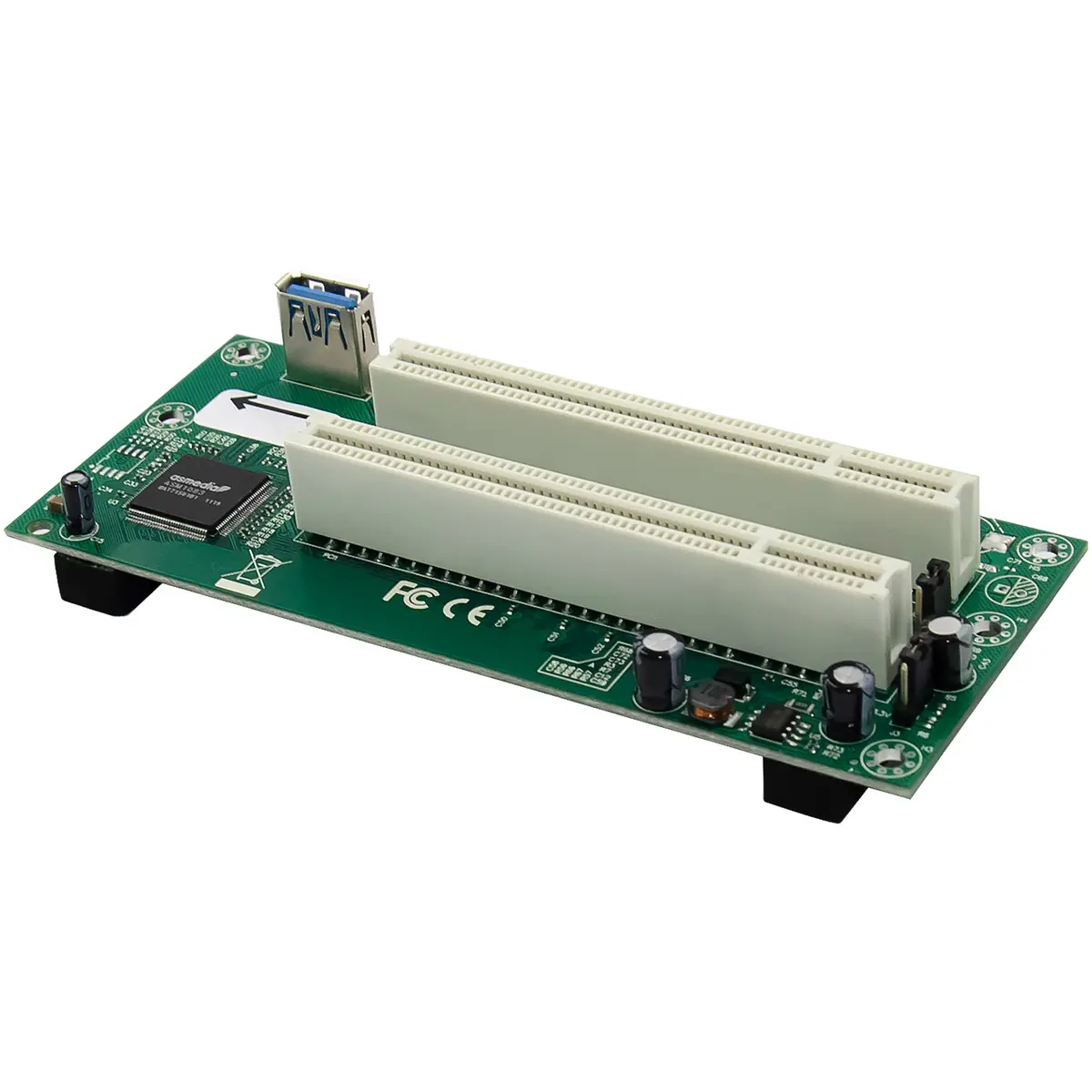

InLine 76619K Internal PCIe to PCI Interface Adapter Card with ASMedia ASM1083 Chipset

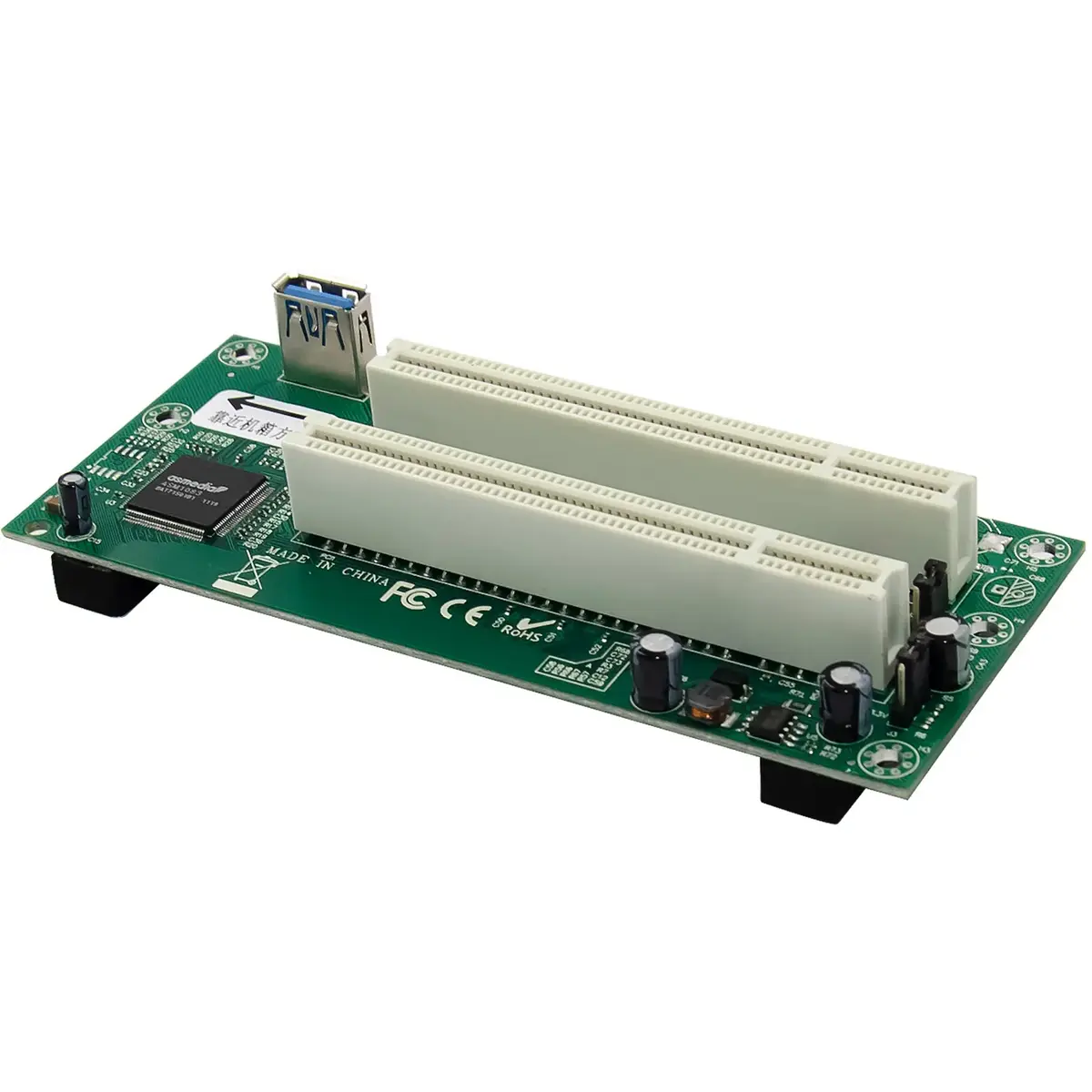

The InLine 76619K Internal PCIe to PCI Interface Adapter Card with ASMedia ASM1083 Chipset is a specialized hardware solution designed to bridge the gap between contemporary computing systems and legacy hardware. Featuring a PCI Express host interface and dual PCI output interfaces, this internal controller card enables the integration of older PCI expansion cards into modern motherboard architectures. Powered by the dependable ASMedia ASM1083 chipset, it facilitates stable data communication and signal conversion across a wide range of platforms.

Advantages

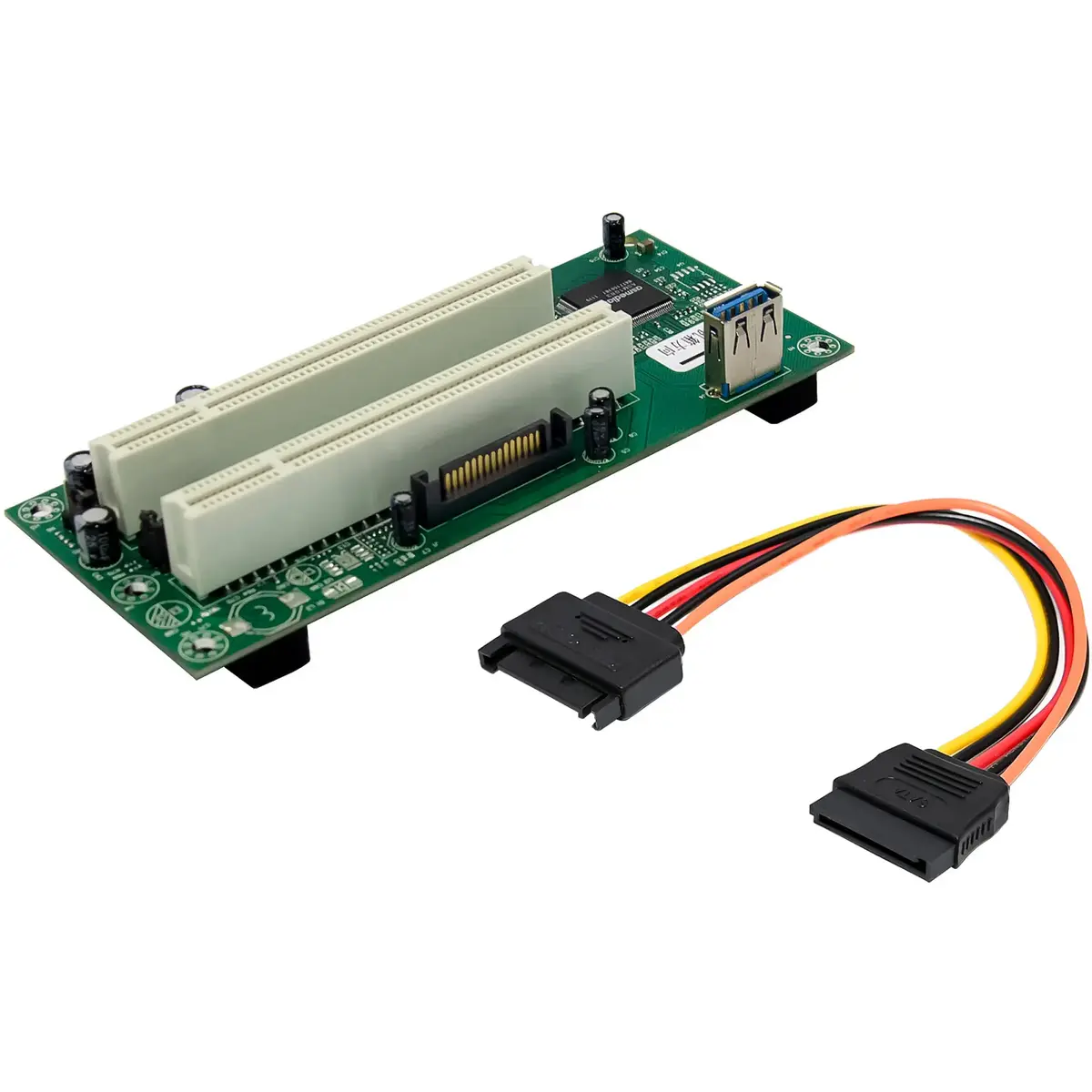

This adapter card offers a practical method for extending the lifecycle of functional hardware components without requiring expensive system replacements. The inclusion of a 60 cm connection cable allows for flexible physical placement of the add-on card inside the computer chassis, accommodating various internal layouts. Direct power delivery through a standardized SATA connection ensures consistent electrical supply to the connected devices. Furthermore, the driverless installation process simplifies setup by allowing the operating system to automatically recognize the hardware without manual driver configuration.

Suitable for

• Connecting legacy PCI sound cards, specialized controllers, or measurement cards to modern PCIe motherboards
• Upgrading industrial computer systems while retaining specific older expansion modules
• Maintaining specialized test systems and diagnostic setups that rely on classic 32-bit PCI slots

When it may not be suitable

This interface adapter is not designed for high-performance graphics cards or modern peripherals that strictly require high-bandwidth PCIe lanes. It may also present physical clearance challenges inside extremely compact PC cases where routing the connecting cable between the main card and the dual-slot add-on board is difficult.

Key specifications

• Internal installation design
• PCIe host interface
• PCI output interface

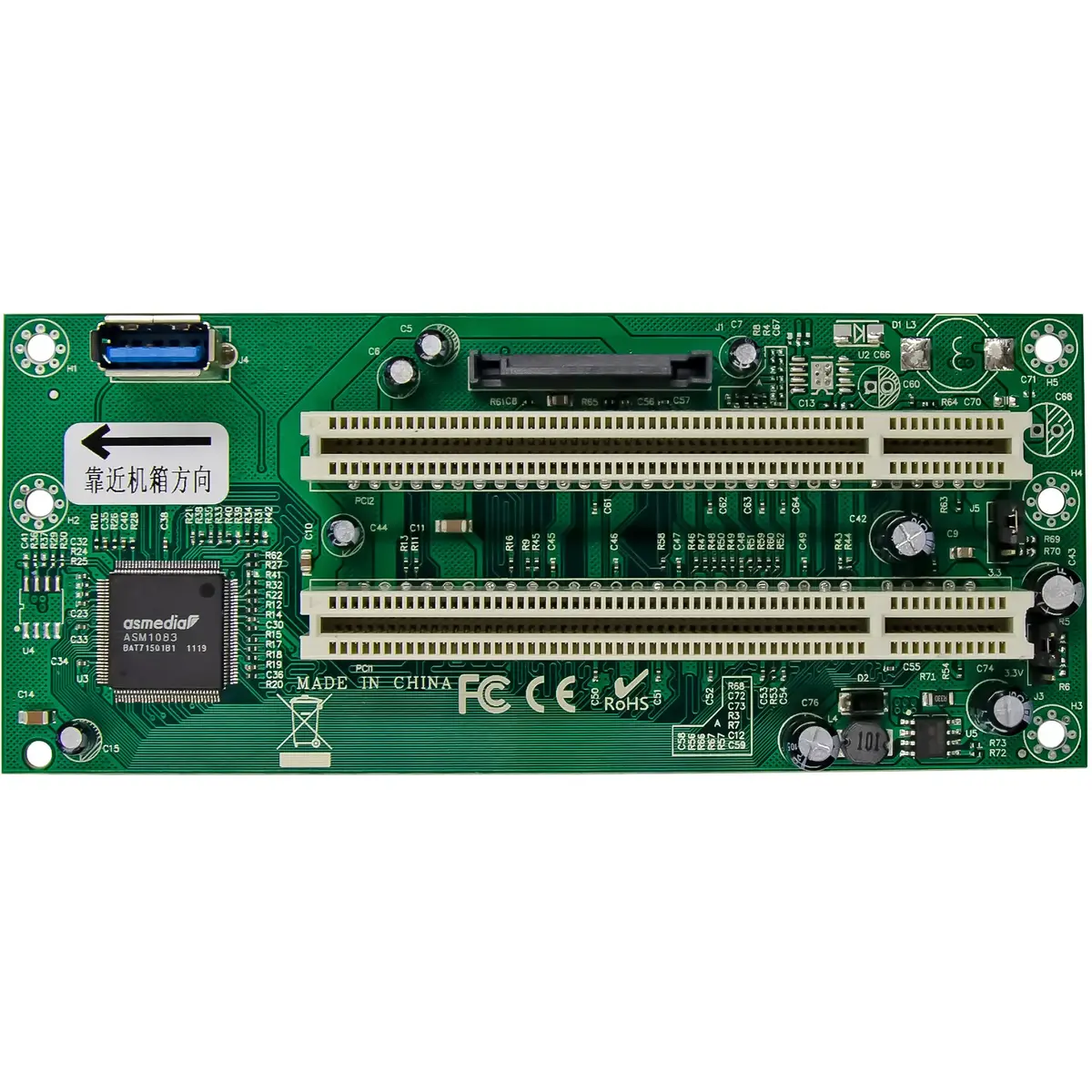

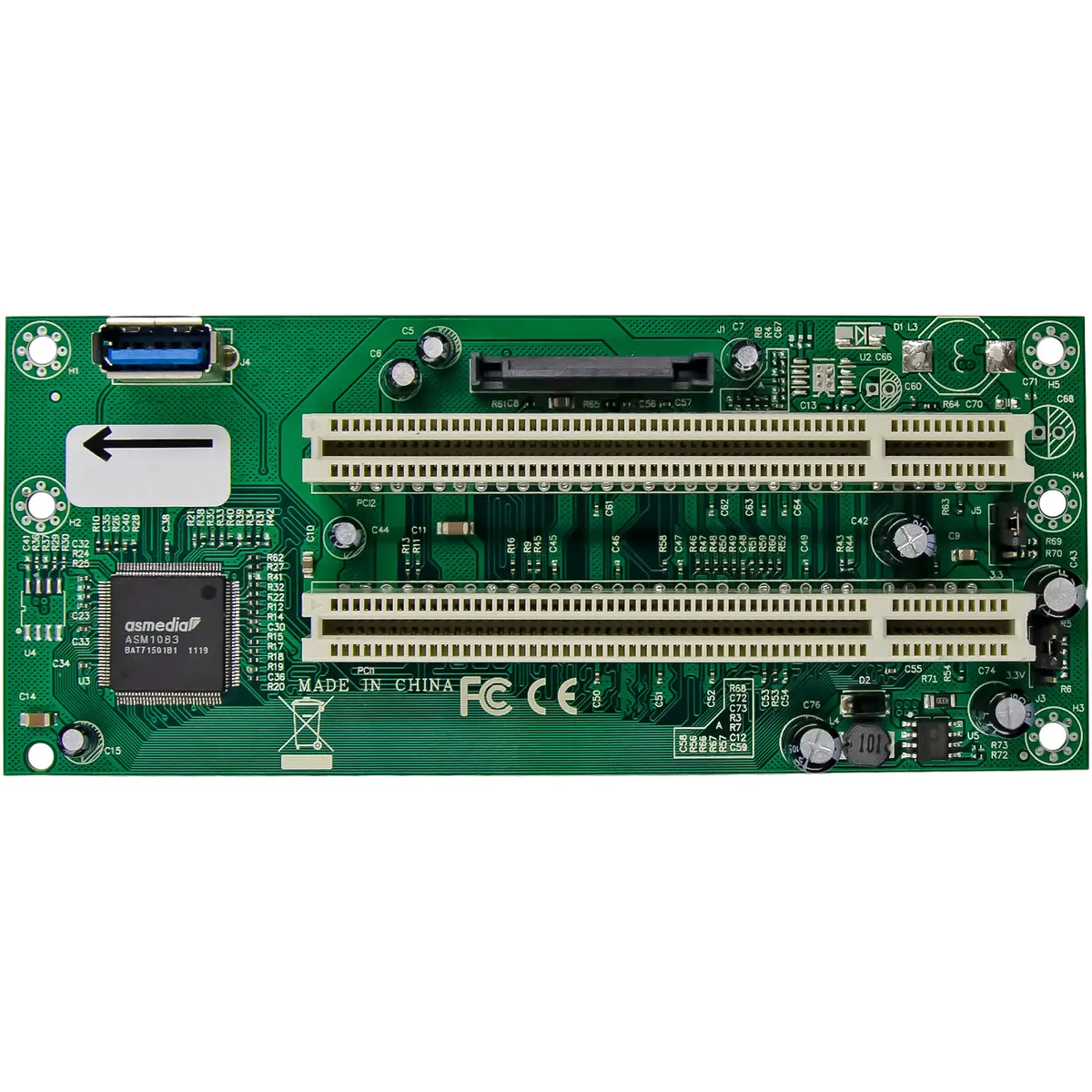

• ASMedia ASM1083 chipset
• Dimensions: 132 mm width, 1.84 mm depth, 60 mm height

How to use

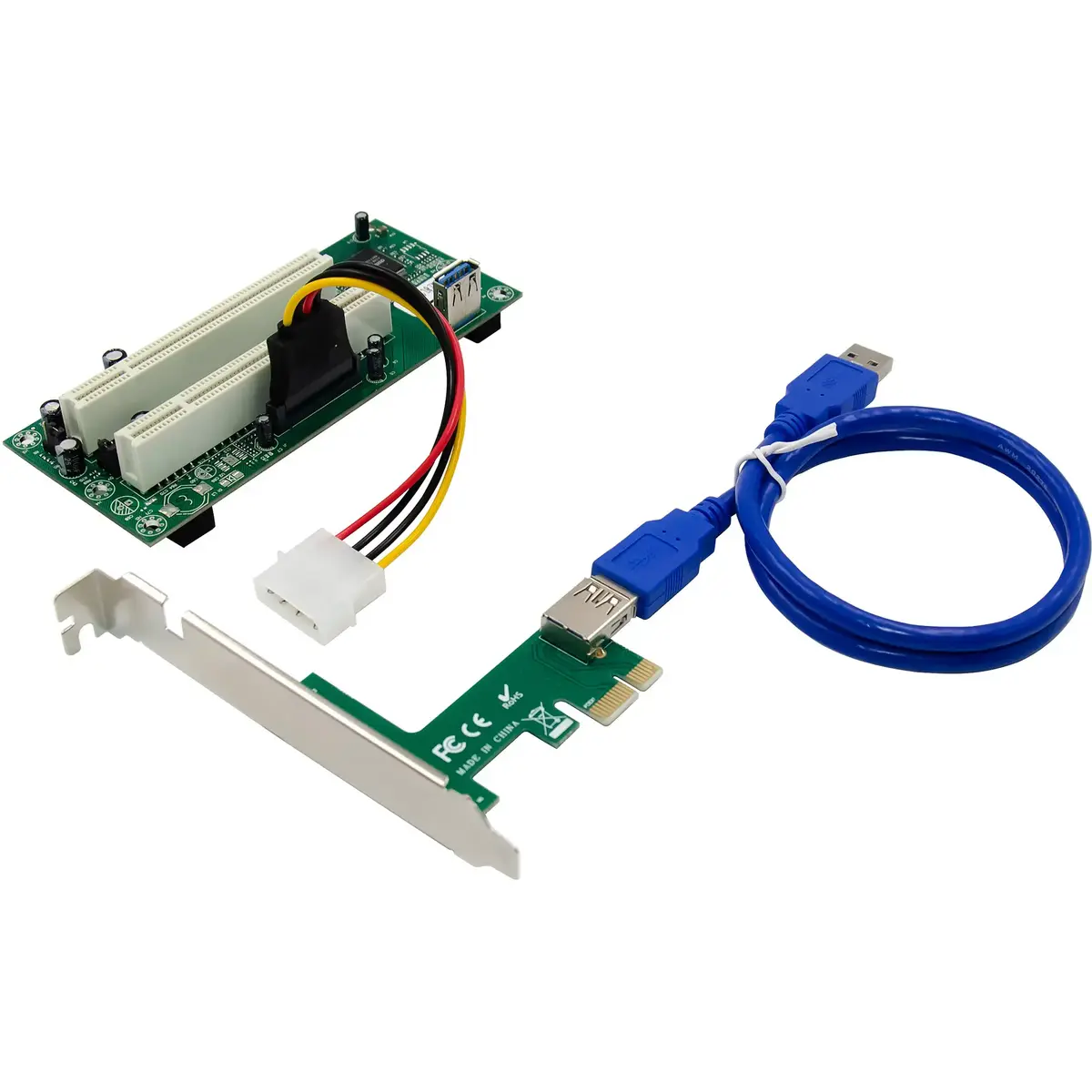

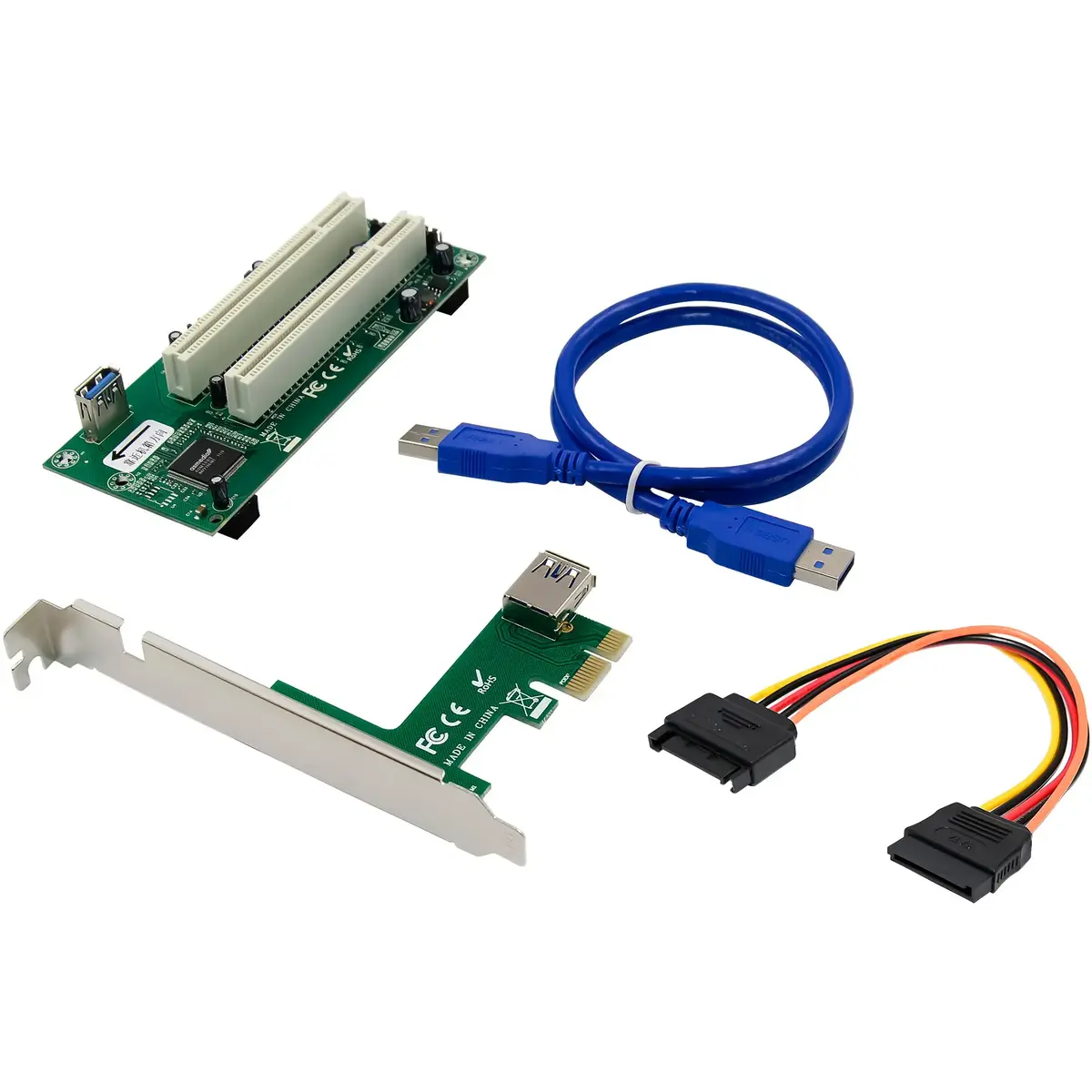

To install the adapter, power off your computer and disconnect it from the mains supply. Open the computer case and insert the main PCIe card into an available PCIe slot on your motherboard. Connect the required power supply using the SATA connector. Position the add-on card with the PCI slots inside the chassis using the included 60 cm connection cable for linking the two components. Secure both cards properly, close the case, and power on the system to allow the operating system to detect the hardware automatically.

What to consider before purchase

• Verify that your computer motherboard has an available PCIe slot and sufficient physical space inside the case for both cards
• Check the operating system compatibility list to ensure your specific software environment is supported
• Confirm that your existing power supply unit features an available SATA power connection

Usage recommendations: Ensure proper cable routing inside the computer chassis to avoid obstructing airflow and cooling components. Verify that all connected legacy PCI devices do not exceed the power and data limitations of the bridge architecture.
