header-product InLine Parallel Port Interface Card PCIe ECP EPP SPP Controller with Moschip MCS9900CV-AA Chipset
33.49 €

InLine Parallel Port Interface Card PCIe ECP EPP SPP Controller with Moschip MCS9900CV-AA Chipset

InLine Parallel Port Interface Card PCIe 76625C Photo 1
InLine Parallel Port Interface Card PCIe 76625C Photo 2
InLine Parallel Port Interface Card PCIe 76625C Photo 1
InLine Parallel Port Interface Card PCIe 76625C Photo 2
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

InLine Parallel Port Interface Card PCIe ECP EPP SPP Controller with Moschip MCS9900CV-AA Chipset

{{email}}
You keep track of price changes

InLine Parallel Port Interface Card PCIe ECP EPP SPP Controller with Moschip MCS9900CV-AA Chipset

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

InLine PCIe parallel port interface card featuring ECP, EPP, and SPP controller modes powered by the Moschip MCS9900CV-AA chipset. It delivers a data transfer rate up to 2.5 Gbit/s and provides reliable legacy printer or device connectivity. Compatible with Windows 2000, XP, Vista, and Server operating systems. Designed for internal desktop computer installation via PCI Express slot.
Available at price 33.49 €: 176 pcs.
Total available for order: 352 pcs.
Warranty: 2 Years
SKU: 433672
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
23.10.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
28.10.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.05 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
28.10.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

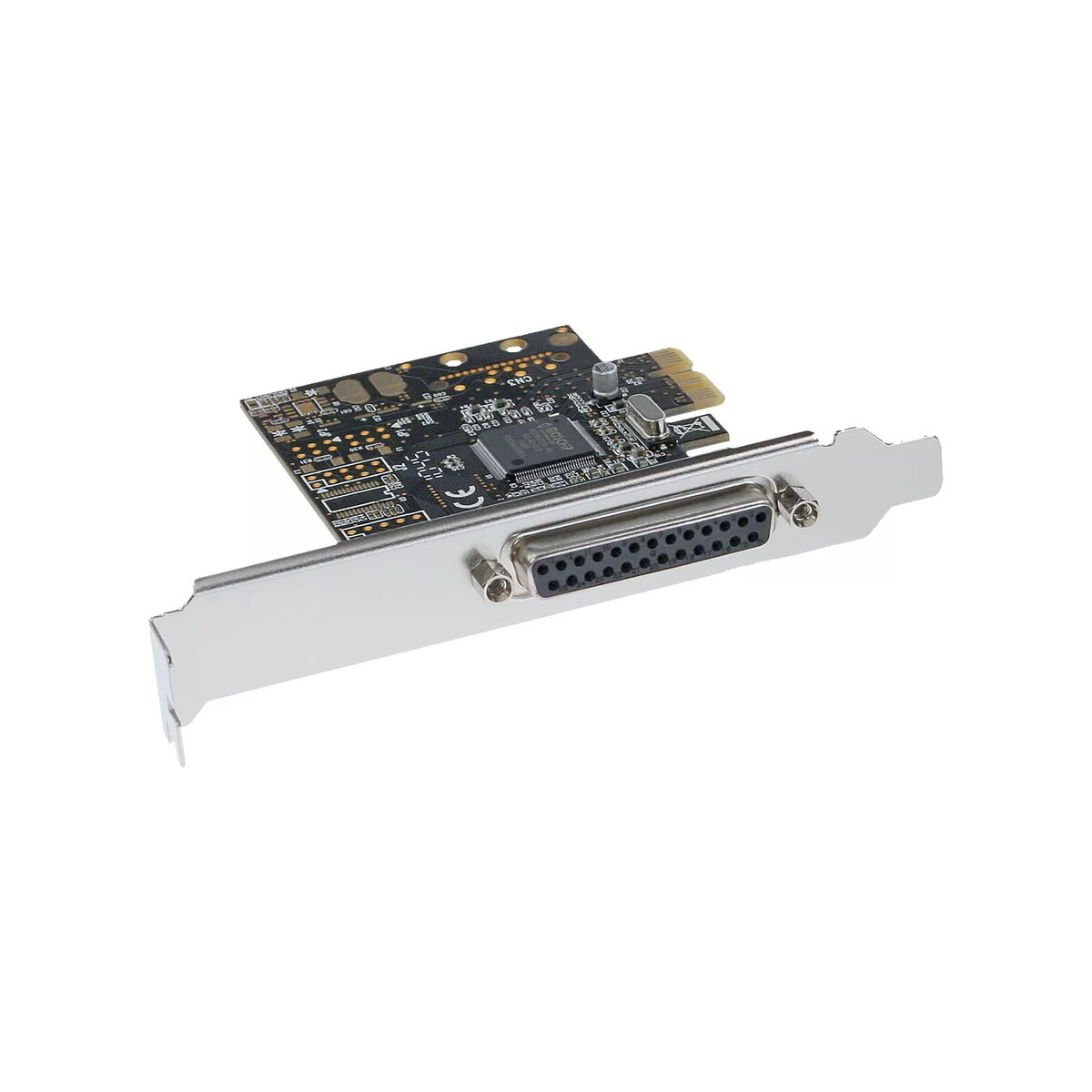

The InLine Parallel Port Interface Card PCIe ECP EPP SPP Controller with Moschip MCS9900CV-AA Chipset provides a reliable solution for adding a legacy parallel port to modern desktop computers. Designed for internal installation via a PCI Express slot, this interface card features a 25-pin DB female output interface and utilizes the robust Moschip MCS9900CV-AA chipset. It delivers stable data transfer rates up to 2.5 Gbit/s through a single-lane x1 PCIe host interface, making it an efficient choice for bridging older peripheral hardware with current computer systems.

Advantages

This controller card allows users to continue operating existing legacy parallel devices without needing external protocol converters. By supporting multiple controller modes including ECP, EPP, SPP, and PS2, it adapts precisely to the operational requirements of various connected hardware. The direct internal PCIe installation ensures a tidy chassis setup without cable clutter, while compliance with the IEEE 1284 standard guarantees dependable communication with compatible printers, scanners, and industrial equipment.

Suitable for

  • Connecting legacy parallel printers to modern desktop computers
  • Integrating older industrial automation hardware with a parallel interface
  • Operating vintage measurement and testing instruments via desktop workstations
  • Maintaining legacy IT infrastructure in enterprise and public sector environments

When it may not be suitable

This product is not designed for laptops or computers that lack an available internal PCI Express slot. It is also unsuitable for users operating modern operating systems beyond the supported Windows, Linux, Mac OS, and DOS versions, or for connecting USB-only peripherals.

Key specifications

  • Host interface: PCIe x1
  • Output interface: Parallel 25-pin DB female
  • Controller chipset: Moschip MCS9900CV-AA
  • Data transfer rate: Up to 2.5 Gbit/s
  • Supported modes: ECP, EPP, SPP, PS2
  • Standard compliance: IEEE 1284, PCI-Express Base Specification Revision 1.1
  • Form factor: Internal desktop installation
  • Weight: 54 g

How to use

To install the card, power off your desktop computer, disconnect the power cord, and open the chassis. Insert the card firmly into an available PCI Express x1 slot and secure the bracket to the computer case. Close the computer, reconnect power, and start the system. Install the appropriate drivers for your operating system to enable full functionality of the parallel port. Once configured, connect your parallel peripheral device using a standard 25-pin parallel cable.

What to consider before purchase

  • Verify that your desktop computer has an available PCI Express slot inside the chassis
  • Check the operating system compatibility list against your computer environment
  • Confirm that your peripheral device utilizes a standard IEEE 1284 parallel interface

Usage recommendations: Ensure the computer is completely powered off and disconnected from the mains supply before handling internal hardware components. Follow standard electrostatic discharge precautions during installation and verify driver compatibility prior to deployment.

Specifications

Internal: The product is built in.
Yes
Host interface: Interface that enables a host controller to communicate with a driver.
PCIe
Output interface: The socket (port) where the output connectors are connected.
Parallel
All features

Weight & dimensions

Package weight: Weight of the packaged product.
54 g
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.054 kg
Depth: The distance from the front to the back of something.
1.3 mm

System requirements

Compatible operating systems: List of desktop operating systems tested as compatible with this product.
Windows 2000, XP 32/64-bit, Server 2003 32/64-bit, Vista 32/64-bit, Server 2008 32/64-bit, Windows 7 32/64-bit, Linux, Mac OS/X 10.5, DOS 6.22

Other features

Package volume:
1200 cm³
Mac compatibility: Product can be used with Apple Mac software and/or hardware.
Yes
Data transfer rate: Rate at which data can be transferred, usually measured in units per second. May vary with network configurations.
2500 Mbit/s

Packaging data

Package height: The distance from the top to the bottom of the packaging.
40 mm
Package depth: The distance from the front to the back of the packaging.
170 mm
Package width: The distance from one side of the packaging to the other.
175 mm

Features

Supports EPP and ECP:
Yes

Design

Internal: The product is built in.
Yes

Ports & interfaces

Parallel ports quantity: The number of parallel ports. Parallel ports, also known as printer ports, are a type of interface found on computers (personal and otherwise) for connecting peripherals. In computing, a parallel port is a parallel communication physical interface. Parallel ports were common in the 1980s and '90s (mostly conforming to industry standard IEEE 1284) but are now being replaced by USBs and other ports.
1
Host interface: Interface that enables a host controller to communicate with a driver.
PCIe
Output interface: The socket (port) where the output connectors are connected.
Parallel

Performance

Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Moschip MCS9900CV-AA
Data transfer rate: Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
2.5 Gbit/s
