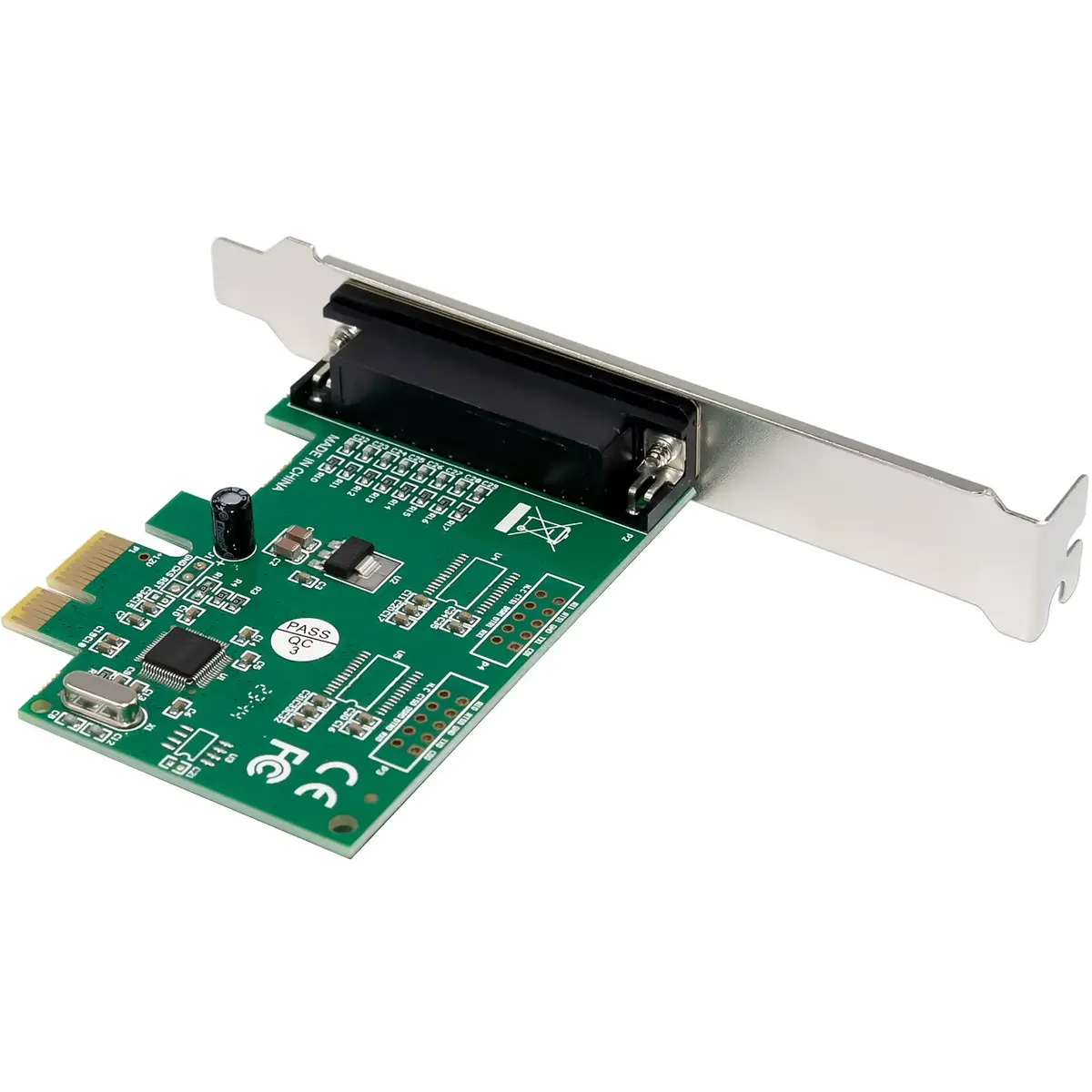

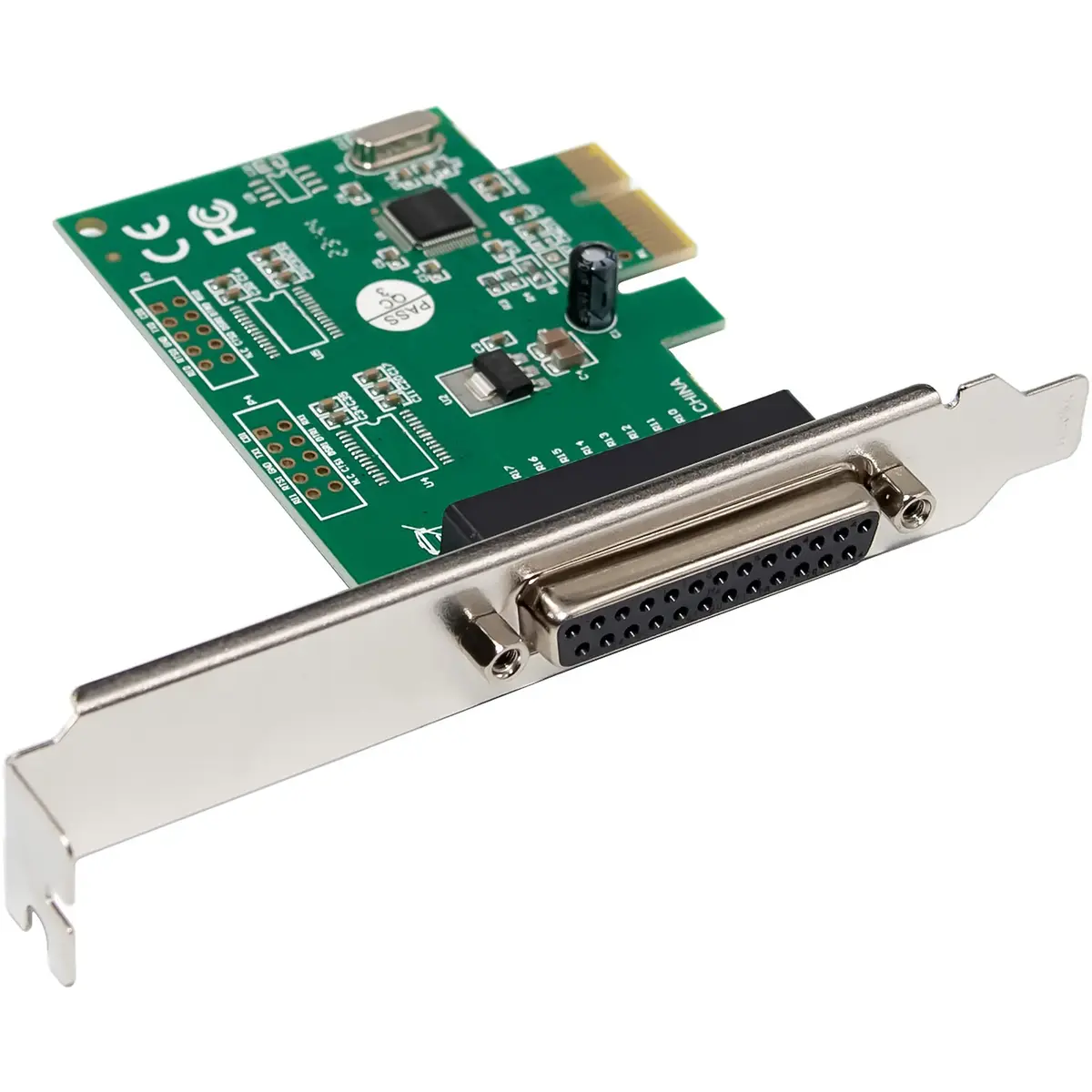

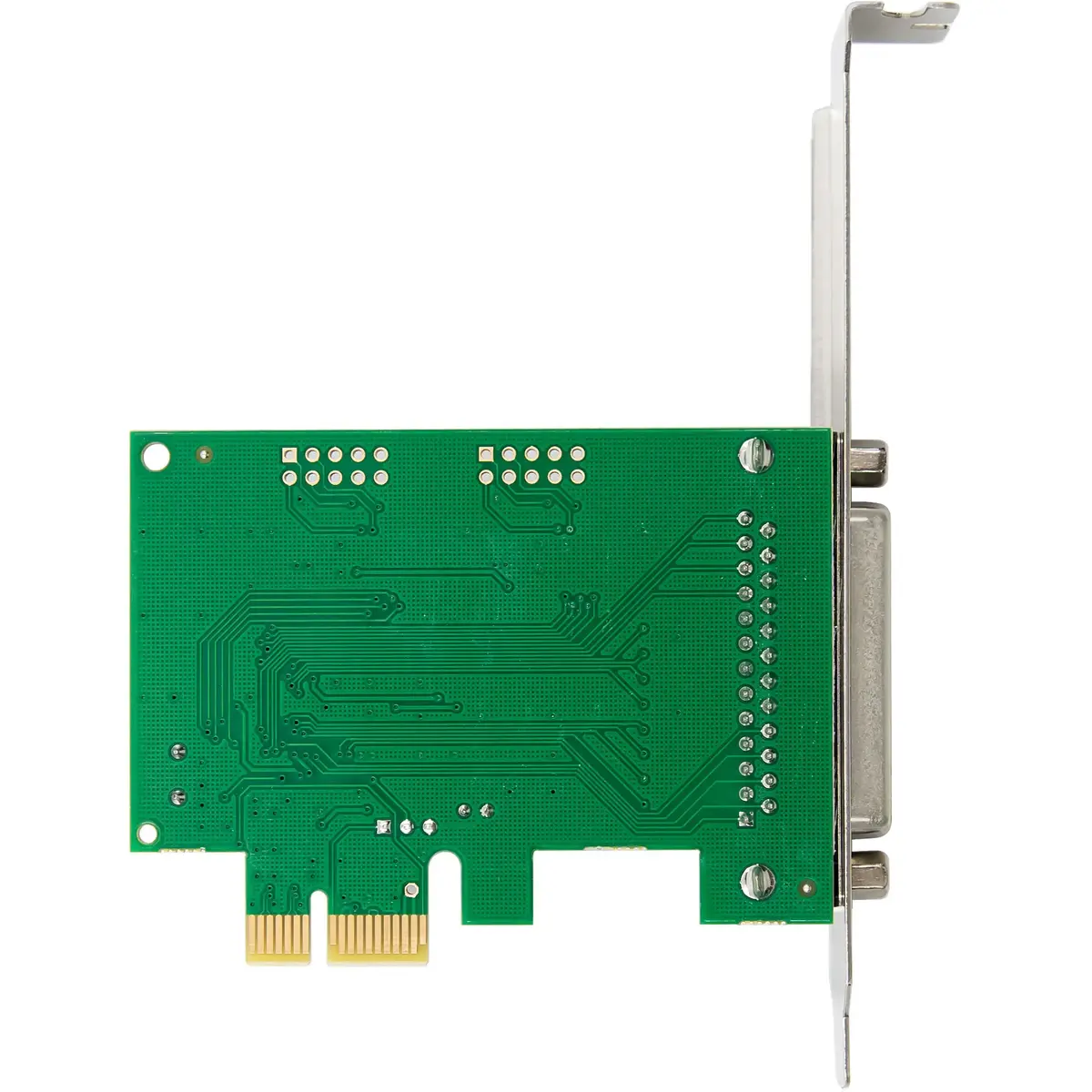

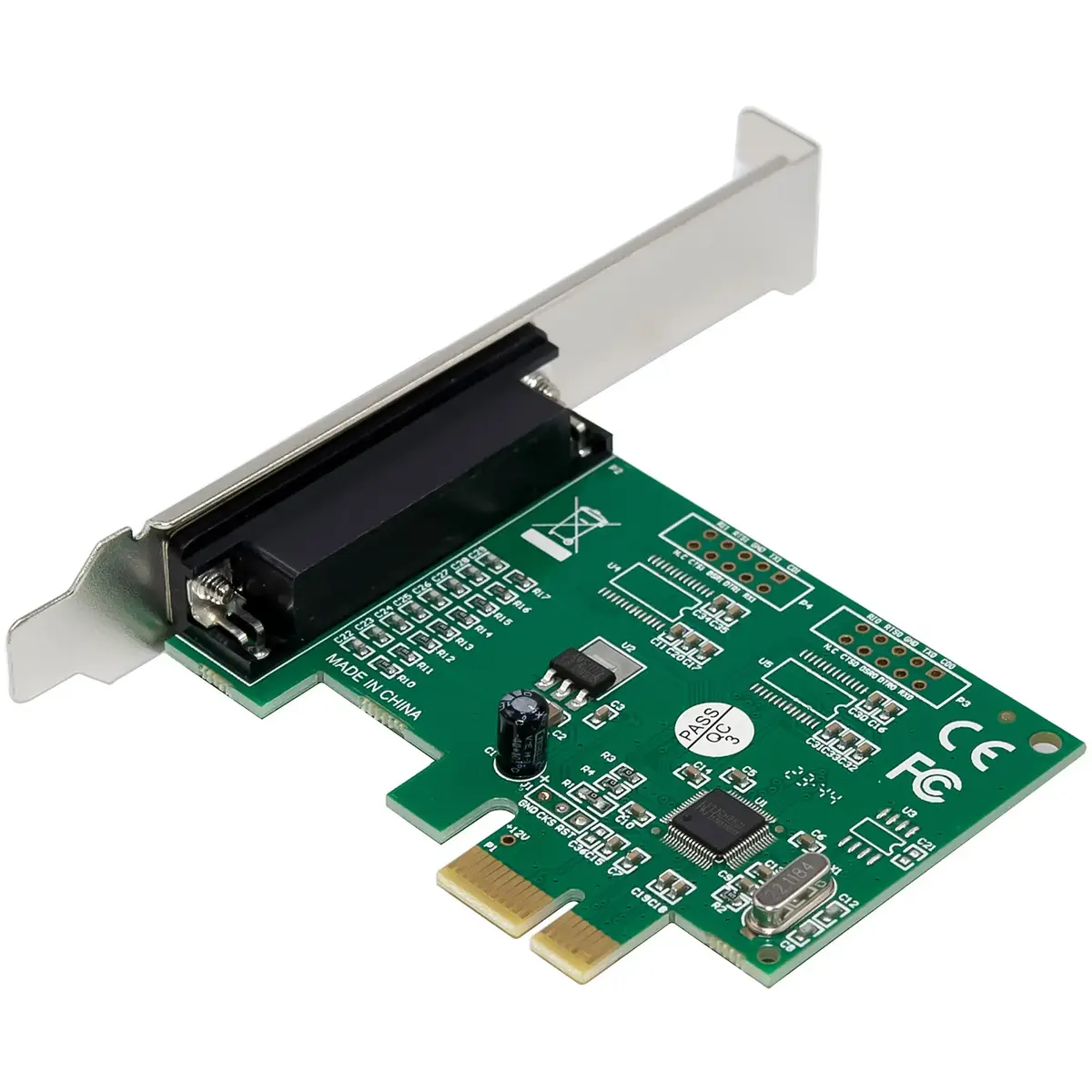

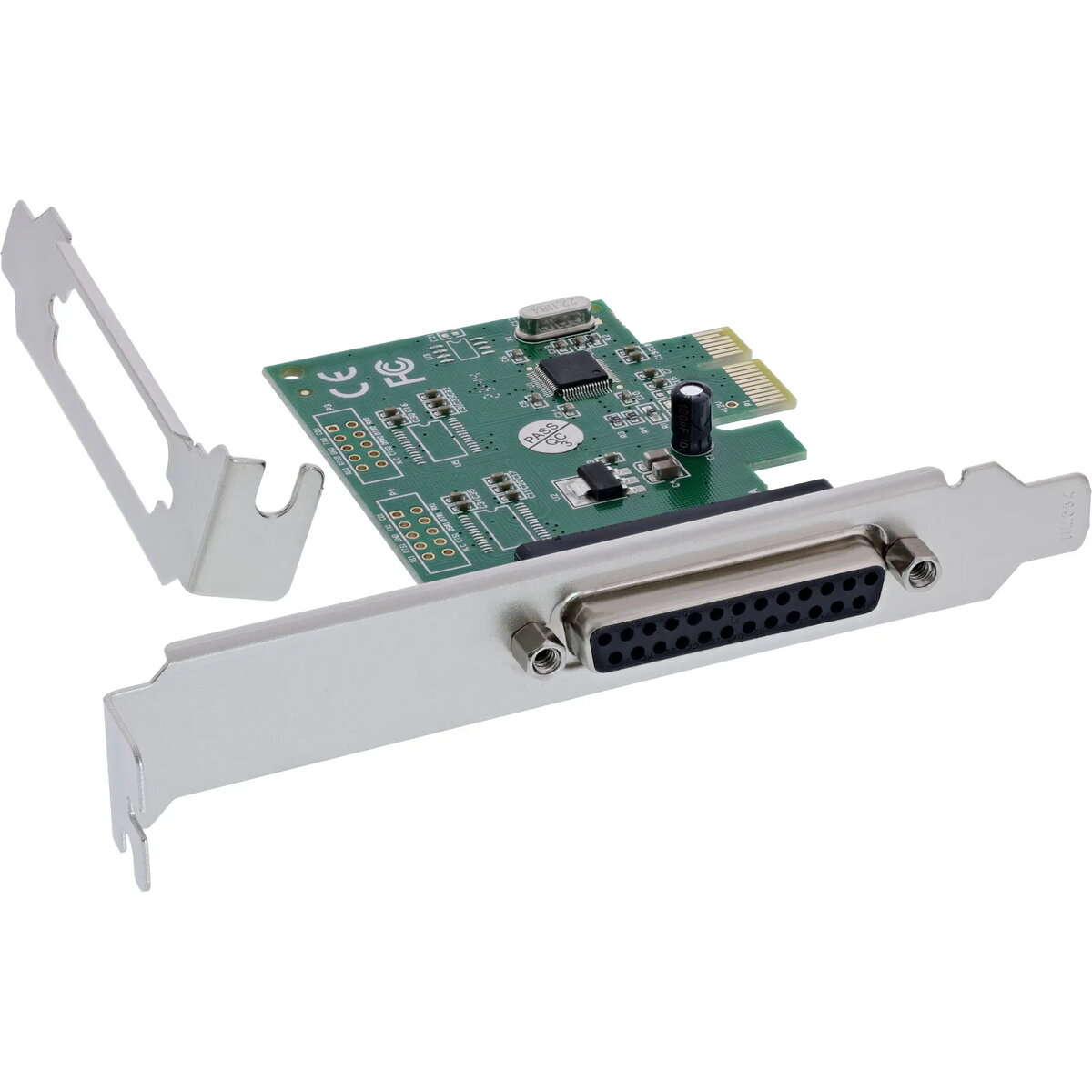

InLine 76625E Internal PCIe to Parallel Interface Adapter Card with WCH CH382L Chipset and 256 B FIFO

The InLine 76625E Internal PCIe to Parallel Interface Adapter Card with WCH CH382L Chipset and 256 B FIFO is designed to seamlessly integrate a traditional parallel port into modern desktop computers. By utilizing an available PCIe slot, this adapter enables users to connect legacy hardware such as older printers, scanners, and specialized industrial equipment to contemporary motherboards that lack built-in LPT ports. Built around the reliable WCH CH382L chipset, the card ensures stable communication and features a 256-byte FIFO buffer to manage data flow efficiently without overloading the system.

Advantages

This internal interface card offers a practical solution for bridging the gap between legacy peripheral devices and modern computing architecture. It eliminates the need to replace fully functional older hardware simply because newer motherboards have phased out parallel ports. The inclusion of a dedicated WCH CH382L chipset and a 256-byte FIFO buffer ensures steady, uninterrupted data handling. Furthermore, its broad operating system compatibility allows it to function smoothly across a wide range of Windows and Linux environments, ensuring long-term usability in diverse professional and personal settings.

Suitable for

• Connecting legacy parallel printers to modern desktop computers
• Integrating older document scanners with LPT interfaces into newer workstations
• Operating specialized industrial equipment or programming hardware that requires a parallel port
• Office and industrial environments utilizing older peripheral devices

When it may not be suitable

This adapter card is not suitable for computers that lack an available PCIe expansion slot, such as laptops or small form-factor devices without internal expansion capabilities. Additionally, it will not work for users whose primary goal is to connect modern USB-only peripherals, as this card exclusively provides a parallel interface output.

Key specifications

• Internal design for desktop computer installation
• Host interface: PCIe
• Output interface: Parallel
• Chipset: WCH CH382L
• Maximum data transfer rate: 0.0015 Gbit/s
• FIFO buffer: 256 bytes
• Physical dimensions: 85 mm width and 60 mm depth

How to use

To install the adapter, ensure the computer is powered off and unplugged from the electrical outlet. Open the computer case and insert the card firmly into an available PCIe slot on the motherboard, securing the bracket to the chassis. Close the computer case, reconnect the power, and start the system. Depending on the operating system, install the necessary drivers using the provided media or system prompts. Once installed, connect your parallel cable from the peripheral device directly to the newly added port on the back of the computer.

What to consider before purchase

• Verify that your desktop computer has an available PCIe slot on the motherboard
• Confirm that your operating system version is supported by the adapter drivers
• Ensure your peripheral device utilizes a parallel interface connection

Usage recommendations: To ensure stable and error-free operation, always power down the computer completely before installing or disconnecting any hardware connected to the parallel port. Keep the device drivers updated to the recommended versions provided by the manufacturer for optimal compatibility with your operating system.
