Internal M.2 Adapter InLine 76660S PCIe 1 Gbit/s 3.3 V

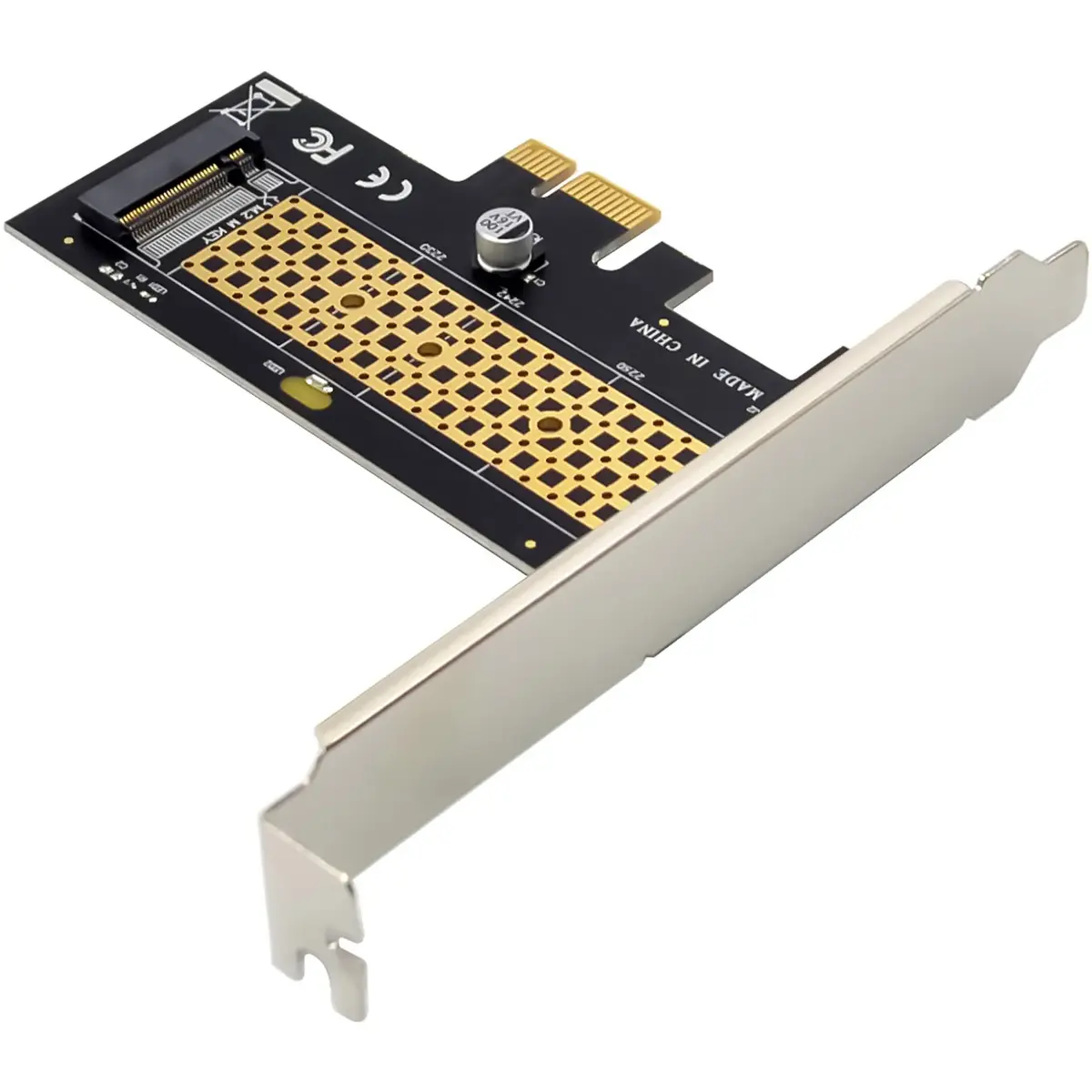

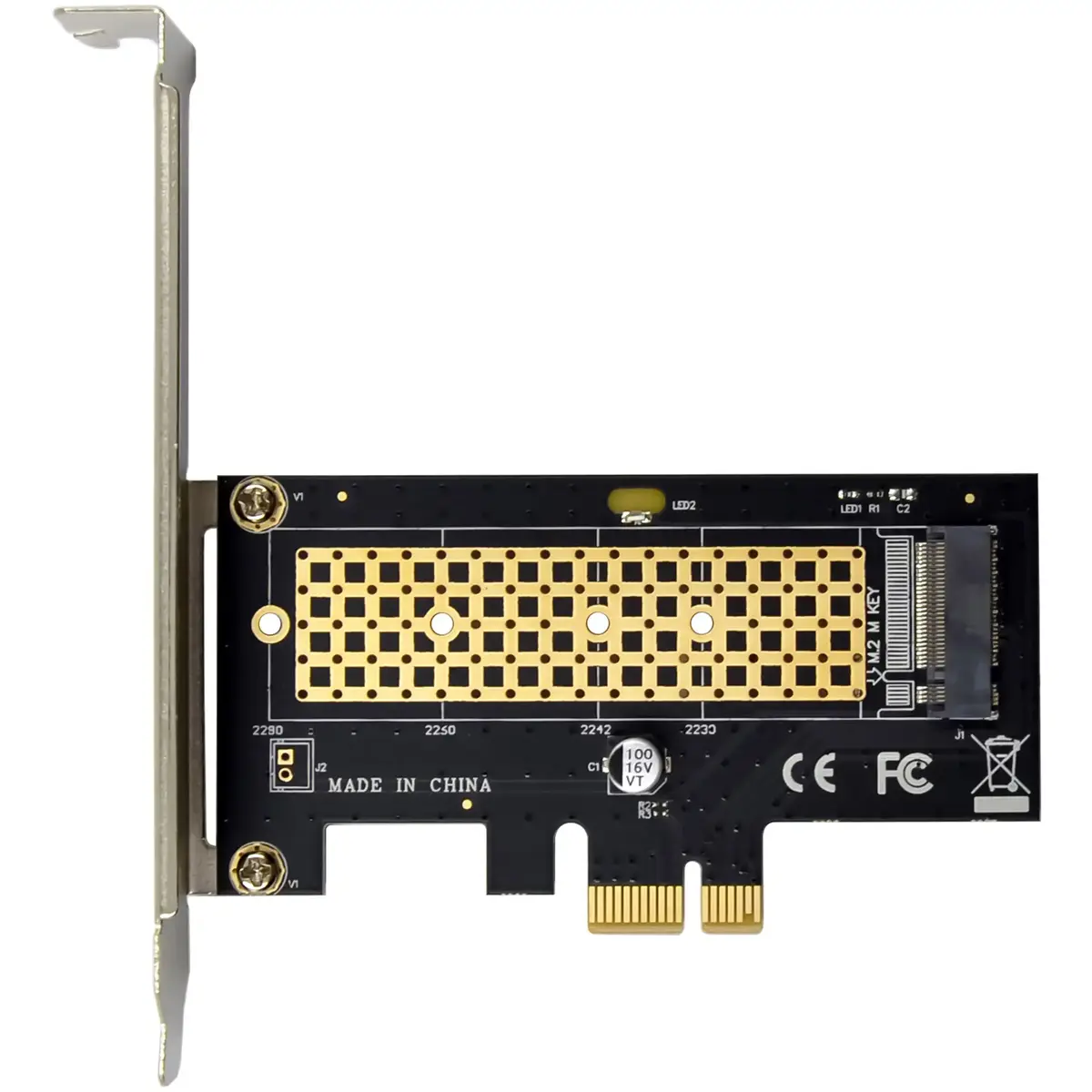

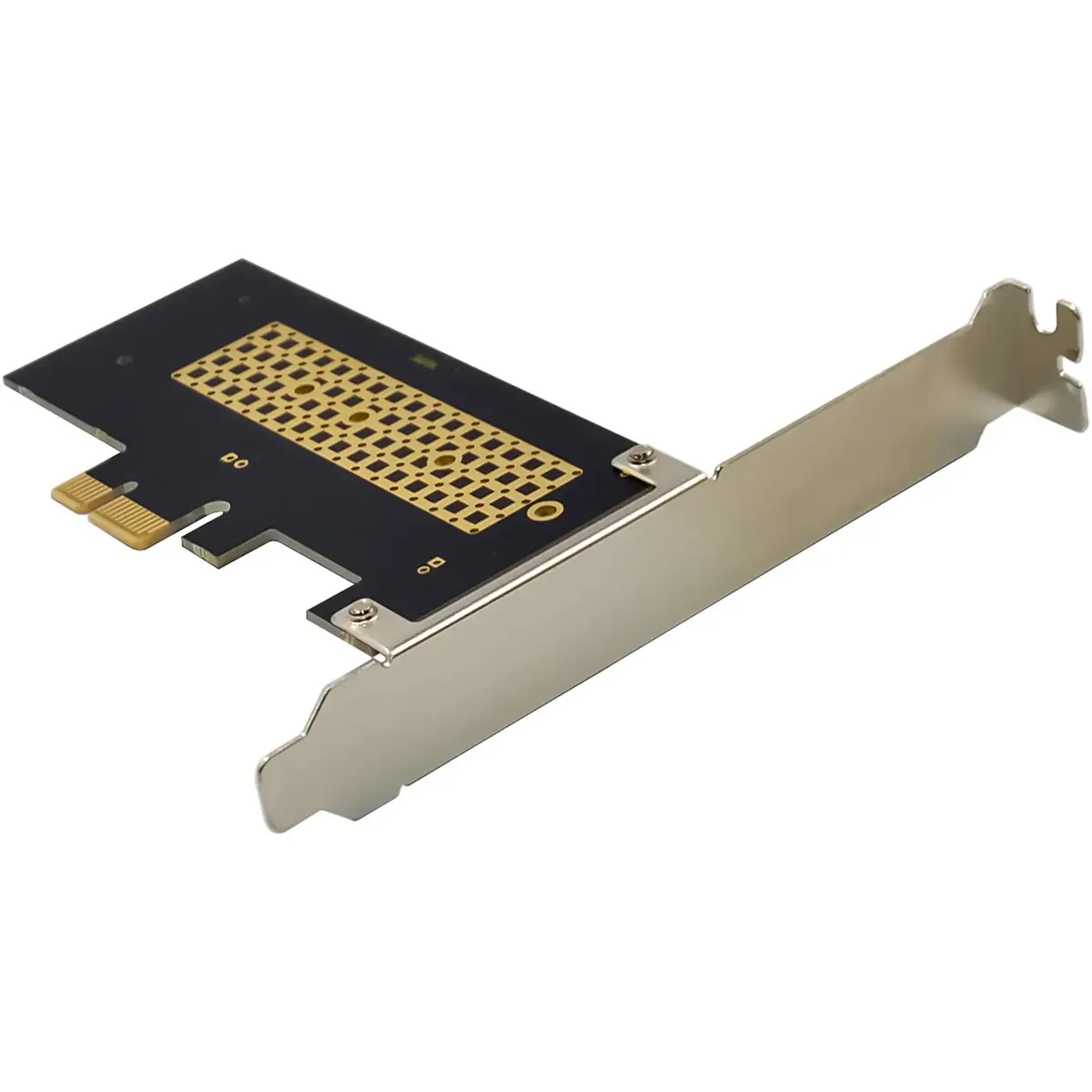

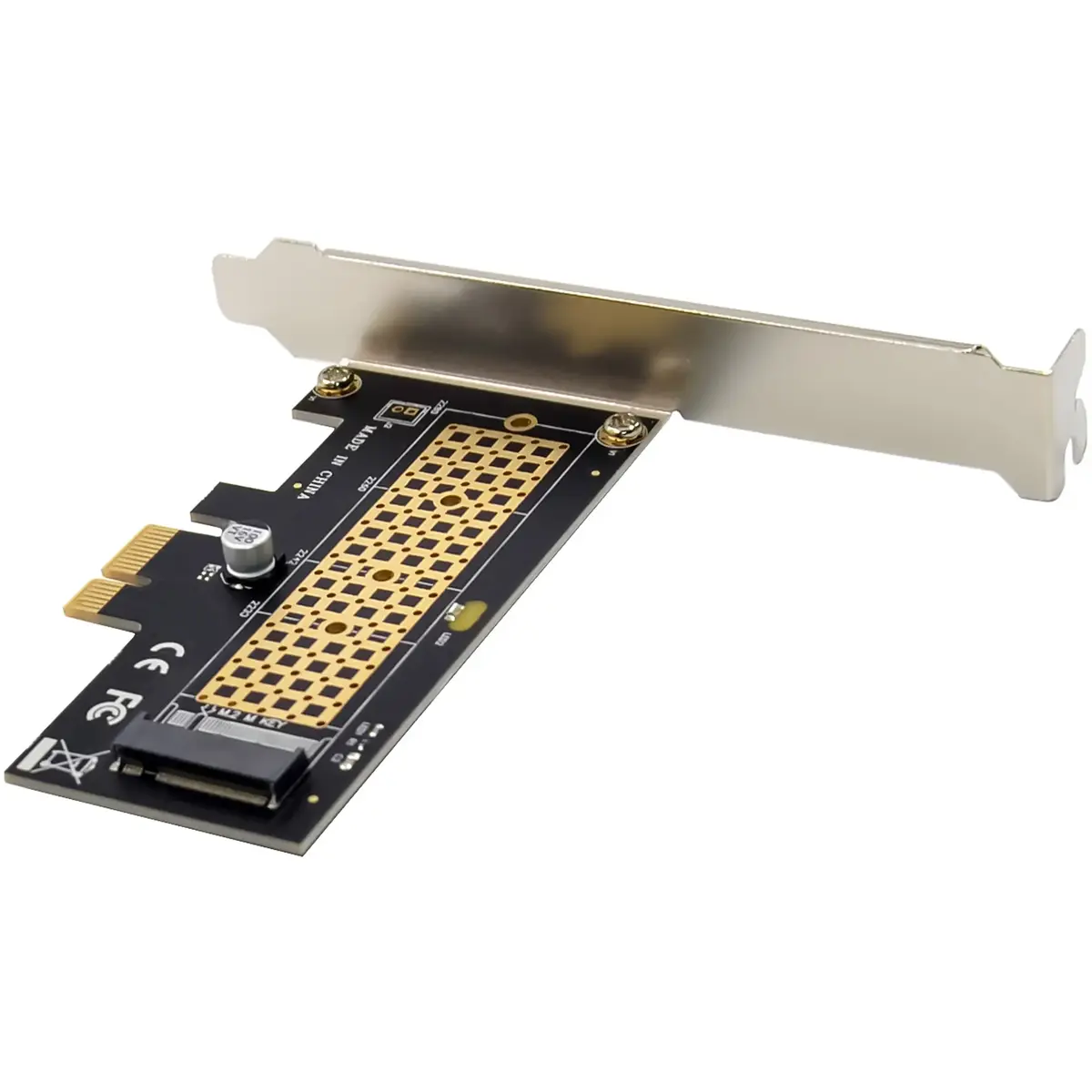

The InLine 76660S is an internal PCI Express adapter that provides one M.2 slot (Key M) for installing an NVMe SSD. The card uses a PCIe 3.0 x1 interface (compatible with x1, x4, x8 and x16 slots) and supports M.2 module lengths 2230, 2242, 2260 and 2280. The M.2 drive is powered directly from the PCIe bus (3.3 V) and the adapter features an onboard LED to indicate read/write activity. No additional driver is required for Windows and common Linux distributions.

Advantages

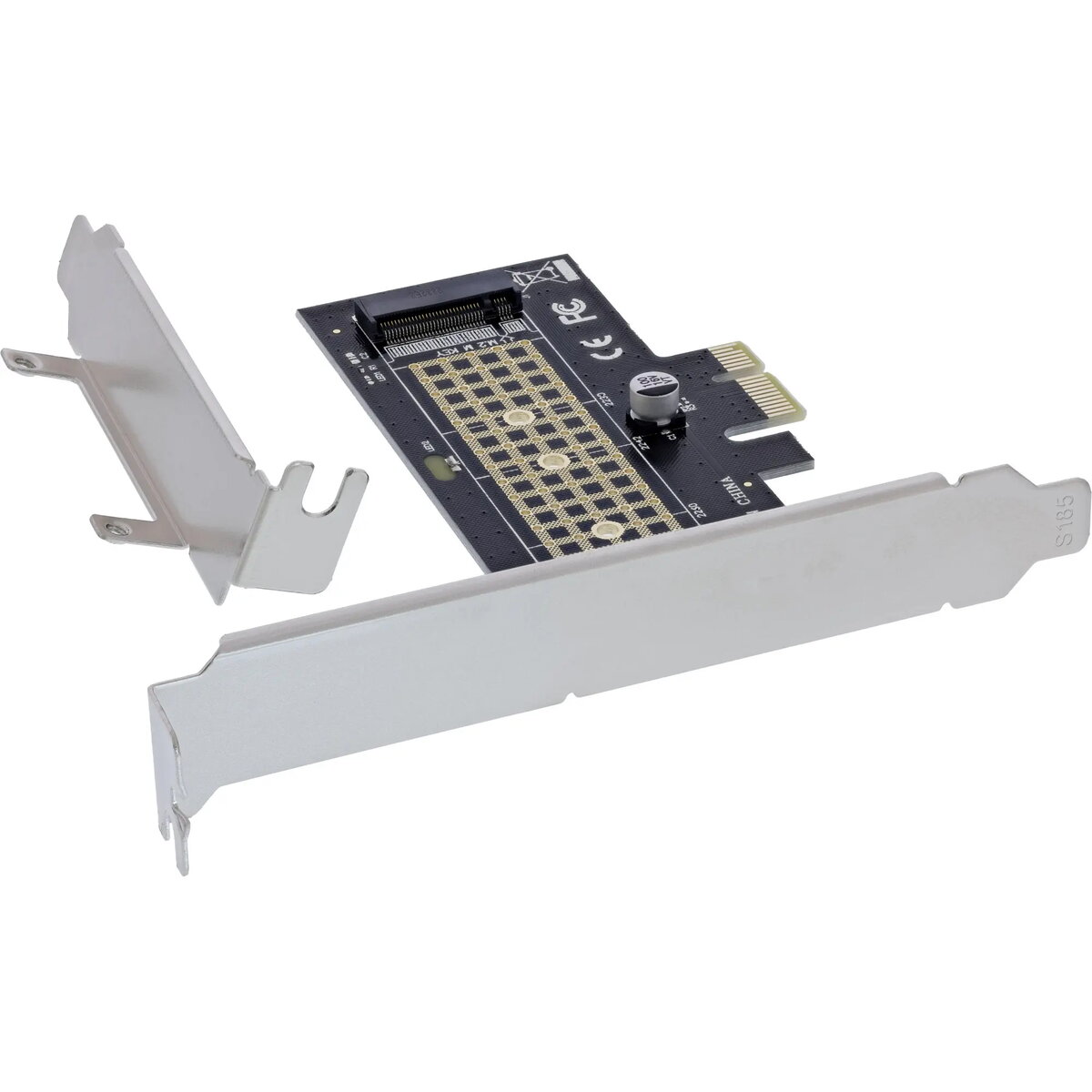

The adapter enables fast internal storage expansion with up to approximately 1 Gbit/s effective data rate over a PCIe 3.0 x1 connection. Automatic lane detection at boot simplifies integration into different PCIe slot configurations. Native OS support removes the need to install extra drivers, and the included low-profile bracket and mounting accessories allow installation in a variety of PC systems.

Suitable for

• Adding an NVMe M.2 SSD to desktop PCs with an available PCIe slot (x1, x4, x8 or x16)
• Upgrading storage in compact systems requiring supported M.2 sizes (2230–2280)
• Systems that need quick internal storage expansion without additional drivers

Key specifications

• Model: InLine 76660S
• Interface: PCIe 3.0 x1 (operational in x1, x4, x8, x16 slots)
• M.2 slot: 1 × Key M for NVMe SSDs
• Supported module sizes: 2230, 2242, 2260, 2280
• Maximum data rate: approx. 1 Gbit/s
• Power: M.2 SSD powered from PCIe bus (3.3 V)
• Operating temperature: -40 °C to +85 °C
• Dimensions (PCIe board): 95 mm × 52 mm
• Manufacturer part number (MPN): 76660S
• EAN: 4043718341559

How to use

Power down the PC and unplug it from mains. Install the adapter into a free PCIe slot (x1, x4, x8 or x16) on the motherboard. Fit a compatible NVMe M.2 SSD (Key M) into the M.2 slot and secure it with the supplied screw and heat conduction pad if required. Replace the slot bracket (standard or low-profile as needed), reconnect power and boot the system. The adapter will detect lane configuration automatically and the operating system (Windows 11/10/8/8.1/Server 2012 R2 or supported Linux distributions) should recognise the NVMe drive without additional drivers. The onboard LED shows read/write activity during drive use.

Usage recommendations

Ensure the motherboard supports PCIe 3.0 or higher for optimal throughput. Use supported M.2 module sizes (2230–2280) and handle the SSD and adapter with ESD precautions. Verify BIOS/UEFI settings if the drive is not detected, and consult the included manual for installation details.
