InLine 76660U Internal SATA Interface Card

Name: InLine 76660U Internal SATA Interface 76660U
Brand: InLine
SKU: 11431726
Price: 146.49 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

InLine 76660U Internal SATA Interface Card M.2 to SATA 6 Gbit/s

InLine 76660U Internal SATA Interface Card Photo 1

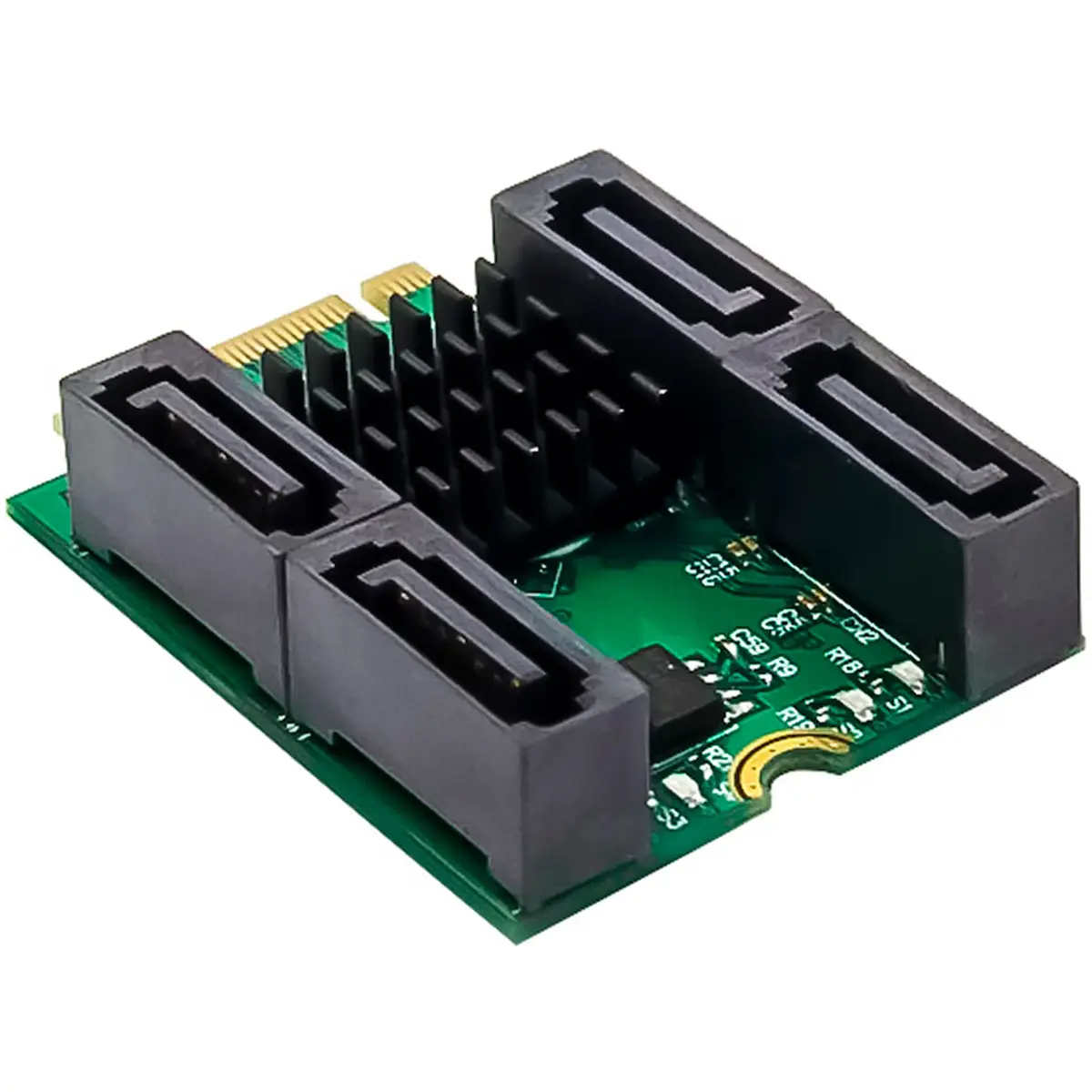

InLine 76660U Internal SATA Interface Card Photo 2

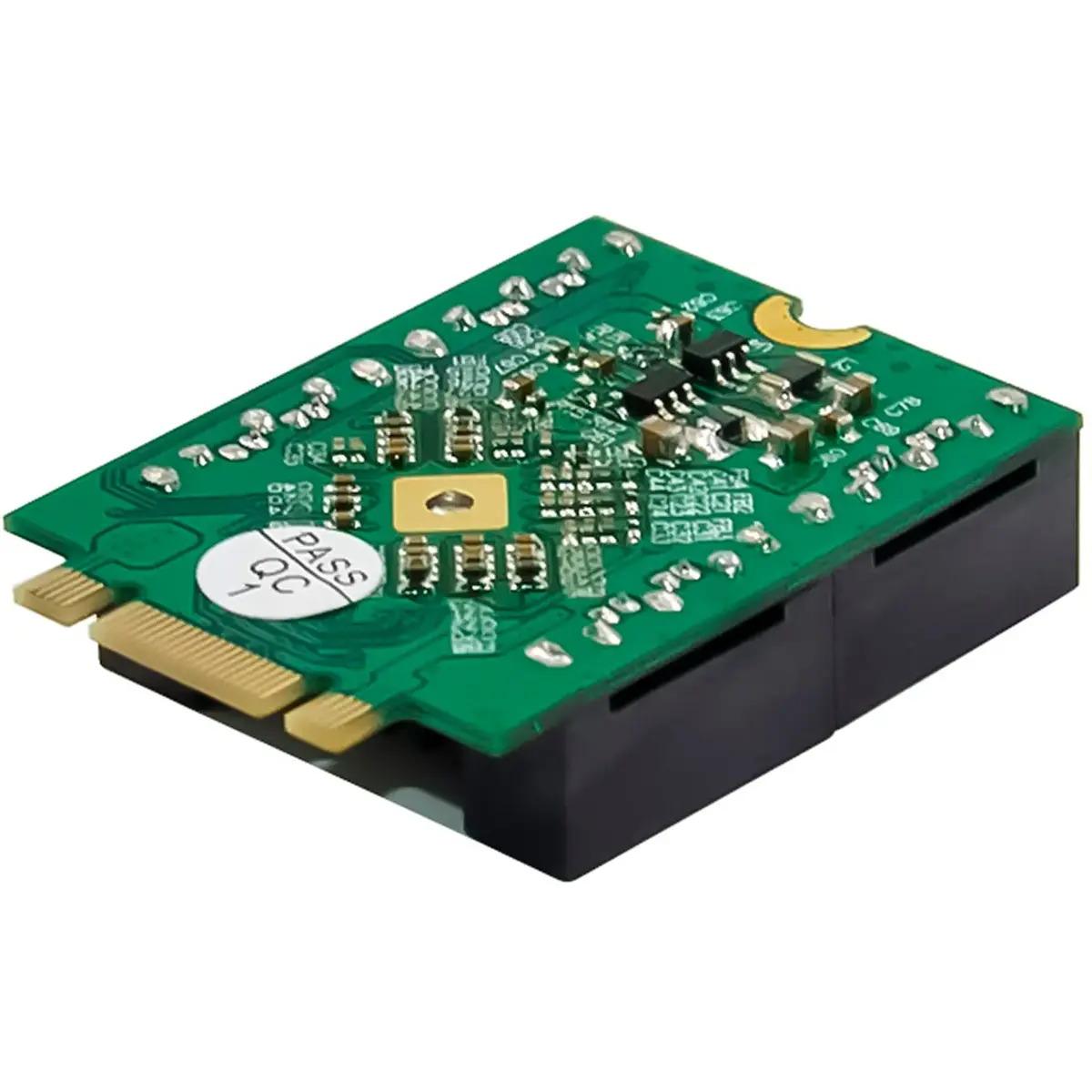

InLine 76660U Internal SATA Interface Card Photo 3

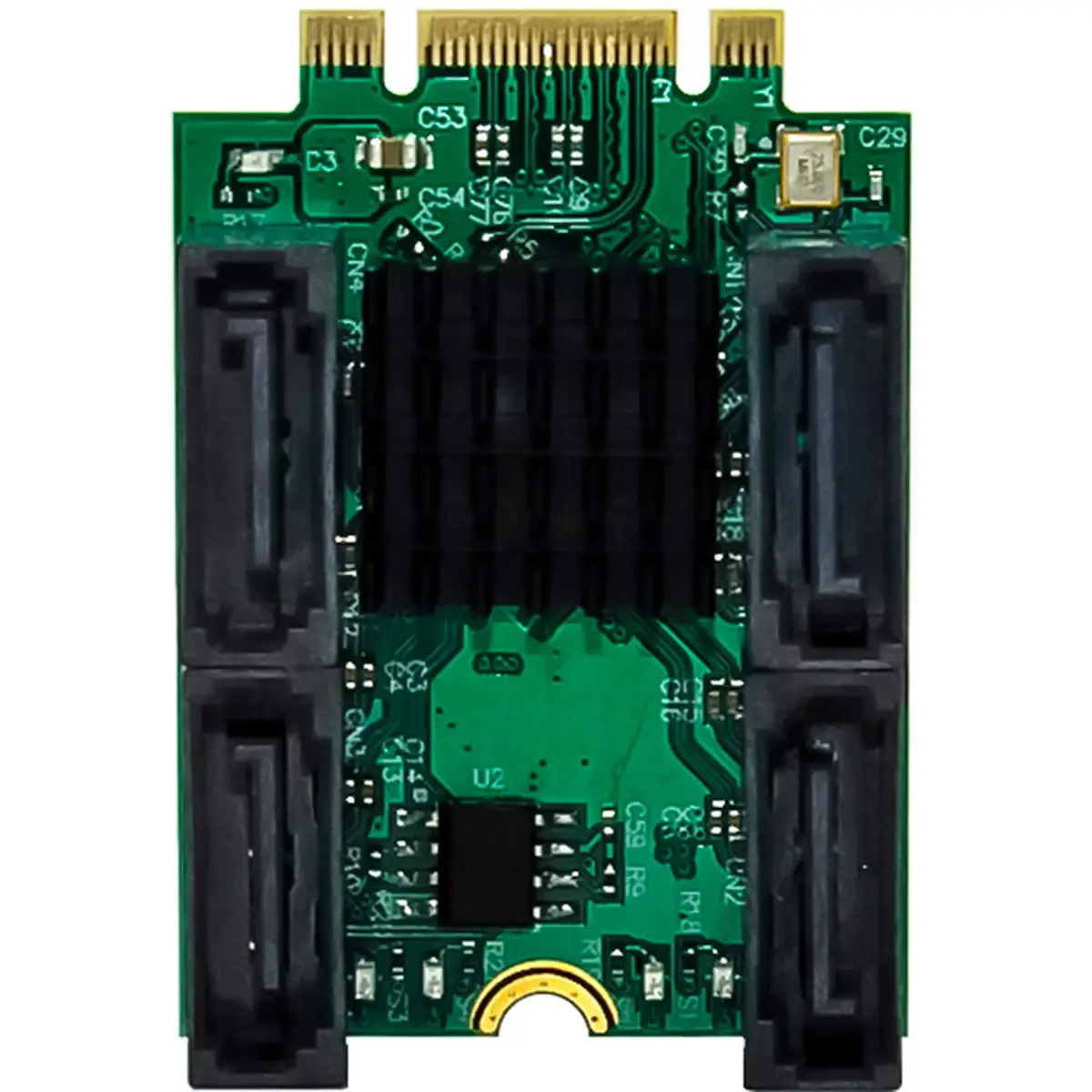

InLine 76660U Internal SATA Interface Card Photo 4

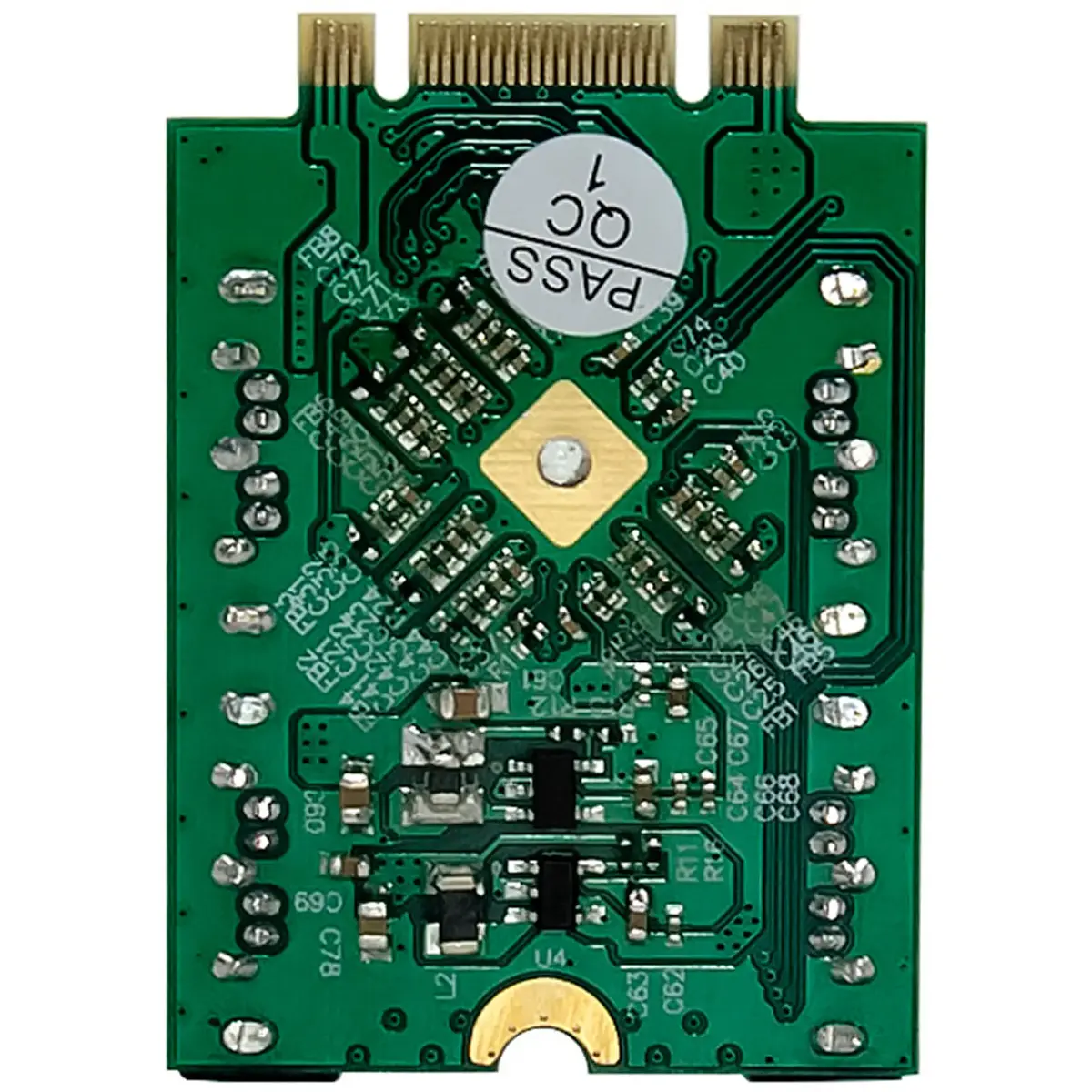

InLine 76660U Internal SATA Interface Card Photo 5

InLine 76660U Internal SATA Interface Card Photo 6

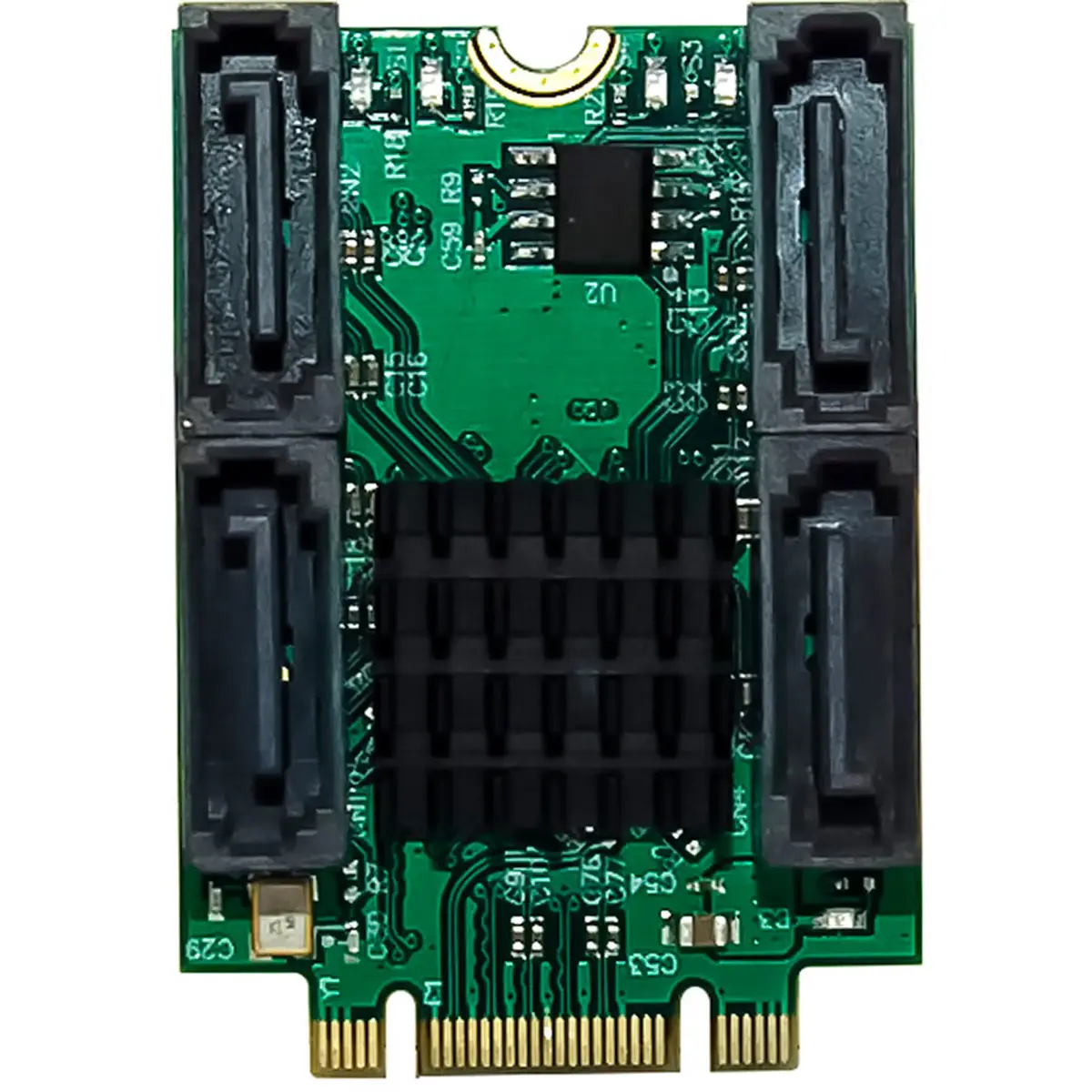

InLine 76660U Internal SATA Interface Card Photo 7

InLine 76660U Internal SATA Interface Card Photo 8

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The InLine 76660U is an internal SATA interface card that connects M.2 devices to SATA with a maximum data transfer rate of 6 Gbit/s. It supports RAID levels 0, 1, and 10, and is compatible with various Windows and Linux operating systems. Compact design with dimensions of 95 mm x 52 mm and weighs 58 g.

Available for order: 9 pcs.

Warranty: 2 Years

SKU: 11431726

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

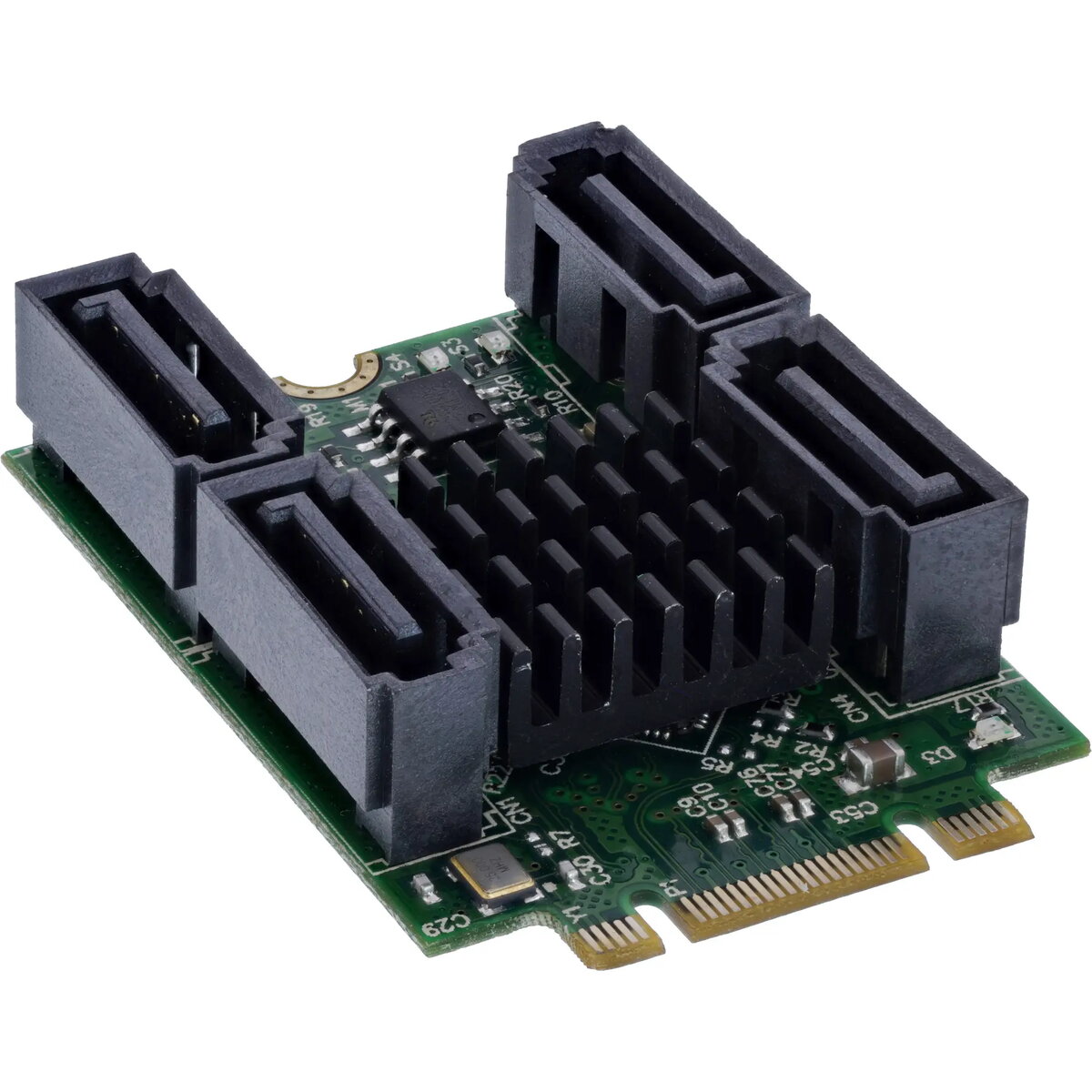

The InLine 76660U internal interface card converts an M.2 Key B+M slot into one M.2 SATA SSD connection and four SATA 6 Gb/s ports, enabling the expansion of SATA storage in desktop systems. It uses an M.2 PCIe x2 connection (B, M and B+M key) and a Marvell 88SE9230 controller to provide RAID functionality, Port Multiplier support, Hot Plug/Hot Swap and onboard LED indicators for port status.

Advantages

This M.2 to SATA adapter supports RAID 0, RAID 1, RAID 10 and HyperDuo for flexible combinations of speed, redundancy and SSD/HDD caching. Hot Plug and Hot Swap allow drives to be installed or removed while the system is running. Port Multiplier support permits multiple drives to operate on a single SATA port, and no additional drivers are required for common operating systems.

Suitable for

Expanding internal storage with an M.2 SATA SSD plus additional SATA drives
Setting up RAID arrays for improved performance or redundancy
Systems that require hot-swappable storage or dynamic drive replacement
Workstations and servers that use Port Multiplier to increase drive count per SATA port

Key specifications

Interface: M.2 PCIe x2 (Key B, M and B+M)
Controller: Marvell 88SE9230
M.2 slot: 1 × Key B+M for one M.2 SATA SSD (2230/2242/2260/2280 compatible)

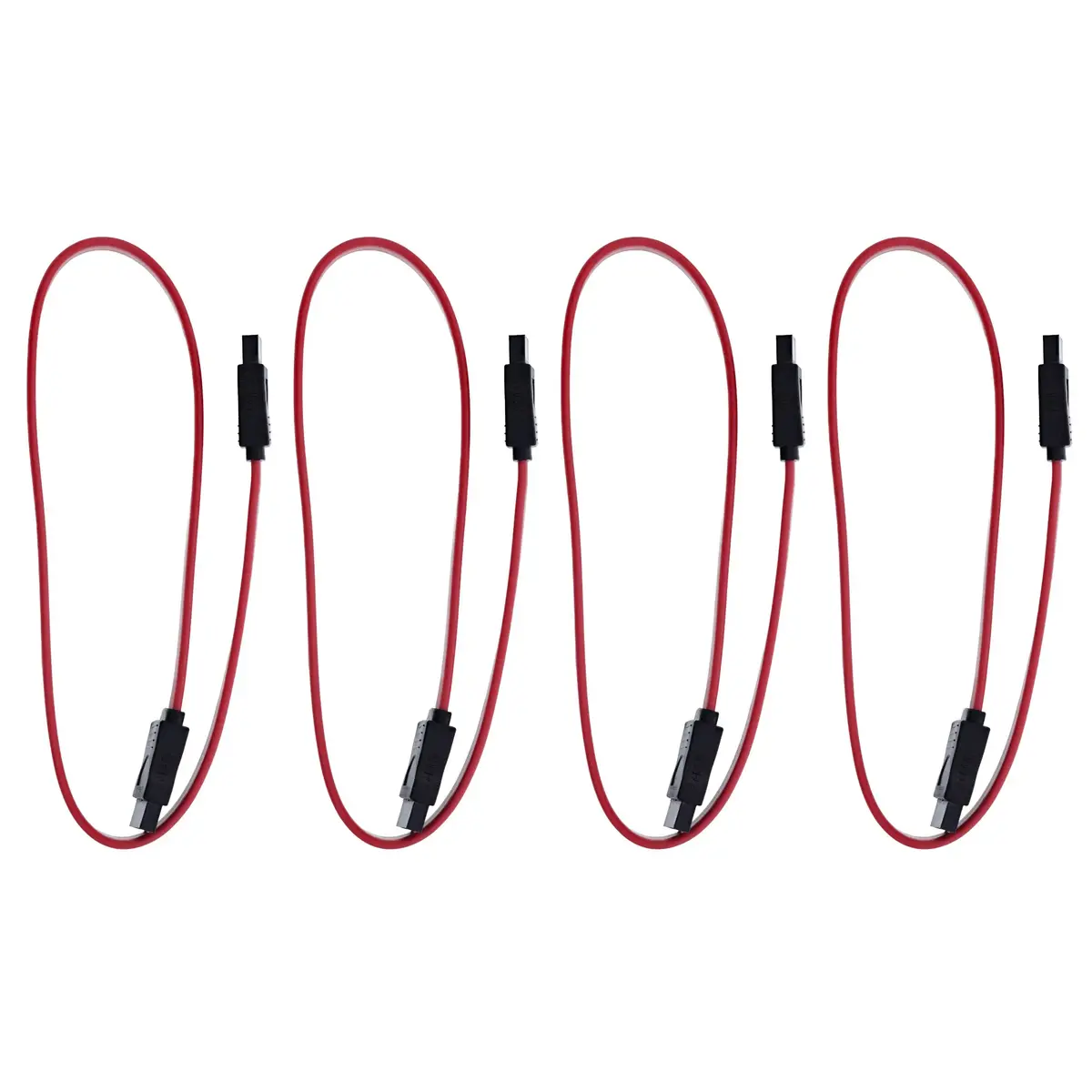

SATA ports: 4 × SATA Gen III (6 Gb/s per port), 4 × 7-pin SATA connectors (external cables included)
RAID modes: RAID 0, RAID 1, RAID 10, HyperDuo (automatic SSD/HDD caching)
Data rates: SATA up to 6 Gb/s per channel; M.2 interface up to 10 Gb/s total (via 2× PCIe lanes)
Dimensions (M.2 board): 30 × 42 mm; adapter dimensions from product data: 95 × 52 mm
Operating temperature: -40 °C to +85 °C
Weight: approx. 0.058 kg

How to use

Insert the interface card into a compatible M.2 slot (Key B, M or B+M supporting PCIe) on the mainboard. Mount one M.2 SATA SSD into the card's M.2 slot and connect additional SATA drives to the four 7-pin SATA connectors using the supplied SATA cables. Connect the SATA cables to free SATA ports on the mainboard. Ensure the M.2 SSD receives power from the M.2 slot and that SATA ports are cabled externally. Configure RAID settings in the system or controller according to requirements; no additional drivers are required for supported Windows and Linux versions.

Usage recommendations

For reliable operation, use a mainboard M.2 slot that supports PCIe lanes and ensure available SATA ports for the external connections. Verify RAID configuration and backup critical data before creating arrays. Use compatible M.2 SATA SSD sizes (2230–2280) or mSATA modules as specified and observe the operating temperature range.

Specifications

Host interface:: M.2
Weight:: 0.058 kg
Internal:: Yes
Output interface:: SATA

All features

Technical details

Compliance certificates:: TÜV mark, CE, Federal Communications Commission (FCC)

Ports & interfaces

Host interface:: M.2
Output interface:: SATA
SATA revision:: 3.0
NVMe:: Yes
Host interface gender:: Male

Other features

Hot-Plug support:: Yes
Manual:: Yes

Weight & dimensions

Weight:: 0.058 kg
Width:: 95 mm
Depth:: 52 mm

System requirements

Windows operating systems supported:: Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported:: Kernel 4.6.4, Kernel 2.6.33, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2, Kernel 3.17, Kernel 2.6.31, Kernel 3.12, Kernel 3.3
Server operating systems supported:: Windows Server 2003, Windows Server 2008

Design

Internal:: Yes

Performance

Chipset:: Marvell 88SE9230
RAID levels:: 10, 1
LED indicators:: Y
Hot-swap:: Yes

Logistics data

Country of origin:: Taiwan

Features

Native Command Queuing (NCQ):: Yes
Data transfer rate (max):: 6 Gbit/s

Packaging data

Cables included:: SATA

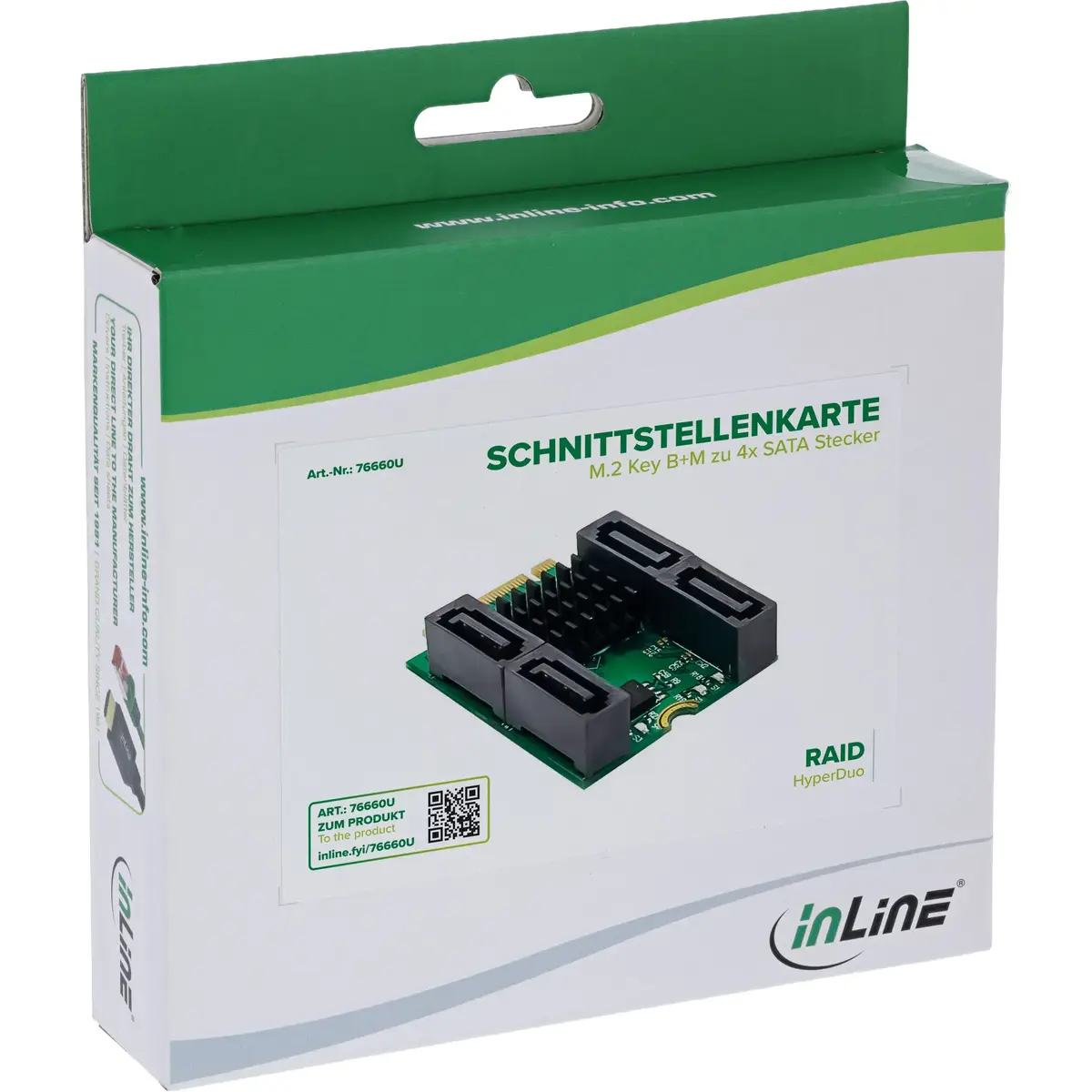

Package type:: Hanging box
