header-product InLine 7-Port USB-A 3.2 Gen.1 PCIe Host Controller with SATA Power
65.99 €

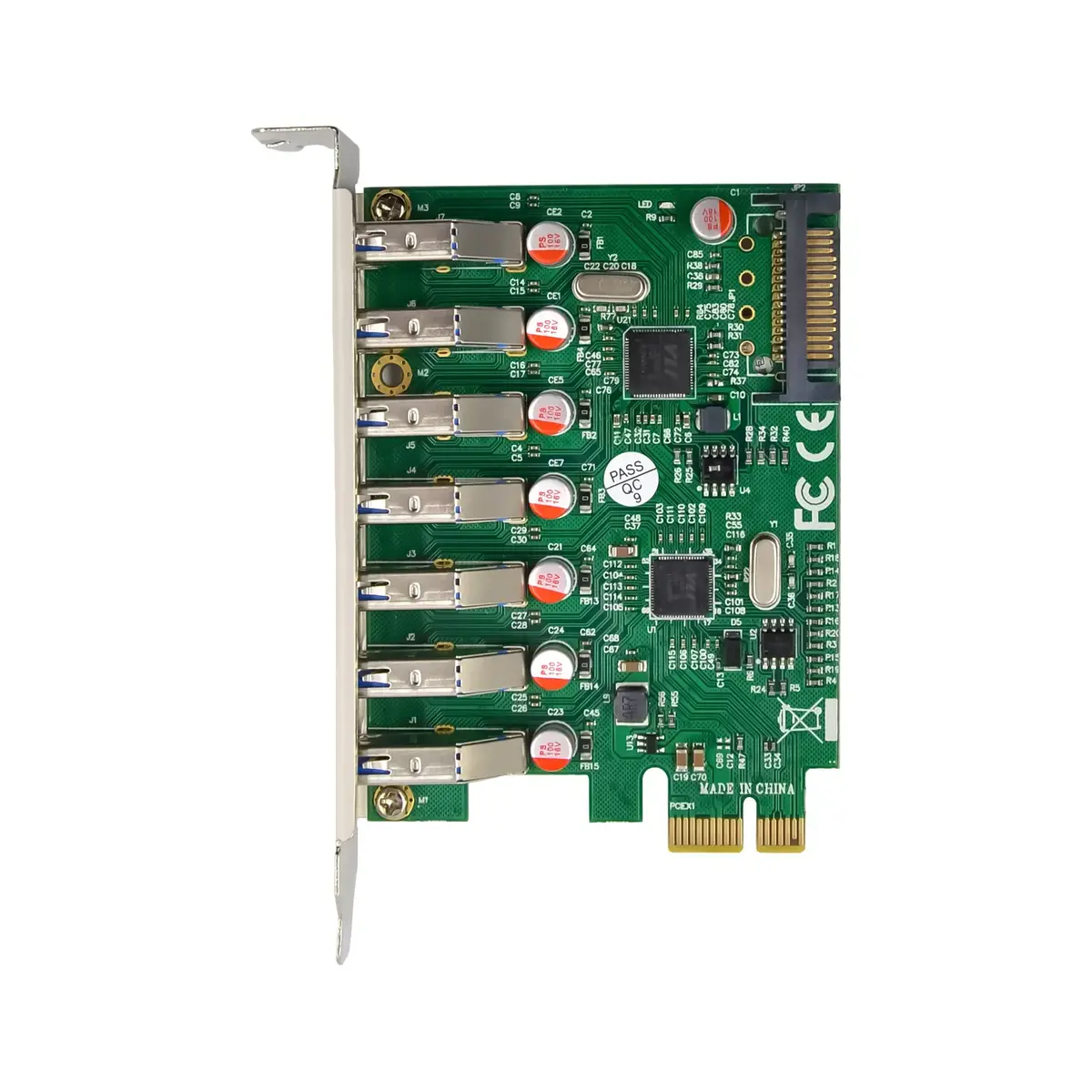

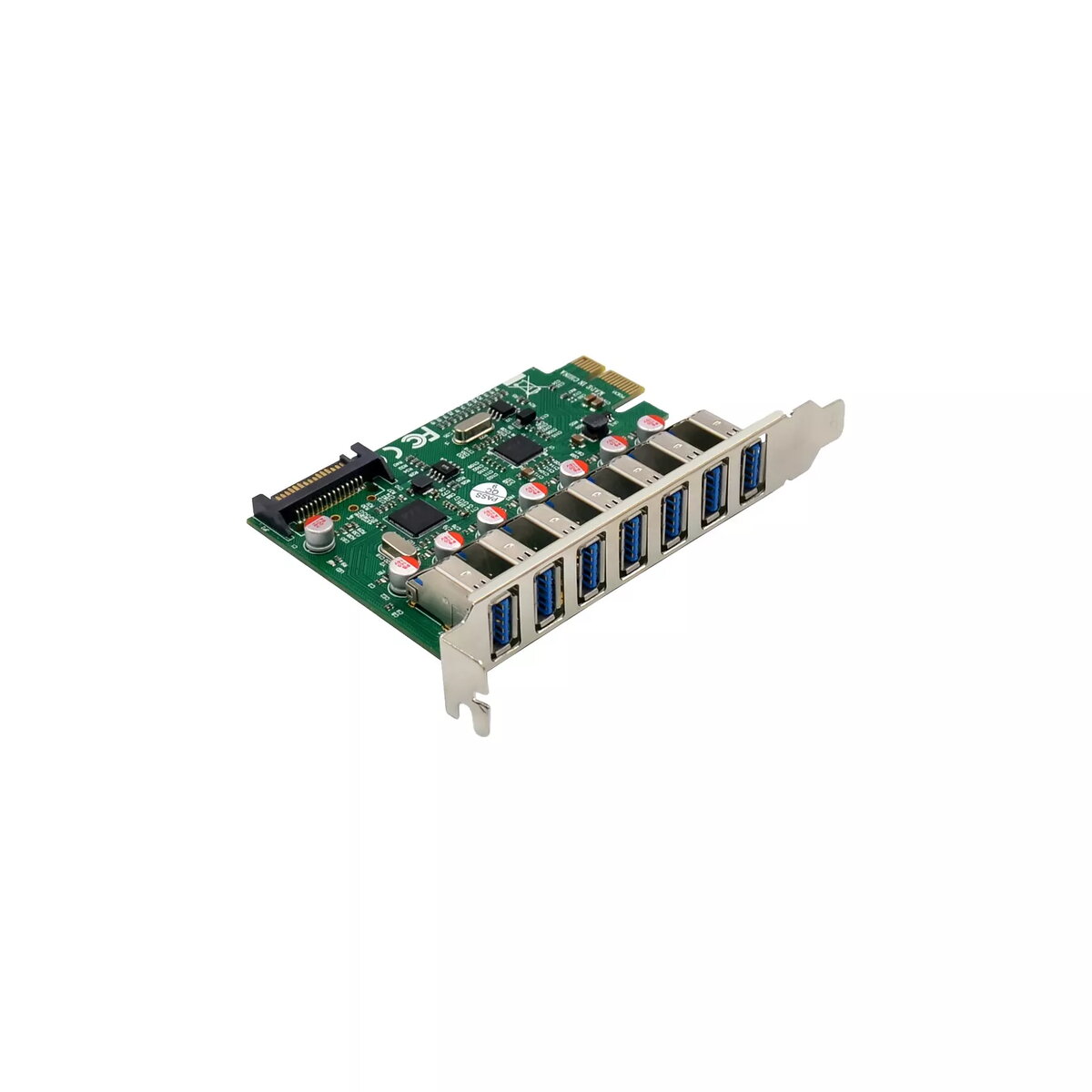

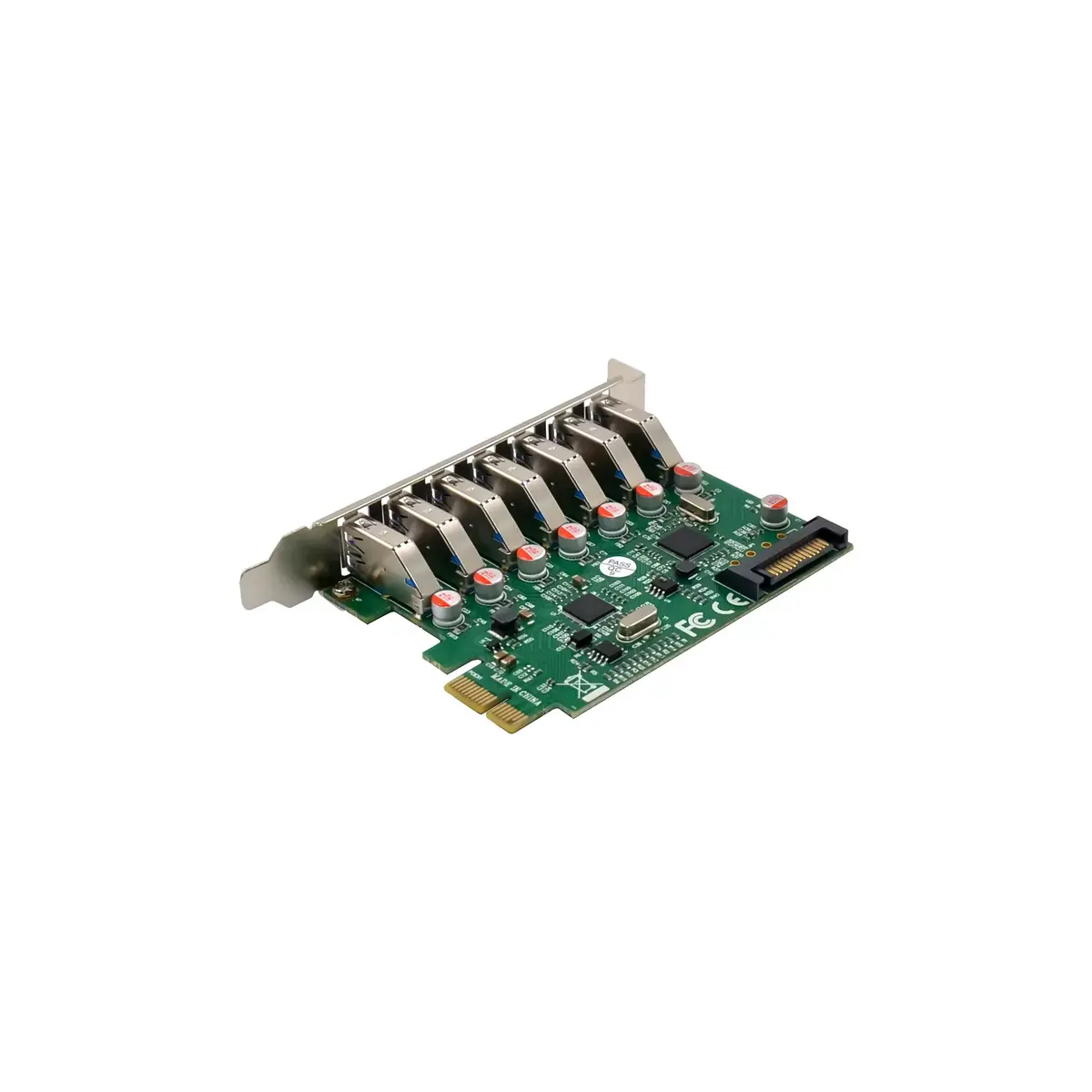

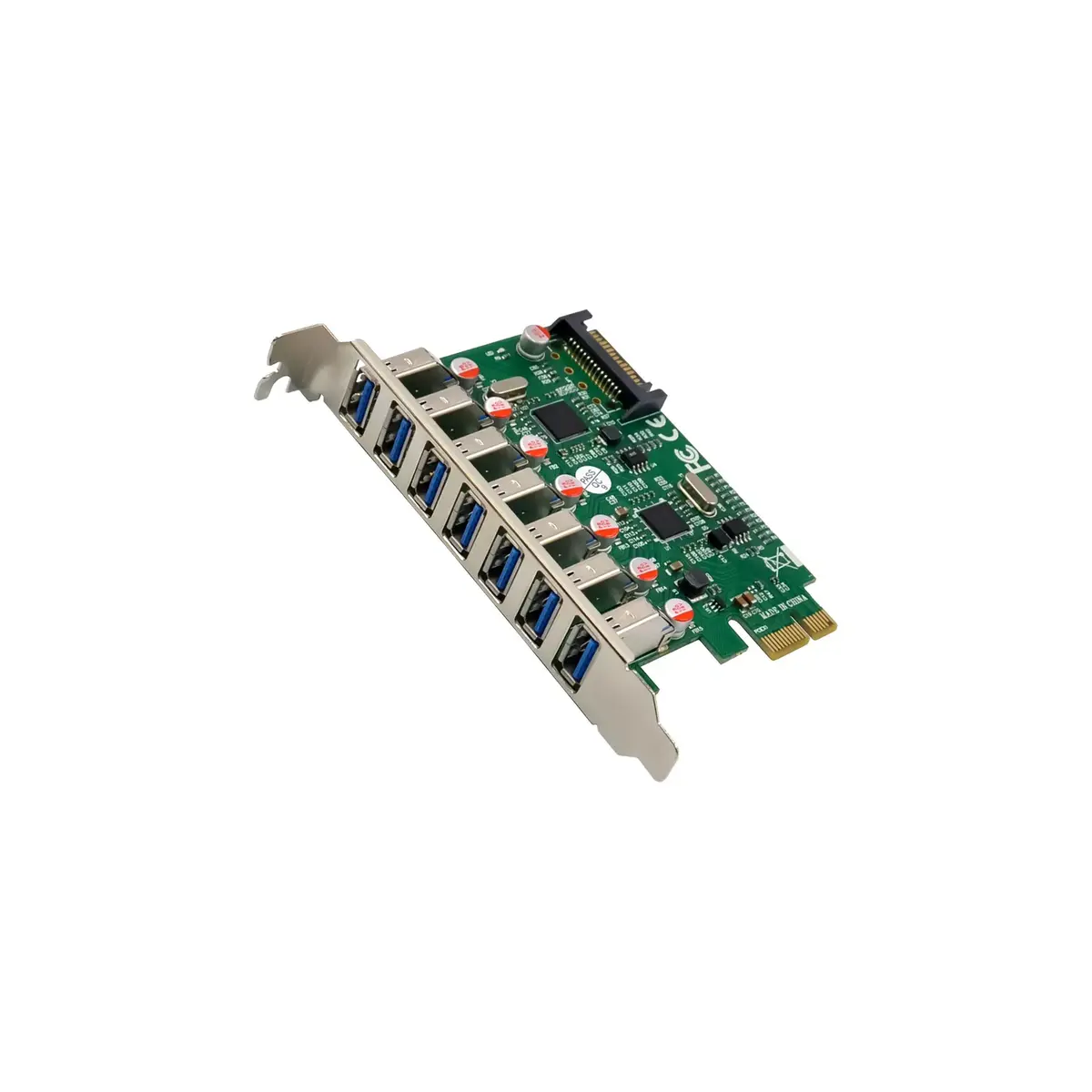

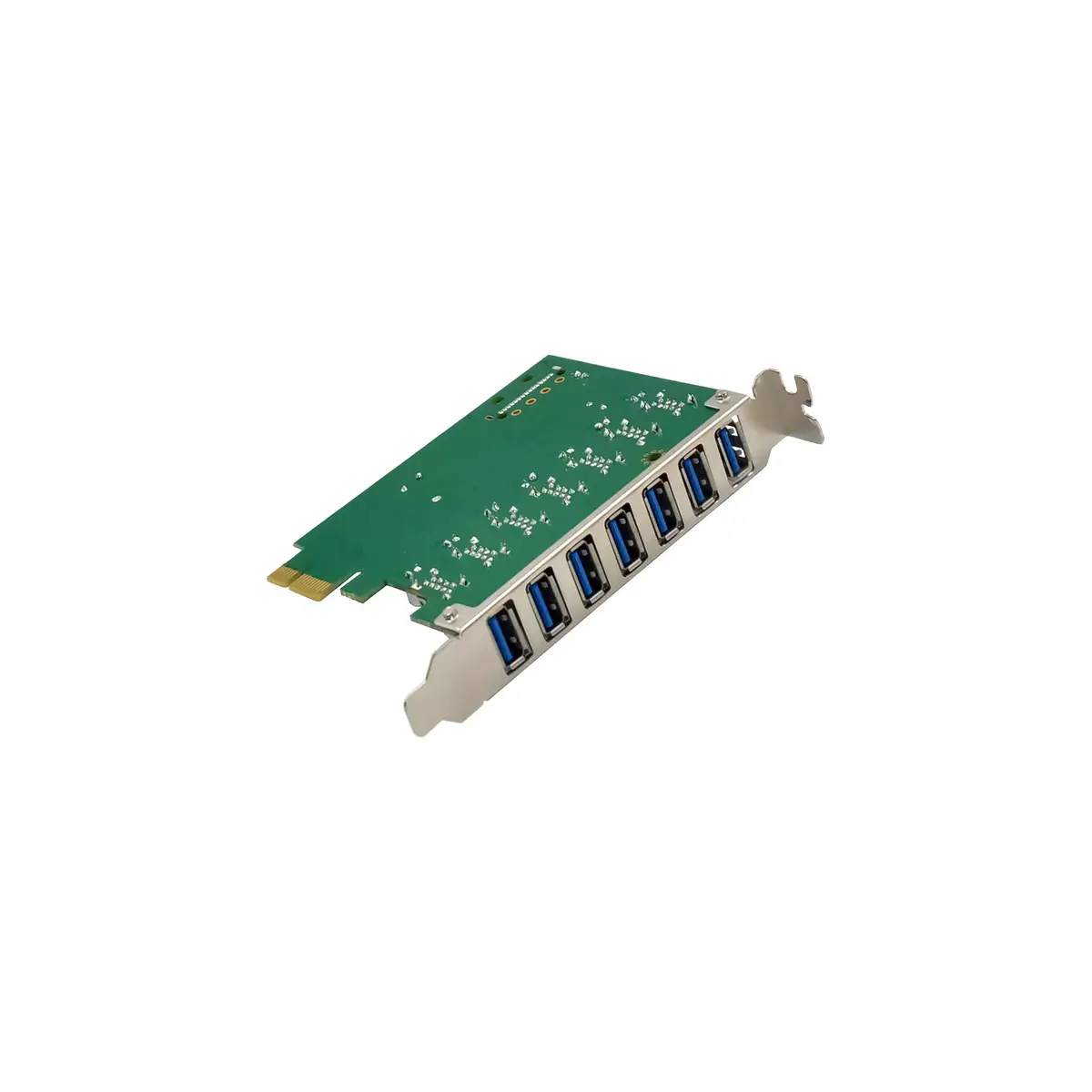

InLine 7-Port USB-A 3.2 Gen.1 PCIe Host Controller with SATA Power

InLine PCIe 7-Port USB-A 3.2 Gen.1 Controller 76661L Photo 1
InLine PCIe 7-Port USB-A 3.2 Gen.1 Controller 76661L Photo 2
InLine PCIe 7-Port USB-A 3.2 Gen.1 Controller 76661L Photo 3
InLine PCIe 7-Port USB-A 3.2 Gen.1 Controller 76661L Photo 4
InLine PCIe 7-Port USB-A 3.2 Gen.1 Controller 76661L Photo 5
InLine PCIe 7-Port USB-A 3.2 Gen.1 Controller 76661L Photo 6
InLine PCIe 7-Port USB-A 3.2 Gen.1 Controller 76661L Photo 7
InLine PCIe 7-Port USB-A 3.2 Gen.1 Controller 76661L Photo 1
InLine PCIe 7-Port USB-A 3.2 Gen.1 Controller 76661L Photo 2
InLine PCIe 7-Port USB-A 3.2 Gen.1 Controller 76661L Photo 3
InLine PCIe 7-Port USB-A 3.2 Gen.1 Controller 76661L Photo 4
InLine PCIe 7-Port USB-A 3.2 Gen.1 Controller 76661L Photo 5
InLine PCIe 7-Port USB-A 3.2 Gen.1 Controller 76661L Photo 6
InLine PCIe 7-Port USB-A 3.2 Gen.1 Controller 76661L Photo 7
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

InLine 7-Port USB-A 3.2 Gen.1 PCIe Host Controller with SATA Power

{{email}}
You keep track of price changes

InLine 7-Port USB-A 3.2 Gen.1 PCIe Host Controller with SATA Power

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

InLine 7-Port USB-A 3.2 Gen.1 Host Controller designed for PCIe expansion slots with SATA power connector. Delivers data transfer rates up to 5 Gbit/s. Ideal for expanding connectivity with seven external USB Type-A ports on desktop computers running Windows or Linux operating systems.
Available for order: 34 pcs.
Warranty: 2 Years
SKU: 10997336
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
21.12.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
28.12.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.06 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
28.12.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The InLine 7-Port USB-A 3.2 Gen.1 PCIe Host Controller with SATA Power is an internal expansion card designed to significantly increase the connectivity of desktop computers and workstations. By utilizing a standard PCI Express slot, this controller adds seven external USB Type-A ports to your system, enabling the simultaneous connection of multiple peripheral devices. Equipped with a reliable chipset and a dedicated SATA power connector, it ensures stable performance and adequate power delivery for demanding connected hardware, making it a practical upgrade for office systems, professional workstations, and custom desktop builds.

Advantages

This PCIe host controller provides a straightforward and efficient way to expand system connectivity without the need for external USB hubs that clutter workspace surfaces. The inclusion of seven external USB-A ports allows users to connect numerous peripherals such as mice, keyboards, external storage drives, and specialized equipment concurrently. The integration of a SATA power connector ensures that power-hungry devices receive a stable and independent electrical supply directly from the computer power supply unit, reducing the risk of disconnects or insufficient power warnings. Furthermore, high-speed data transfer capabilities support efficient file management and smooth operation of connected accessories.

Suitable for

  • Expanding USB connectivity on desktop computers and workstations
  • Connecting multiple external hard drives, SSDs, and flash memory devices
  • Operating input devices like keyboards, mice, and drawing tablets simultaneously
  • Integrating legacy and modern USB peripherals in mixed IT environments
  • Upgrading older motherboards that lack sufficient high-speed USB ports

This controller may not be suitable for laptops, mini PCs, or small form factor systems that lack available internal PCIe expansion slots or dedicated physical space for standard expansion cards. It is also not designed for users seeking USB-C connectivity, as all seven output ports are strictly USB Type-A.

Key specifications

  • Host interface: PCIe
  • Output interface: 7 x USB 3.2 Gen 1 Type-A
  • Power connector: 15-pin SATA power
  • Maximum data transfer rate: 5 Gbit/s
  • Backward compatibility: USB 2.0 and USB 1.1
  • Compatible operating systems: Windows and Linux

To use this host controller, power off your computer, unplug the power cord, and open the computer case. Locate an available PCI Express slot on your motherboard, remove the corresponding slot cover from the back of the case, and carefully insert the controller card until it is firmly seated. Secure the mounting bracket to the chassis. Connect the 15-pin SATA power cable from your power supply to the matching connector on the card. Close the case, reconnect the power, and turn on the computer. Install any required drivers if prompted by your operating system, after which you can begin connecting your USB peripherals to the external ports.

What to consider before purchase

  • Verify that your computer motherboard has an available PCIe slot of the appropriate size
  • Check if your power supply unit has an available 15-pin SATA power cable
  • Confirm that your operating system version is supported by the controller drivers
  • Ensure that your primary requirement is for USB-A ports rather than USB-C connections

For optimal stability and performance, ensure that the SATA power cable is securely attached from your power supply unit before operating devices with high power consumption. Keep your operating system updated with the latest drivers to maintain seamless data transfer rates and device recognition.

Specifications

Internal: The product is built in.
Yes
Host interface: Interface that enables a host controller to communicate with a driver.
PCIe
Output interface: The socket (port) where the output connectors are connected.
USB 3.2 Gen 1 (3.1 Gen 1)
All features

Weight & dimensions

Package weight: Weight of the packaged product.
62 g
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
2.5 kg
Height: The measurement of the product from head to foot or from base to top.
85 mm
Depth: The distance from the front to the back of something.
1.32 mm
Width: The measurement or extent of something from side to side.
125 mm

System requirements

Server operating systems supported:
Windows Server 2022, Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows Server 2019
Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.14, Linux Kernel 5.13, Linux Kernel 5.12, Linux Kernel 5.11, Linux Kernel 5.10, Kernel 4.6.4, Kernel 3.3, Kernel 3.17, Kernel 3.12, Kernel 2.6.33, Kernel 2.6.31, Kernel 2.6, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2
Windows operating systems supported: Windows vesions wich can be used with the device.
Windows XP, Windows Vista, Windows 8, Windows 7, Windows 11, Windows 10

Other features

Package volume:
700 cm³
Dimensions (WxDxH): Dimensions of the product (Width x Depth x Height).
125 x 1.32 x 85

Logistics data

Country of origin: Country where the device is made. Aka Country of manufacture (COM).
China

Packaging data

Package height: The distance from the top to the bottom of the packaging.
30 mm
Package depth: The distance from the front to the back of the packaging.
150 mm
Package width: The distance from one side of the packaging to the other.
140 mm

Features

Data transfer rate (max):
5 Gbit/s

Design

Internal: The product is built in.
Yes

Ports & interfaces

SATA power connector type:
SATA 15-pin
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
7
Expansion card standard:
PCIe 2.0
Host interface gender:
Male
Host interface: Interface that enables a host controller to communicate with a driver.
PCIe
Output interface: The socket (port) where the output connectors are connected.
USB 3.2 Gen 1 (3.1 Gen 1)

Description
