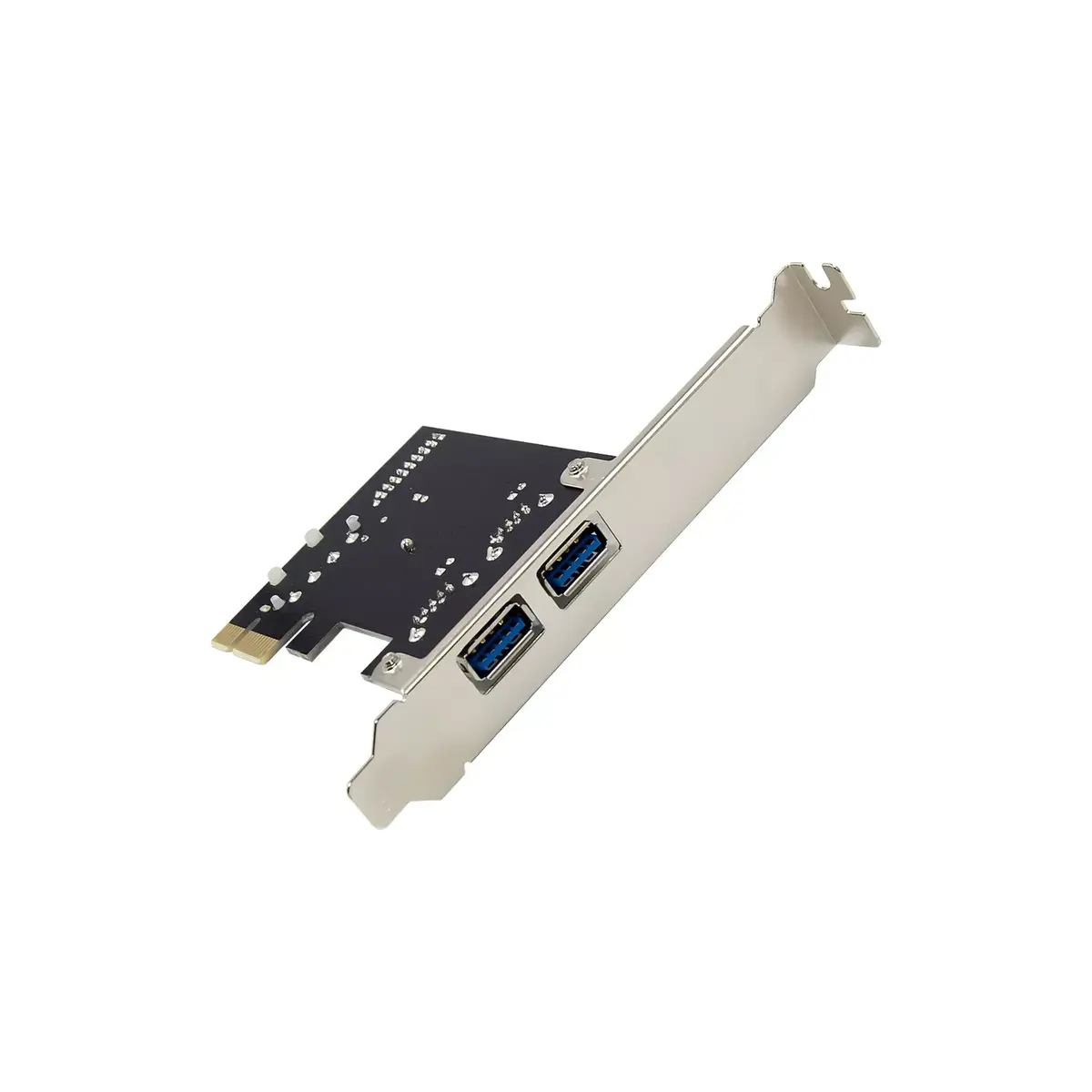

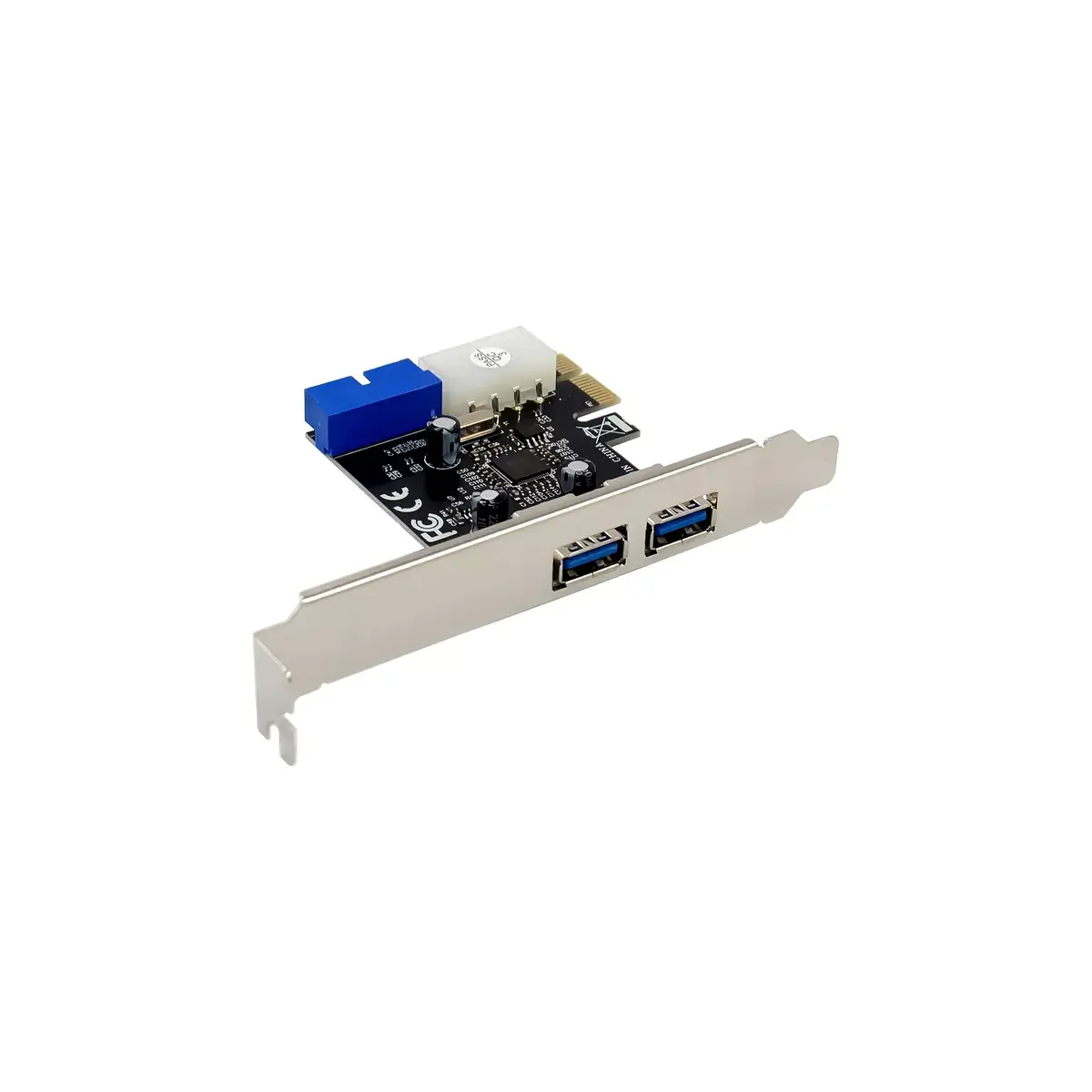

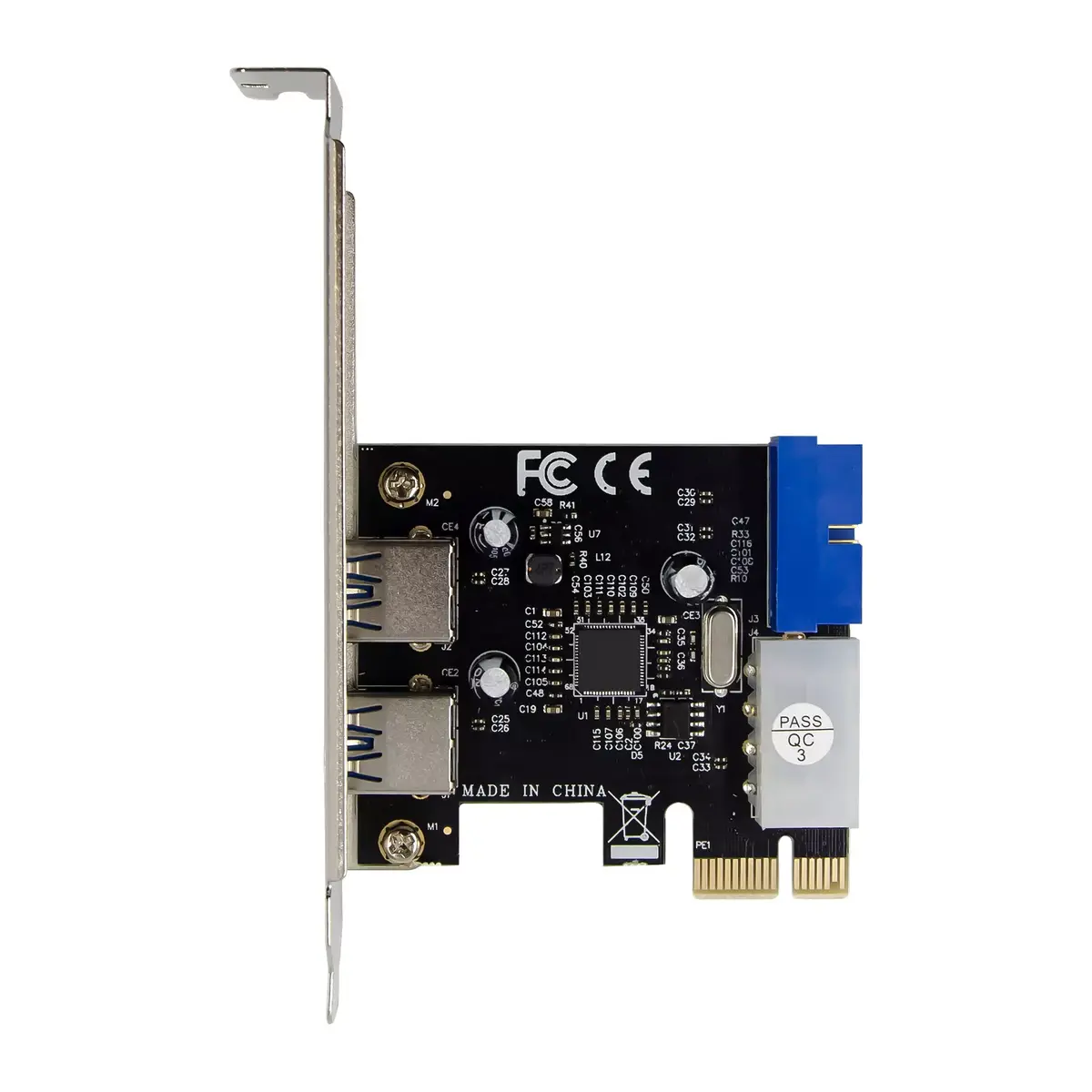

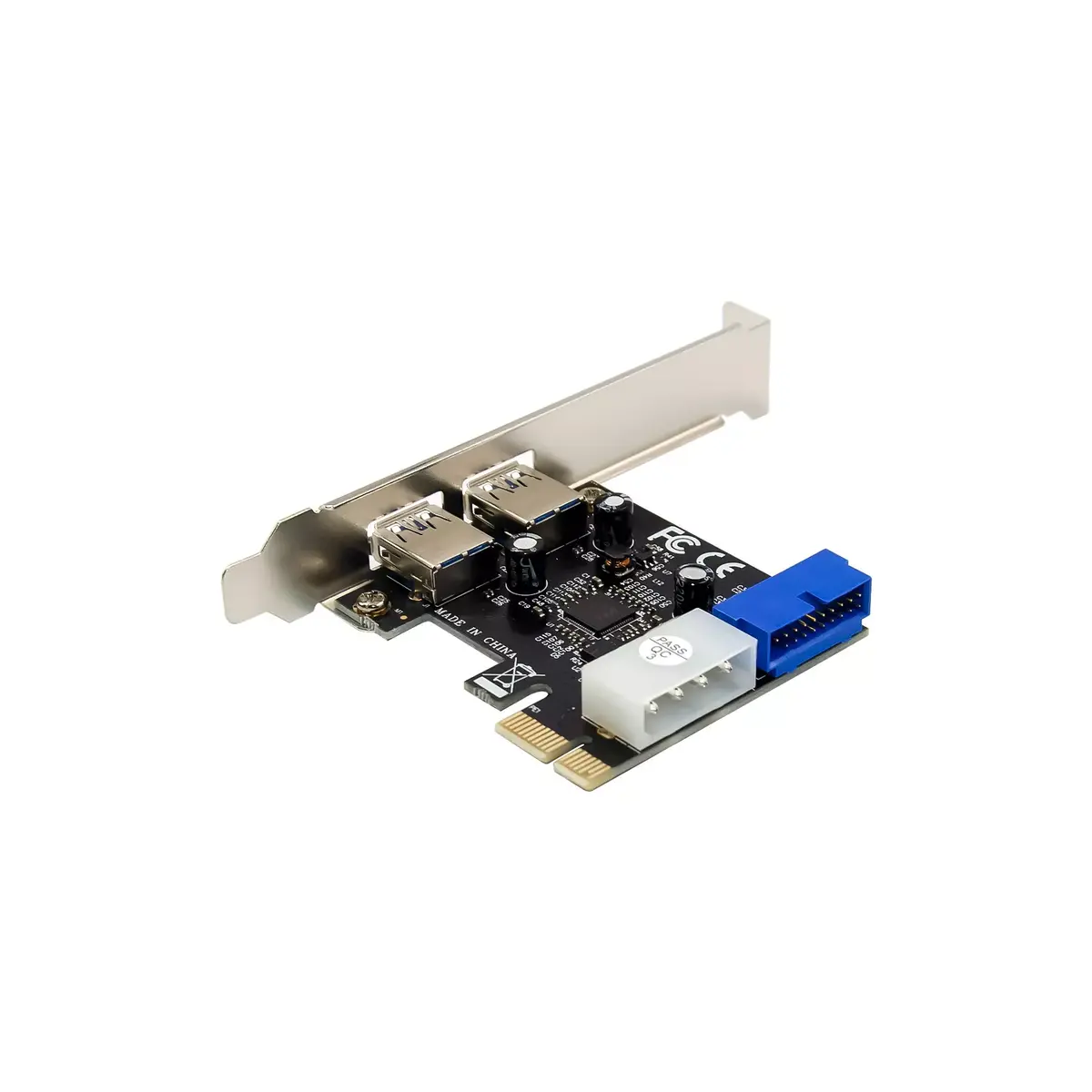

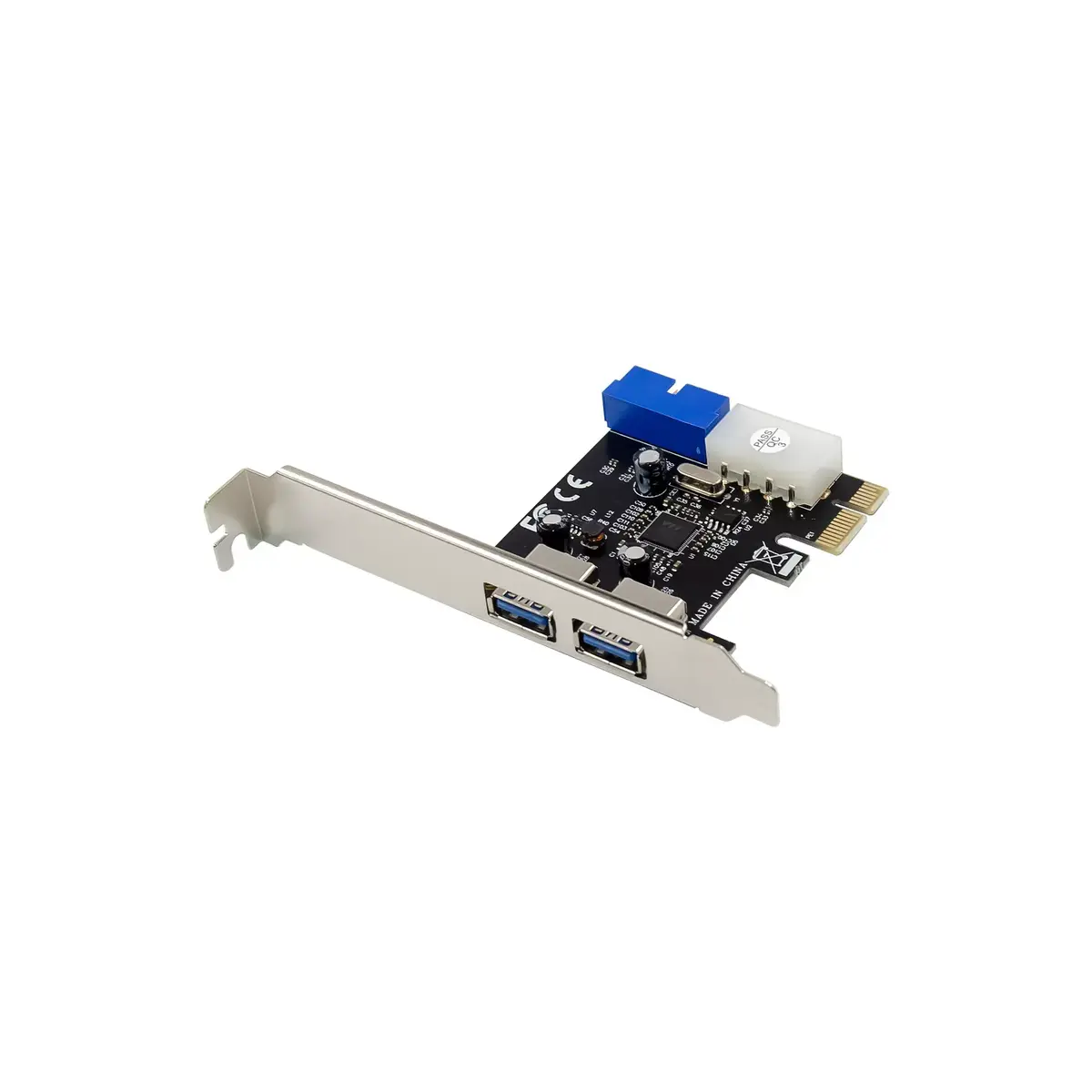

InLine PCIe Host Controller with 4 Ports USB 3.2 Gen 1, SATA Power and Low Profile Bracket

The InLine PCIe Host Controller with 4 Ports USB 3.2 Gen 1, SATA Power and Low Profile Bracket is an efficient hardware expansion solution designed to upgrade desktop computer connectivity. By integrating four high-speed USB 3.2 Gen 1 ports into your system through a standard PCIe interface, this controller allows you to connect multiple peripheral devices simultaneously. It features dedicated SATA power support for stable and reliable operation under heavy loads, ensuring that connected devices receive adequate electrical current. Additionally, the inclusion of a low-profile bracket makes it versatile enough to fit into both standard desktop towers and compact, space-saving PC cases.

Advantages

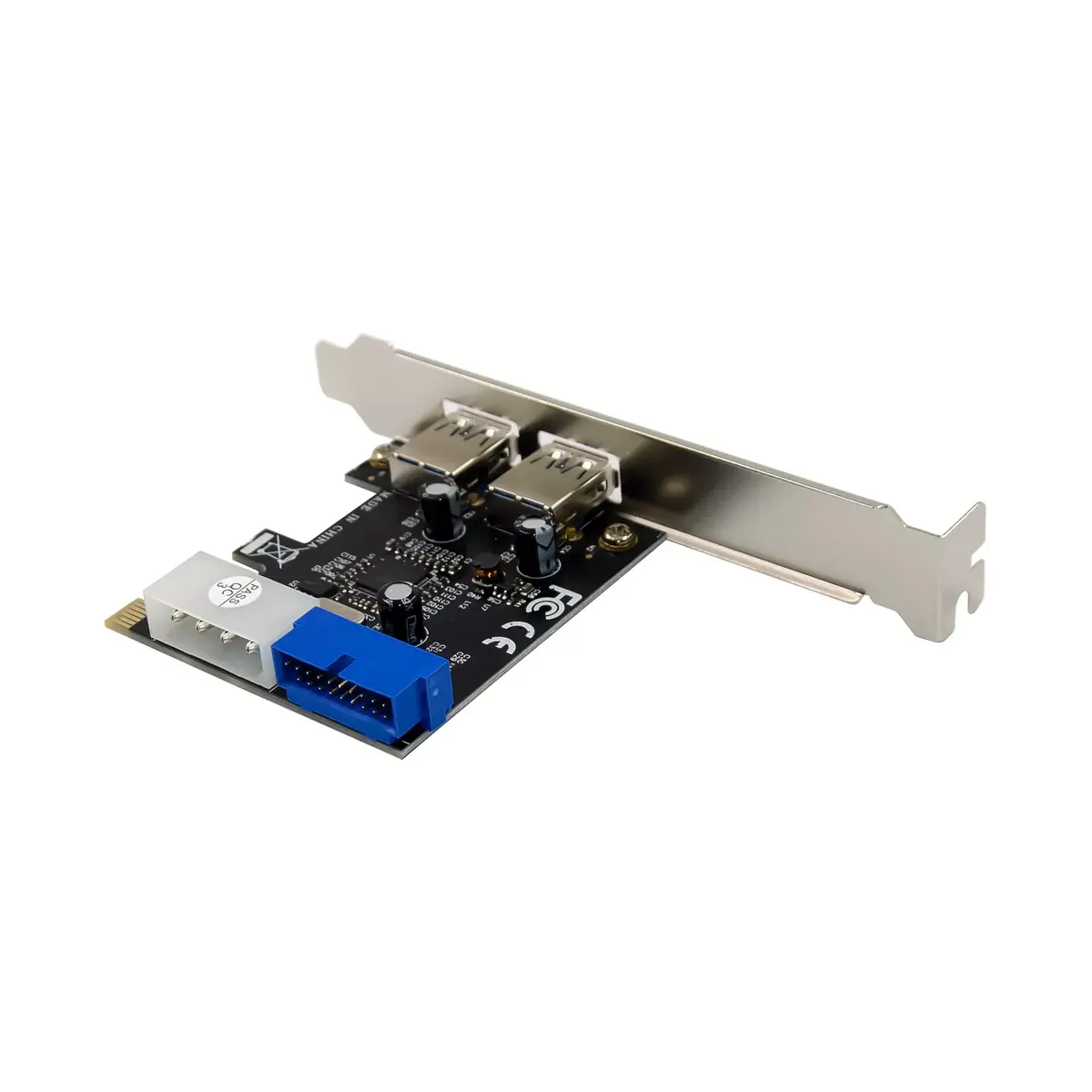

This PCIe host controller significantly enhances your computer's capabilities by providing rapid data transfer rates of up to 5 Gbit/s, making it suitable for quick file transfers and responsive peripheral performance. The card bridges internal and external connectivity by offering direct external ports alongside an internal header that feeds additional ports via the included slot bracket. Broad operating system compatibility ensures seamless integration into various Windows and Linux environments without complex setup procedures. Furthermore, the inclusion of both standard and low-profile brackets guarantees mechanical adaptability for diverse computer chassis types.

Suitable for

• Expanding USB connectivity on desktop computers lacking sufficient ports
• Connecting external hard drives, SSDs, and flash storage at high speeds
• Integrating legacy and modern peripherals into compact SFF or industrial PC cases
• Upgrading older office workstations running Windows or Linux operating systems

When it may not be suitable, this controller is not designed for laptops or systems lacking an available PCIe expansion slot. It does not support output interfaces operating at USB 3.2 Gen 2 speeds exceeding the 5 Gbit/s limit of this specific architecture.

Key specifications

• Host interface: PCIe
• Output interface: USB 3.2 Gen 2 (3.1 Gen 2)
• Data transfer rate up to 5 Gbit/s
• Internal SATA power connector

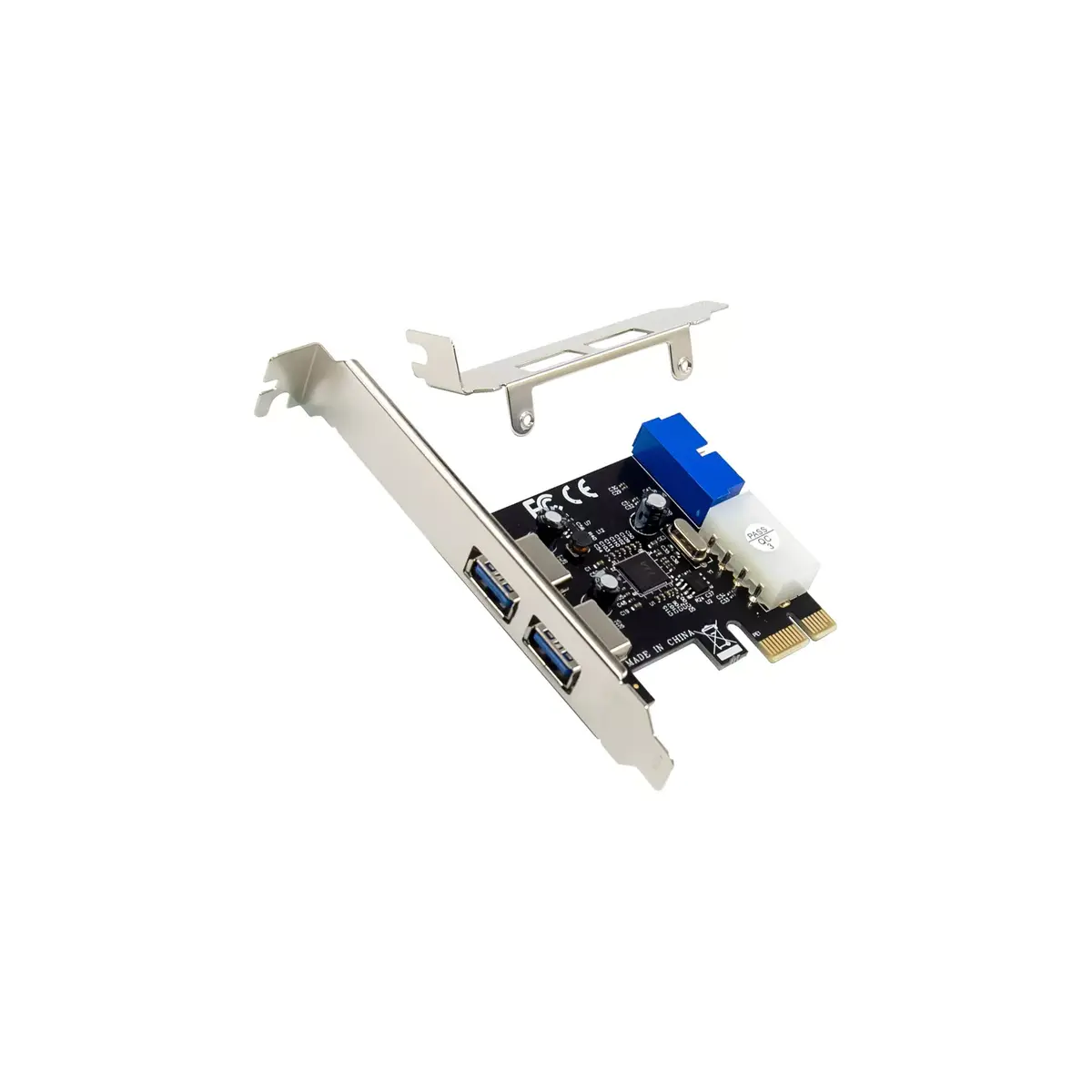

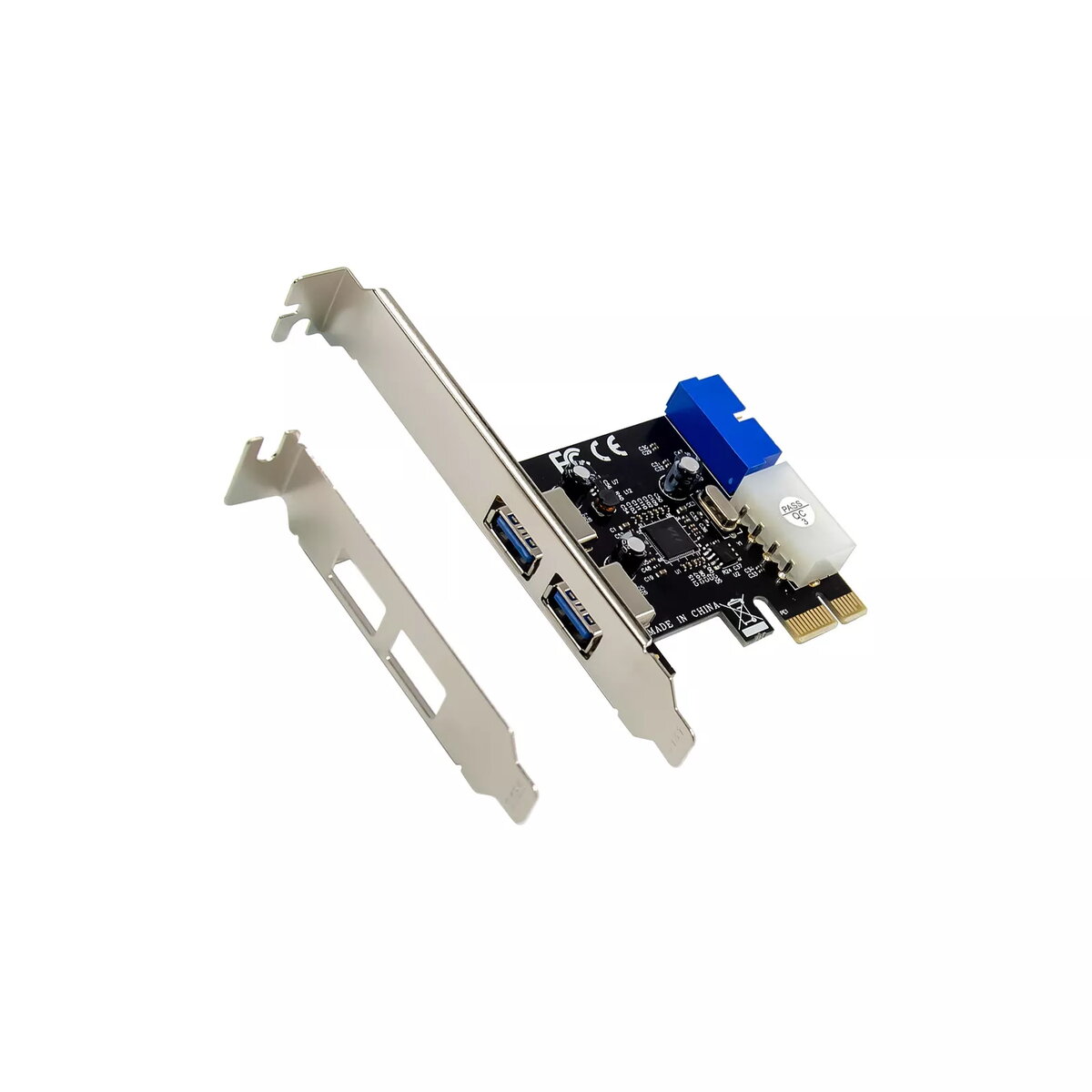

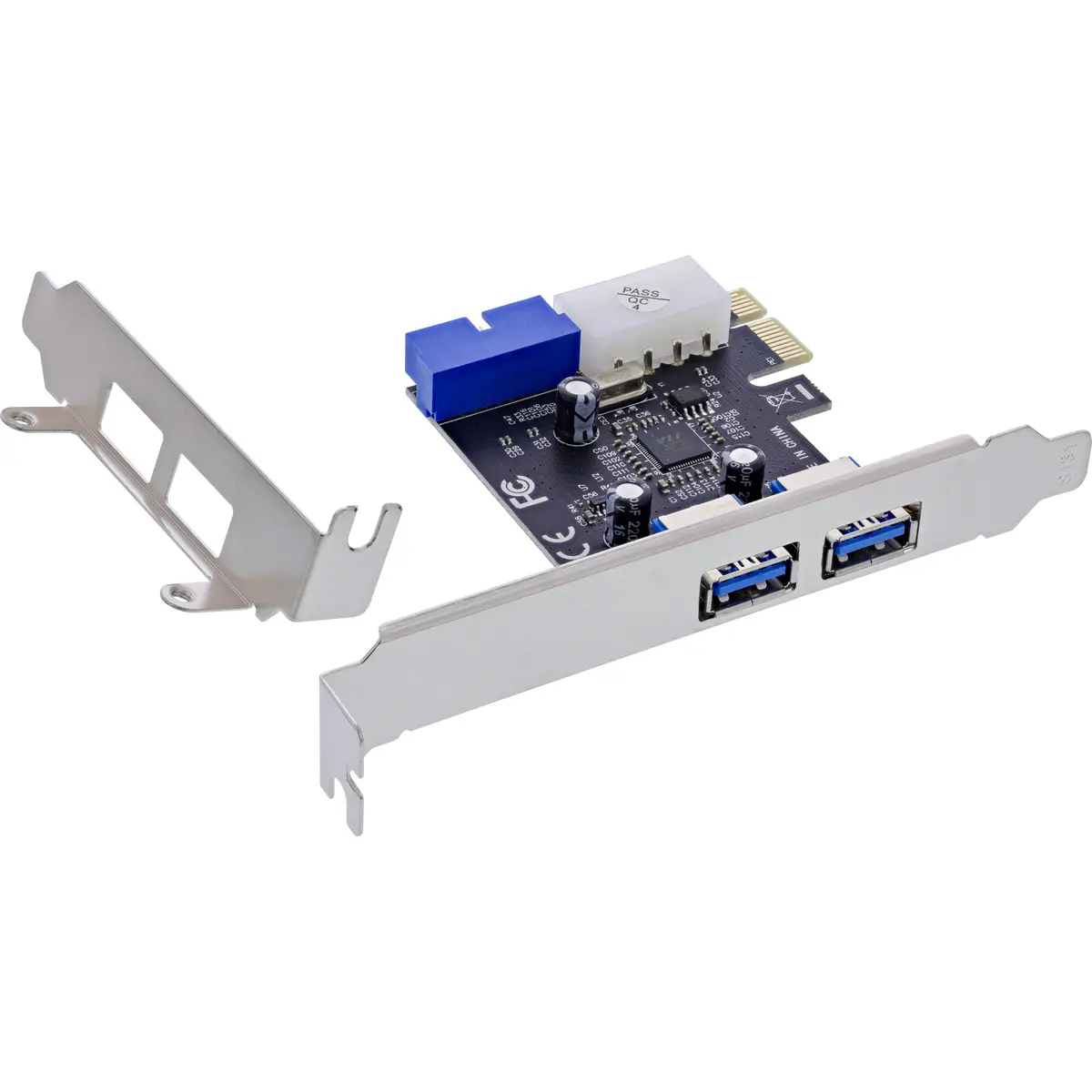

• Includes low-profile bracket and standard bracket

How to use

To install the InLine PCIe host controller, power down your desktop computer, disconnect the power cable, and open the computer case. Locate an available PCIe slot, remove the corresponding slot cover from the back of the case, and carefully insert the controller card into the slot until it is firmly seated. Secure the card to the chassis using a screw or retention mechanism. Connect the SATA power cable from your power supply unit to the SATA power connector on the card to ensure stable power delivery. Close the case, reconnect the power supply, and turn on the computer. Operating systems typically recognize the hardware automatically, though you may need to install standard drivers if prompted.

What to consider before purchase

• Verify that your desktop computer has an available PCIe slot on the motherboard
• Check if your power supply unit has an available SATA power connector
• Confirm the physical dimensions of your PC case to determine whether the standard or low-profile bracket is required
• Check your operating system version to ensure full compatibility with the controller

Usage recommendations: To ensure optimal performance and longevity of the InLine PCIe Host Controller, always discharge static electricity before handling internal computer components. Ensure that the SATA power cable is securely connected to prevent power fluctuations during heavy data transfers. Avoid obstructing airflow inside compact PC cases when routing cables to the internal headers.
