Cable gender changer InLine 92504C — connector adapter for changing cable gender

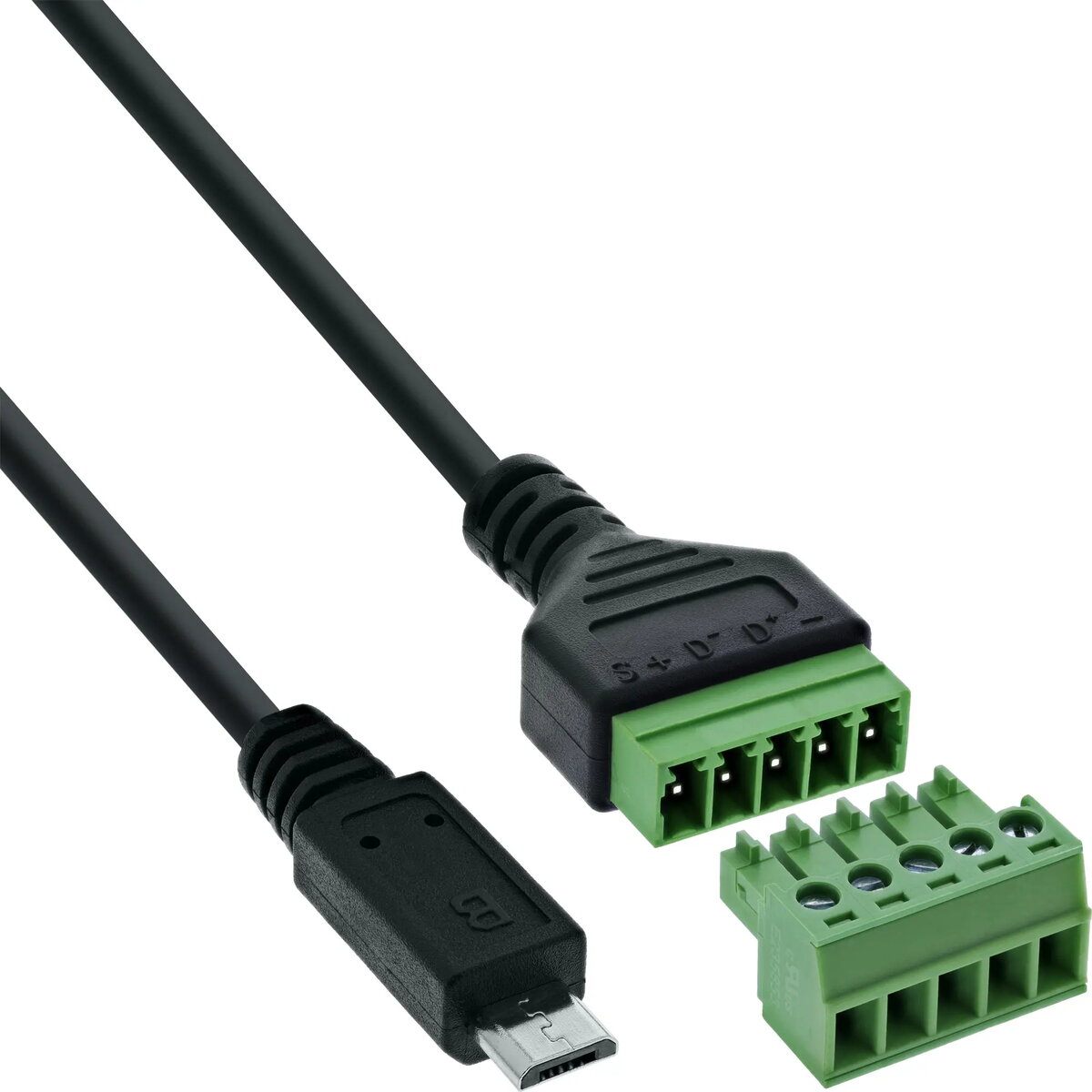

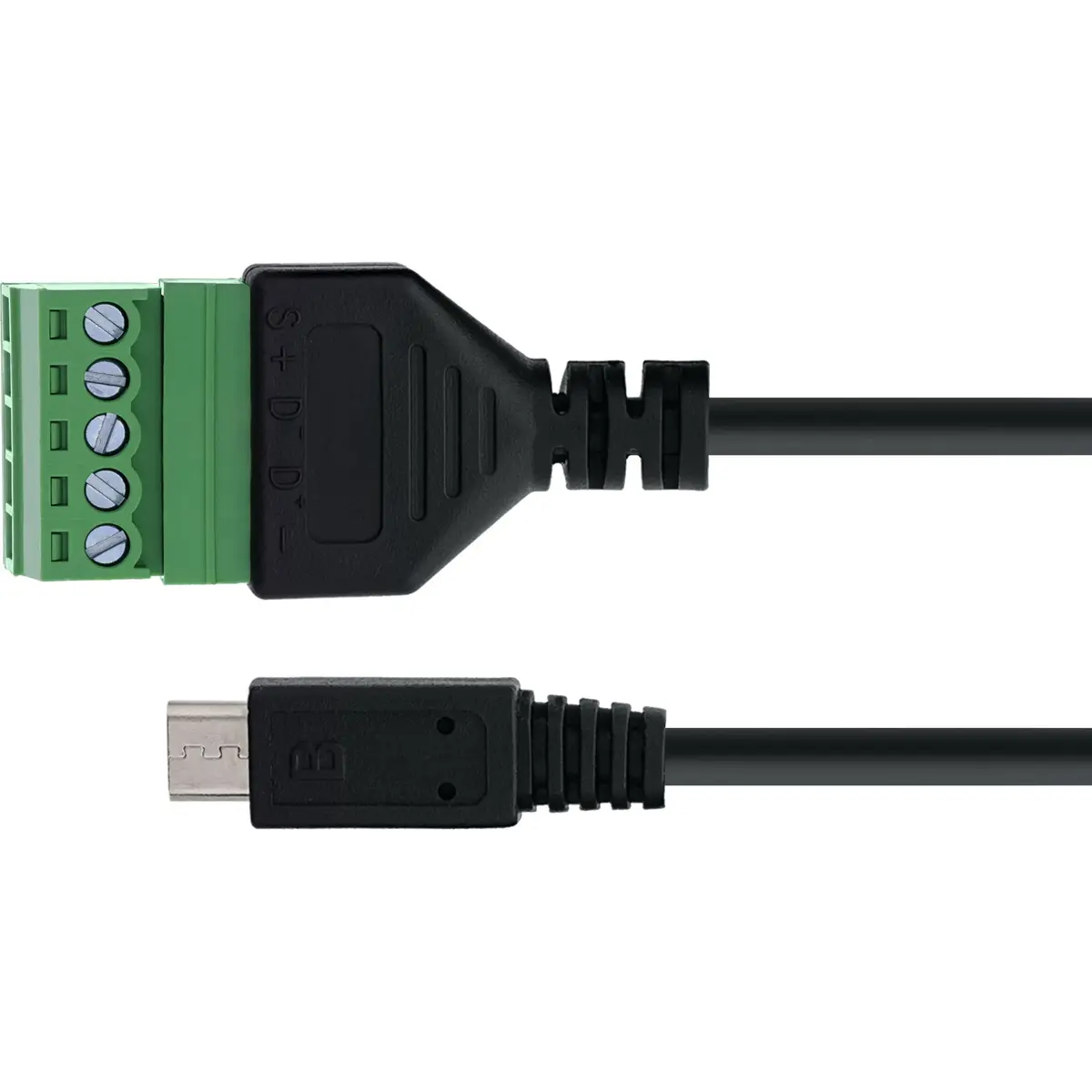

The InLine Micro USB 2.0 terminal block adapter with 1 m integrated cable provides a direct micro USB plug connected to a 5‑pin screw terminal, combining a plug‑in USB interface with open signal wiring. Terminals are clearly labeled (1: – / 2: D+ / 3: D– / 4: + / 5: S) and accept conductors in the 16–26 AWG range. The adapter includes an EVA insulation layer on the underside and is intended for use in test stations, diagnostic equipment, embedded systems and laboratories where quick, clear USB signal access is required without soldering.

Advantages

Quick installation is possible via screw terminals with pressure plates and tool‑assisted wiring using a flat‑head screwdriver (≤ 2.5 mm). A permanently integrated 1 m PVC cable eliminates the need for additional accessories or soldering and increases mobility for mobile test devices or development boards. Clear terminal assignment and secure contact design support service, testing and prototyping, while an insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission under continuous load in industrial environments.

Suitable for

• Test setups and laboratories
• Commissioning, troubleshooting and diagnostics
• Embedded systems and development boards
• Mobile test devices and on‑site measurements

Key specifications

• USB interface: Micro USB 2.0 plug
• Cable length: approx. 1 m (PVC, permanently integrated)
• Number of pins / assignment: 5 terminals / 1: – / 2: D+ / 3: D– / 4: + / 5: S
• Connection technology: Screw terminal with pressure plate, 5.0 mm pitch
• Connection range: 16–26 AWG
• Actuation: with flat‑blade screwdriver ≤ 2.5 mm
• Rated current: 0.7 A per pin
• USB operating voltage (VBUS): 5 V DC
• Test voltage (insulation resistance): 300 V AC / 1 minute
• Insulation resistance: ≥ 10 MΩ @ 300 V DC
• Operating temperature: –20 °C to +105 °C
• Insulation layer: EVA on underside
• Dimensions: terminal block approx. 50 × 21.2 × 18.4 mm (L × W × H)

How to use

Connect the micro USB plug to the host or device. Strip the conductor ends within the specified 16–26 AWG range, insert them into the corresponding labeled terminal positions (1 through 5) and secure each conductor by tightening the screw terminal with a flat‑head screwdriver (≤ 2.5 mm). Ensure the cable routing and the EVA insulated underside do not contact sharp conductive edges. The permanently integrated cable removes the need for additional connectors or soldering.

Usage recommendations

Use the adapter for temporary or semi‑permanent connections in test, diagnostic or prototyping environments. For continuous high‑current applications choose appropriate USB wiring and verify that 0.7 A per pin meets your power requirements. Avoid exposing the connector and terminals to liquids and verify connections before applying power.
