Gender changer adapter InLine 92504F — cable adapter female-to-female (model 92504F)

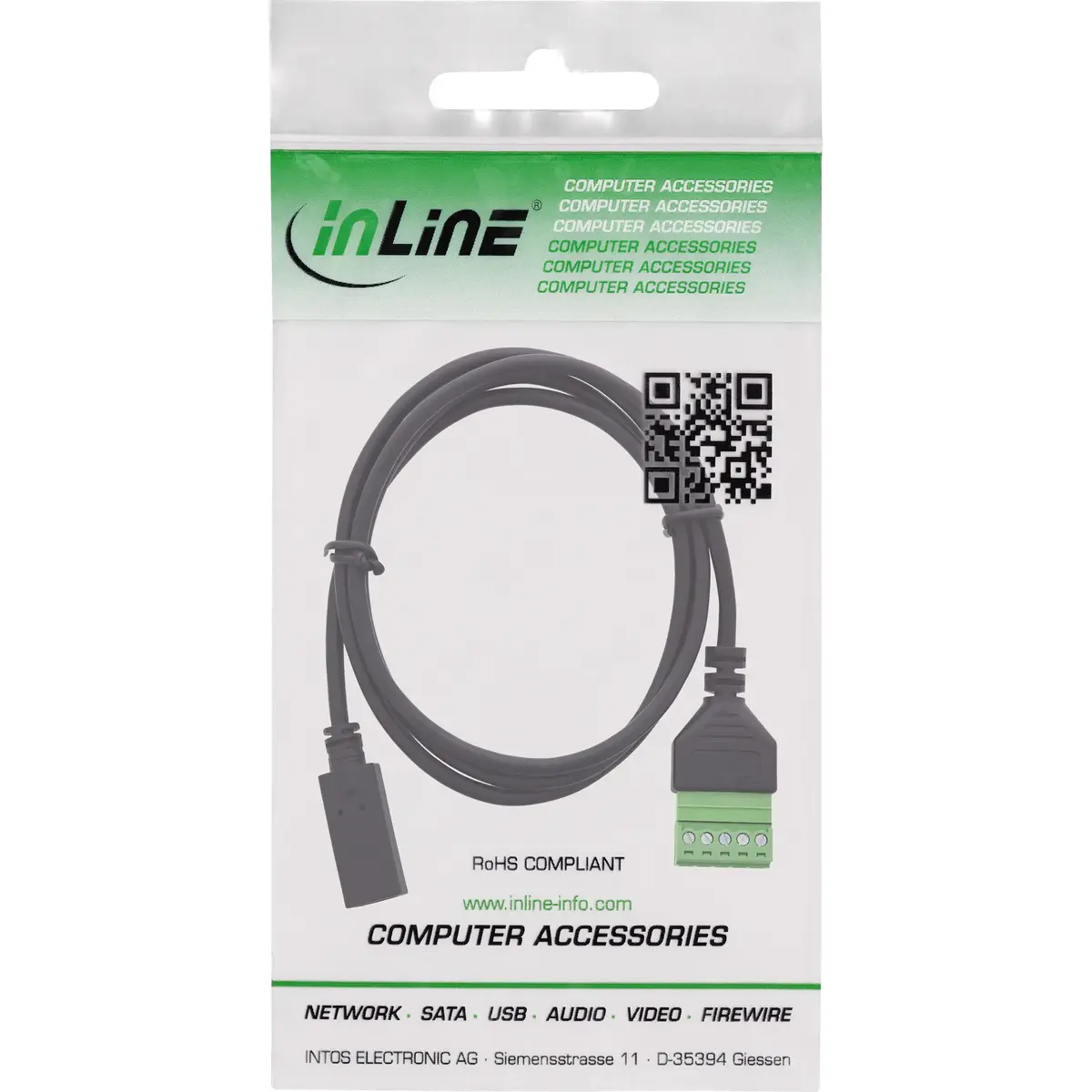

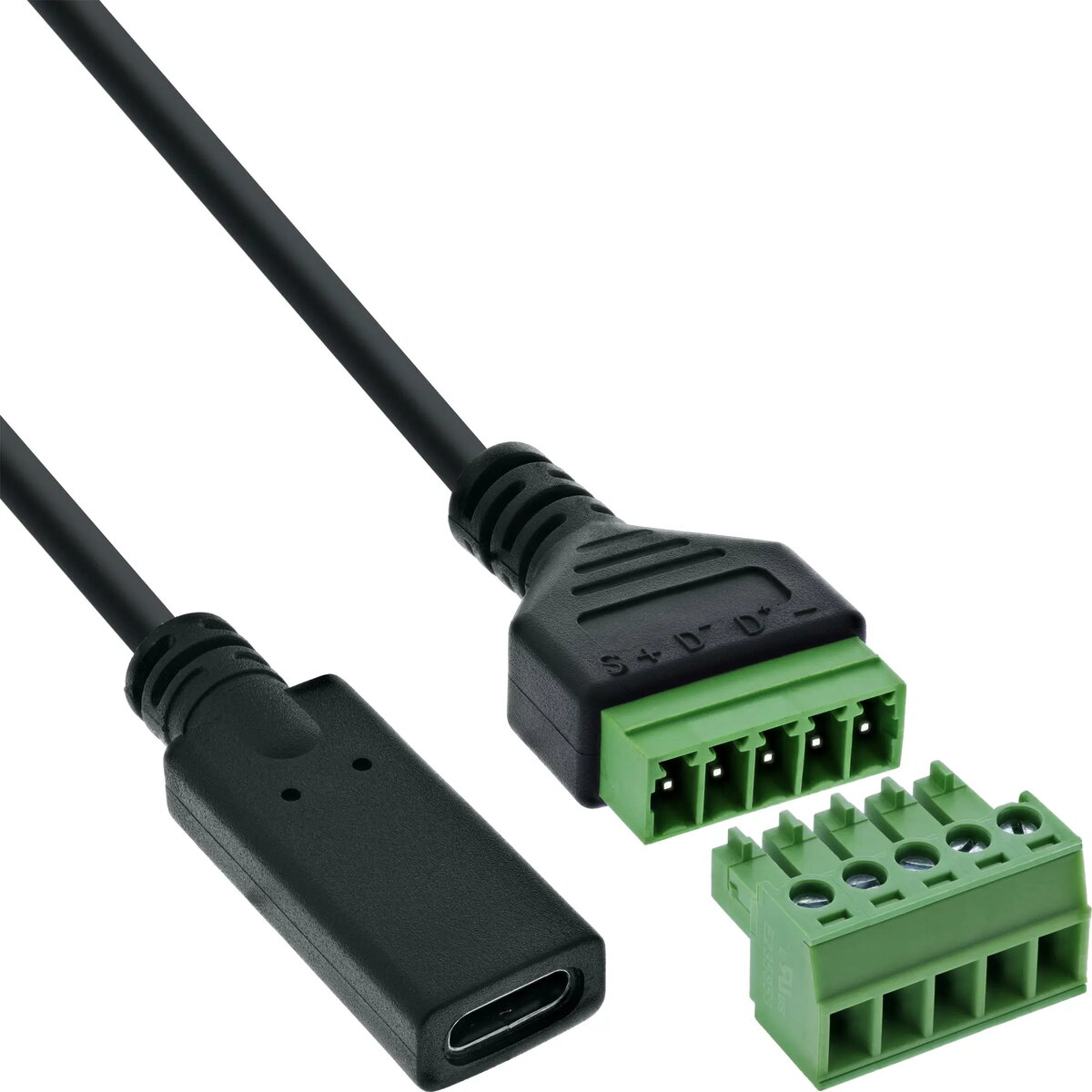

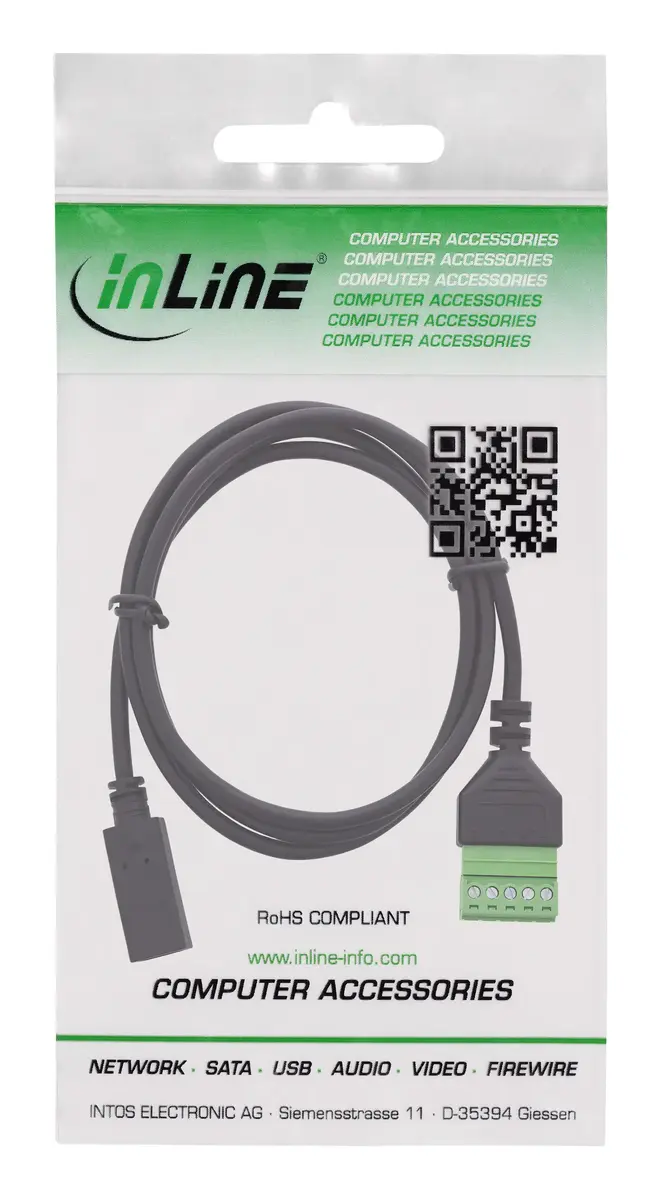

The InLine USB‑C 2.0 terminal block adapter with 5‑wire connection cable provides a USB‑C female connector permanently wired to a 5‑pin screw terminal. It combines a modern USB‑C interface with open-signal wiring so you can connect USB 2.0 signals quickly for test benches, diagnostic devices, development boards or embedded systems. The adapter includes a permanently integrated approx. 1 m PVC cable and an EVA insulation layer on the underside for safe mounting on conductive surfaces.

Advantages

Installation is faster with screw terminals that accept 16–26 AWG conductors and are tool-assisted with a flat-head screwdriver ≤ 2.5 mm. The 1 m integral USB cable eliminates the need for additional accessories or soldering. Clear terminal labeling (1: –, 2: D+, 3: D–, 4: +, 5: S) and pressure-plate terminals ensure secure contact and easy service, testing and prototyping. The adapter offers high signal quality with insulation resistance ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin, suitable for continuous loads in industrial environments.

Suitable for

• Test setups and laboratory measurements
• Commissioning and troubleshooting of control systems
• Development boards and embedded systems
• Mobile test stations and diagnostic devices

Key specifications

• USB interface: USB‑C 2.0, female connector
• Cable length: approx. 1 m (PVC, permanently integrated)

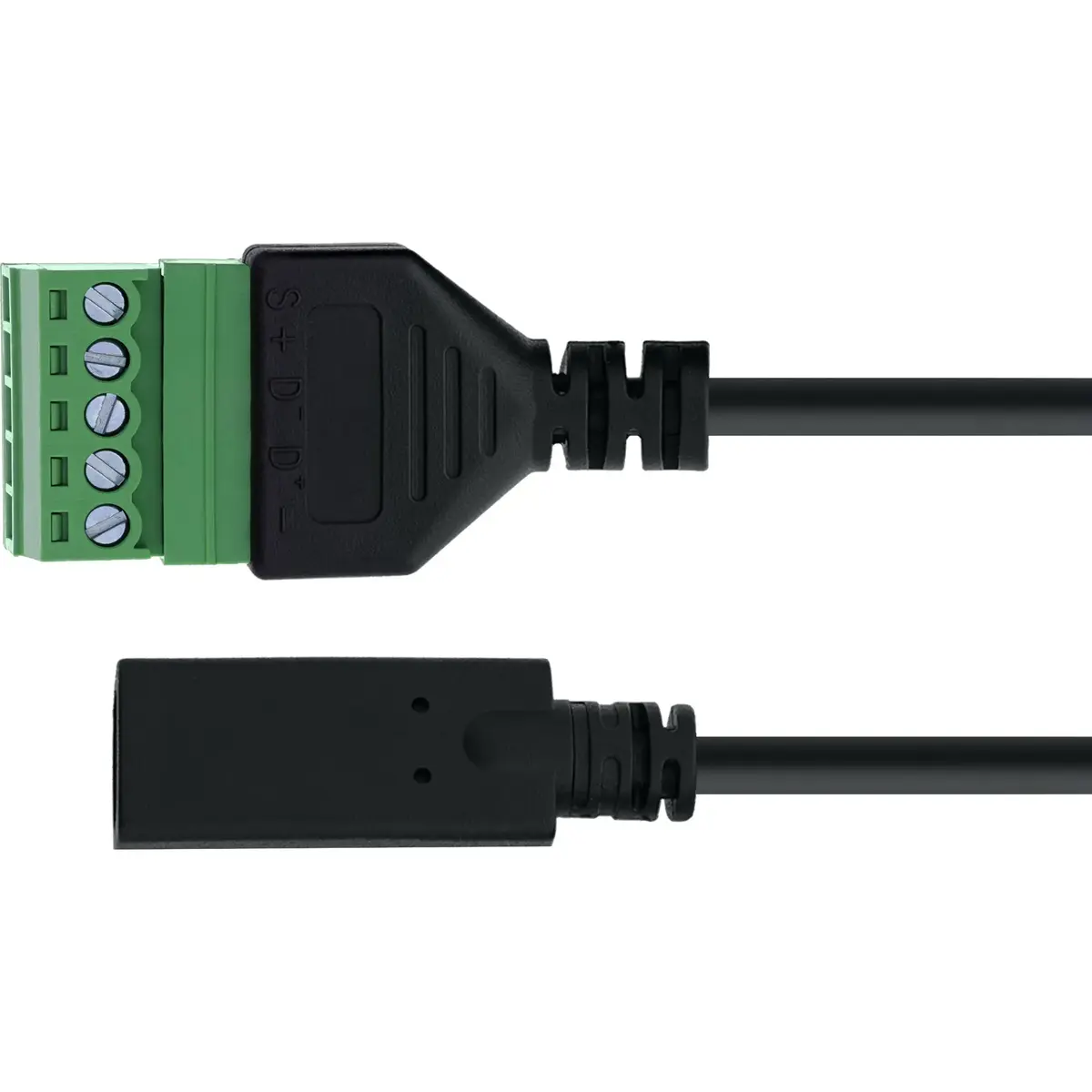

• Number of pins / assignment: 5 terminals / 1: – / 2: D+ / 3: D– / 4: + / 5: S
• Connection technology: Screw terminal with pressure plate, 5.0 mm pitch
• Connection range: 16–26 AWG
• Actuation: Flat-blade screwdriver ≤ 2.5 mm
• Rated current: 0.7 A per pin
• USB operating voltage (VBUS): 5 V DC
• Test voltage (insulation resistance): 300 V AC / 1 minute
• Insulation resistance: ≥ 10 MΩ @ 300 V DC
• Operating temperature: –20 °C to +105 °C
• Insulation layer: EVA insulation on underside
• Dimensions: Terminal block approx. 50 × 21.2 × 18.4 mm (L × W × H)

How to use

Strip the conductor ends to the appropriate length for the 5.0 mm pitch screw terminals and insert wires for signals 1 through 5 according to the terminal labels (1: ground, 2: D+, 3: D–, 4: VBUS, 5: shield). Tighten the pressure-plate screws using a flat-head screwdriver ≤ 2.5 mm until secure. Plug a USB‑C male cable or device into the female USB‑C connector; the permanently integrated 1 m cable then provides the wired signal paths to your system. When mounting on conductive surfaces, ensure the EVA insulation layer faces the surface to prevent shorting.

Usage recommendations

Use insulated, tinned or ferruled wires within the 16–26 AWG range and avoid exceeding the per-pin rated current of 0.7 A. For long-term reliability in industrial environments, verify correct terminal tightening during commissioning and keep the integrated cable strain-free.
