Gender changer adapter InLine 92504G — connector type unspecified, model 92504G

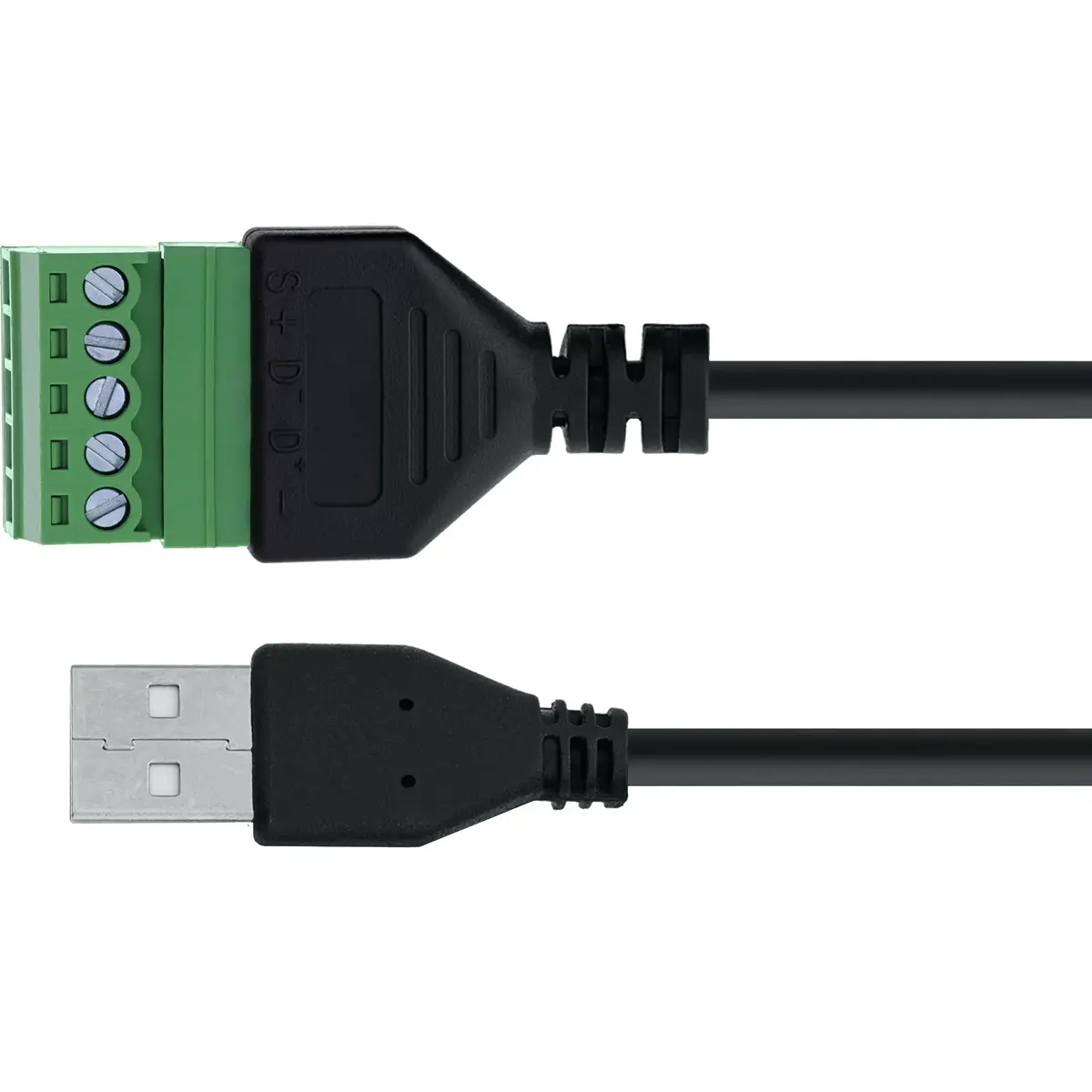

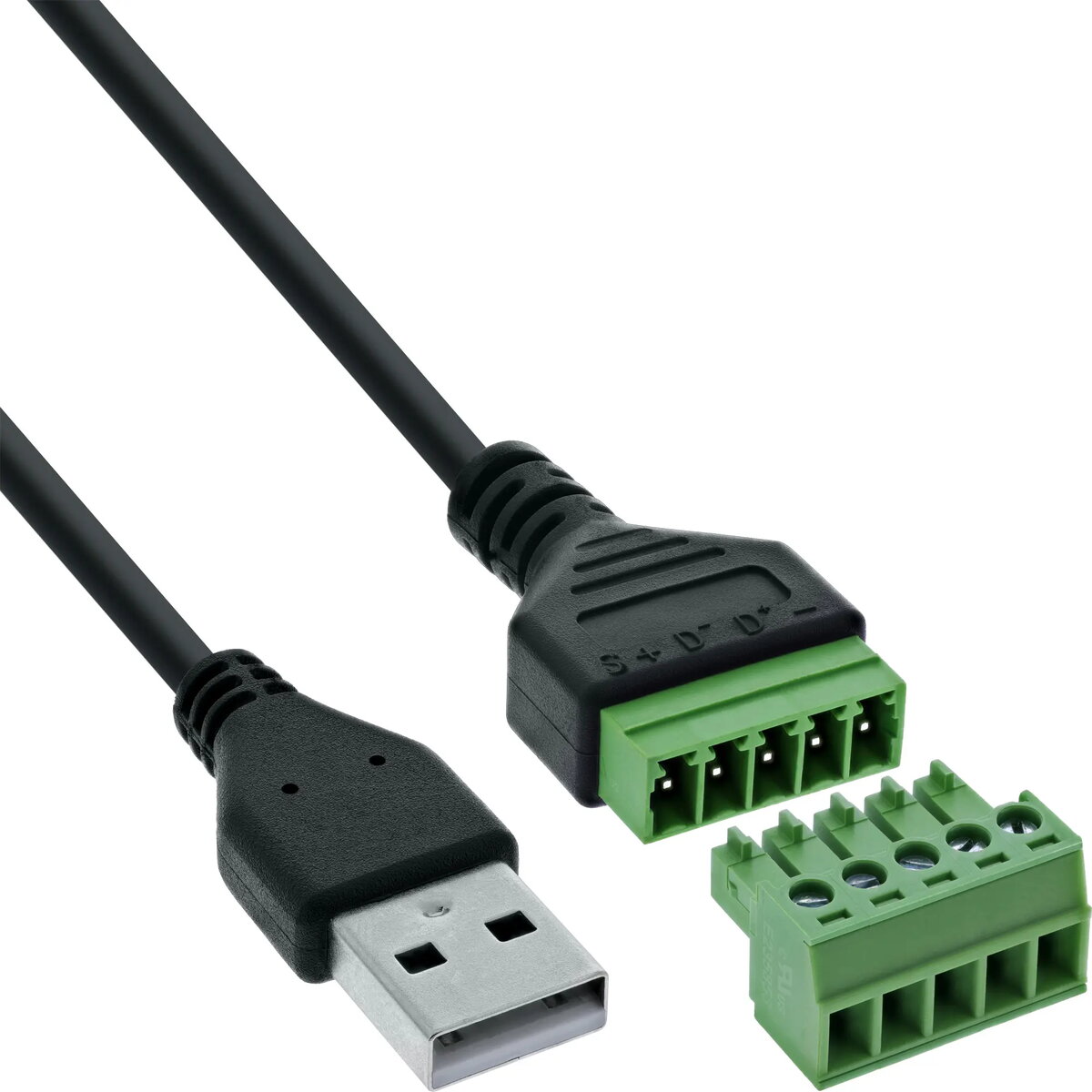

The InLine USB‑A 2.0 terminal block adapter with permanently integrated cable (model 92504G) combines a USB‑A 2.0 plug with a 5‑pin screw terminal to enable immediate, tool-assisted connection of USB signals without soldering. The approx. 1 m PVC cable is fixed to the adapter and the underside features an EVA insulating layer for safe placement on conductive surfaces. Terminals are clearly labeled to simplify wiring and service tasks.

Advantages

The adapter saves installation time by allowing quick wiring of 16–26 AWG conductors via a screw terminal with pressure plate, actuated using a flat‑head screwdriver ≤ 2.5 mm. Clear terminal assignment (1: ground, 2: D+, 3: D–, 4: +5 V, 5: shield) supports testing and prototyping. Electrical ratings include a rated current of 0.7 A per pin and an insulation resistance of ≥ 10 MΩ at 300 V DC, ensuring reliable signal transmission in continuous‑use and industrial environments.

Suitable for

• Test benches and diagnostic stations
• Laboratory setups and measurement equipment
• Commissioning, troubleshooting, and prototyping
• Embedded systems and temporary USB connections

Key specifications

• USB interface: USB‑A 2.0 plug
• Cable length: approx. 1 m (PVC, permanently integrated)
• Number of poles / assignment: 5 terminals — 1: – (GND), 2: D+, 3: D–, 4: + (VBUS 5 V DC), 5: S (shield)
• Connection technology: Screw terminal with pressure plate, 5.0 mm pitch
• Connection range: 16–26 AWG
• Actuation: Flat‑blade screwdriver ≤ 2.5 mm
• Rated current: 0.7 A per pin
• Test voltage (insulation): 300 V AC / 1 minute
• Insulation resistance: ≥ 10 MΩ @ 300 V DC
• Operating temperature: –20 °C to +105 °C
• Insulation layer: EVA on underside
• Dimensions: Terminal block approx. 50 × 21.2 × 18.4 mm (L × W × H)

How to use

Strip the USB signal wires to the recommended length, insert conductors into the corresponding labeled terminals (1–5) and tighten the pressure plate screws using a flat‑head screwdriver ≤ 2.5 mm. Connect the USB‑A plug to the host or device. The permanently integrated cable avoids the need for additional adapters or soldering. Ensure the EVA insulating layer contacts any conductive surface to reduce risk of shorting during placement.

Usage recommendations

Use the adapter for temporary or test connections; for permanent installations follow device manufacturer guidelines. Do not exceed the rated current of 0.7 A per pin and keep operating temperature within –20 °C to +105 °C. Verify correct terminal assignment before powering the USB VBUS (5 V DC).
