Cable gender changer InLine 92504H — adapter for reversing connector gender

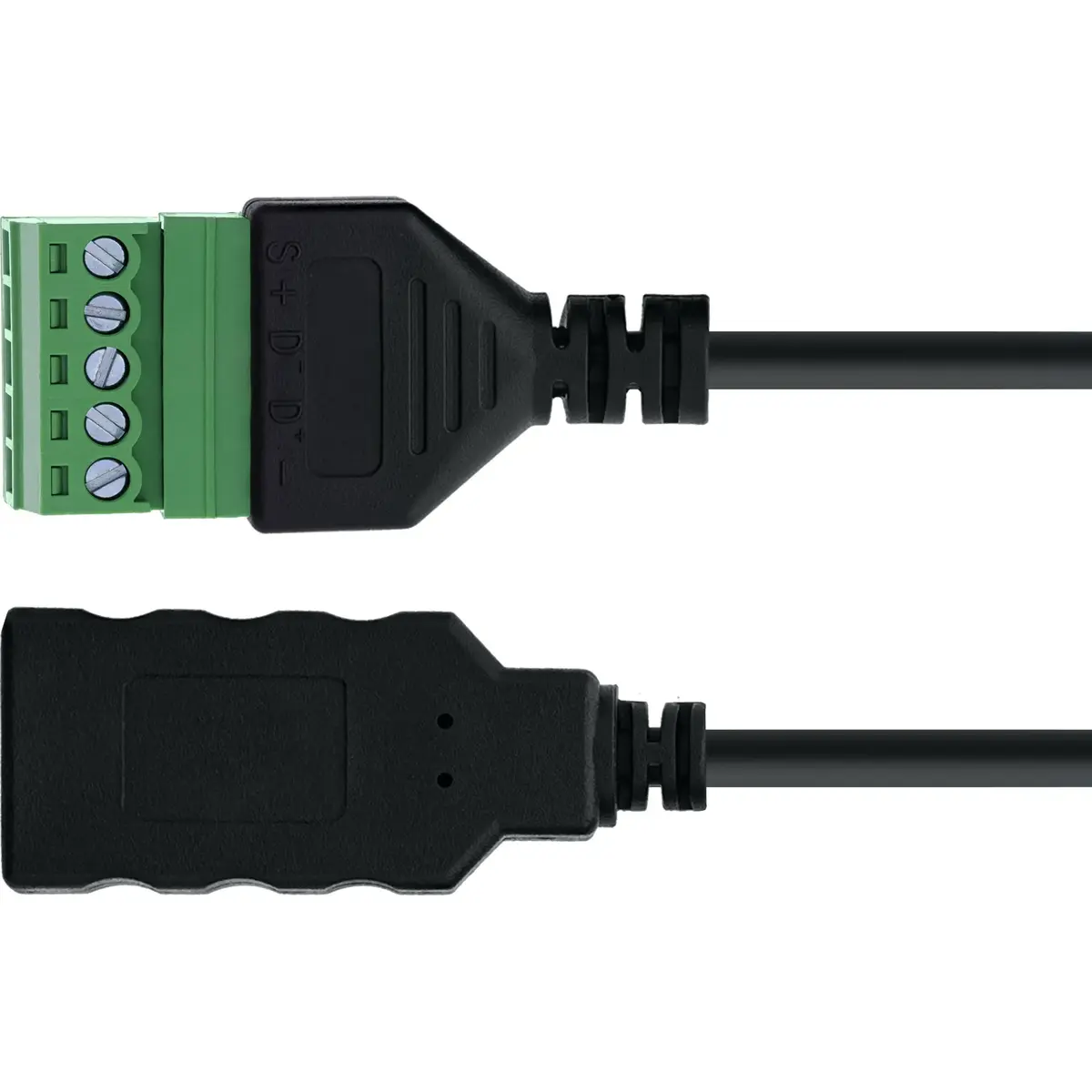

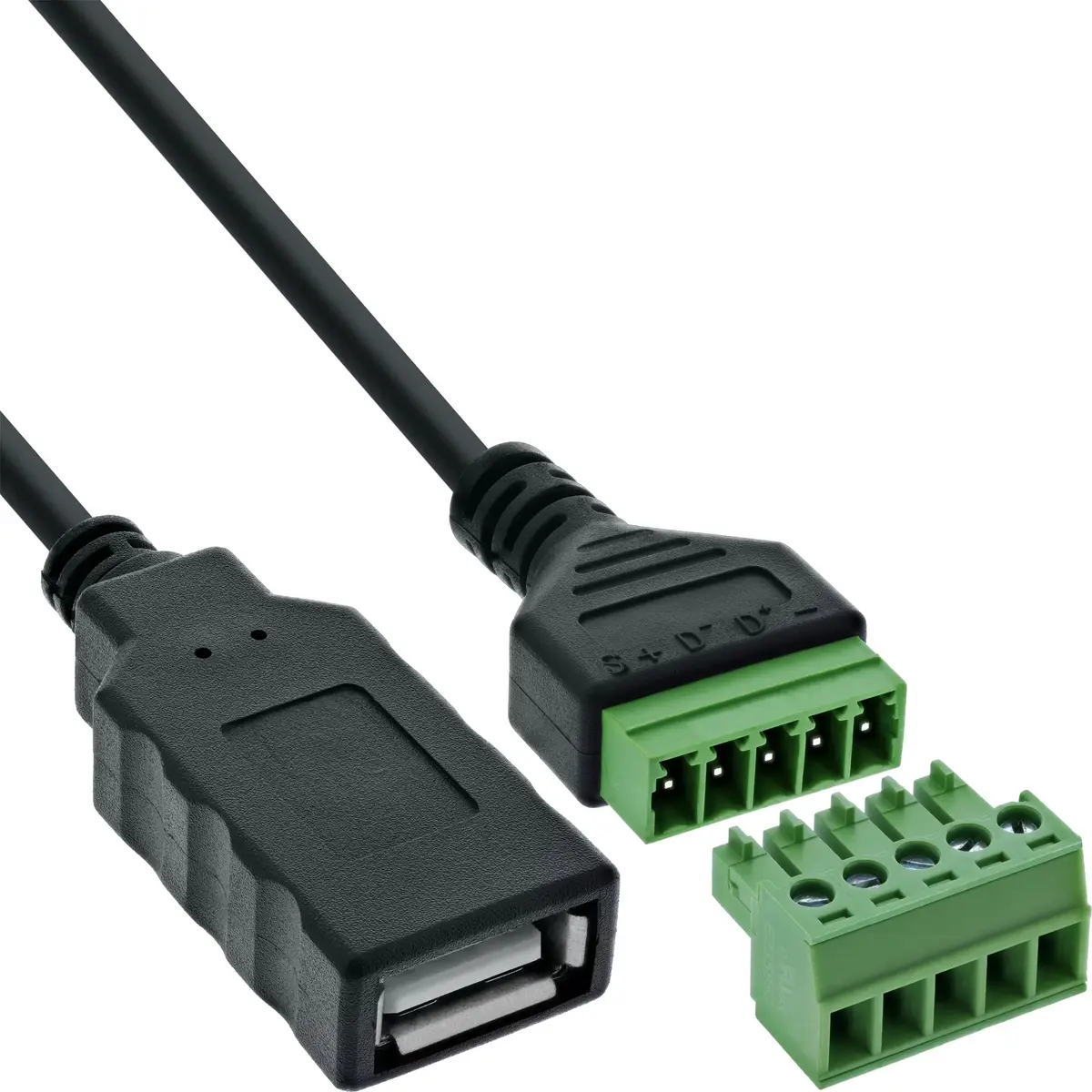

The InLine USB‑A 2.0 terminal block adapter with integrated 1 m cable provides a solder-free way to connect USB signals to a 5‑pin screw terminal strip. The adapter uses a female USB‑A 2.0 socket and a permanently attached PVC cable, with clearly labeled terminal assignments (1: –, 2: D+, 3: D–, 4: +, 5: S). An EVA insulating layer on the underside protects when mounting on conductive surfaces, and the terminal block supports wire sizes from 16–26 AWG for flexible use in test setups, laboratories, commissioning and embedded systems.

Advantages

Quick wiring via screw terminals reduces installation time and accepts 16–26 AWG conductors with tool-assisted termination using a flat-head screwdriver ≤ 2.5 mm. The permanently integrated 1 m USB cable eliminates the need for additional accessories or soldering. Five clearly labeled terminals with pressure plates ensure secure contact and straightforward identification for service, testing and prototyping. Electrical characteristics — insulation resistance ≥ 10 MΩ at 300 V DC and 0.7 A rated current per pin — support reliable signal transmission under continuous load in industrial environments.

Suitable for

• Test setups and laboratory measurement rigs
• Commissioning and troubleshooting of devices with USB 2.0 signals
• Embedded systems and prototypes requiring temporary or service connections

Key specifications

• USB interface: USB‑A 2.0, female
• Cable length: approx. 1 m (PVC, permanently integrated)
• Number of pins / assignment: 5 terminals / 1: – / 2: D+ / 3: D– / 4: + / 5: S
• Connection technology: Screw terminal with pressure plate, 5.0 mm pitch
• Connection range: 16–26 AWG
• Actuation: Flat-blade screwdriver ≤ 2.5 mm
• Rated current: 0.7 A per pin
• USB operating voltage (VBUS): 5 V DC
• Test voltage (insulation resistance): 300 V AC / 1 min
• Insulation resistance: ≥ 10 MΩ @ 300 V DC
• Operating temperature: –20 °C to +105 °C
• Insulation layer: EVA on underside
• Dimensions: Terminal block approx. 50 × 21.2 × 18.4 mm (L × W × H)

How to use

Strip wires within the supported 16–26 AWG range, insert each conductor into the corresponding numbered terminal (1: ground, 2: D+, 3: D–, 4: VBUS, 5: shield) and secure with the pressure plate using a flat-head screwdriver up to 2.5 mm. Plug the USB‑A device or cable into the female USB‑A 2.0 socket. Position the adapter on a non-conductive surface or use the EVA insulating layer when mounting on conductive surfaces. Ensure correct polarity and shielding connections before powering the VBUS line.

Usage recommendations

For reliable operation, use copper conductors within the specified AWG range, avoid excessive bending or mechanical stress on the integrated cable, and verify terminal tightening periodically in long-term installations. Do not exceed the rated current of 0.7 A per pin and keep the adapter within the specified temperature range.
