InLine 95411 Medium Voltage Cable Black and Red 1.5 m Length 1500 V Operating Voltage

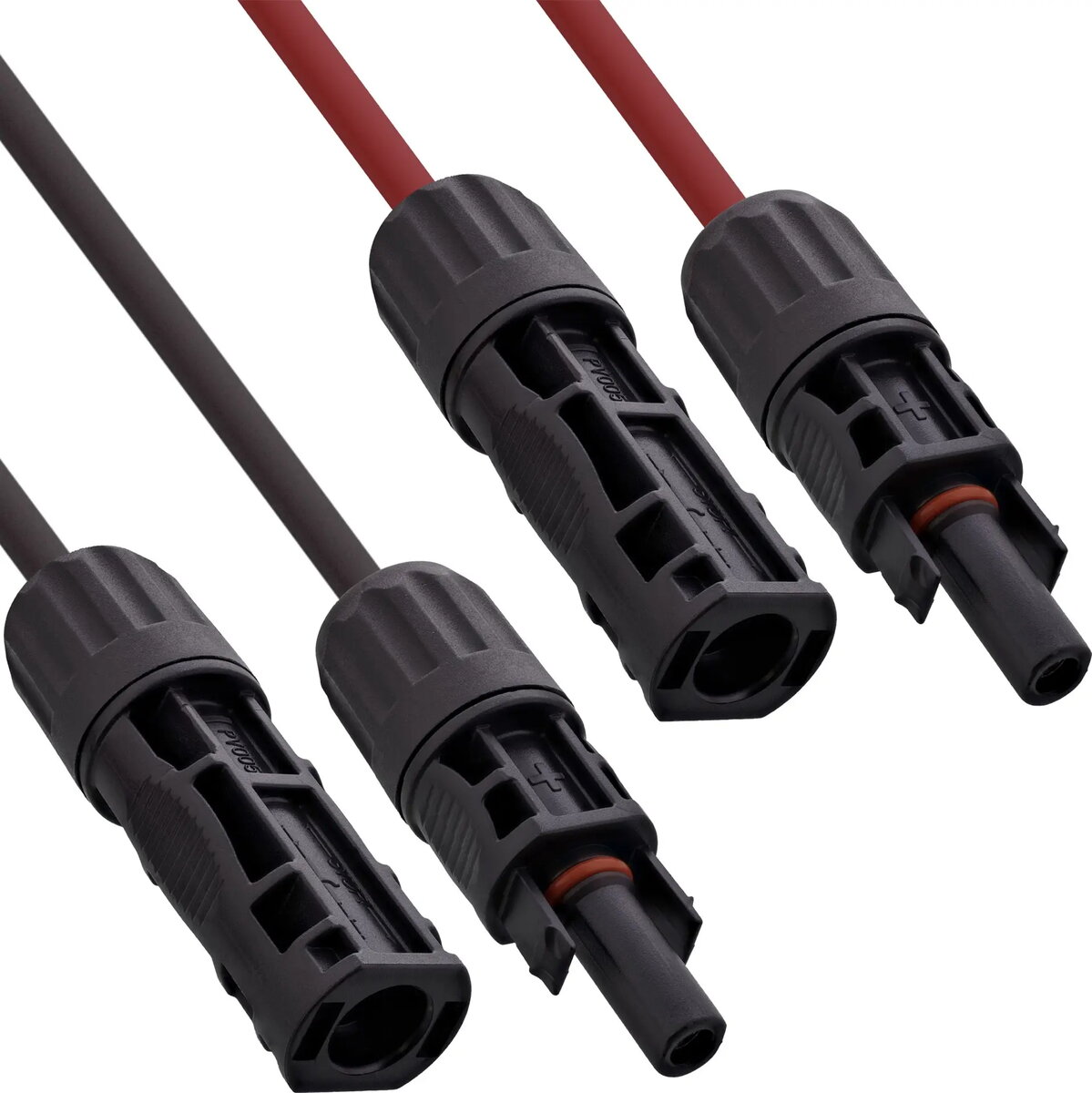

The InLine 95411 medium voltage cable is engineered for reliable and efficient power transmission in demanding electrical setups and photovoltaic systems. Designed as a complete extension set including solar plugs, this dual-color black and red cable provides a secure connection for various energy transmission applications. Built with high-grade materials and strict compliance with industry standards, it ensures stable performance across diverse environmental conditions.

Advantages

This medium voltage cable offers exceptional durability and safety for solar panel extensions and electrical installations. Its robust construction features an ozone, weather, and UV-resistant outer jacket, making it suitable for long-term outdoor deployment. The halogen-free and flame-resistant materials guarantee low smoke emission during incidents, enhancing overall safety. Furthermore, the tinned copper conductor ensures optimal conductivity, minimal energy loss, and high resistance to corrosion over years of operation.

Suitable for

• Connecting photovoltaic panels and solar energy systems
• Wiring medium voltage electrical setups requiring robust insulation
• Outdoor installations exposed to harsh weather and UV radiation
• Extensions requiring secure connections with pre-mounted solar plugs

When it may not be suitable

This cable may not be suitable for applications requiring a length significantly greater than 1.5 meters without additional extension components. It is also not designed for high-voltage industrial power transmission exceeding its specified operating limits.

Key specifications

• Medium voltage cable type
• Length of 1.5 meters
• Operating voltage up to 1500 V DC
• Conductor cross-section of 4 mm2
• Fine-wired tinned copper conductor
• External diameter of 5.5 mm
• Insulation thickness of 0.7 mm
• Ambient temperature range from -40°C to +90°C
• Halogen-free and low smoke zero halogen construction
• Ozone, weather, and UV resistant

How to use

Begin by planning the layout of your electrical setup or photovoltaic system, ensuring the 1.5-meter length is sufficient for the intended connection distance. Inspect the cable and integrated connectors for any signs of transit damage before installation. Route the cable carefully, respecting the minimum bending radius of 22 mm to prevent internal conductor strain. Connect the solar plugs securely to the corresponding ports of your equipment, ensuring a firm and stable fit. Always verify that the operating voltage and current requirements of your system match the technical specifications of the cable.

What to consider before purchase

• Verify that the 1.5-meter length matches your specific installation distance requirements
• Check that your system voltage does not exceed the maximum operating limits
• Consult a qualified technician if you are uncertain about the required wire cross-section for your specific load and distance

Ensure all connections are firmly secured and periodically inspect the cable for environmental wear to maintain optimal power transmission efficiency over time.
