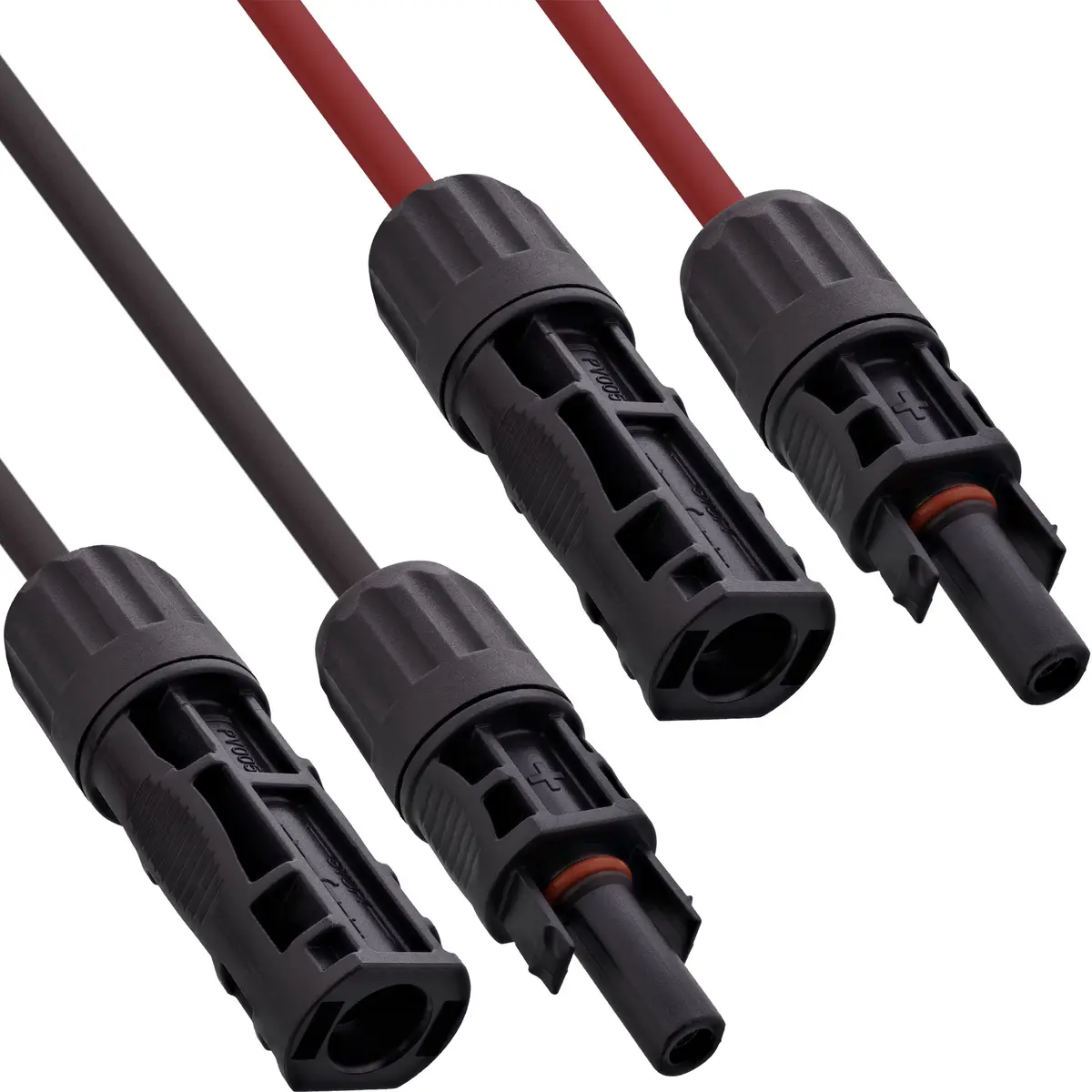

InLine 95477 Medium Voltage Cable Black and Red 0.75 m 1500 V

The InLine 95477 medium voltage cable is engineered for secure and efficient power transmission in demanding electrical setups. Available in a practical black and red color combination, this cable features a length of 0.75 m and a diameter of 5.5 mm. Designed to handle high electrical loads, it incorporates an insulation thickness of 0.7 mm and supports a maximum operating voltage of 1500 V, making it well-suited for modern photovoltaic installations and specialized power extension requirements.

Advantages

This medium voltage cable offers exceptional durability and reliable performance thanks to its robust construction and high-grade materials. The tinned copper conductor ensures optimal conductivity, while the halogen-free, cross-linked polyolefin insulation provides excellent resistance to harsh environmental conditions, including UV rays, ozone, and extreme temperatures ranging from -40°C to +90°C. Additionally, the cable features flame-resistant and low-smoke properties, enhancing safety during operation.

Suitable for

• Wiring photovoltaic solar systems and extensions
• Connecting solar panels and inverters
• Specific electrical power transmission setups requiring high voltage tolerance

When it may not be suitable

This cable may not be appropriate for applications requiring a longer reach due to its fixed length of 0.75 meters. Furthermore, it is not designed for standard household indoor appliance wiring where lower voltage ratings or different connector types are standard.

Key specifications

• Product type: Medium voltage cable
• Colors: Black and red
• Length: 0.75 m
• Diameter: 5.5 mm
• Maximum operating voltage: 1500 V DC
• Conductor cross-section: 4 mm²
• Conductor material: Tinned copper
• Insulation thickness: 0.7 mm
• Ambient temperature range: -40°C to +90°C
• Minimum bending radius: 22 mm

How to use

Ensure the system is completely powered off before beginning any installation work. Measure the distance between your components to verify that the 0.75 m length is sufficient for your specific setup. Connect the black and red cables to the corresponding positive and negative terminals of your electrical or solar equipment, ensuring secure contact and proper polarity. Verify that the routing avoids sharp bends below the minimum bending radius of 22 mm.

What to consider before purchase

• Verify that the 0.75 m length matches the exact distance needed between your connection points.
• Confirm that the maximum operating voltage of 1500 V and 4 mm² cross-section meet your system requirements.
• Check local electrical standards and consult a technician if unsure about wire sizing for your specific load.

Usage recommendations: Regularly inspect the cable for any signs of physical wear, environmental damage, or secure terminal connections to maintain optimal performance and safety in your power transmission setup.
