InLine 95633 Medium Voltage Solar Extension Cable Set 0.3m Black/Red 1500V 6.3mm Diameter

The InLine 95633 medium voltage solar extension cable set is designed specifically for photovoltaic applications, providing reliable and efficient power transmission in renewable energy setups. This set includes black and red cables with a length of 0.3 meters and integrated solar connectors, making it suitable for professional and residential solar installations where safe interconnection is required.

Advantages

The medium voltage solar extension cable set offers excellent durability and resilience against demanding environmental conditions. Featuring ozone, weather, and UV resistance tested according to EN standards, it performs reliably outdoors across a wide ambient temperature range. The halogen-free and flame-resistant construction ensures low smoke emission during incidents, contributing to overall safety in photovoltaic systems.

Suitable for

• Interconnecting photovoltaic panels and solar components in residential installations
• Professional solar power system cabling requiring high voltage tolerance
• Short-distance bridging between solar panels and charge controllers or inverters

When it may not be suitable

This cable set may not be suitable for long-distance power routing due to its fixed 0.3-meter length. It is also not designed for indoor household appliance wiring or applications requiring different connector types without appropriate adapters.

Key specifications

• Medium voltage cable type designed for photovoltaic applications

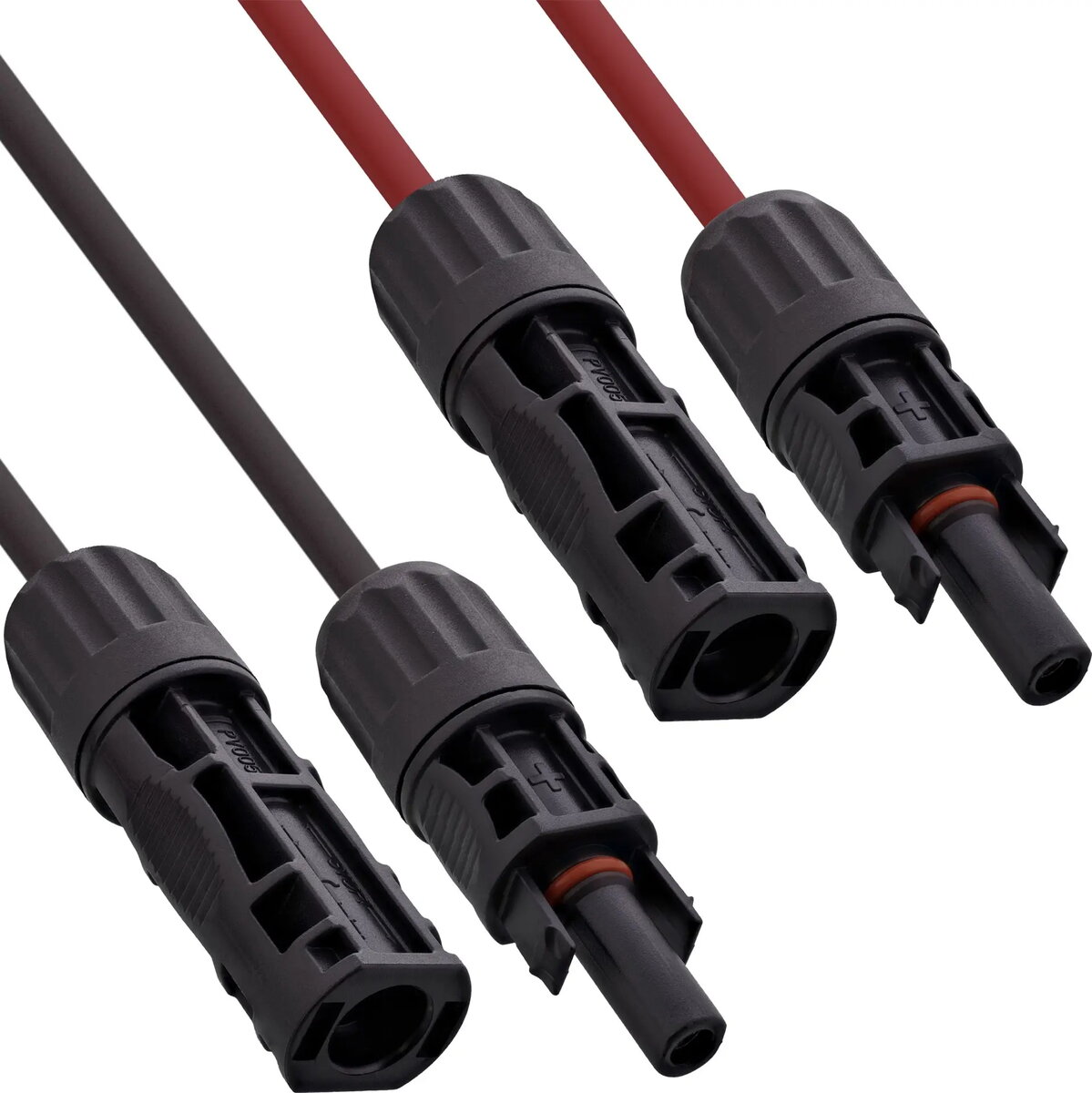

• Black and red cables included in a set with integrated solar connectors
• Length of 0.3 meters with a cable diameter of 6.3 mm
• Maximum operating voltage of 1500 V DC and nominal voltage of 1.0/1.0 kV AC
• Conductor cross-section of 6 mm2, fine-wired tinned copper
• Insulation made of halogen-free, cross-linked polyolefin with 0.7 mm thickness
• Ambient temperature range from -40°C to +90°C
• Ozone, weather, UV, and flame resistance

How to use

Connect the black and red solar extension cables directly to compatible photovoltaic modules or system components using the integrated solar connectors. Ensure the connection is secure and properly latched to maintain electrical continuity. Verify that the system voltage and current parameters align with the specifications of the cables before activating the power supply.

What to consider before purchase

• Verify that the 0.3-meter length is sufficient for your specific connection distance between solar components.
• Confirm compatibility of the integrated solar connectors with your existing photovoltaic equipment.
• Check that the 6 mm2 conductor cross-section and 1500V rating match the electrical requirements of your solar system.

Usage recommendations: Consult a certified solar technician if you are uncertain about wire cross-section requirements or system compatibility. Always inspect the cables for any physical damage before installation and ensure minimum bending radius limits are respected.
