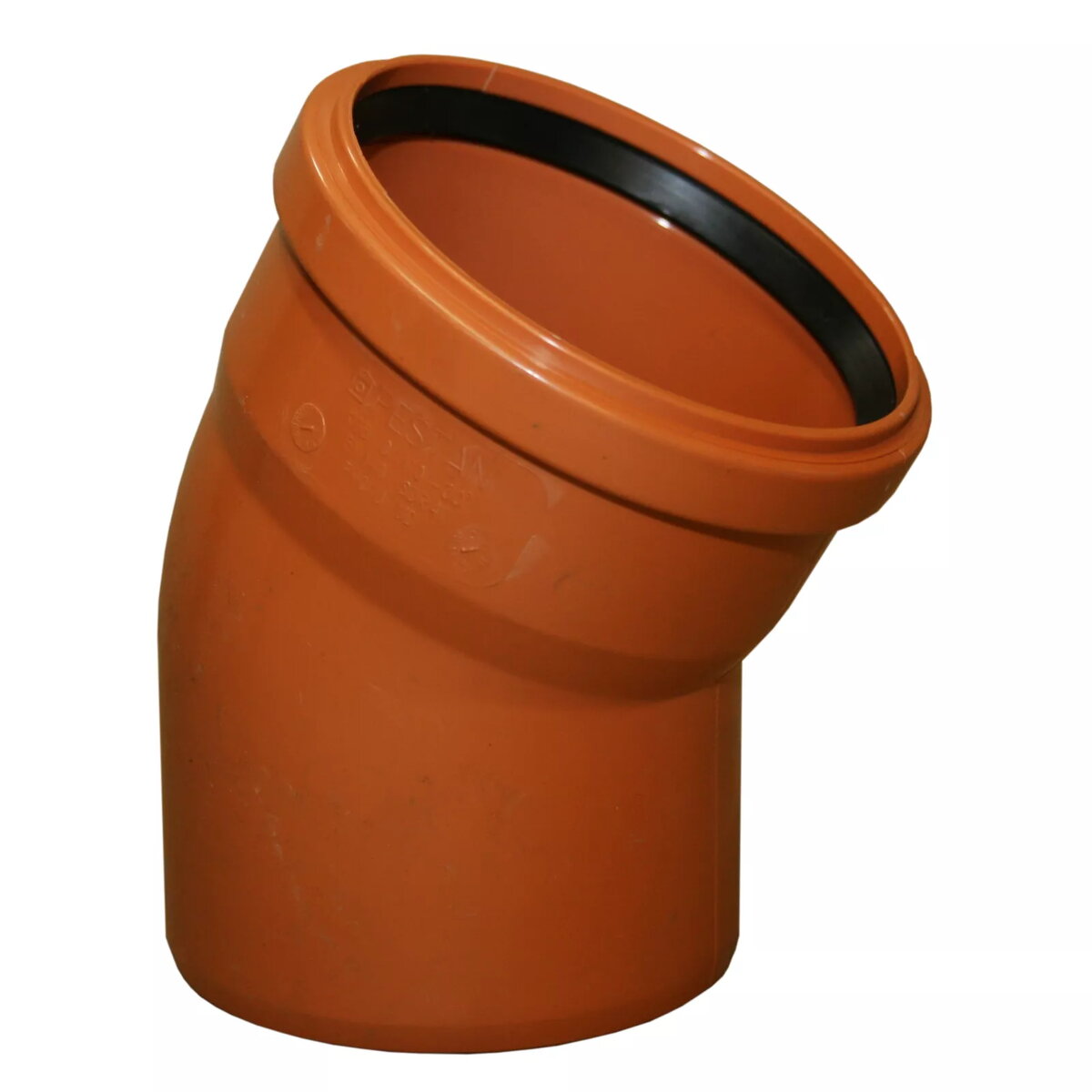

PVC bend InstalPlast 110x30, plumbing elbow for 110 mm pipe, 30° angle

PVC bend InstalPlast 110x30 is a 30° elbow for 110 mm drainage and sewage pipes, made of unplasticized PVC-U. It is intended for non-pressure wastewater transport with pH 2–12 at temperatures up to +40°C (short-term up to +60°C). The product is suitable for underground non-pressure sewer systems laid under roads, in trenches, culverts, bridge structures and other civil engineering applications. The pipe fittings are orange-brown, have a smooth surface to reduce scale and deposits, and feature a socket with a silicone-sealed gasket for a tight, easy installation.

Advantages

The InstalPlast 110x30 elbow is manufactured from rigid PVC-U, offering high strength, impact resistance and chemical resistance. Its smooth internal surface minimizes buildup and ensures consistent flow. The socket-and-gasket connection with a silicone-sealed seal provides a reliable, watertight joint and simplifies assembly without additional adhesives or welding.

Suitable for

• Underground non-pressure drainage and sewer systems
• Road culverts, pipe runs under or beside roads
• Renovation and repair of sewage lines with 110 mm diameter
• Stormwater and wastewater routing where a 30° direction change is required

Key specifications

• Brand: InstalPlast
• Model / MPN: 8027296
• EAN: 8600198027296
• Nominal diameter: 110 mm
• Angle: 30°
• Material: unplasticized PVC-U (rigid PVC)
• Temperature range: up to +40°C (short-term up to +60°C)
• pH compatibility: 2–12
• Colour: orange-brown

How to use

Install the 110x30 elbow by inserting the pipe end into the socket with the silicone-sealed gasket until it seats fully. Ensure pipe ends are clean and free of debris before assembly. Align the elbow to achieve the required 30° change of direction. The silicone gasket provides a watertight seal; no solvent welding or additional sealant is required for standard underground non-pressure applications. Check alignment and slope to maintain proper drainage flow during installation.

Usage recommendations

Use for non-pressure applications only; avoid exposure to sustained temperatures above +40°C. Follow local installation codes and best practices for trenching, bedding and backfilling to prevent mechanical stress. Inspect gasket condition before assembly and replace if damaged.
