Internal PCIe interface card adapter INTEL DeLOCK 81296 — PCIe host and output, male, height 40 mm

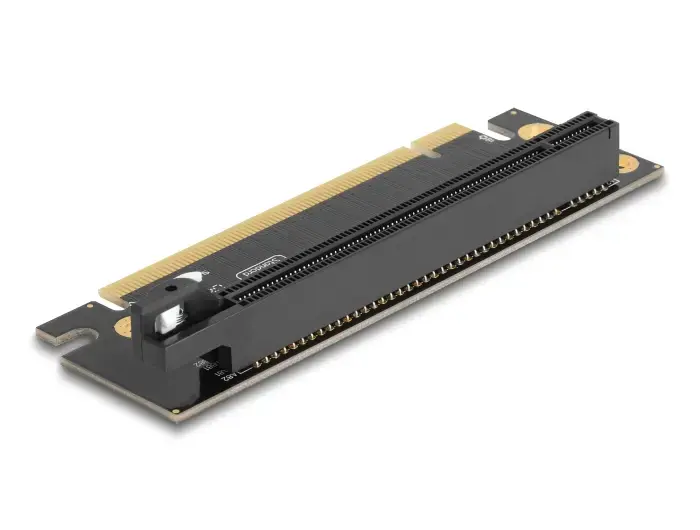

Internal PCIe interface card adapter INTEL DeLOCK 81296 provides a PCIe host connection and a PCIe output interface with a male host connector. The adapter is designed for internal installation in desktop or workstation systems and has a compact height of 40 mm. Supplied as a single unit in a box, it enables adding or routing PCIe signals inside a chassis without occupying external expansion slots.

Advantages

This internal PCIe adapter offers a straightforward method to extend or reroute PCIe connectivity within a computer. Its PCIe host and PCIe output interfaces maintain native signal compatibility for attached PCIe devices. The low-profile 40 mm height makes it suitable for systems with limited internal clearance, while the single-unit packaging simplifies inventory and installation.

Suitable for

• Adding an internal PCIe connection to desktop or workstation systems
• Rerouting PCIe signals between internal components
• Installation in systems with restricted vertical space
• Integrating additional PCIe devices where external access is not required

Key specifications

• Form factor: internal card adapter
• Host interface: PCIe (male connector)
• Output interface: PCIe
• Height: 40 mm (low-profile)
• Packaging: single unit in box

How to use

Install the adapter on an available internal PCIe slot or connection point following the system manufacturer’s guidelines. Ensure the system is powered down and unplugged before installation. Align the male PCIe host connector with the corresponding socket on the motherboard or riser card and secure the adapter as required by the chassis layout. After physical installation, power on the system and verify that connected PCIe devices are recognized by the operating system.

Usage recommendations

Use the adapter in systems that support the required PCIe lane configuration and signal integrity standards. Keep cable runs and internal routing clear of interference sources, and confirm mechanical clearance for the 40 mm height to avoid contact with other components.
