Type:
Characteristics of the device.
-
Server
-
Weight:
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
-
10.215 kg
-
I/O ports:
An interface on a device to which you can connect another device.
-

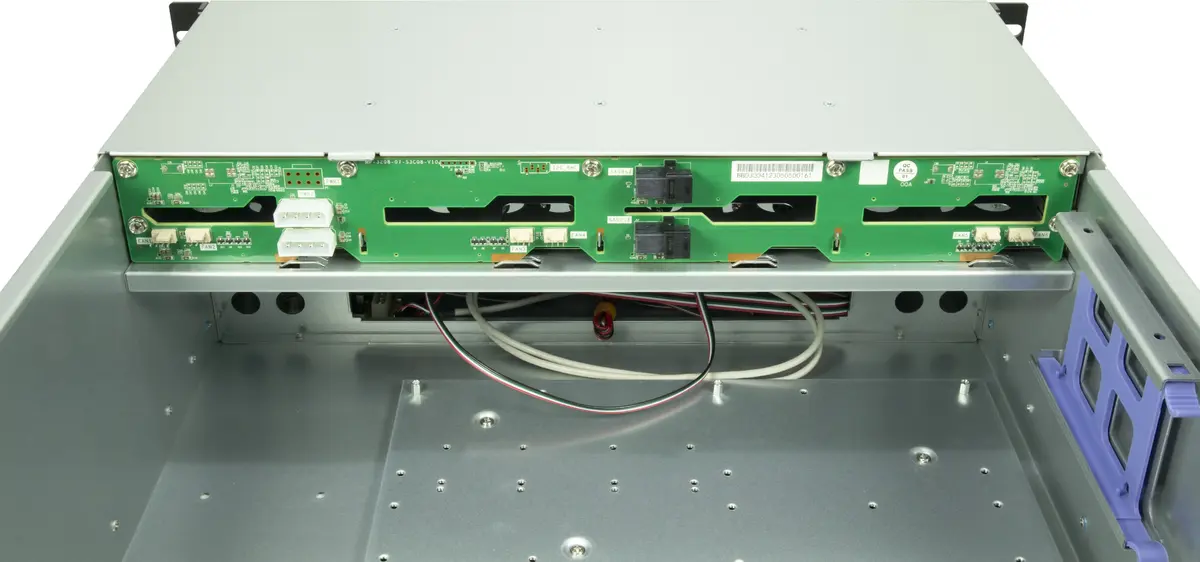

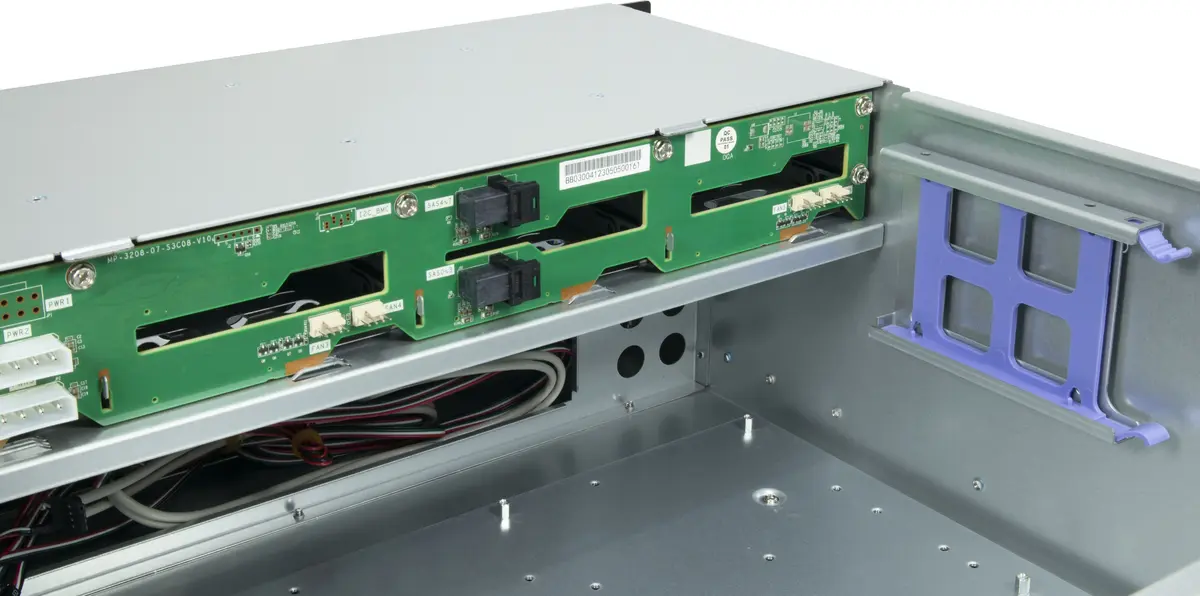

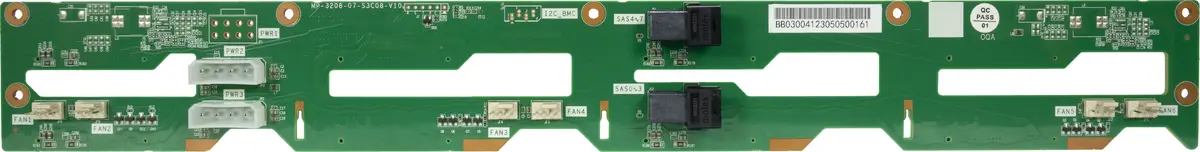

2x SFF 8643
-
Rack mounting:
The type of mounting that can position devices in a shelving system (rack).
-
Yes
-
Package weight:
Weight of the packaged product.
-
12290 g
-

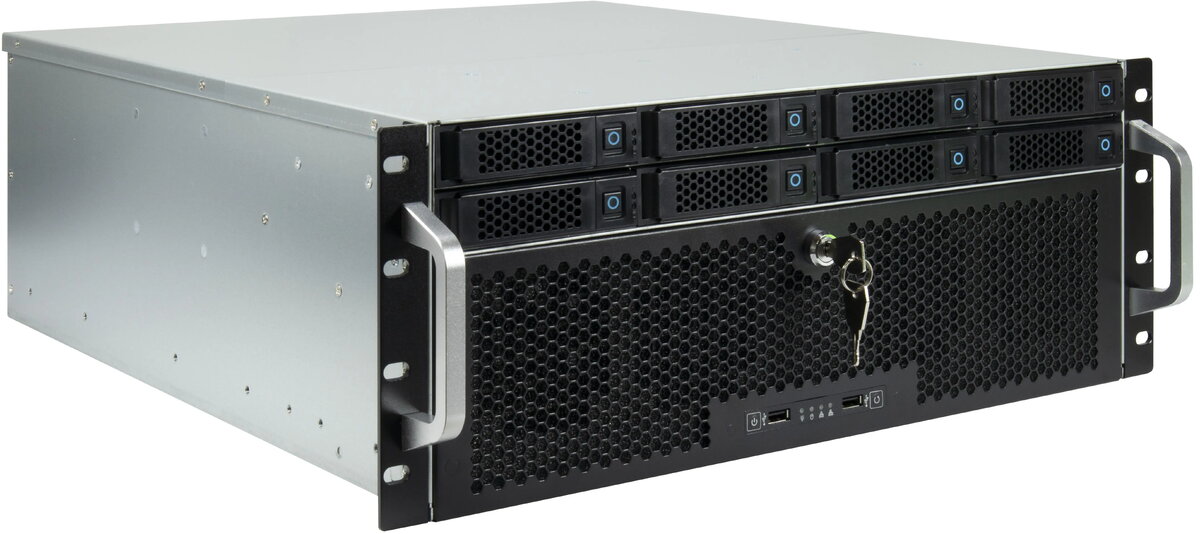

Form factor:
The shape or design of the product.
-
Rack
-
Material:
The material from which a thing is or can be made e.g. wood, plastic.
-
Steel
-
Height:
The measurement of the product from head to foot or from base to top.
-
175 mm
-
Width:
The measurement or extent of something from side to side.
-
481 mm
-
Depth:
The distance from the front to the back of something.
-
515 mm
-
Product colour:
The colour e.g. red, blue, green, black, white.
-
Black
-
USB 2.0 ports quantity:
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
-
2
-

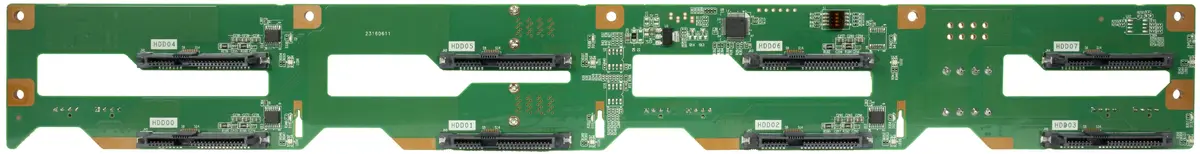

Number of SATA connectors:
-
8
-
Rack capacity:
The spase that device fill in rack.
-
4U
-

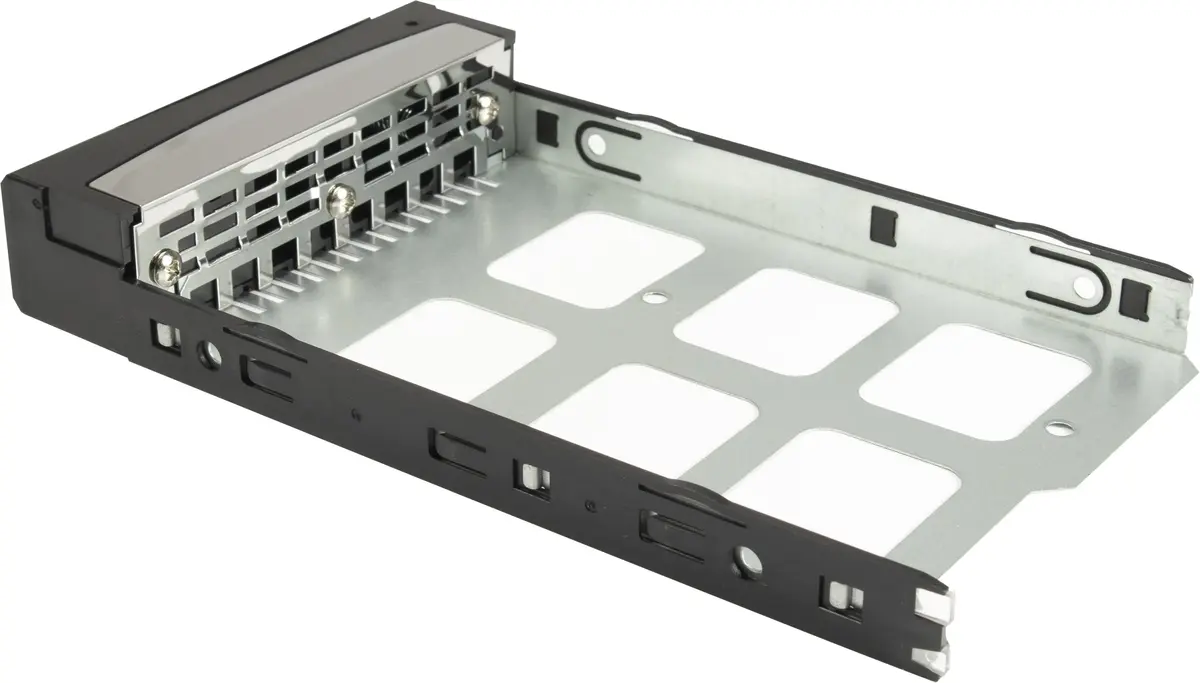

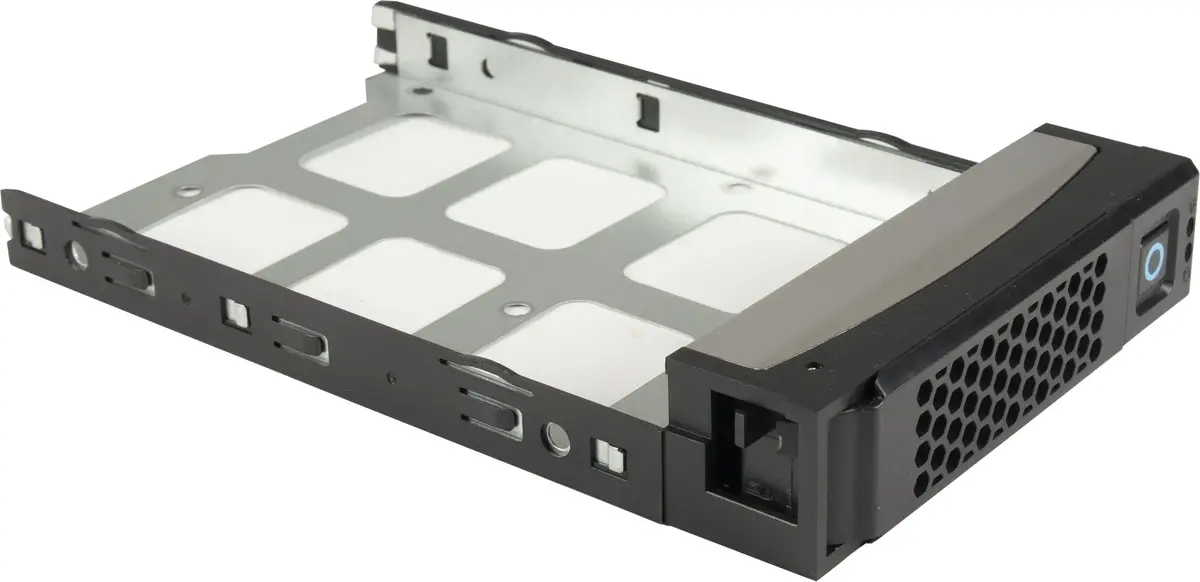

Hot-swap:
-
Yes
-
Supported motherboard form factors:
Design of the supported motherboards.
-
ATX, EATX, ITX, Micro ATX, SSI CEB, SSI EEB
-
Supported HDD sizes:
The size of the hard disk drives which can be used by the device.
-
2.5, 3.5
-
Peripheral (Molex) power connectors (4-pin):
White 4-pinned connector used to connect a peripheral to the power supply.
-
2
-
Number of 5.25" bays:
A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 5.25" drive bay, also known as full-height bays, were found in old PCs in the early to mid-1980s. They were 3¼″ high by 5¾″ wide, and up to 8″ deep (83 × 146 × 200 mm), used mainly for hard disks and floppy disk drives.
-
0
-
Number of 3.5" bays:
A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks.
-
8
-

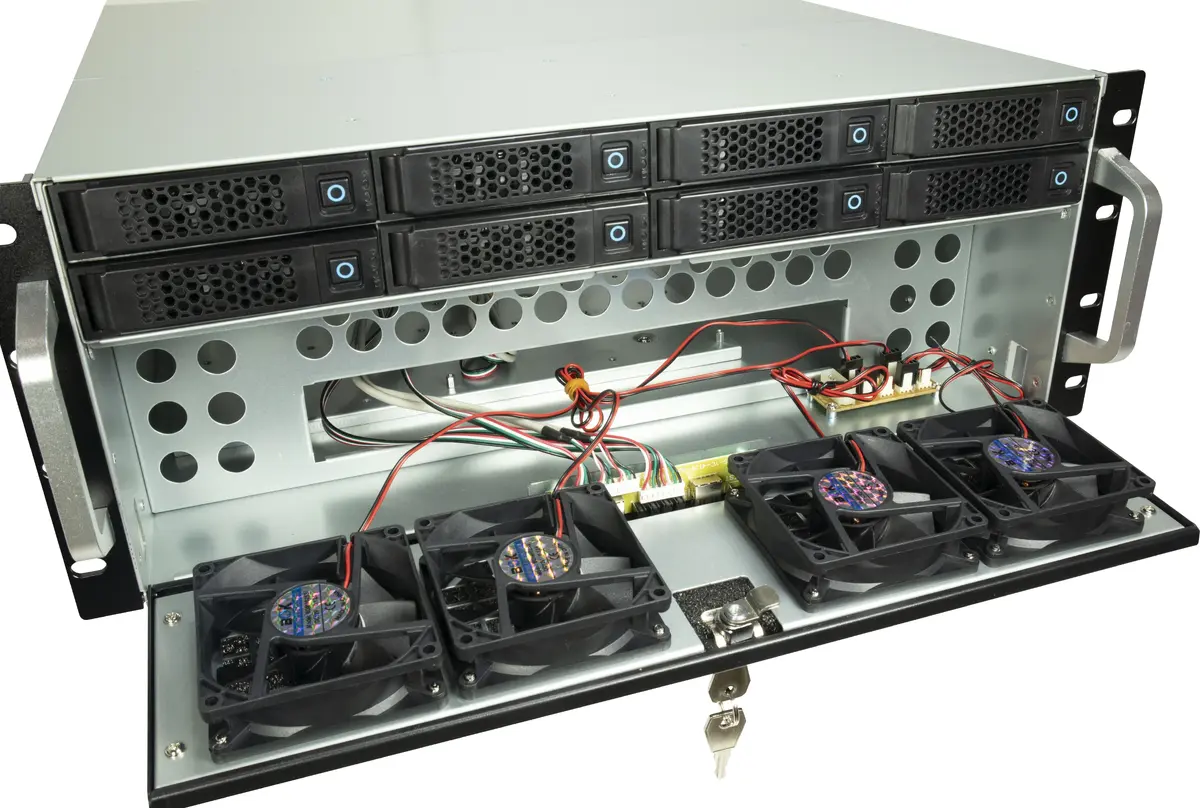

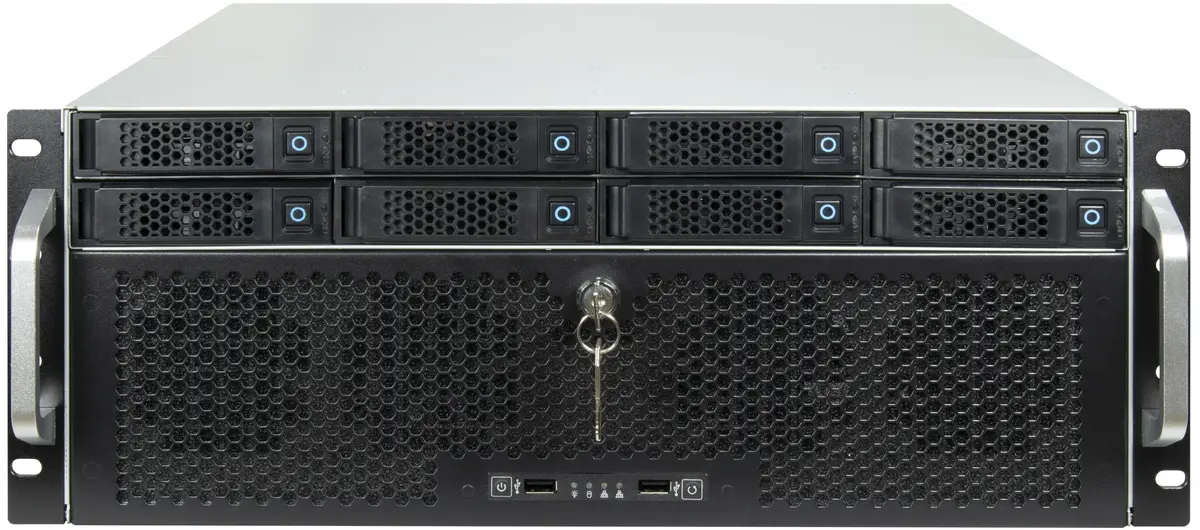

Front fans installed:
-
4x 80 mm
-
Number of front fans supported (max):
-
4
-
Front fans diameters supported:
-
80
-

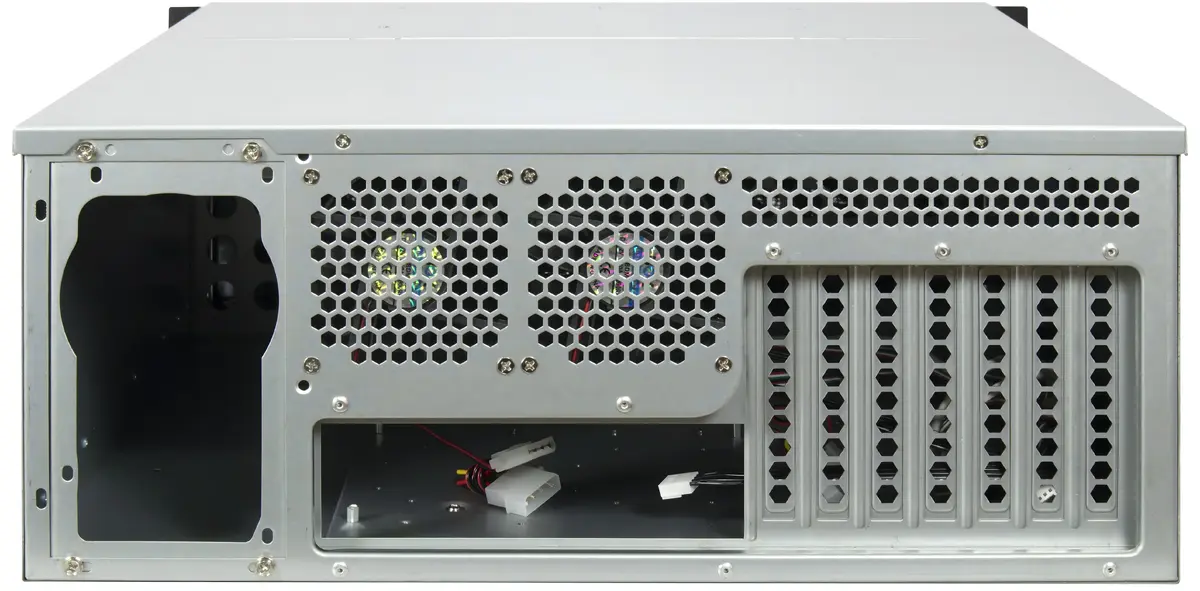

Rear fans diameters supported:
-
80
-
Number of rear fans supported (max):
-
2
-
Rear fans installed:
-
2x 80 mm
-
Power supply location:
Where the power supply is positioned.
-
Rear
-
Power supply included:
There is a power supply with this product.
-
No
-
Number of internal 3.5" bays:
-
8
-
Maximum CPU cooler height:
-
150 mm
-
Maximum graphics card length:
-
265 mm
-
Number of expansion slots:
-
7
-
Number of storage drives supported:
How many storage drives can be fit into the product at once.
-
8
-

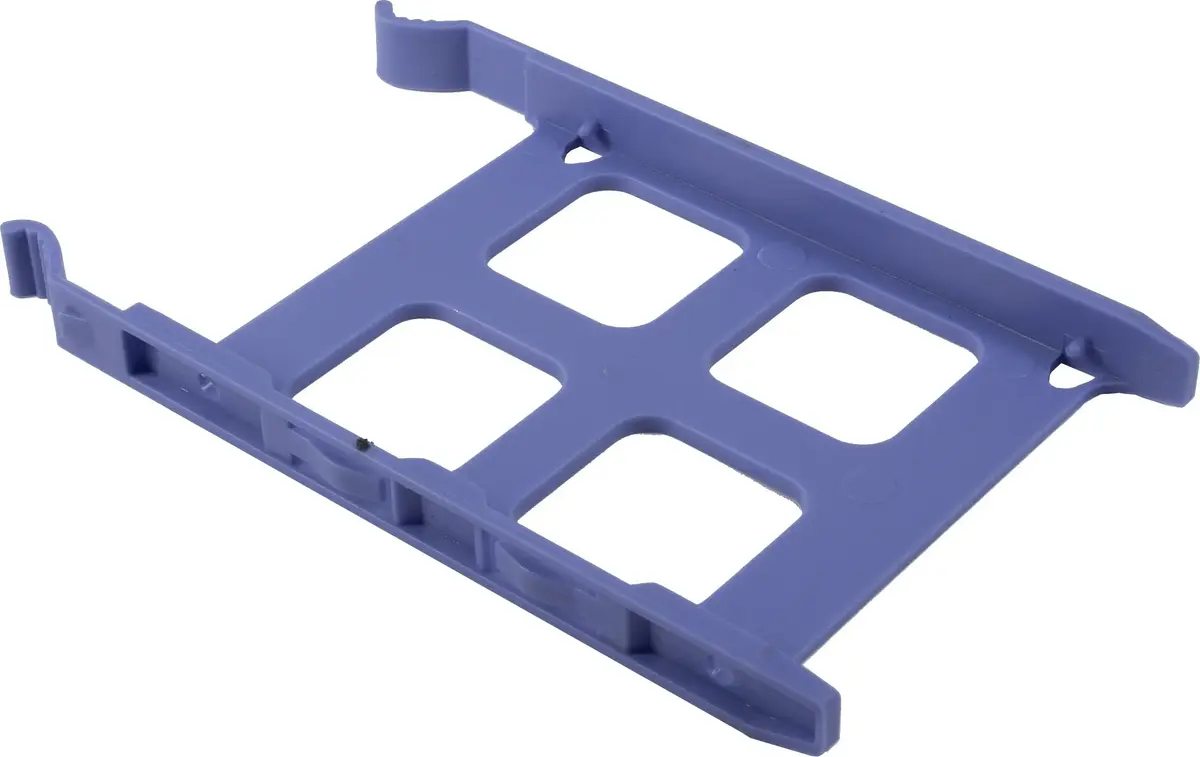

Number of 2.5" bays:
-
1
-
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
-
0
-
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
-
0
-
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
-
0
-
Supported power supply form factors:
-
ATX, PS2
-
On/off button:
-
Yes
-
USB 3.2 Gen 2x2 Type-C ports quantity:
-
0
