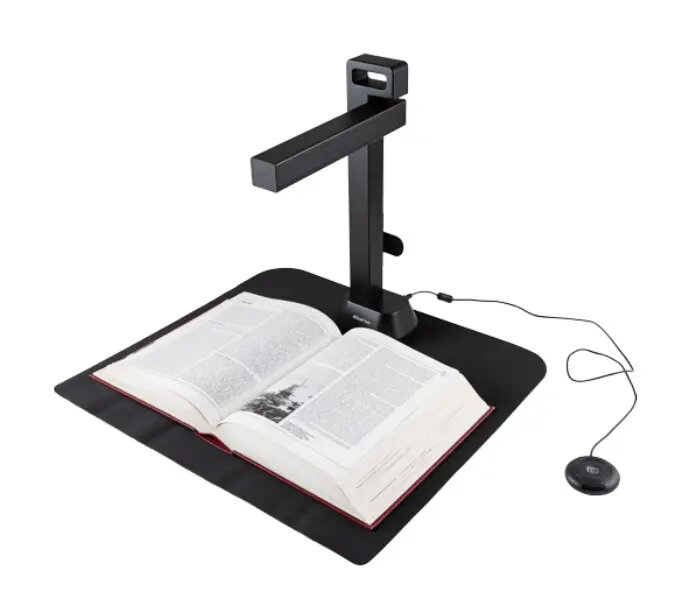

Overhead scanner Iris Ohyama 462006 — A3, 300 x 300 DPI, CMOS, 13 MP, black

Megapixel (approx.): The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card.

13 MP

Scanner type: Indicates the type of scanner this product is.

Overhead scanner

Maximum scan size:

420 x 297

Optical scanning resolution: How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi.

300 x 300

Input voltage: The voltage (V) which is required to power the product.

5

Scan file formats:

XLS, PDF, JPG

Duplex scanning: Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides.

No

Maximum image resolution: Resolution is the amount of detail held by an image. The higher the resolution, the better (sharper) the image. The maximum image resolution produces the best image.

4160 x 3120

Daily duty cycle (max): The maximum percentage of time a machine or piece of equipment can be in operation for in one day in relation to the time it must remain out of operation. For instance, a max daily duty cycle of 30 percent means it will operate for a maximum 30 percent of the day and then not be used for the other 70 percent of the day.

5000 pages

USB version: Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.

2.0

Built-in display: A display which is part of the product, so you do not need to attach another display.

No

Maximum ISO A-series paper size: The maximum paper size the device can handle, defined by ISO A-series.

A3

Fixed focus:

Yes

USB port: The device features a socket into which a USB cable can be plugged.

Yes

Packaging data

Package weight: Weight of the packaged product.

1470 g

Package height: The distance from the top to the bottom of the packaging.

130 mm

Package depth: The distance from the front to the back of the packaging.

150 mm

Package width: The distance from one side of the packaging to the other.

490 mm

Quantity per pack:

1 pc(s)

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

1.15 kg

Height: The measurement of the product from head to foot or from base to top.

396 mm

Depth: The distance from the front to the back of something.

282 mm

Width: The measurement or extent of something from side to side.

120 mm

Power

Power supply type: The type of power supply which this product uses.

USB

Technical details

Product colour: The colour e.g. red, blue, green, black, white.

Black

Ports & interfaces

USB connector type: The type of USB connector/port that this product has.

USB Type-A

Camera

Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.

CMOS
