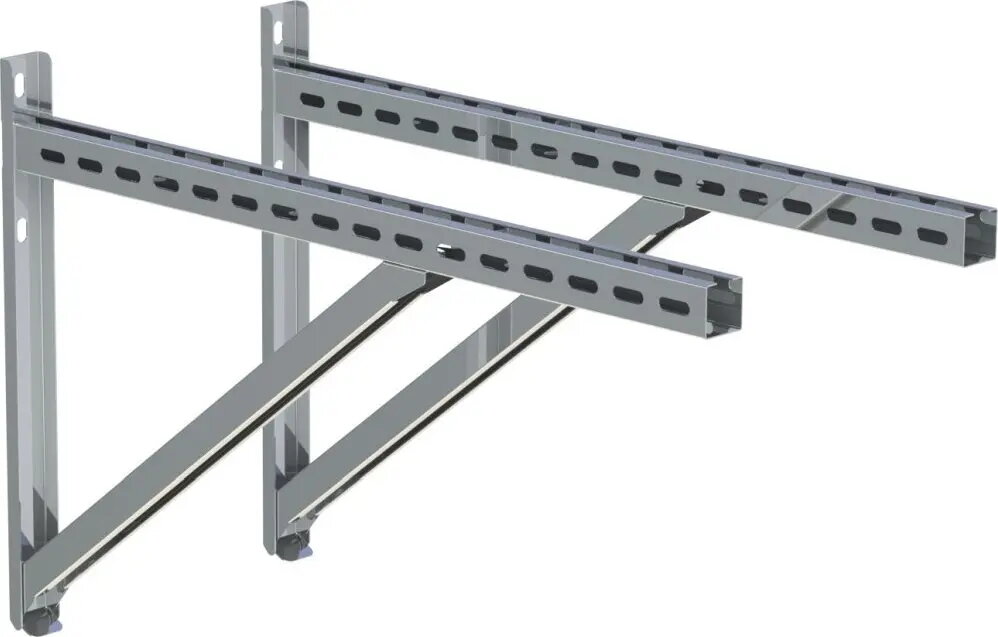

Wall bracket Jeremias typ III L=0750 set of 2 DW393

Wall bracket Jeremias typ III L=0750 set of 2 DW393 is a pair of wall-mounted supports designed to secure chimney and flue components in ventilation and heating systems. Each bracket measures 750 mm in length and is intended to provide rigid, stable fixation of ducting and flue pipes to vertical building structures. The set of two brackets allows installation of horizontal or slightly inclined runs and ensures alignment and load distribution for metal flue systems.

Advantages

The Jeremias wall bracket set offers robust support for flue and chimney components with a uniform 750 mm length that simplifies positioning and alignment. Supplied as a matched pair, the brackets reduce installation time by providing consistent mounting points and help maintain pipe straightness and clearance from the wall. Their design is compatible with typical metal duct and flue profiles used in residential and light-commercial heating and ventilation installations.

Suitable for

• Securing single or twin-wall flue pipes to masonry or framed walls
• Supporting horizontal or near-horizontal sections of chimney runs
• Mounting ventilation ducting where rigid wall fixation is required
• Retrofit or new-build heating and ventilation installations using metal flues

Key specifications

• Bracket length: 750 mm
• Set contents: two wall brackets
• Intended use: wall-mounted support for flue and duct pipes
• Compatibility: designed for standard metal flue and duct profiles
• Function: provides rigid fixation and load distribution for mounted pipes

How to use

Position the brackets at the required spacing along the flue or duct run, ensuring correct alignment and adequate clearance from combustible materials according to local regulations. Secure each bracket to a solid wall substrate using appropriate anchors or fasteners for the wall type; then place the pipe into the bracket and fasten the bracket clamps or straps as required to prevent movement. Use both brackets from the set to support the pipe ends or intermediate sections, verify level and pitch where necessary, and confirm all fastenings are tight before commissioning the heating or ventilation system.

Usage recommendations

Choose anchors and fasteners rated for the wall material and anticipated load. Follow applicable building codes for clearances and support spacing. Inspect brackets and fixings periodically for corrosion and mechanical integrity, especially in corrosive or high-humidity environments.
