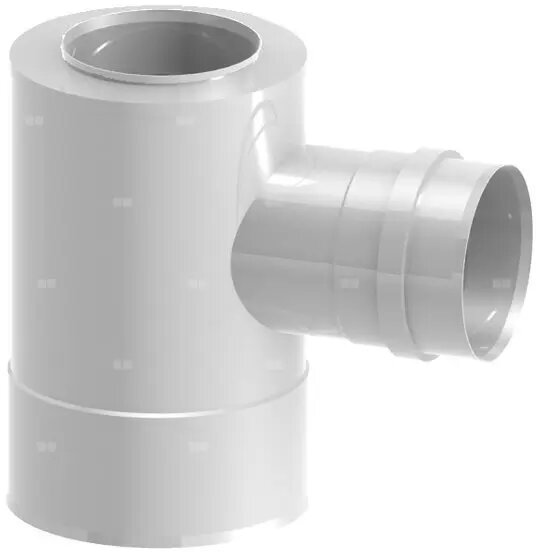

Jeremias collector/connection manifold 60/100 TWIN38Q060/100 for flue system

Jeremias collector/connection manifold 60/100 TWIN38Q060/100 is an accessory designed for flue and ventilation systems that require a combined inlet and outlet route. The component provides a single-point connection and distribution for concentric or twin-pipe arrangements compatible with the 60/100 dimensions, enabling organized routing of exhaust gases and combustion air within chimney assemblies. It is intended to create secure, sealed joins and to simplify installation where multiple flue lines must be routed through a common section.

Advantages

The manifold offers a compact solution for joining concentric or twin pipes in a single assembly, reducing the number of individual connections and potential leak points. Its design supports straightforward alignment of inlet and outlet pipes and helps maintain correct flow paths for exhaust and intake air. By consolidating connections, the collector can shorten installation time and improve the overall neatness and accessibility of the flue run for inspection or maintenance.

Suitable for

• Concentric or twin-pipe flue systems with 60/100 dimensions
• Chimney assemblies requiring combined exhaust and air intake routing
• Residential and light-commercial heating appliance installations
• Applications where compact, single-point connections simplify installation

Key specifications

• Type: Connection manifold (collector) for flue systems
• Compatible pipe dimensions: concentric/twin arrangement with 60/100 cross-section
• Function: Single-point distribution for exhaust and combustion air
• Application zone: Internal chimney or duct runs where multicore routing is required
• Installation orientation: Suitable for inline connections in standard flue assemblies

How to use

Install the Jeremias collector as part of the flue assembly where multiple concentric or twin pipes must be joined. Ensure pipe ends are clean and free of debris before making connections. Position the manifold to align the inner and outer conduits correctly, then secure the pipes according to the flue system manufacturer's instructions, using any required clamps, seals or fastening elements. Verify that seals are intact and that the manifold is mounted to allow inspection access and maintenance where applicable. After installation, perform a system check to confirm correct flow and the absence of leaks.

Usage recommendations

Use the manifold only with compatible 60/100 concentric or twin components and follow the appliance and chimney manufacturer instructions. For safety and compliance, installations should be carried out by qualified personnel, and local building and ventilation codes must be observed. Periodic inspection and maintenance of connections are recommended to ensure long-term performance.
